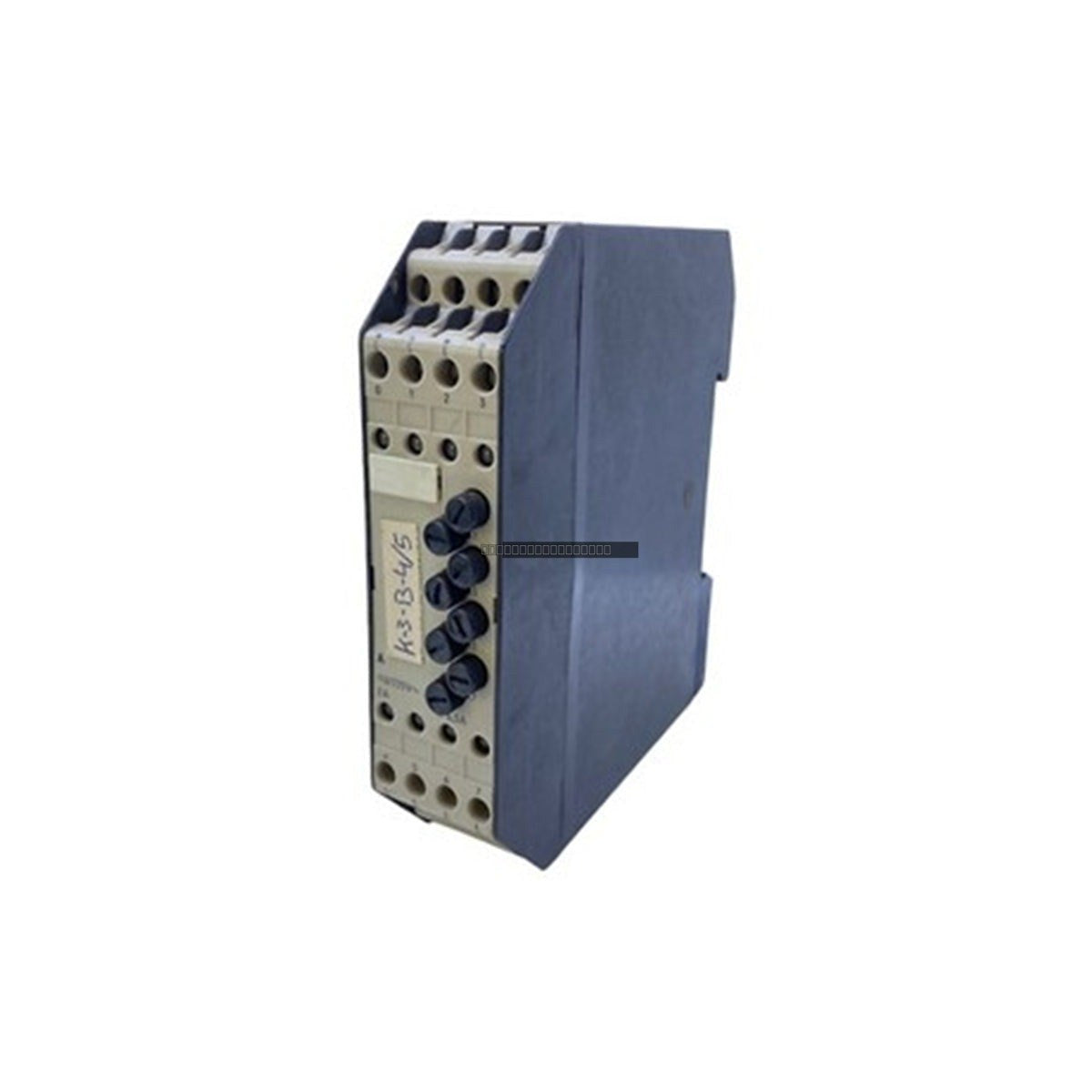

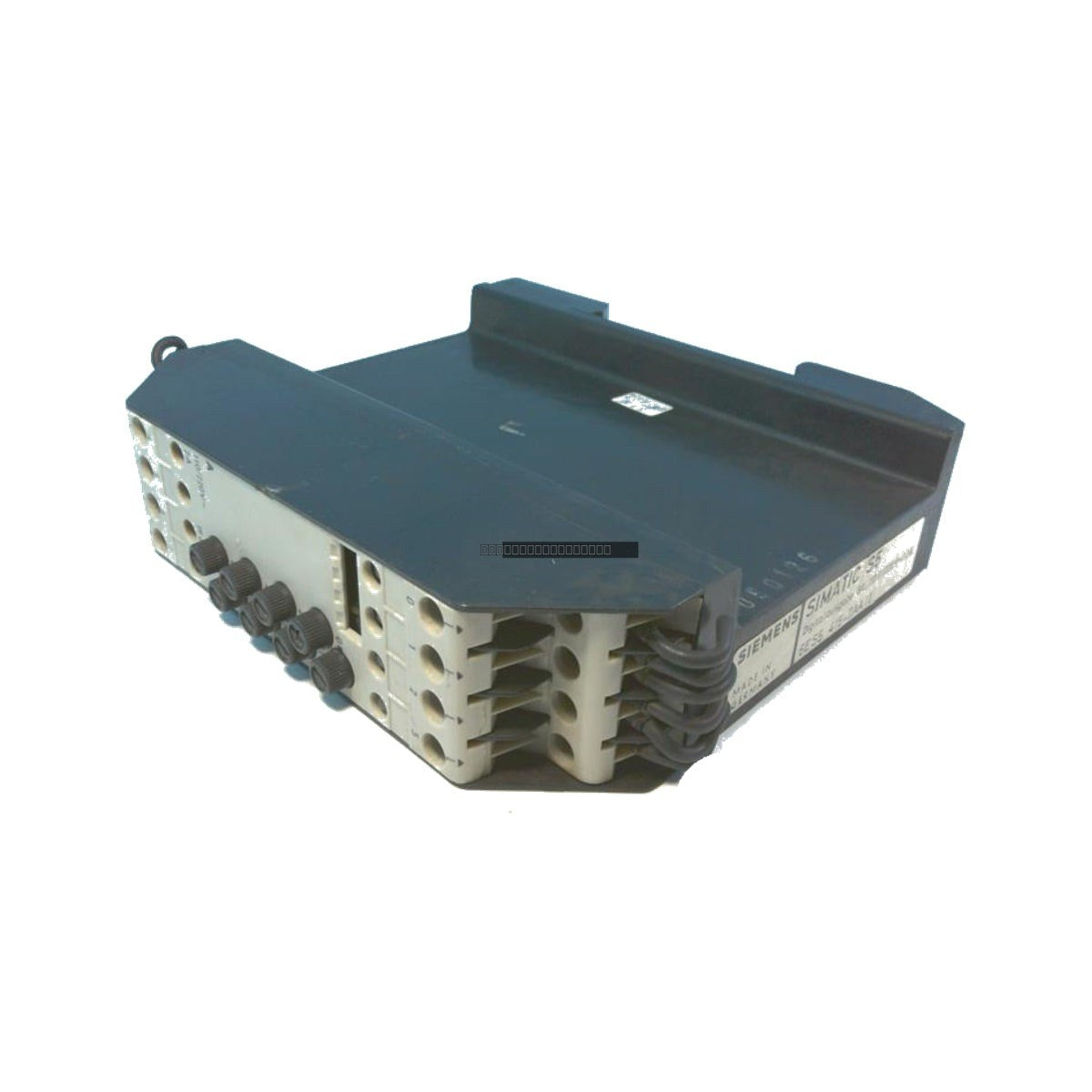

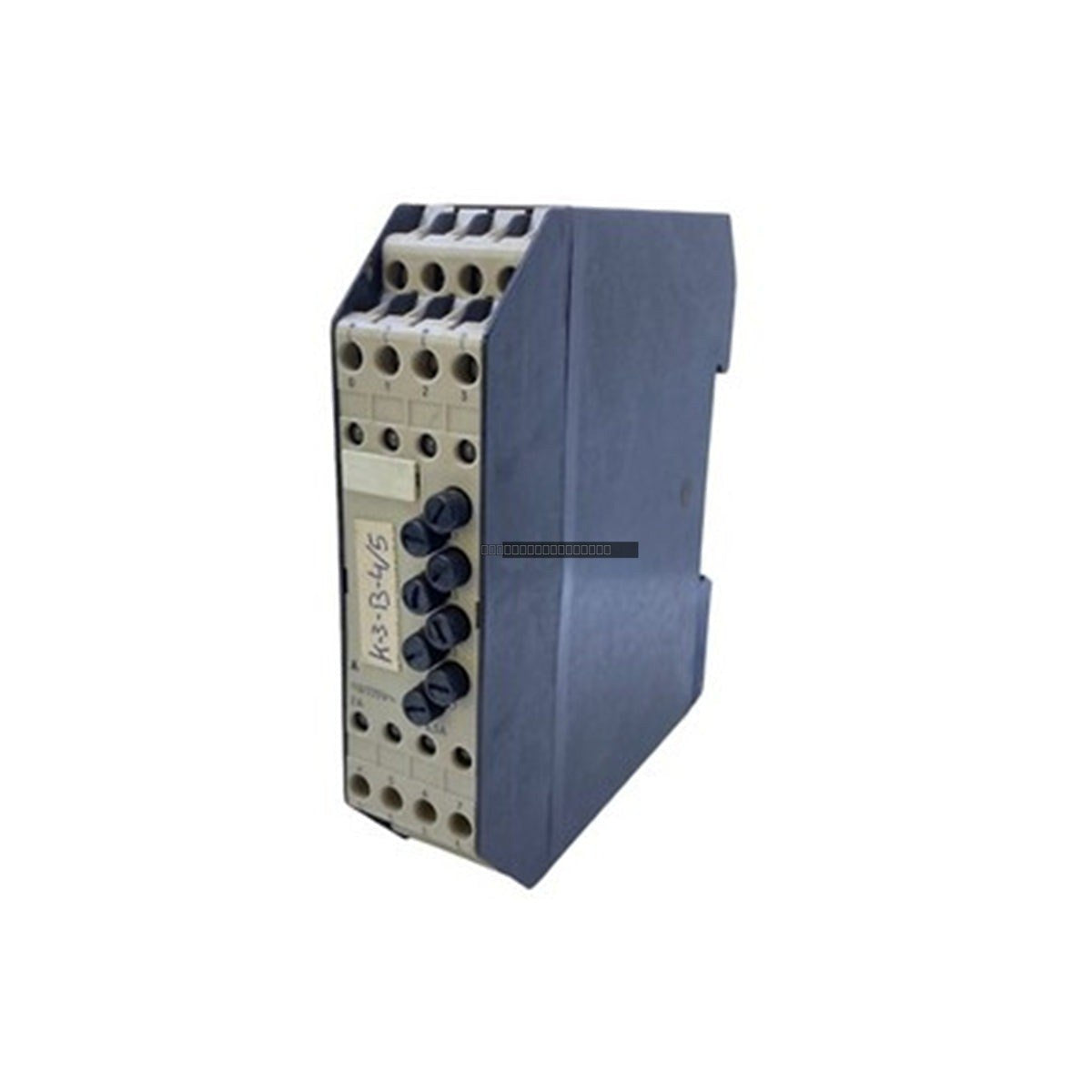

Siemens 6ES5415-7AA11 Simatic S5 Digital Output Module

Siemens 6ES5415-7AA11 Simatic S5 Digital Output Module

Description

The Siemens 6ES5415-7AA11 is a high-performance digital output module designed for the Simatic S5 programmable logic controller (PLC) system. This module serves as a critical interface for controlling field-level actuators,...

23 people are viewing this right now

Availability: Low stock: 1 left

SKU: 6ES5415-7AA11
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5415-7AA11 is a high-performance digital output module designed for the Simatic S5 programmable logic controller (PLC) system. This module serves as a critical interface for controlling field-level actuators, providing reliable switching for industrial loads. Engineered for demanding environments, it facilitates the direct control of solenoids, contactors, and valves, reducing the need for external interposing relays and streamlining control cabinet architecture.

Features

  • Galvanic isolation via optocouplers protects the S5 backplane from field-side voltage transients.
  • Supports 110-220 VAC operational voltage ranges for versatile field integration.
  • Integrated protection circuitry manages inductive kickback from heavy-duty coils.
  • Designed for high-vibration industrial environments with secure front-connector termination.
  • Optimized for low power consumption from the internal S5 bus.

Applications

This output module is widely utilized in heavy industrial sectors, including petrochemical processing, water treatment facilities, and automated mining infrastructure. It is specifically suited for applications requiring robust switching of high-capacity AC loads where reliability and system protection are paramount.

Technical Specifications

Model 6ES5415-7AA11
Module Type Digital Output Module
System Compatibility Simatic S5
Output Voltage 110-220 VAC
Current Rating 2 A per channel
Max Aggregate Current 8 A
Power Consumption Max 4.5 W (from S5 bus)
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the S5 PLC rack is powered down before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
  • Verify that the front connector is fully seated and locked to ensure vibration resistance.
  • Route high-voltage field wiring separately from low-voltage signal cables to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the S5 rack chassis to maintain galvanic isolation integrity.
  • Verify that the total load current does not exceed the 8 A aggregate limit during peak operation.

FAQ

What is the primary function of the 6ES5415-7AA11?

This module acts as an isolated digital output interface for the Siemens Simatic S5 system, allowing the PLC to control high-voltage AC field devices directly.

Does this module require external relays?

Due to its high-amperage switching capacity of 2 A per channel, it can often drive field devices directly, potentially eliminating the need for intermediate interposing relays.

Is this module compatible with DC loads?

No, this specific model is designed for 110-220 VAC applications. Please verify your field load requirements before installation.
