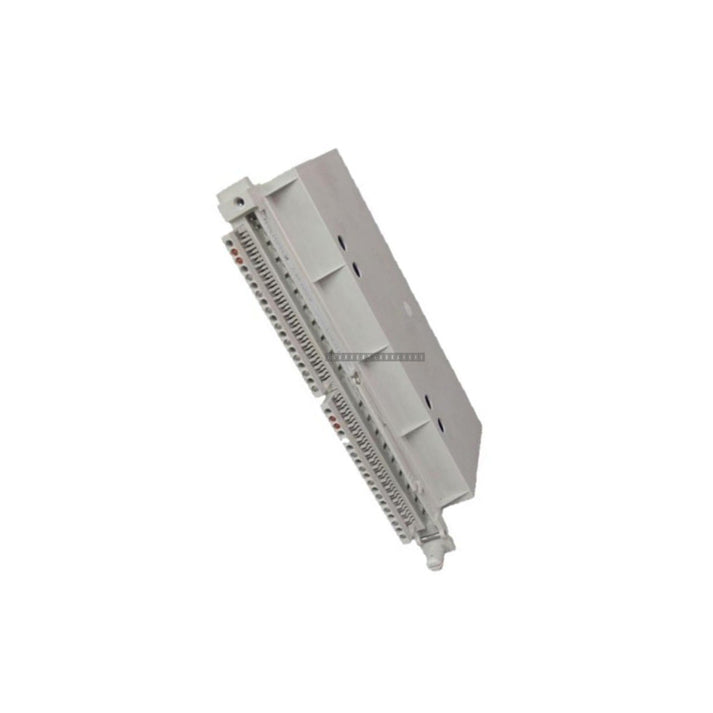

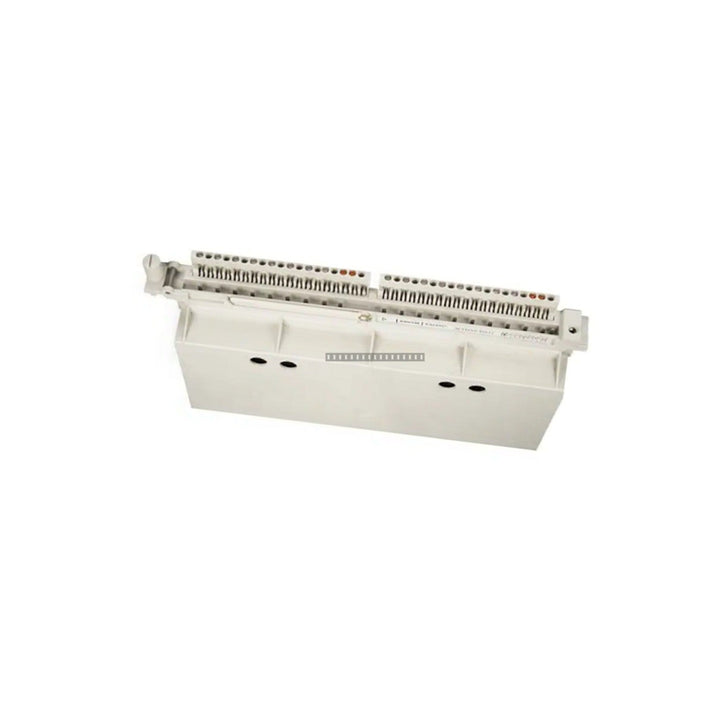

Siemens 6ES5455-4UA12 Simatic S5 Digital Output Module

Siemens 6ES5455-4UA12 Simatic S5 Digital Output Module

Description

The Siemens Simatic S5 6ES5455-4UA12 is a high-density digital output module designed for integration within the Simatic S5-135 and S5-155 programmable logic controller series. This module provides 16 independent digital...

16 people are viewing this right now

Availability: Low stock: 3 left

SKU: 6ES5455-4UA12
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens Simatic S5 6ES5455-4UA12 is a high-density digital output module designed for integration within the Simatic S5-135 and S5-155 programmable logic controller series. This module provides 16 independent digital output channels, facilitating the reliable switching of field loads based on commands from the host CPU. Engineered for demanding industrial environments, it supports process continuity in applications such as chemical processing, thermal power generation, and heavy industrial automation by managing inductive and resistive loads with high stability.

Features

  • 16-Channel High-Density Design: Optimized for efficient rack space utilization while maintaining performance under full thermal load.
  • Galvanic Isolation: Integrated optocouplers isolate internal logic from field-side voltage spikes, protecting the PLC backplane from EMI and surge disturbances.
  • Diagnostic Feedback: Supports synchronized bit manipulation and provides status information regarding short-circuit and overload conditions to the central processor.
  • Robust Construction: Built for reliability in harsh industrial conditions, ensuring consistent switching frequencies and reduced downtime.

Technical Specifications

Model 6ES5455-4UA12
Brand Siemens
Product Family Simatic S5-135 / 155
Module Type Digital Output Module
Output Points 16 Channels
Power Consumption 3.8 W (typical)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Power Off: Ensure all power to the S5 rack is disconnected before inserting or removing the module to prevent electrical damage or bus errors.
  • ESD Handling: Use proper electrostatic discharge (ESD) precautions when handling the module to protect sensitive internal circuitry.
  • Rack Seating: Ensure the module is fully seated in the S5 rack slot and that the backplane connectors are properly aligned before securing the module.
  • Wiring: Route field wiring away from high-voltage cables and sources of high EMI to maintain signal integrity.
  • Cooling: Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the 6ES5455-4UA12?

This module acts as a digital output interface for Siemens S5-135 and S5-155 PLCs, allowing the controller to switch 16 external field loads.

Is this module compatible with other S5 series?

This specific model is designed for the S5-135 and S5-155 series. Please verify your specific rack and CPU compatibility before installation.

Does this module provide protection against electrical surges?

Yes, the module features galvanic isolation via optocouplers to protect the PLC backplane from field-side voltage spikes and EMI.
