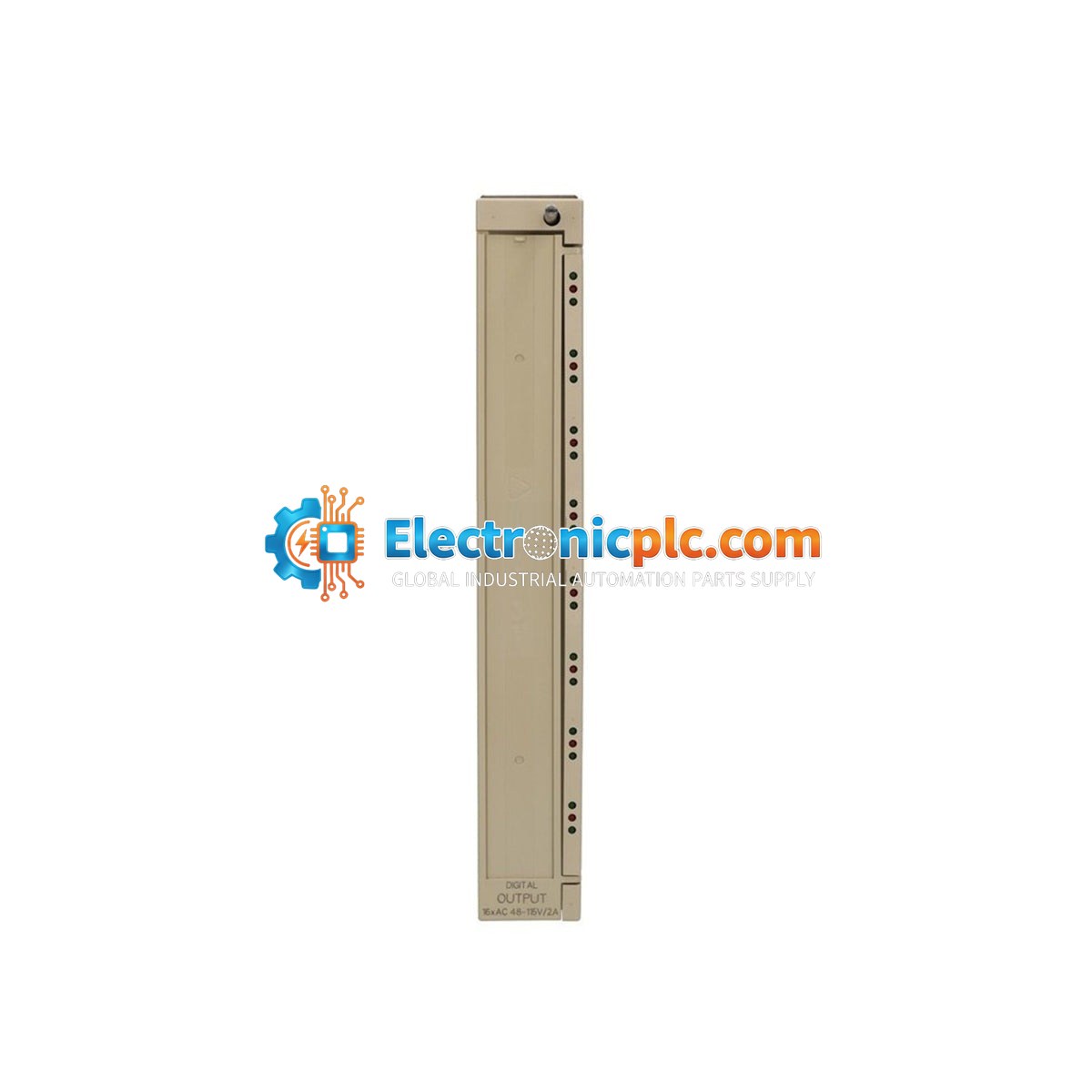

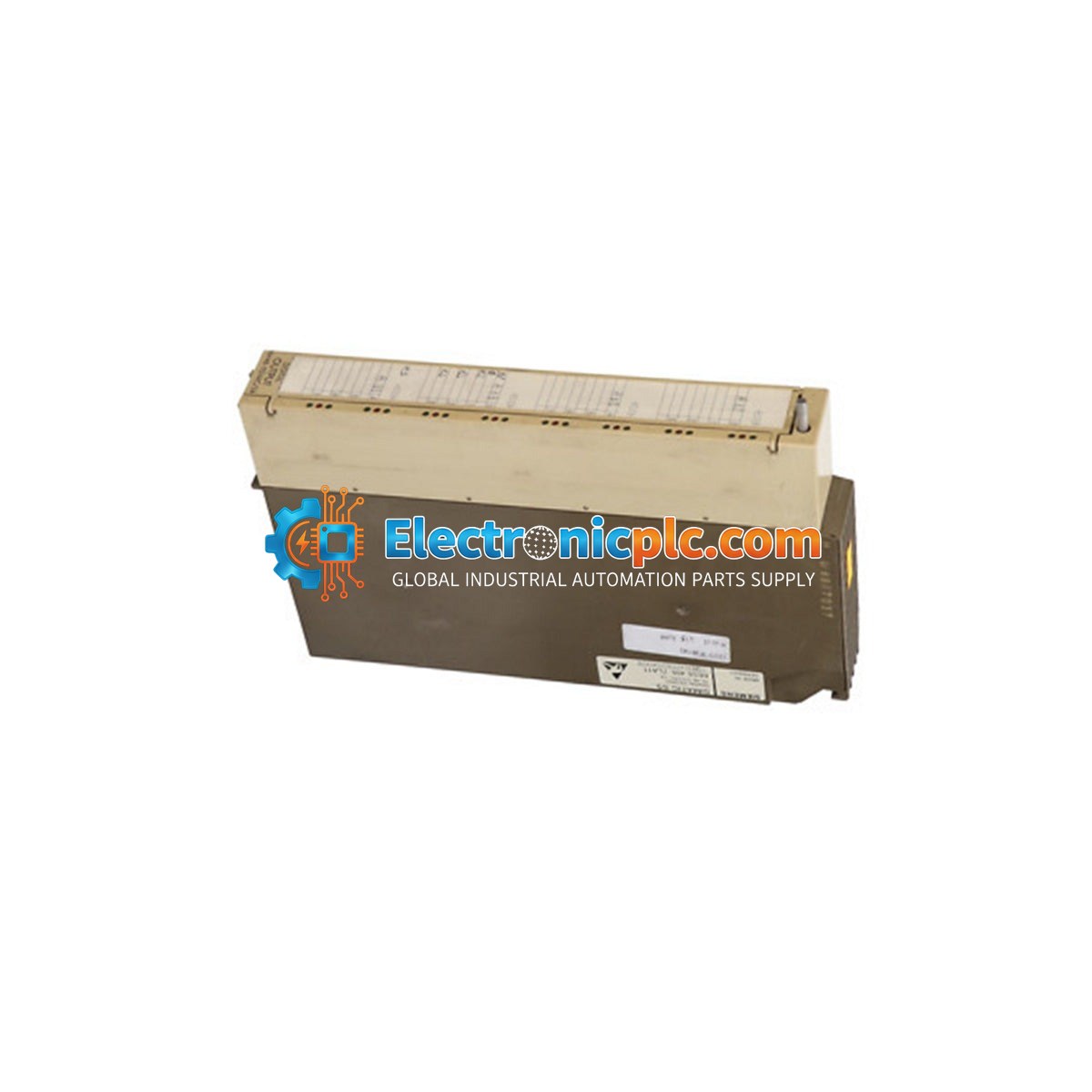

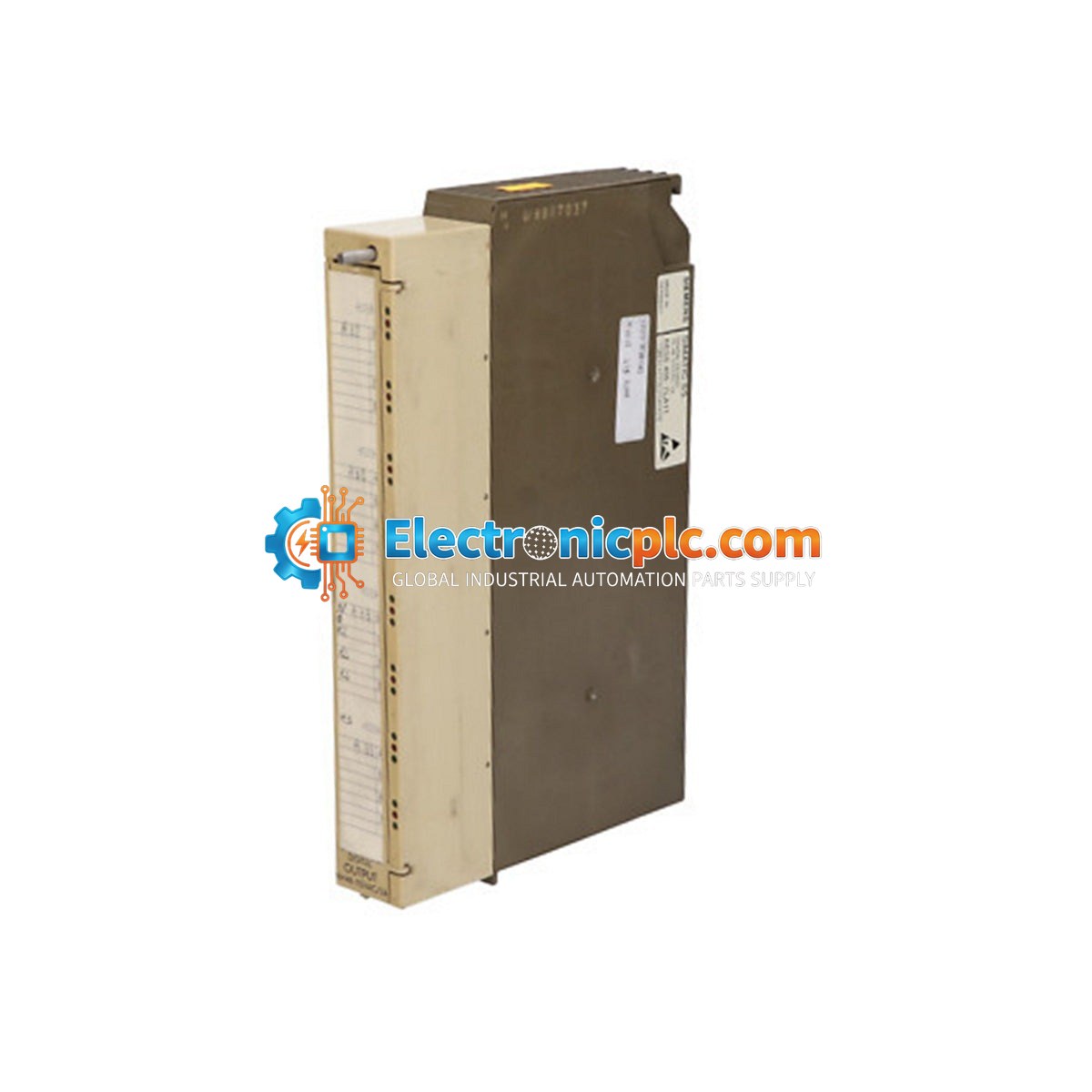

Siemens 6ES5455-7LA11 Simatic S5 Digital Output Module

Siemens 6ES5455-7LA11 Simatic S5 Digital Output Module

Description

The Siemens 6ES5 455-7LA11 is a high-density digital output module designed for the Simatic S5-115 controller series. This module serves as a critical interface between the central processing unit and...

29 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6ES5455-7LA11
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5 455-7LA11 is a high-density digital output module designed for the Simatic S5-115 controller series. This module serves as a critical interface between the central processing unit and industrial field devices, providing 16 discrete output channels rated for 48/115 VAC operation. It is engineered for demanding industrial environments, including power generation, chemical processing, and large-scale manufacturing, where reliable switching of AC-driven contactors, solenoids, or signal lamps is required. By ensuring robust signal isolation, this module helps maintain system integrity and reduces the risk of erratic behavior in legacy control architectures.

Features

  • 16 discrete output channels for AC load control.
  • Optimized for 48/115 VAC power domains.
  • Integrated optical isolation for protection against field-side voltage transients and back-EMF.
  • Direct rack-mounting compatibility with the Siemens Simatic S5-115 series.
  • Supports switching of inductive and resistive loads up to 1 Amp per channel.

Applications

This module is typically deployed in legacy automation systems for controlling high-voltage AC field devices. Common applications include the operation of motor starters, solenoid valves, industrial relays, and visual status indicators within S5-115 PLC racks.

Technical Specifications

Model 6ES5 455-7LA11
Series Simatic S5-115
Number of Outputs 16
Output Voltage 48 to 115 VAC
Max Load Current 1 Amp per channel
Internal Logic Supply 24 VDC
Operating Temperature 0 to 60 degC
Isolation Optically isolated

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
  • The module is designed for direct insertion into the S5-115 rack backplane; ensure proper seating to maintain electrical contact.
  • Use appropriate shielded cabling for field wiring to minimize EMI interference, especially when driving inductive loads.
  • Ensure that the load current does not exceed the 1 Amp per channel rating to prevent thermal degradation.
  • Maintain adequate ventilation within the control cabinet to keep the ambient temperature within the 0 to 60 degC range.
  • Follow standard ESD precautions when handling the module to protect internal electronic components.

FAQ

Is this module compatible with S5-135 or S5-155 series racks?

The 6ES5 455-7LA11 is specifically designed for the S5-115 series. Compatibility with other S5 series racks should be verified against the specific backplane and power supply requirements of those systems.

Does this module require an external power supply for the outputs?

Yes, the module requires an external AC power source for the output channels (48/115 VAC), while the internal logic is powered by the 24 VDC supply from the S5 rack backplane.
