Description

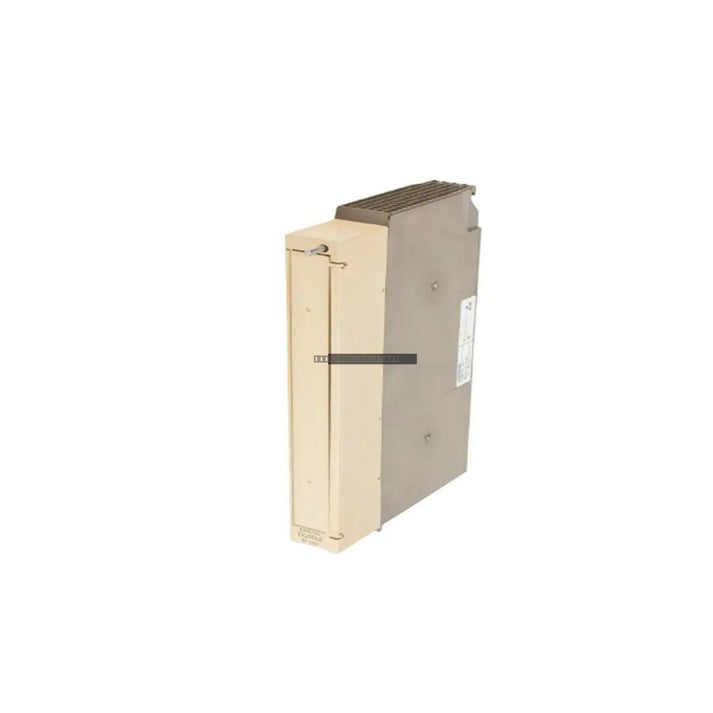

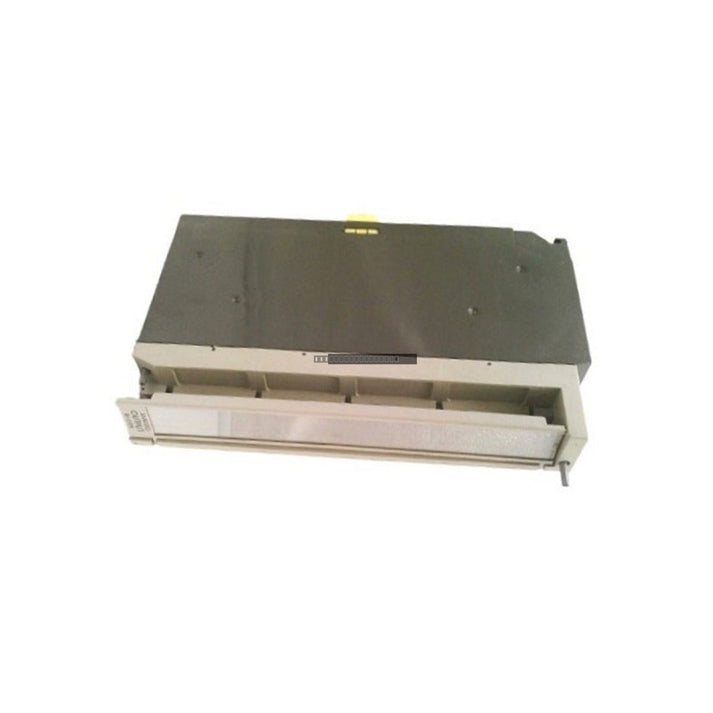

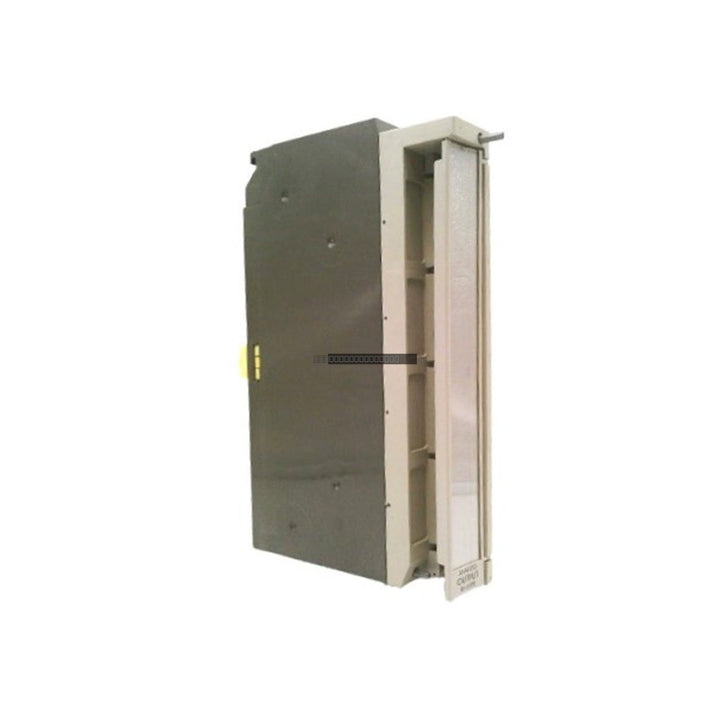

The Siemens 6ES5470-7LB12 is a high-performance analog output module designed for integration within the SIMATIC S5-115U and S5-115F controller families. This module provides eight independent, galvanically isolated output channels, enabling the conversion of digital control data into precise bipolar voltage signals. It is primarily utilized in industrial automation environments to drive proportional actuators, control valves, and speed regulation hardware, ensuring reliable and deterministic process control.

Features

• Provides 8 independent analog output channels.
• Output signal range of +/- 10 V for versatile control applications.
• Floating, galvanically isolated circuit architecture to prevent ground loops and protect internal backplane logic.
• Designed for seamless integration into standard S5-115 series rack systems.
• Robust construction suitable for demanding industrial conditions including high-vibration environments.

Applications

This module is engineered for critical process control tasks in sectors such as chemical manufacturing, oil and gas refining, and heavy-duty extraction operations. It serves as a vital interface between the S5 PLC control registers and field-side analog instrumentation, such as proportional valves and positioners.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the rack slot and that the bus connectors are fully engaged.
• Maintain proper grounding practices for the cabinet to ensure the efficacy of the galvanic isolation.
• Route field wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
• Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the 6ES5470-7LB12 module?

This module converts digital control values from the Siemens S5 PLC into analog voltage signals (+/- 10 V) to control field equipment like valves and actuators.

Does this module require external power for its outputs?

The module is designed to operate within the S5-115U rack architecture; please consult the specific wiring diagram for your system's power distribution requirements to ensure correct signal voltage levels.

Is this module galvanically isolated?

Yes, the 6ES5470-7LB12 features a floating, galvanically isolated design to protect the CPU from field-side electrical noise and transient voltage spikes.
