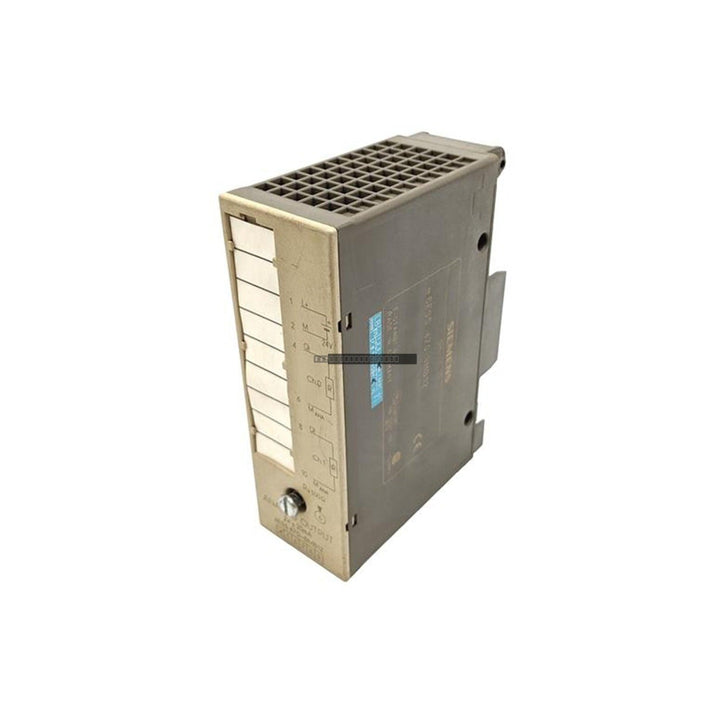

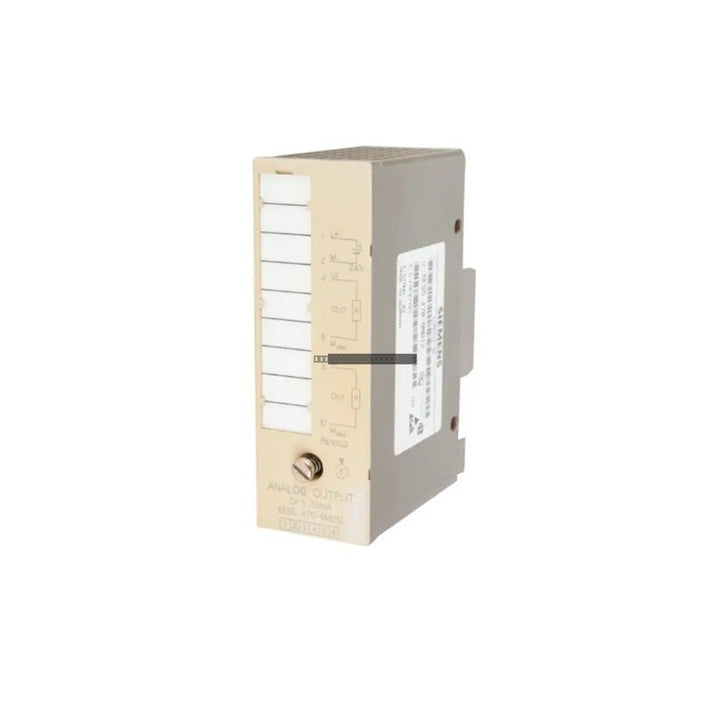

Siemens 6ES5470-8MB12 SIMATIC S5 Analog Output Module

Siemens 6ES5470-8MB12 SIMATIC S5 Analog Output Module

Product Overview

The Siemens 6ES5470-8MB12 is a specialized analog output module engineered for the SIMATIC S5 automation family. This component serves as a reliable interface for S5-90U, S5-95U, and S5-100U programmable...

26 people are viewing this right now

Availability: Low stock: 4 left

SKU: 6ES5470-8MB12
Vendor: Siemens
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Siemens 6ES5470-8MB12 is a specialized analog output module engineered for the SIMATIC S5 automation family. This component serves as a reliable interface for S5-90U, S5-95U, and S5-100U programmable logic controllers, as well as ET 100U and ET 200U distributed I/O systems. It is primarily utilized in legacy industrial control applications to facilitate precise signal transmission to field devices such as actuators, control valves, and variable speed drives.

Features

  • Provides two independent, galvanically isolated analog output channels for enhanced signal integrity.
  • Supports a bipolar current output range of +/- 20 mA.
  • Designed for seamless integration with S5 backplane bus architectures.
  • Optimized for stable operation in demanding environments, including manufacturing and process automation.
  • High-density design suitable for compact control cabinet layouts.

Applications

This module is essential for maintaining the operational longevity of legacy automation systems. Typical deployment scenarios include:

  • Metal processing and smelting control loops.
  • Textile production machinery speed regulation.
  • Municipal water and wastewater treatment pumping stations.
  • Retrofitting and maintenance of aging infrastructure requiring original hardware compatibility.

Technical Specifications

Model 6ES5470-8MB12
Brand Siemens
Series SIMATIC S5 / ET 100U
Module Type Analog Output Module
Channels 2
Output Signal +/- 20 mA
Galvanic Isolation Yes
Power Consumption 1.5 W
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the PLC system power is fully disconnected before inserting or removing the module from the backplane.
  • Verify that the module is securely seated in the rack to maintain proper bus communication.
  • Use shielded cabling for all analog output signals to minimize the influence of electromagnetic interference (EMI) from high-power equipment.
  • Maintain adequate spacing within the cabinet to allow for proper airflow, as the module operates within a 0 to 60 deg C range.
  • Check for proper grounding of the control cabinet to prevent ground loops, especially when interfacing with remote field devices.

FAQ

Q: Is this module compatible with modern S7 systems?
A: No, the 6ES5470-8MB12 is designed specifically for the legacy SIMATIC S5 and ET 100U/200U product lines and is not natively compatible with S7-300 or S7-1500 systems.

Q: Does this module require external power for the output signal?
A: Please refer to the specific system manual for your S5 configuration; the module draws internal power from the backplane, but field-side loop requirements must be verified against your specific wiring diagram.
