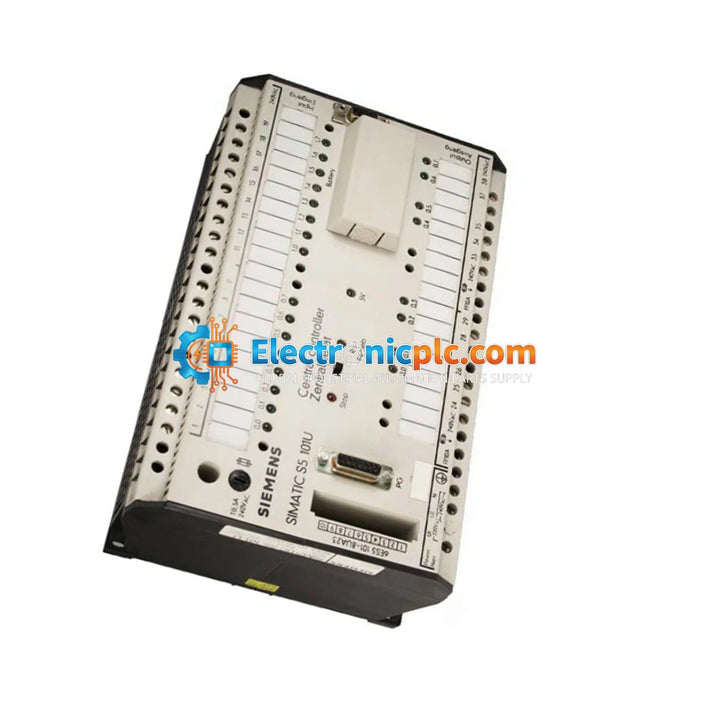

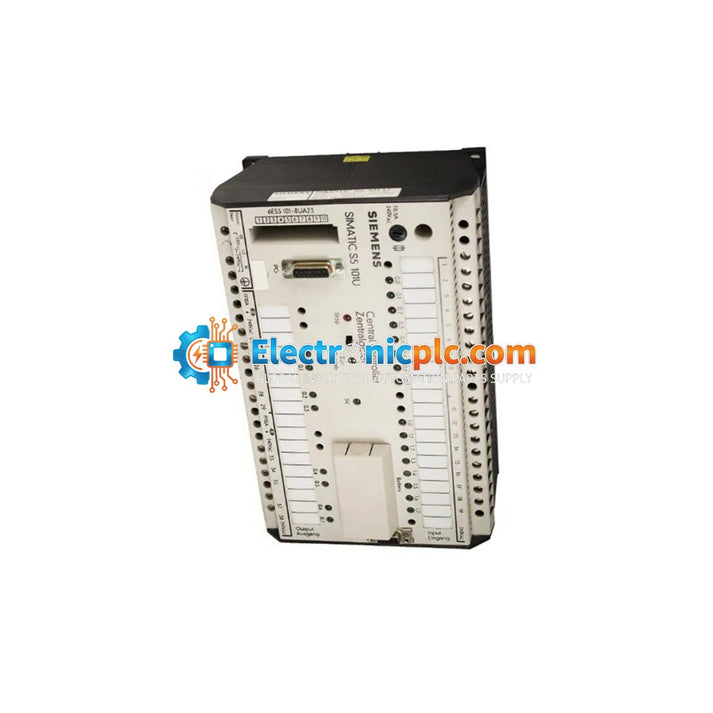

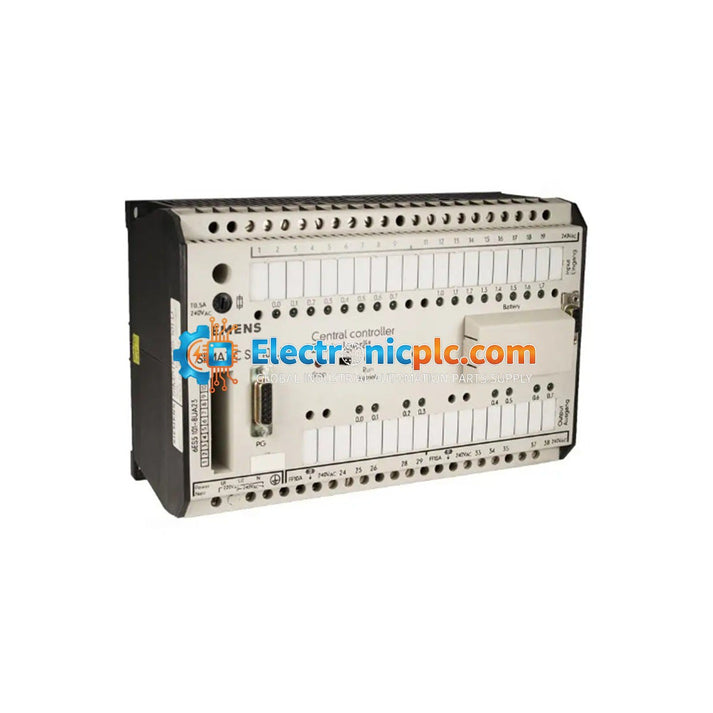

Siemens 6ES5101-8UA23 Simatic S5-101U Central Controller

Siemens 6ES5101-8UA23 Simatic S5-101U Central Controller

Description

The Siemens 6ES5101-8UA23 is a central controller module (Zentralgeraet) designed for the Simatic S5-101U automation system. This compact unit serves as the primary processing core for standalone machinery, integrating logic...

29 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6ES5101-8UA23
Vendor: Siemens
Category: PLC Central Controller
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5101-8UA23 is a central controller module (Zentralgeraet) designed for the Simatic S5-101U automation system. This compact unit serves as the primary processing core for standalone machinery, integrating logic execution, system memory, and localized I/O management into a single hardware footprint. It is engineered for deterministic binary processing, making it suitable for legacy automation environments such as material handling, conveyor systems, and auxiliary plant ventilation.

Features

  • Integrated micro-sequencer optimized for high-speed boolean operations, timers, and counters.
  • Direct backplane mapping of digital and analog signals to internal process image registers.
  • Galvanic isolation via high-frequency optocouplers to mitigate electrical noise and supply voltage interference.
  • Onboard programming interface for direct connection to S5 programming units or operator panels.
  • Compact design suitable for space-constrained control cabinets.

Applications

This controller is widely utilized in legacy industrial sectors including raw material processing, mining conveyor control, and power plant auxiliary systems where the S5-101U framework remains the established control standard.

Technical Specifications

Model 6ES5101-8UA23
Series Simatic S5-101U
Operating Temperature 0 to 55 deg C
Power Consumption 15 W
Interface Built-in Programming Port

Installation Guidelines

  • Ensure the control cabinet power is fully disconnected before inserting or removing the module to prevent electrical damage.
  • Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures below 55 deg C.
  • Use shielded cables for all I/O connections to minimize EMI/RFI interference.
  • Ensure proper chassis grounding to the cabinet backplane to maintain the integrity of the galvanic isolation.
  • Handle the module using ESD-safe practices to protect internal logic components.

FAQ

Is this module compatible with other S5 series systems?

The 6ES5101-8UA23 is specifically designed for the S5-101U series. Compatibility with other S5 series (such as S5-115U or S5-135U) is not supported due to differences in backplane architecture and instruction sets.

Does this unit require a separate power supply?

The unit requires a compatible power supply input as specified by the S5-101U system requirements. Please verify your rack power distribution before installation.
