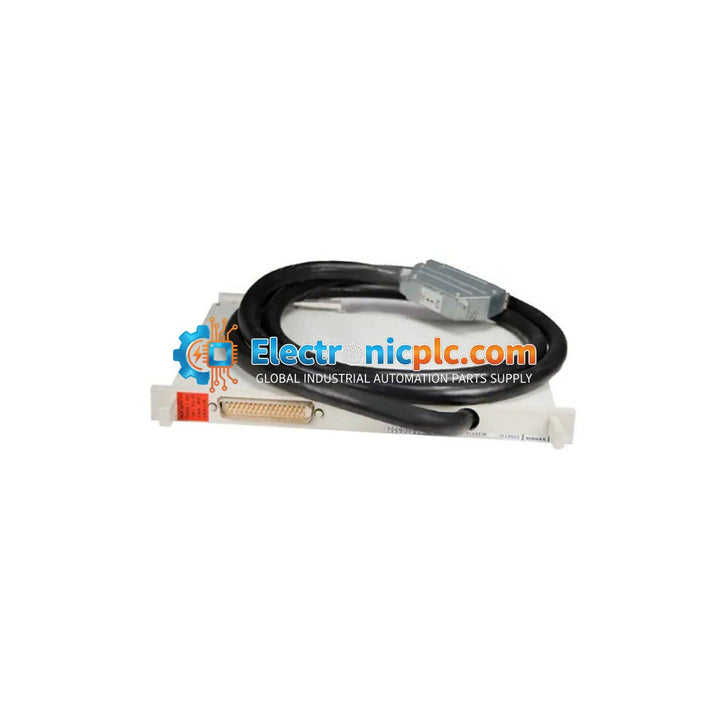

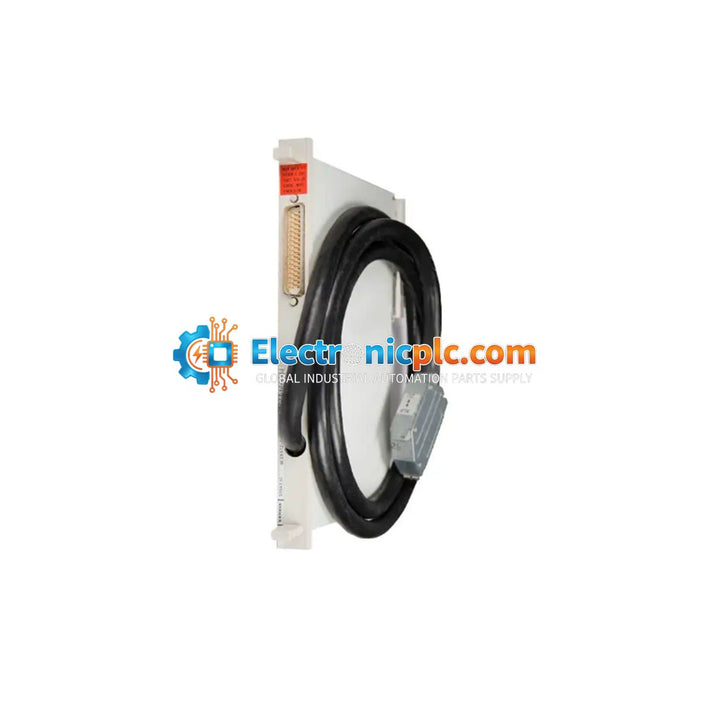

Siemens 6ES5312-5CA21 Simatic S5 Interface Module

Siemens 6ES5312-5CA21 Simatic S5 Interface Module

Description

The Siemens 6ES5312-5CA21 is an expansion unit interface module engineered for the Simatic S5-135/155 automation series. This module acts as a vital bridge for centralized configuration, facilitating reliable interconnection between...

16 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6ES5312-5CA21
Vendor: Siemens
Category: Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5312-5CA21 is an expansion unit interface module engineered for the Simatic S5-135/155 automation series. This module acts as a vital bridge for centralized configuration, facilitating reliable interconnection between central controllers and expansion units. It supports communication distances of up to 200 meters, ensuring consistent data transmission and synchronization across distributed automation architectures in demanding industrial environments.

Features

  • Designed for seamless integration with Simatic S5-135/155 rack-mounted systems.
  • Supports high-speed data transmission over distances up to 200 meters.
  • Provides signal buffering and electrical isolation to mitigate ground loop interference.
  • Compact, hardware-efficient design powered directly via the host rack backplane.
  • Includes a 1.5-meter cable for immediate cabinet-level installation.

Applications

This interface module is typically utilized in large-scale industrial control systems, including mineral processing plants, heavy manufacturing facilities, and power utility substations. It is essential for extending the physical footprint of S5 control systems while maintaining deterministic performance and signal integrity.

Technical Specifications

Model 6ES5312-5CA21
Product Family Simatic S5-135/155
Maximum Distance 200 meters
Operating Temperature 0 to 60 degC
Power Source S5 backplane
Included Cable 1.5 meters

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module from the rack.
  • Verify that the module is correctly seated in the S5 rack backplane to ensure proper electrical contact.
  • Route communication cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal quality.
  • Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
  • Confirm that the total cable length does not exceed the 200-meter limit for the specific configuration.

FAQ

What is the primary function of the 6ES5312-5CA21?

This module serves as an interface for connecting expansion racks to a primary Siemens S5-135/155 controller, allowing for the extension of the control bus up to 200 meters.

Does this module require an external power supply?

No, the module is designed to be powered directly by the host rack backplane, which helps keep the enclosure profile compact and reduces heat generation.
