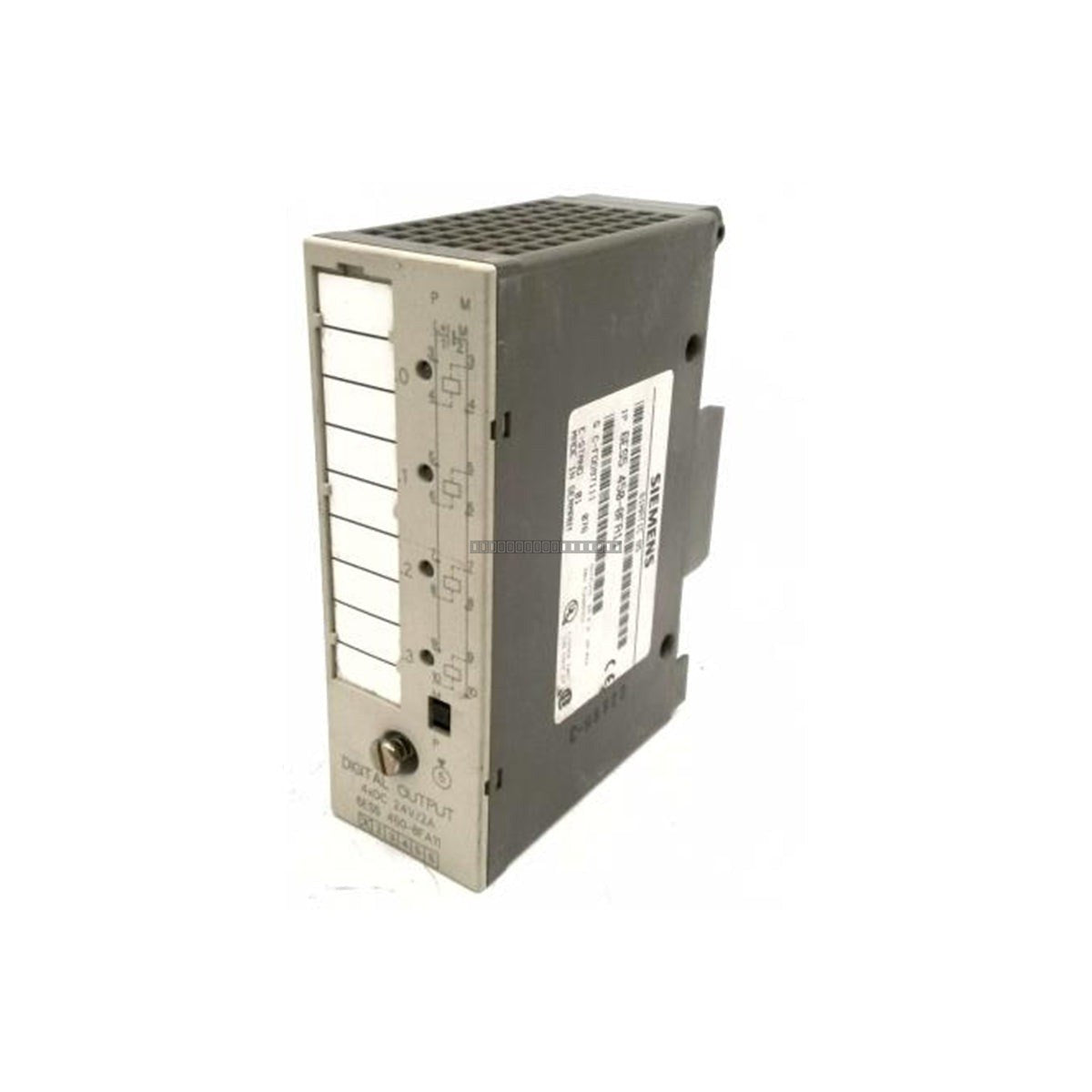

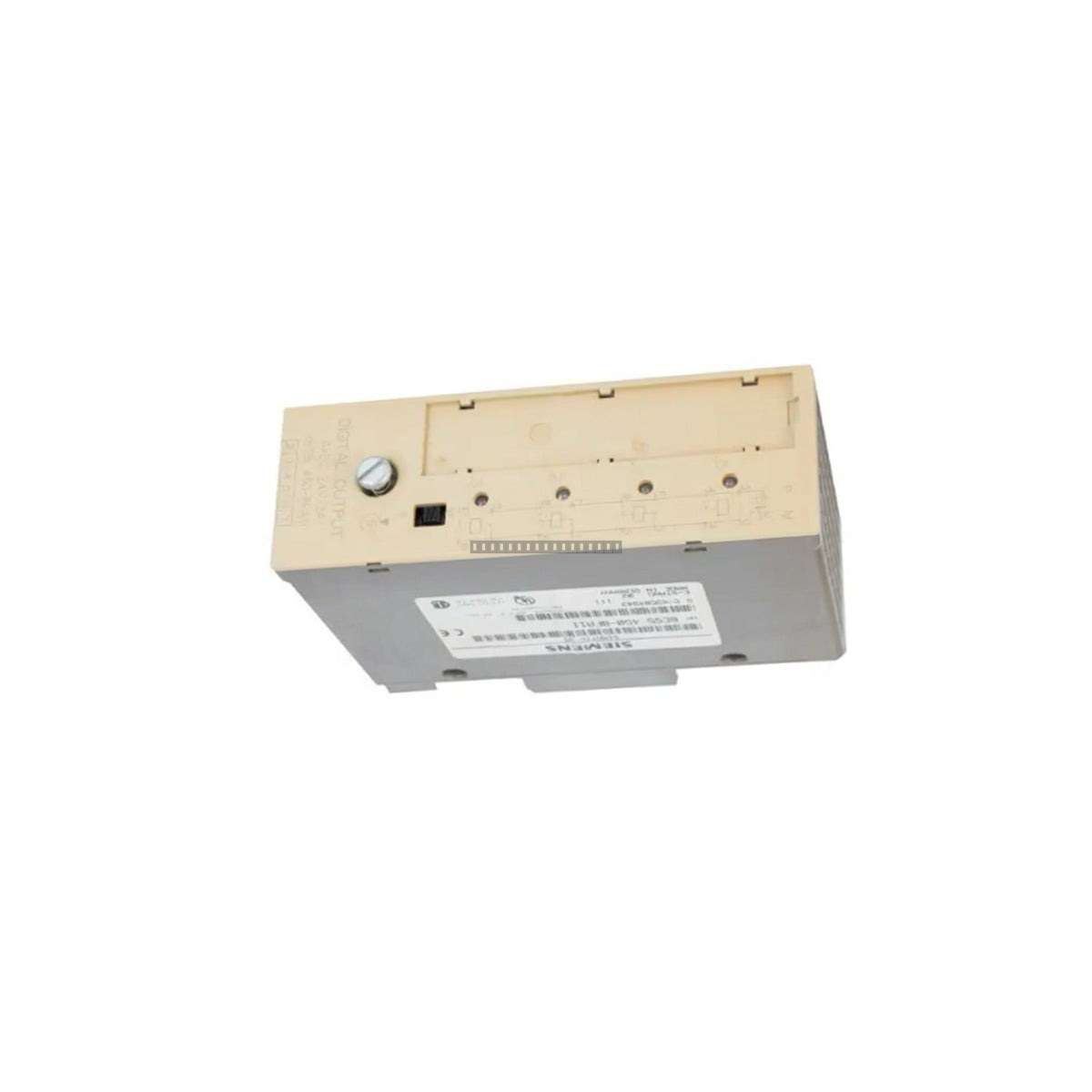

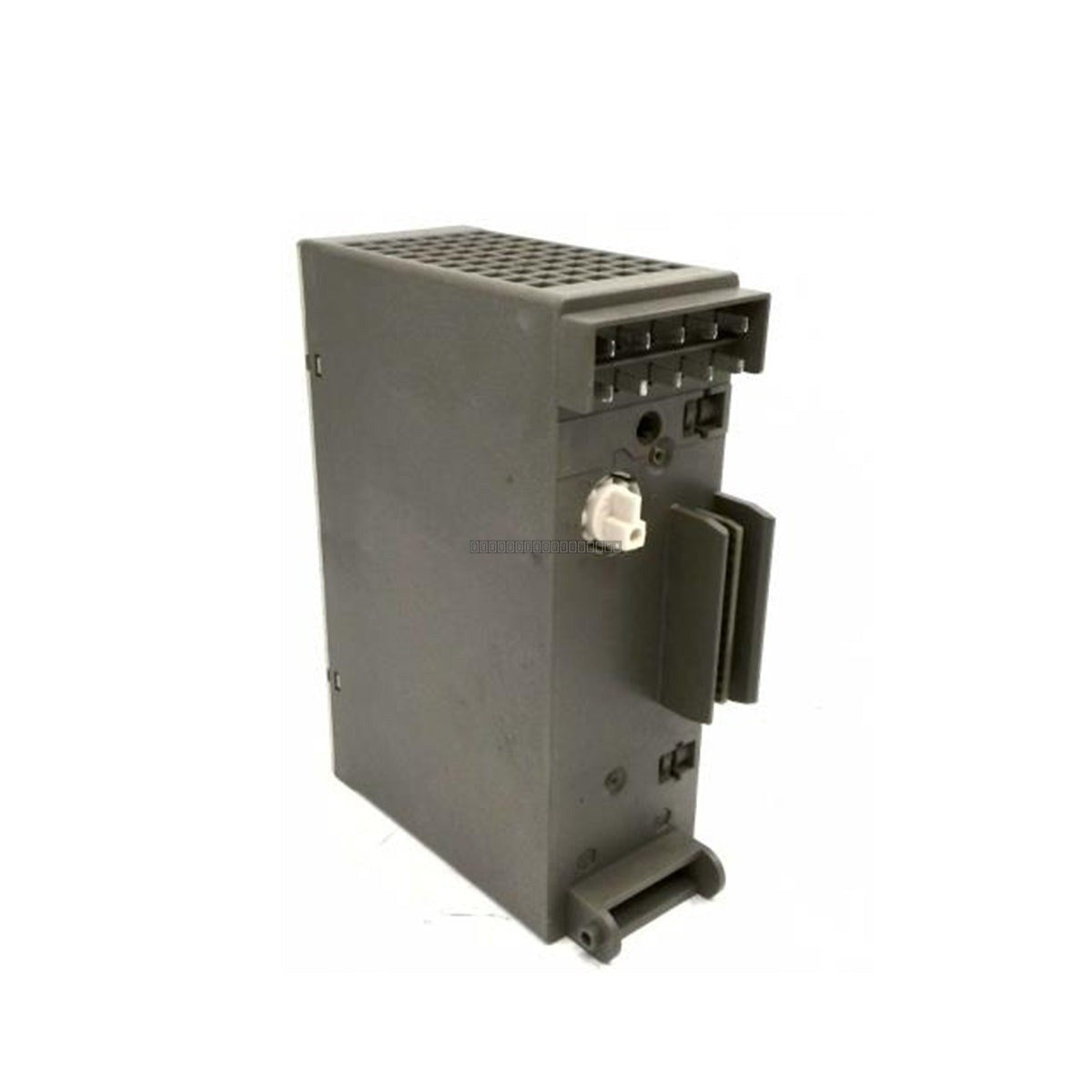

Siemens 6ES5450-8FA11 SIMATIC S5 Digital Output Module

Siemens 6ES5450-8FA11 SIMATIC S5 Digital Output Module

Description

The Siemens 6ES5450-8FA11 is a failsafe digital output module designed for the SIMATIC S5-96F automation system. This module provides 5 floating output channels, each rated for 24 VDC operation with...

29 people are viewing this right now

Availability: Low stock: 5 left

SKU: 6ES5450-8FA11
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5450-8FA11 is a failsafe digital output module designed for the SIMATIC S5-96F automation system. This module provides 5 floating output channels, each rated for 24 VDC operation with a load capacity of up to 2 A per channel. Engineered for safety-critical applications, it is intended for use in environments where deterministic response times and high reliability are required, such as emergency shutdown systems, power distribution, and hazardous process monitoring.

Features

  • 5 galvanically isolated (floating) digital output channels.
  • Designed specifically for the S5-96F safety-related programmable controller.
  • Integrated self-diagnostic circuitry for continuous output health monitoring.
  • Failsafe architecture to mitigate risks of controller failure and ensure safe state transitions.
  • Robust construction resistant to electromagnetic interference in industrial environments.

Applications

This module is primarily utilized in safety-instrumented systems (SIS) where reliable control of actuators or safety-critical equipment is necessary. Typical applications include chemical processing plants, power generation facilities, and automated manufacturing lines requiring high-integrity safety logic.

Technical Specifications

Model 6ES5450-8FA11
System SIMATIC S5-96F
Output Channels 5
Output Type Floating / Failsafe
Nominal Voltage 24 VDC
Load Current 2 A per channel
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the S5-96F rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is fully seated in the backplane connector to ensure proper signal transmission.
  • Use shielded cabling for output connections to minimize EMI susceptibility in high-noise industrial environments.
  • Maintain adequate ventilation around the S5-96F rack to ensure the module operates within its specified temperature range.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What is the primary function of the 6ES5450-8FA11?

It is a failsafe digital output module used to provide reliable 24 VDC control signals for safety-critical applications within the SIMATIC S5-96F system.

Are the outputs isolated?

Yes, the module features galvanically isolated (floating) outputs to prevent ground loops and electrical interference.

What is the maximum load current per channel?

The module is rated for a load current of up to 2 A per channel.
