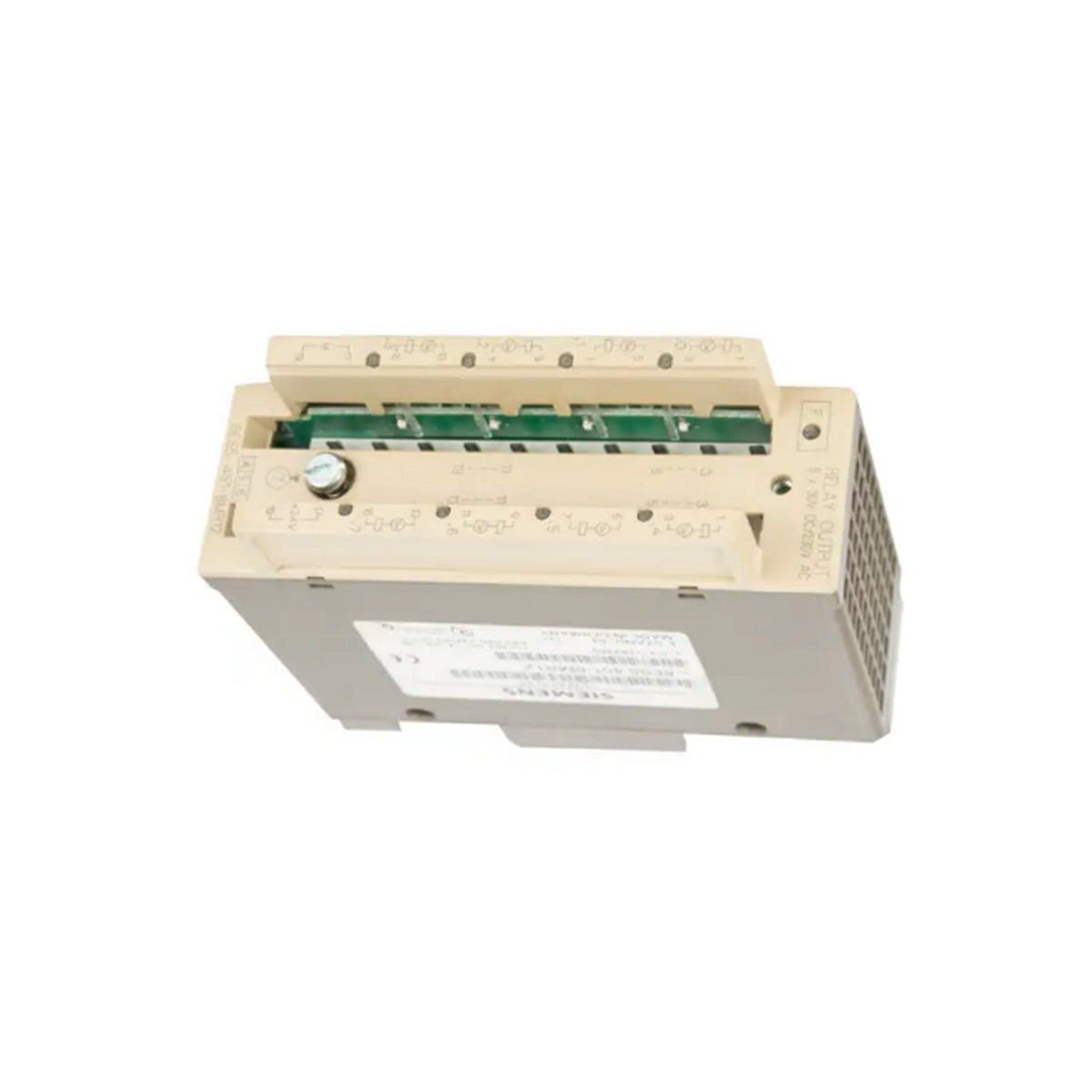

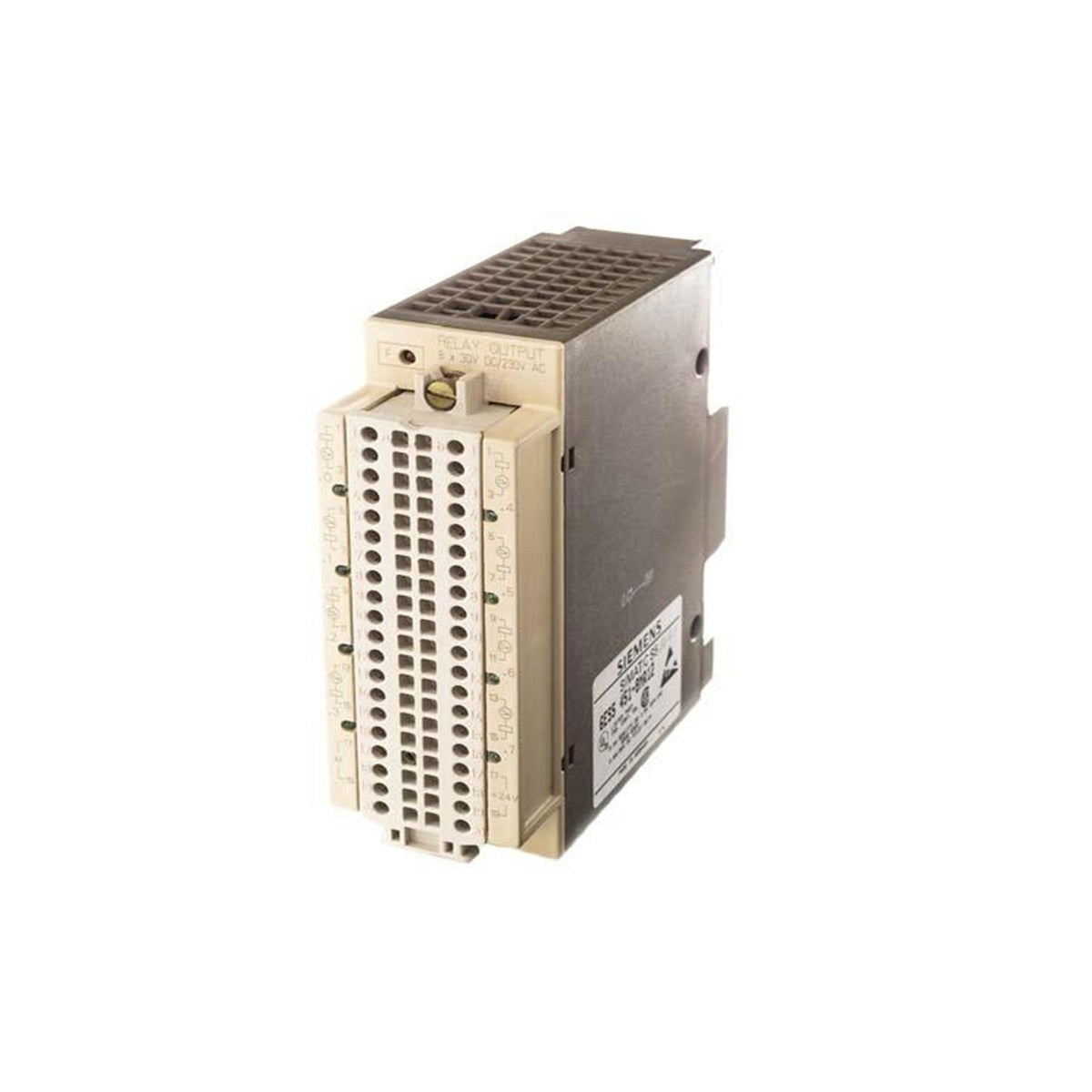

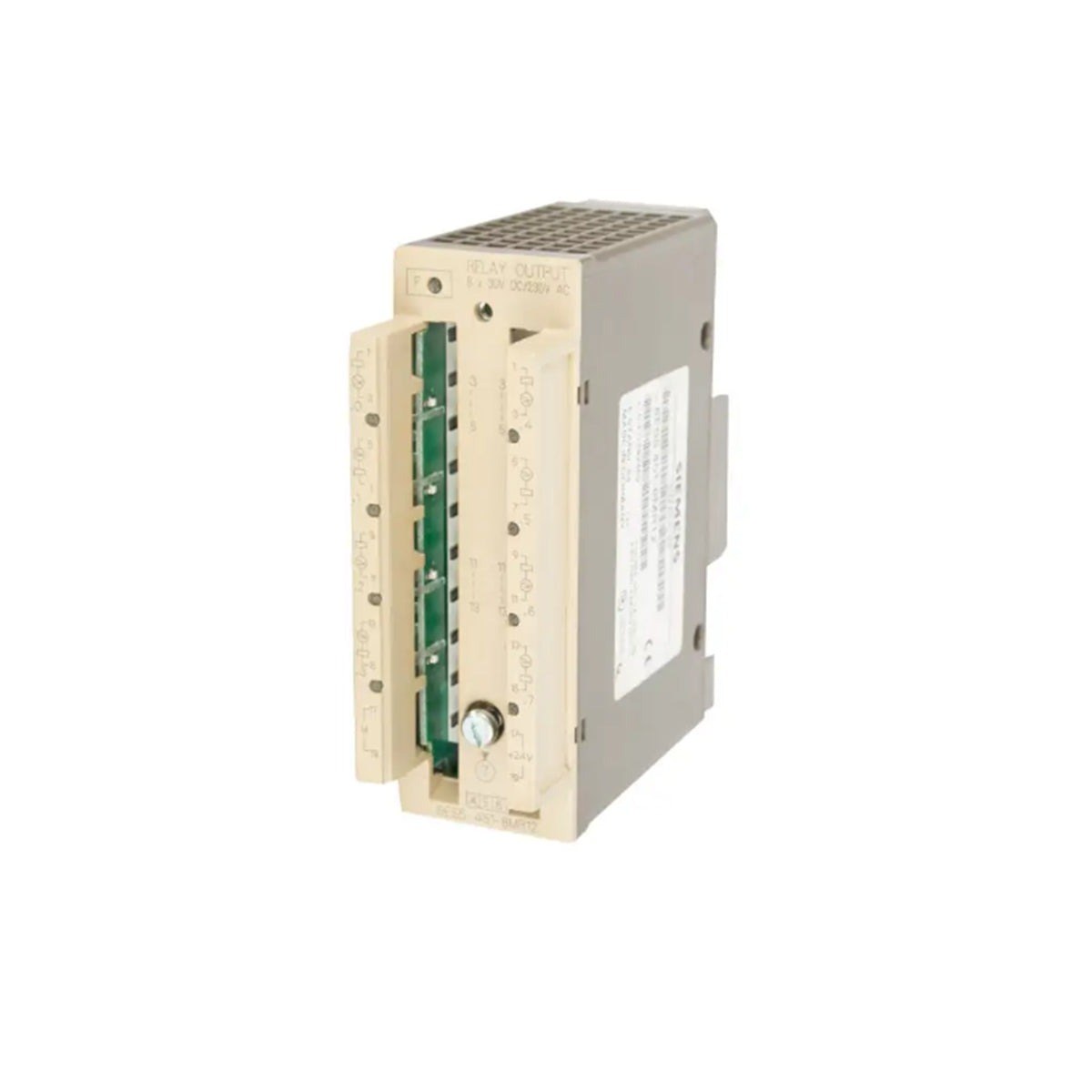

The Siemens Simatic S5 6ES5451-8MR12 is a high-reliability digital output module designed for the S5 programmable logic controller series. It provides 8 isolated relay output channels, enabling the control of various field devices such as solenoid valves, motor starters, and contactors. Engineered for industrial environments, this module provides essential galvanic isolation between the PLC backplane and field-side electrical loads, protecting sensitive control logic from transient voltage spikes.

Features

• 8 independent electromechanical relay output channels.
• Galvanic isolation ensures protection against high-voltage transients.
• Integrated RC snubber networks on each channel to suppress arcing and extend contact life when switching inductive loads.
• Front-panel LED indicators for real-time status monitoring of each output channel.
• Compatible with standard Simatic S5 expansion racks.
• Supports switching of both 30 VDC and 230 VAC load potentials.

Applications

This module is widely deployed in legacy automation systems, including oil and gas refineries, water treatment plants, and automotive manufacturing lines. It is ideal for applications requiring the direct switching of high-capacity field actuators from low-voltage PLC logic.

Technical Specifications

Installation Guidelines

• Ensure the PLC power supply is disconnected before inserting or removing the module from the rack.
• Verify that the module is properly seated in the backplane connector to ensure reliable bus communication.
• Use shielded cabling for field wiring to minimize electromagnetic interference (EMI).
• Maintain adequate clearance around the module to facilitate proper airflow and cooling within the cabinet.
• Ensure that the load current does not exceed the 2 A rating per channel to prevent relay contact degradation.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Can this module switch both AC and DC loads? Yes, the 6ES5451-8MR12 is designed to handle both 30 VDC and 230 VAC, making it versatile for mixed-voltage control applications.

Does this module require external power for the relays? The relay contacts themselves are dry contacts; however, the module draws 120 mA from the 5 VDC backplane to power its internal logic and coil-driving circuitry.
