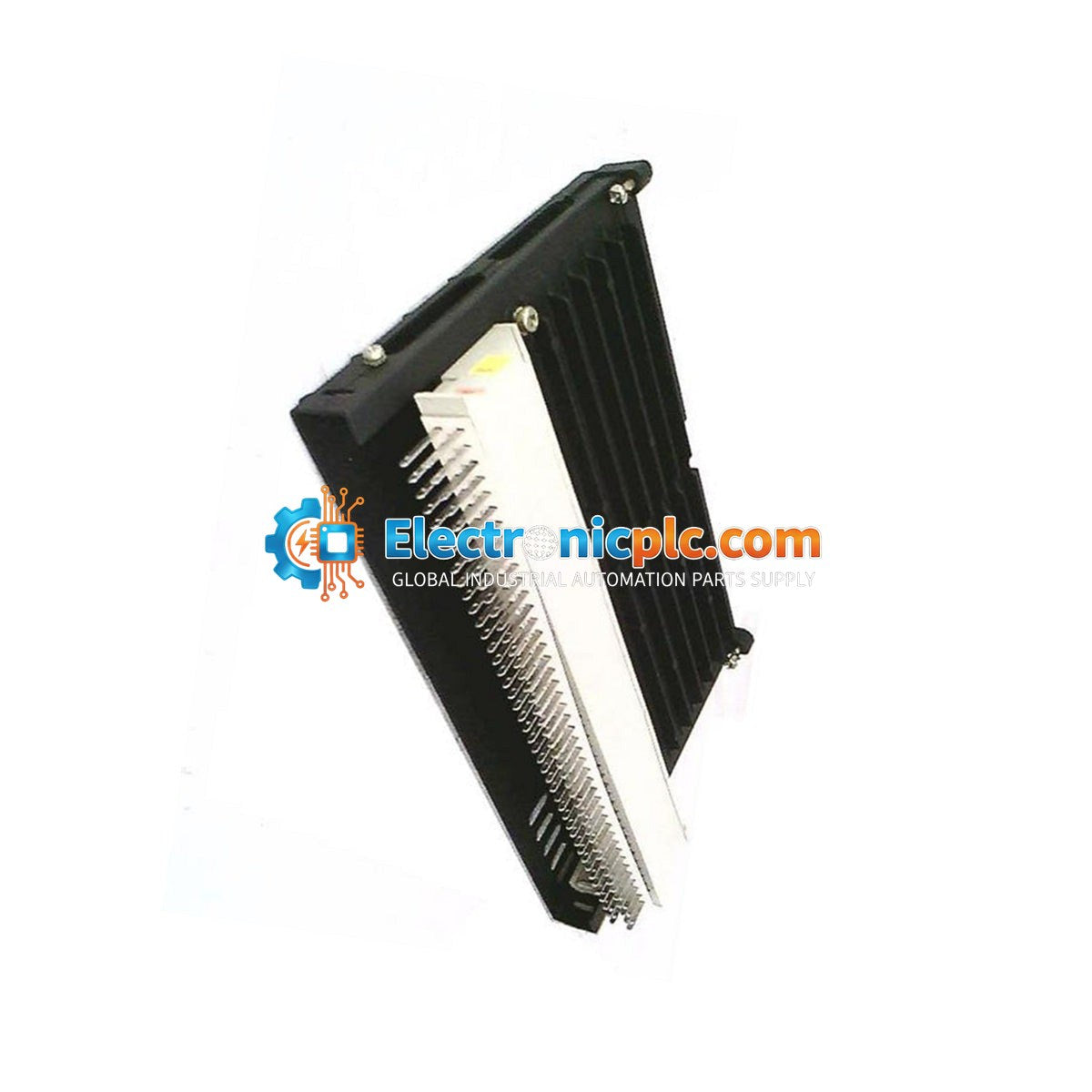

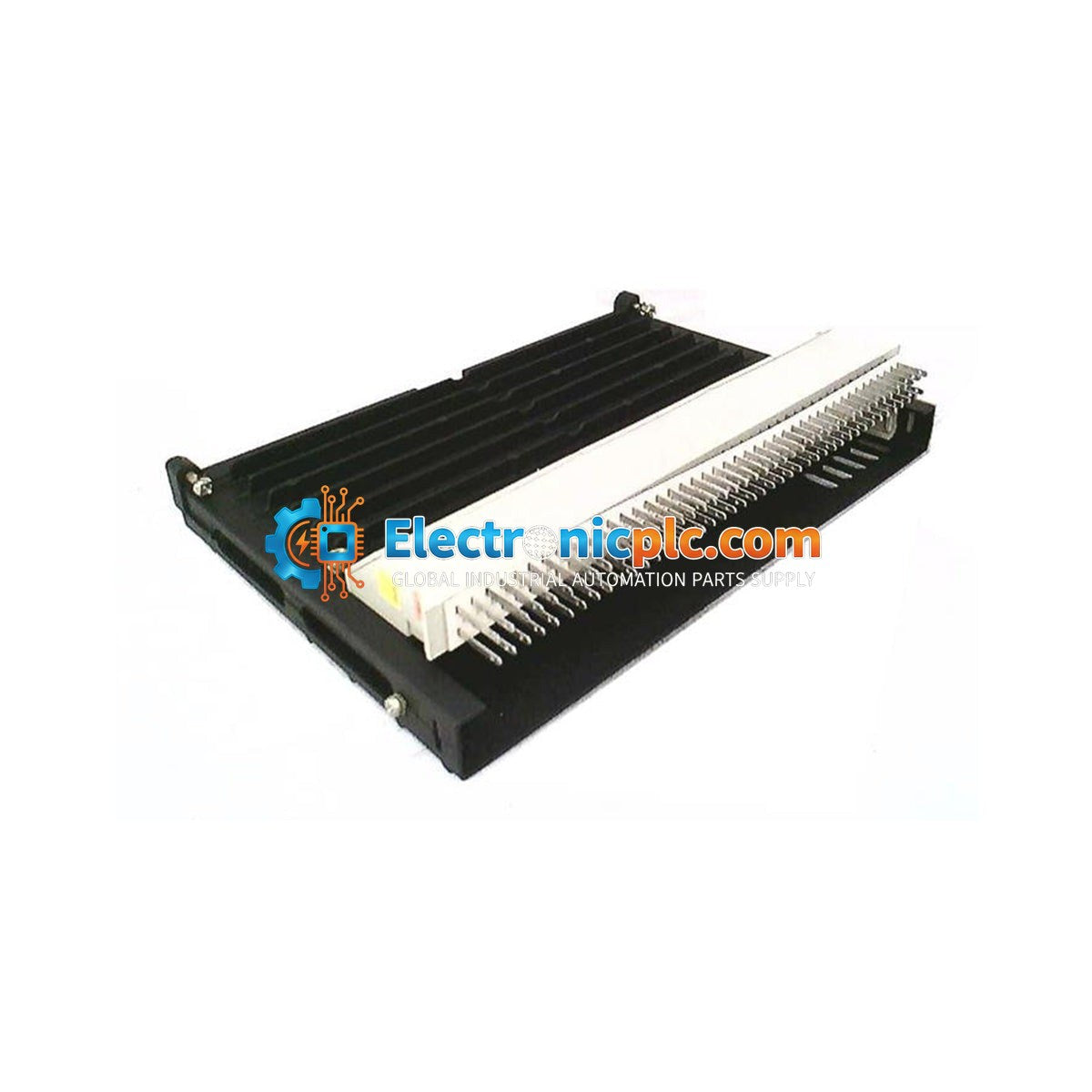

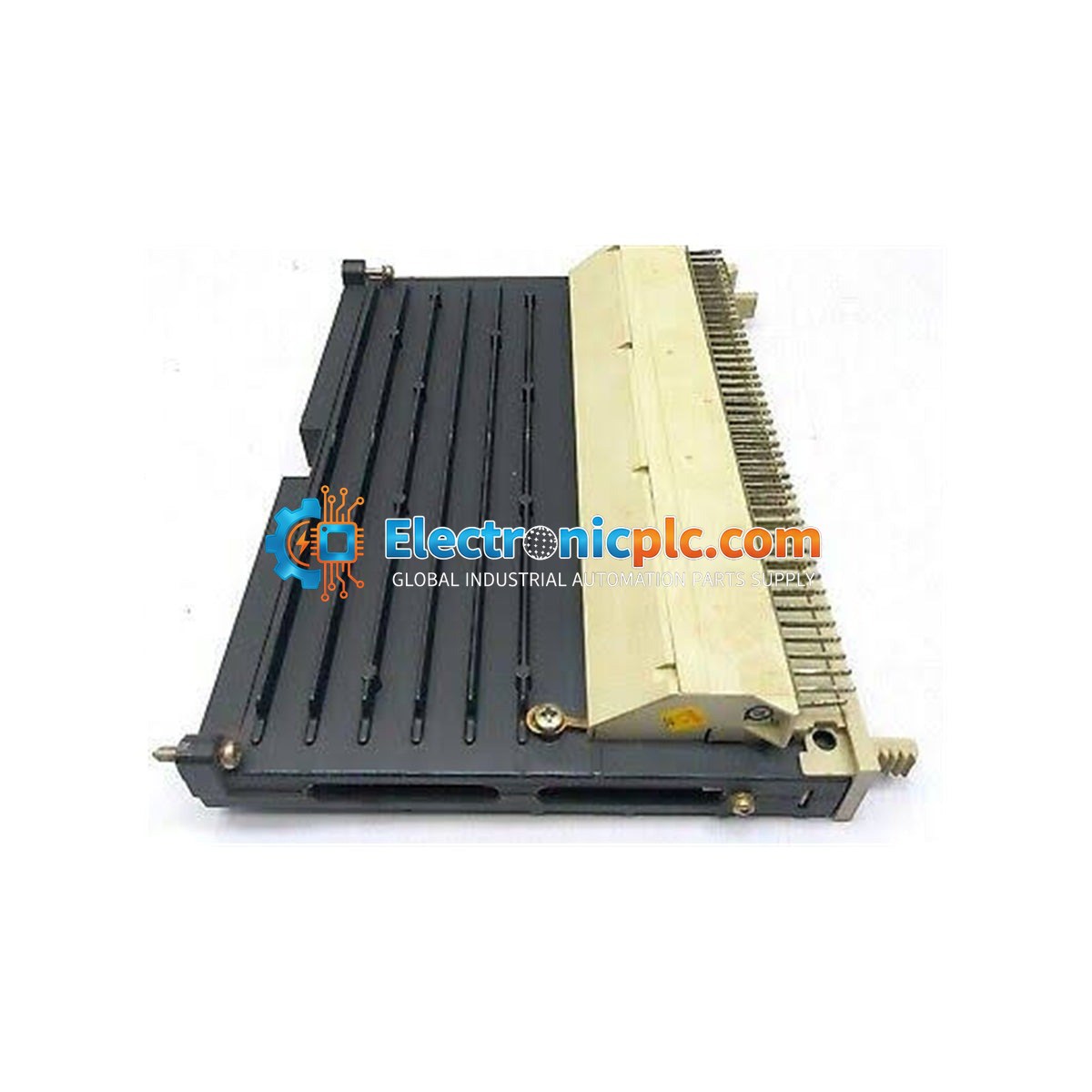

Siemens 6ES5741-0AB31 Simatic S5 Module Holder

Siemens 6ES5741-0AB31 Simatic S5 Module Holder

Description

The Siemens 6ES5741-0AB31 is a specialized module holder engineered for the Siemens Simatic S5-130 and S5-150 programmable logic controller series. This component provides the necessary structural interface to ensure physical...

17 people are viewing this right now

Availability: Low stock: 4 left

SKU: 6ES5741-0AB31
Vendor: Siemens
Category: PLC Module Holder
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5741-0AB31 is a specialized module holder engineered for the Siemens Simatic S5-130 and S5-150 programmable logic controller series. This component provides the necessary structural interface to ensure physical stability and reliable electrical connectivity for PLC modules within industrial control cabinets. It is a critical maintenance component for sustaining the operational lifecycle of legacy Simatic S5 system architectures, providing a secure mounting platform that minimizes mechanical stress on connections and supports system integrity in demanding industrial environments.

Features

  • Designed specifically for compatibility with Siemens S5-130 and S5-150 series hardware.
  • Features a robust mechanical chassis for secure module seating.
  • Equipped with a 43-pin terminal strip utilizing a double-pin configuration for signal routing.
  • Engineered for high vibration resistance in stationary industrial settings.
  • Standard thermal design without heat sink recess, matching original S5-130/150 hardware revisions.

Applications

This module holder is primarily utilized in legacy industrial control systems, including:

  • Power plant automation systems.
  • Continuous flow oil and gas refining processes.
  • Mining and heavy industrial operations.
  • Any facility maintaining existing Simatic S5 PLC infrastructure requiring original component geometry for bus compatibility.

Technical Specifications

Model Number 6ES5741-0AB31
Manufacturer Siemens
Product Series Simatic S5-130/150
Terminal Interface 43-pin terminal strip (double-pin)
Thermal Design Standard (No heat sink recess)
Weight 1.34 kg

Installation Guidelines

  • Ensure the PLC system is powered down before attempting to install or remove any module holder or associated I/O modules.
  • Handle the component with care to avoid bending the 43-pin terminal pins.
  • Ensure the holder is securely fastened within the industrial control cabinet to maintain proper alignment with the backplane bus.
  • Verify that all signal cables are properly routed and secured to prevent strain on the terminal strip.
  • Maintain a clean, dry environment within the control cabinet to prevent oxidation of the terminal contacts.

FAQ

Is this part compatible with modern S7 series PLCs?

No, the 6ES5741-0AB31 is designed exclusively for the legacy Siemens Simatic S5-130 and S5-150 series and is not compatible with S7 series hardware.

What should I do if the pins on the terminal strip are bent?

The terminal pins are critical for electrical connectivity. If pins are bent or damaged, the module holder should be replaced to prevent intermittent signal loss or potential short circuits within the PLC rack.
