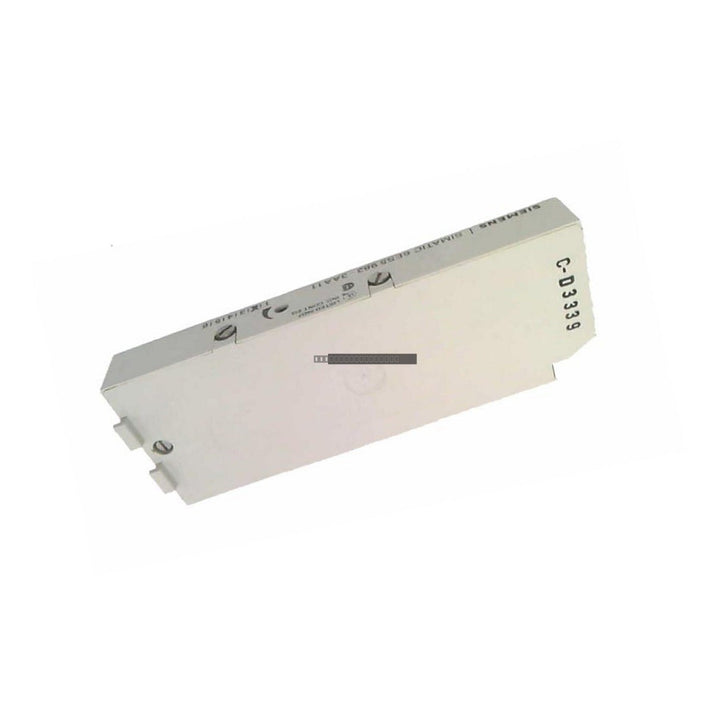

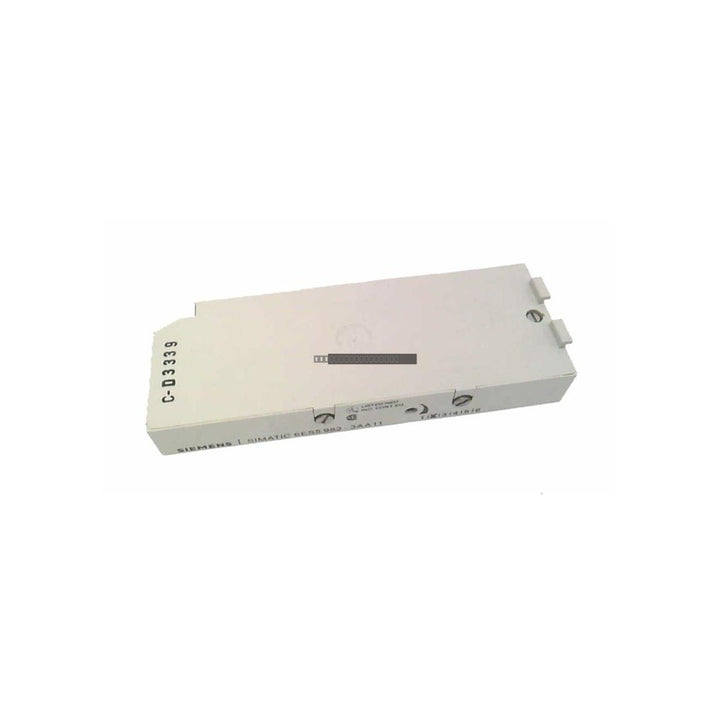

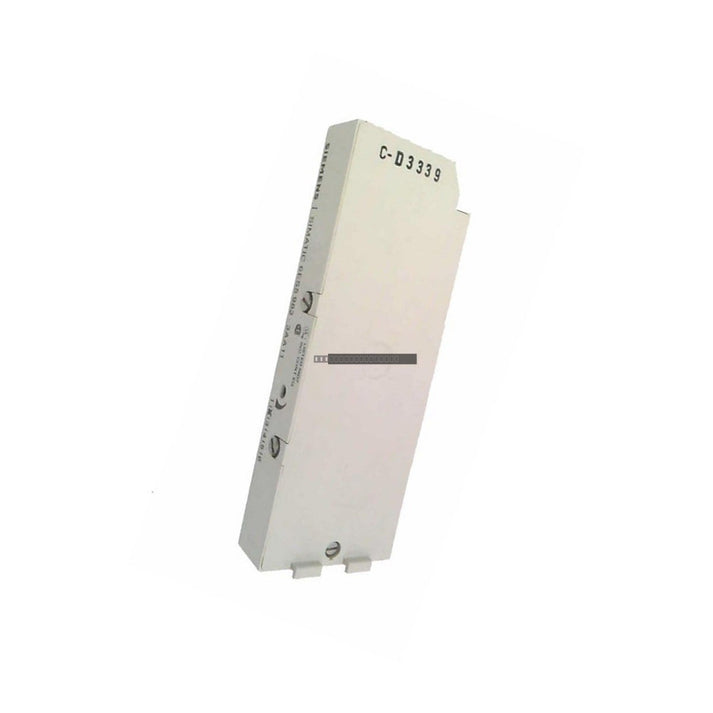

Siemens 6ES5983-3AA11 Simatic S5 Cable Connector

Siemens 6ES5983-3AA11 Simatic S5 Cable Connector

Description

The Siemens 6ES5983-3AA11 is a specialized cable connector assembly designed for the Simatic S5 automation series. This component serves as a robust interface block, featuring a 25-pin female D-Sub connection,...

25 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6ES5983-3AA11
Vendor: Siemens
Category: Cable Connector
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5983-3AA11 is a specialized cable connector assembly designed for the Simatic S5 automation series. This component serves as a robust interface block, featuring a 25-pin female D-Sub connection, specifically engineered to facilitate reliable communication between external feedback loops, programming interfaces, and the S5 control rack. As a critical component for legacy system maintenance, it ensures signal integrity in demanding industrial environments such as steel manufacturing and maritime automation.

Features

  • High-density 25-pin female D-Sub interface for secure signal transmission.
  • Designed for high-vibration industrial environments to maintain structural and electrical contact integrity.
  • Integrated shielding properties to mitigate electromagnetic interference (EMI) when used with compatible shielded cabling.
  • Supports closed-loop diagnostic configurations to assist in rapid fault detection and communication line monitoring.
  • Gold-plated pin contacts to prevent oxidation and ensure low-resistance connectivity over long-term operation.

Technical Specifications

Model 6ES5983-3AA11
Brand Siemens
Series Simatic S5
Connector Type 25-Pin Female D-Sub
Max Working Voltage 60 VDC / 42 VAC
Current Capacity 1 A per pin (continuous)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Ensure the control system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or damage to the I/O pins.
  • Verify that the connector is fully seated and the locking mechanism is engaged to maintain vibration resistance.
  • Use properly shielded cables and ensure the cable shield is correctly terminated to the connector housing to maintain EMI protection.
  • Avoid excessive mechanical strain on the connector housing; use appropriate cable strain relief methods to prevent port damage.
  • Inspect pins for debris or oxidation before mating; ensure the environment is free of conductive dust or moisture during installation.

FAQ

Is this connector compatible with modern S7 systems?

No, the 6ES5983-3AA11 is specifically designed for the legacy Simatic S5 series. It is not intended for direct use with S7-series hardware.

What is the primary function of this connector?

It acts as a high-reliability interface for serial data, feedback loops, and programming connections, ensuring that signal integrity is maintained within the S5 rack architecture.
