Description

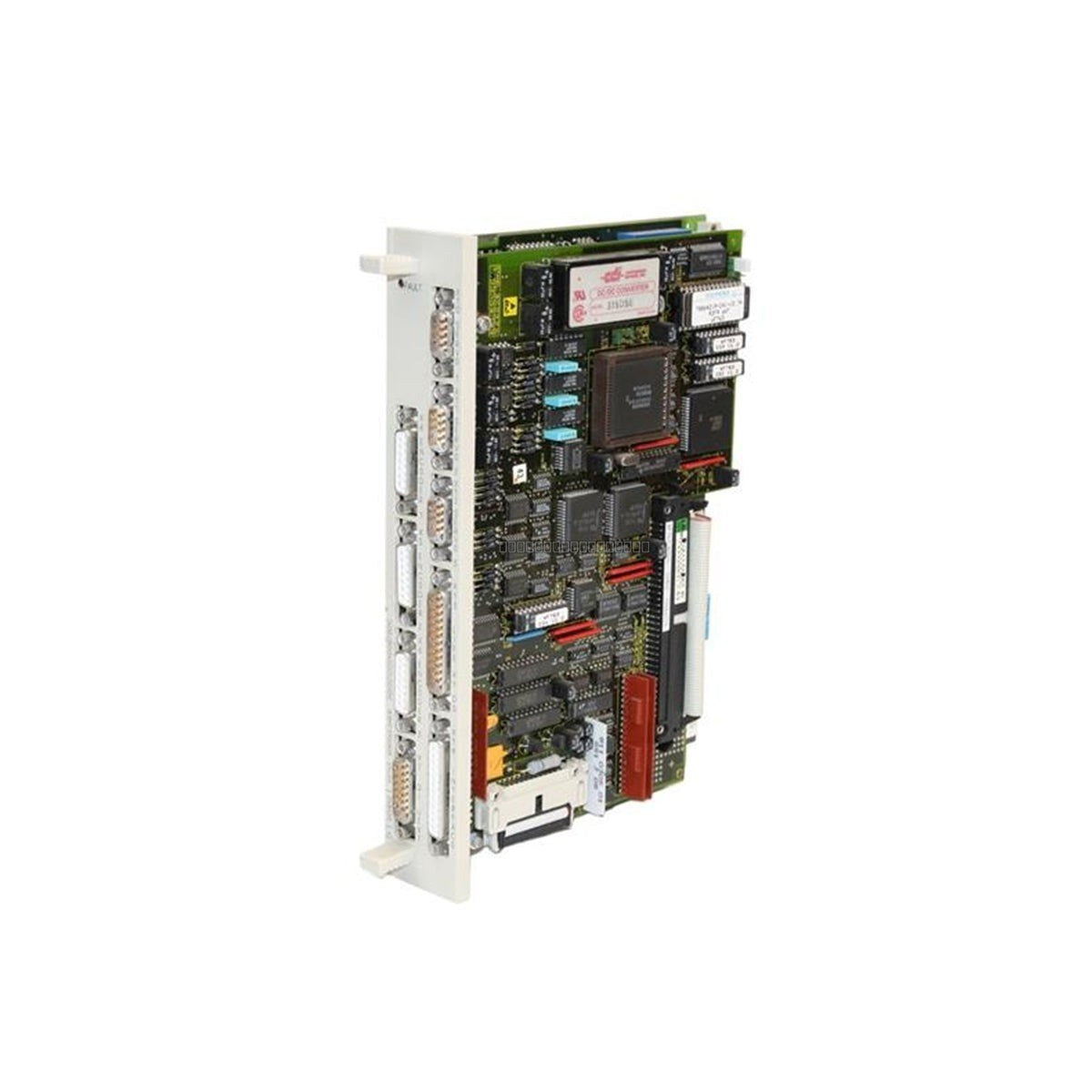

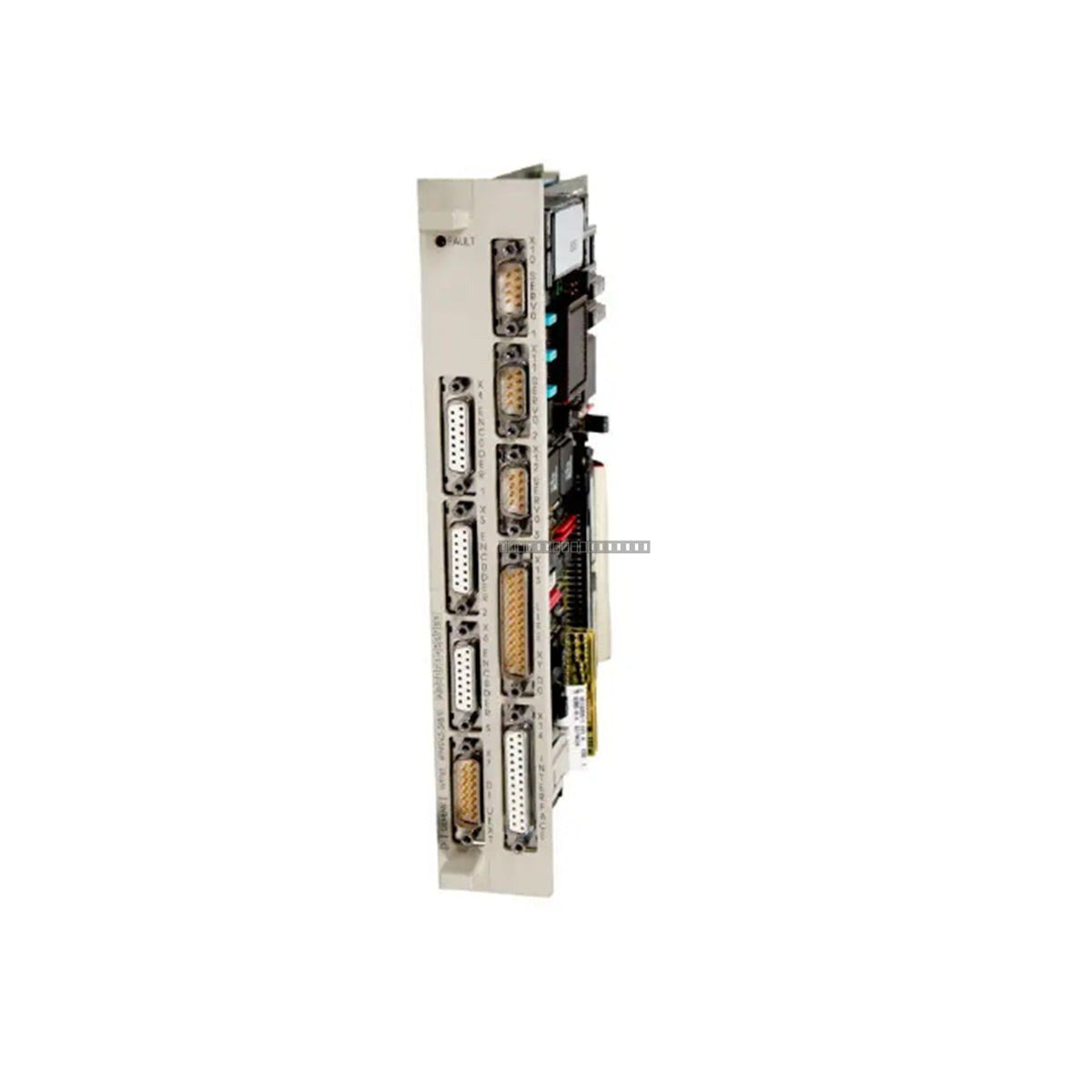

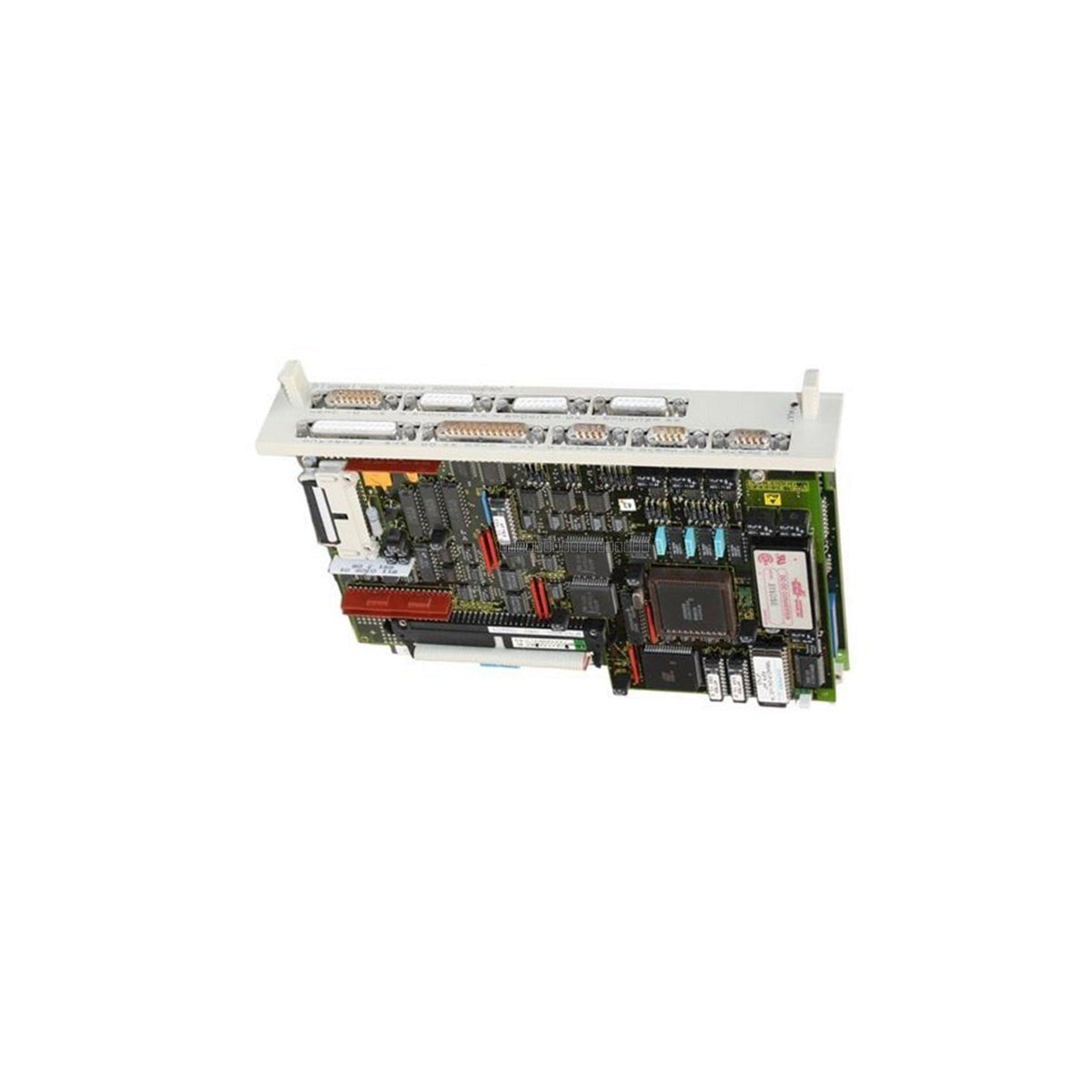

The 6FM1 763-3AB10 (WF 763) is a specialized industrial power controller designed for integration within Siemens Simatic S5-135U and S5-155U automation racks. This module serves as a dedicated fastening and joint evaluation system, providing real-time torque control, turn monitoring, and yield analysis. By executing high-speed calculations independently of the central processor, the module ensures precision in critical assembly environments, such as automotive and aerospace manufacturing, where fastener integrity is paramount.

Features

• Advanced Tightening Supervision: Supports dual-mode monitoring, transitioning between torque control and yield-point detection to ensure fasteners remain within elastic limits.
• Autonomous Logic Processing: Local hardware tracks torque gradients and angle vectors at high sampling rates, minimizing reliance on backplane bus cycles.
• System Integration: Designed for 2-slot width installation in S5 racks, allowing for seamless communication and synchronous fault signaling with the host CPU.
• High-Speed Failure Detection: Enables instantaneous identification of joint irregularities to prevent production of out-of-specification assemblies and reduce downtime.

Technical Specifications

Installation Guidelines

• Module Seating: Ensure the module is fully seated in the designated 2-slot position within the S5 rack to maintain proper backplane contact.
• Power Safety: Always disconnect power from the rack backplane before inserting or removing the module to prevent electrical damage.
• Environment: Maintain adequate ventilation around the module to ensure operating temperatures remain within the 0 to 55 deg C range.
• Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 6FM1 763-3AB10?

This module is a dedicated fastener control unit for Siemens S5 systems, used to monitor and control torque, turn, and yield during industrial assembly processes.

Is this module compatible with modern S7 systems?

No, this module is specifically engineered for the legacy Simatic S5-135U and S5-155U rack architectures.

What does the module do if a joint irregularity is detected?

The module performs autonomous, high-speed analysis and provides immediate fault signaling to the host CPU to halt the process and prevent assembly errors.
