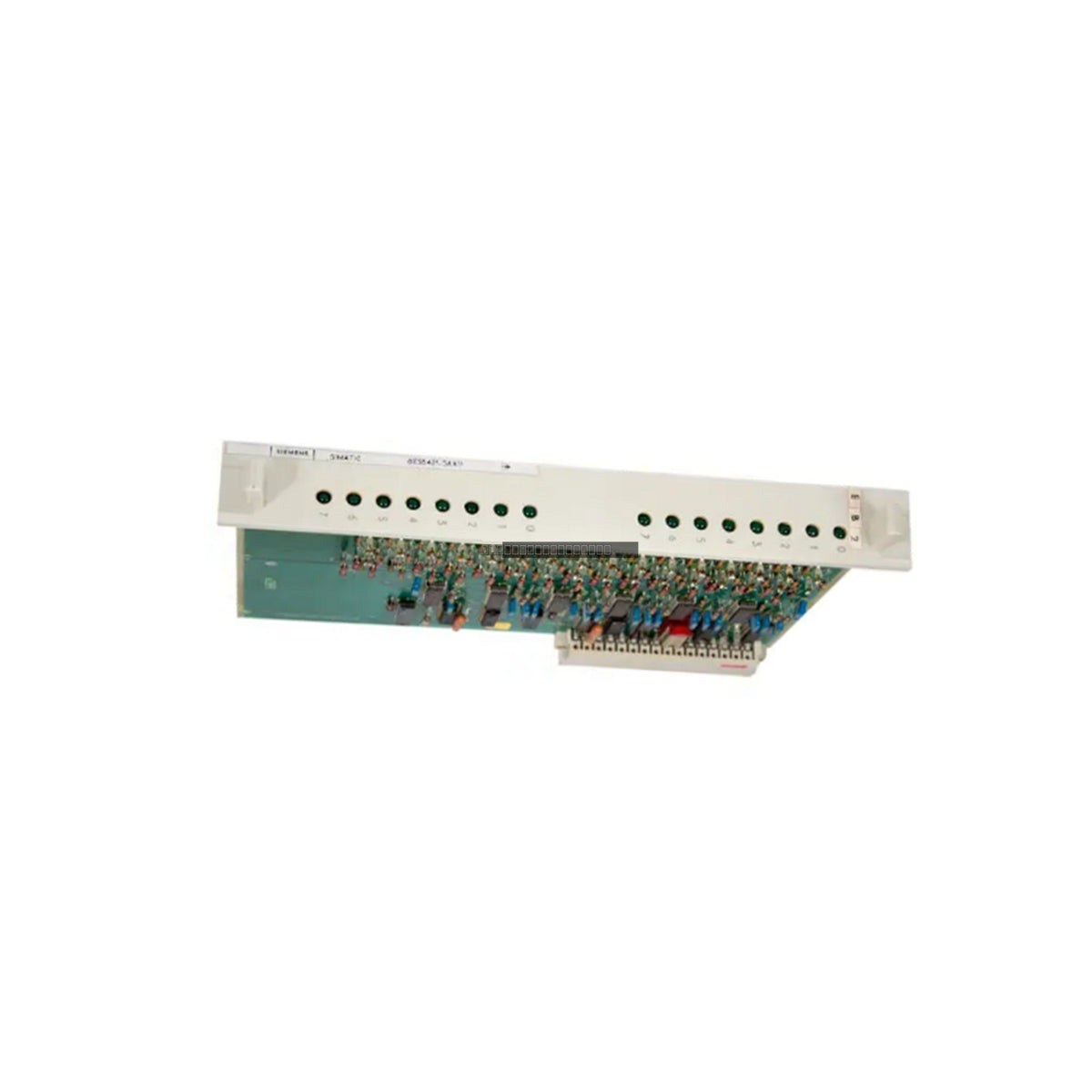

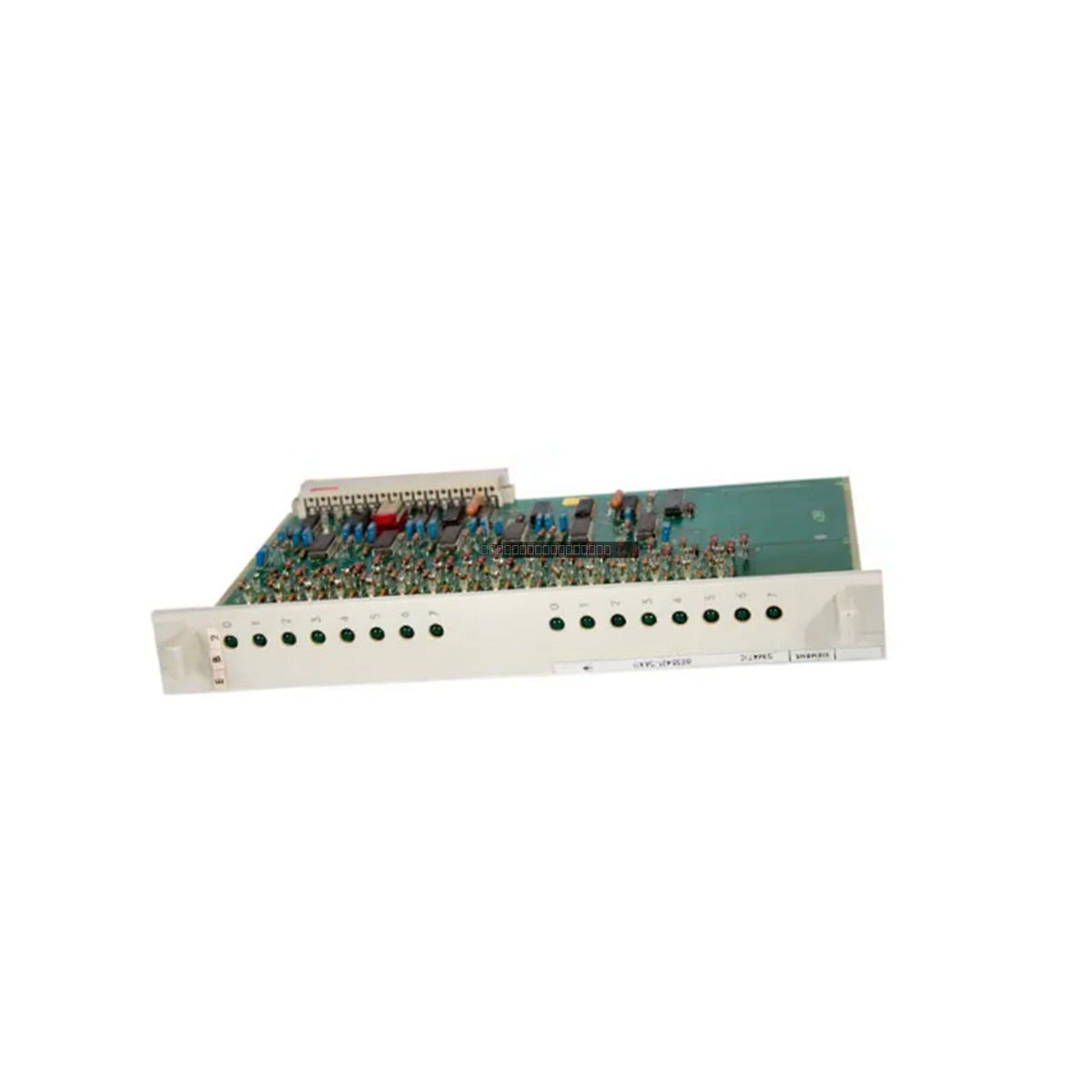

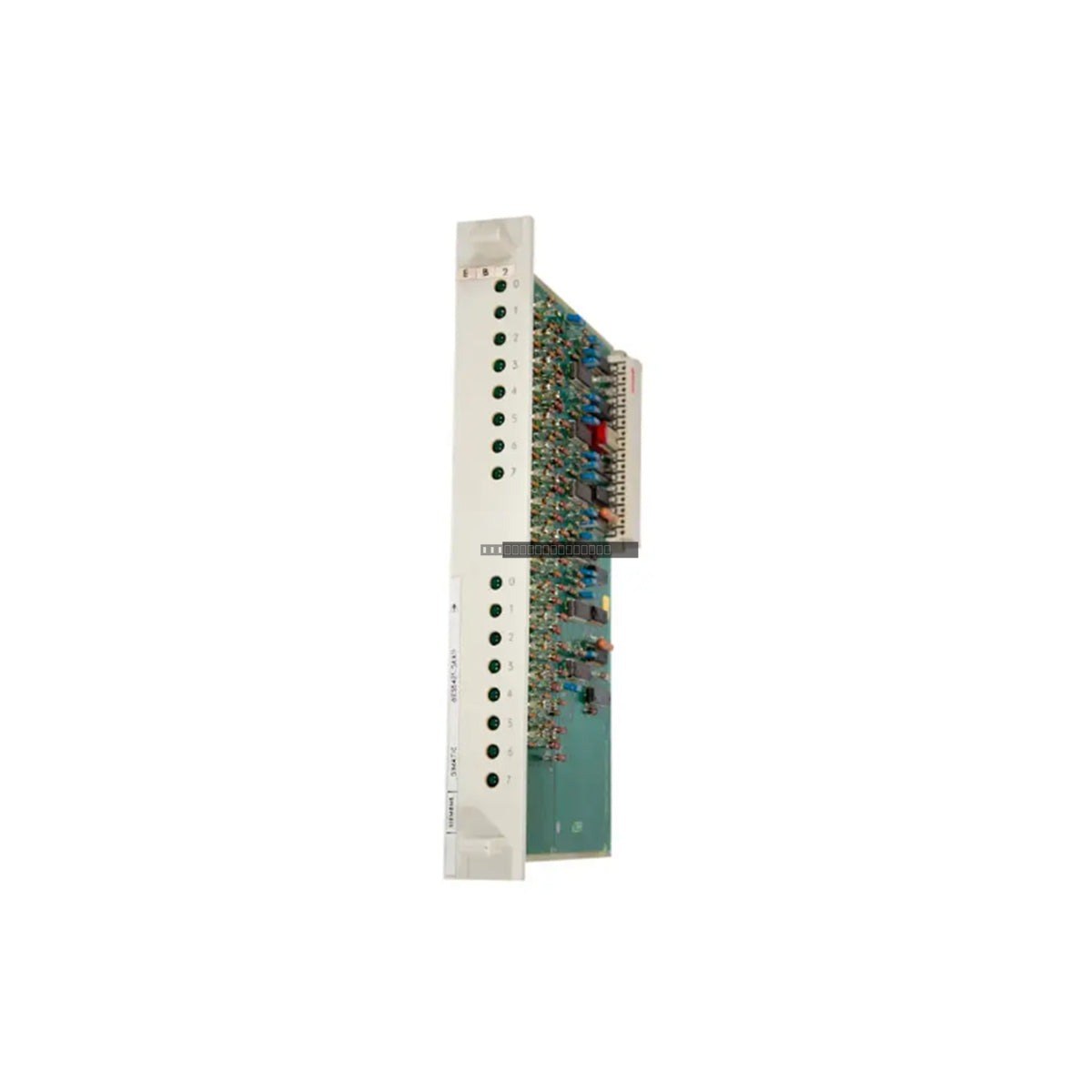

Siemens 6ES5421-5AA11 Simatic S5 Digital Input Module

Siemens 6ES5421-5AA11 Simatic S5 Digital Input Module

Description

The Siemens 6ES5421-5AA11 is a robust digital input module designed for the Simatic S5 automation series. This unit is engineered to interface field-level binary signals with the central control system,...

21 people are viewing this right now

Availability: Low stock: 8 left

SKU: 6ES5421-5AA11
Vendor: Siemens
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5421-5AA11 is a robust digital input module designed for the Simatic S5 automation series. This unit is engineered to interface field-level binary signals with the central control system, providing reliable data acquisition for industrial automation tasks. It is specifically built for integration into S5-130 and S5-150 rack systems, ensuring high-speed signal processing and consistent performance in demanding manufacturing environments.

Features

  • 32 digital input channels for high-density signal monitoring.
  • Galvanic isolation via optocouplers to protect the backplane bus from field-side voltage transients.
  • Integrated RC filtering to mitigate contact bounce and high-frequency electrical noise.
  • Front-panel LED indicators for immediate visual status verification of each input channel.
  • Optimized for low power consumption, drawing 1.2 W from the system backplane.

Applications

This module is suitable for a wide range of industrial applications, including automotive assembly lines, water treatment infrastructure, and heavy manufacturing processes. It is designed to reliably monitor field switches, sensors, and limit switches while maintaining electrical integrity through its isolated architecture.

Technical Specifications

Model 6ES5421-5AA11
Product Family Simatic S5-130 / S5-150
Input Voltage 24 VDC
Input Channels 32
Input Current 8 mA typical per channel
Power Consumption 1.2 W
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Ensure the S5 rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is correctly seated in the rack slot to ensure proper backplane communication.
  • Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
  • Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

Is this module compatible with all S5 racks?

The 6ES5421-5AA11 is designed for the Simatic S5-130 and S5-150 series. Please verify your specific rack configuration and CPU compatibility before installation.

Does this module require external power for the inputs?

Yes, the module requires a 24 VDC supply to power the input channels. The 1.2 W power consumption listed refers to the draw from the internal backplane bus.
