Description

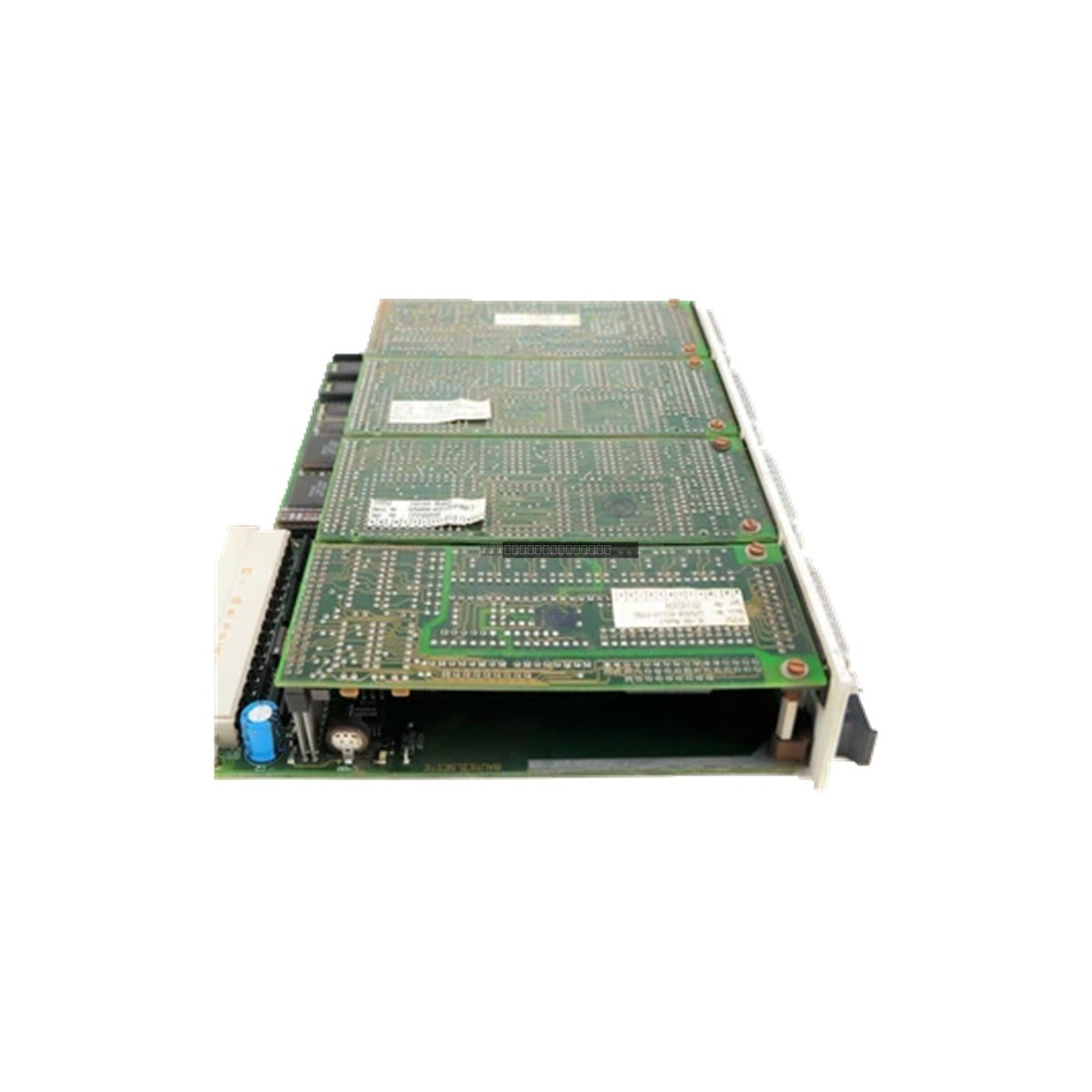

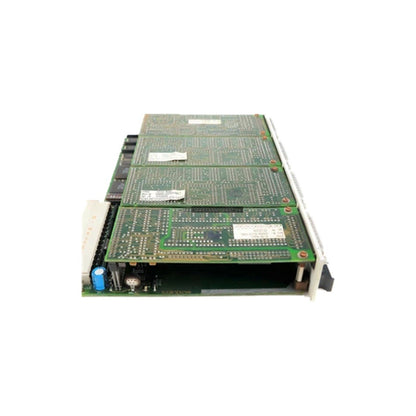

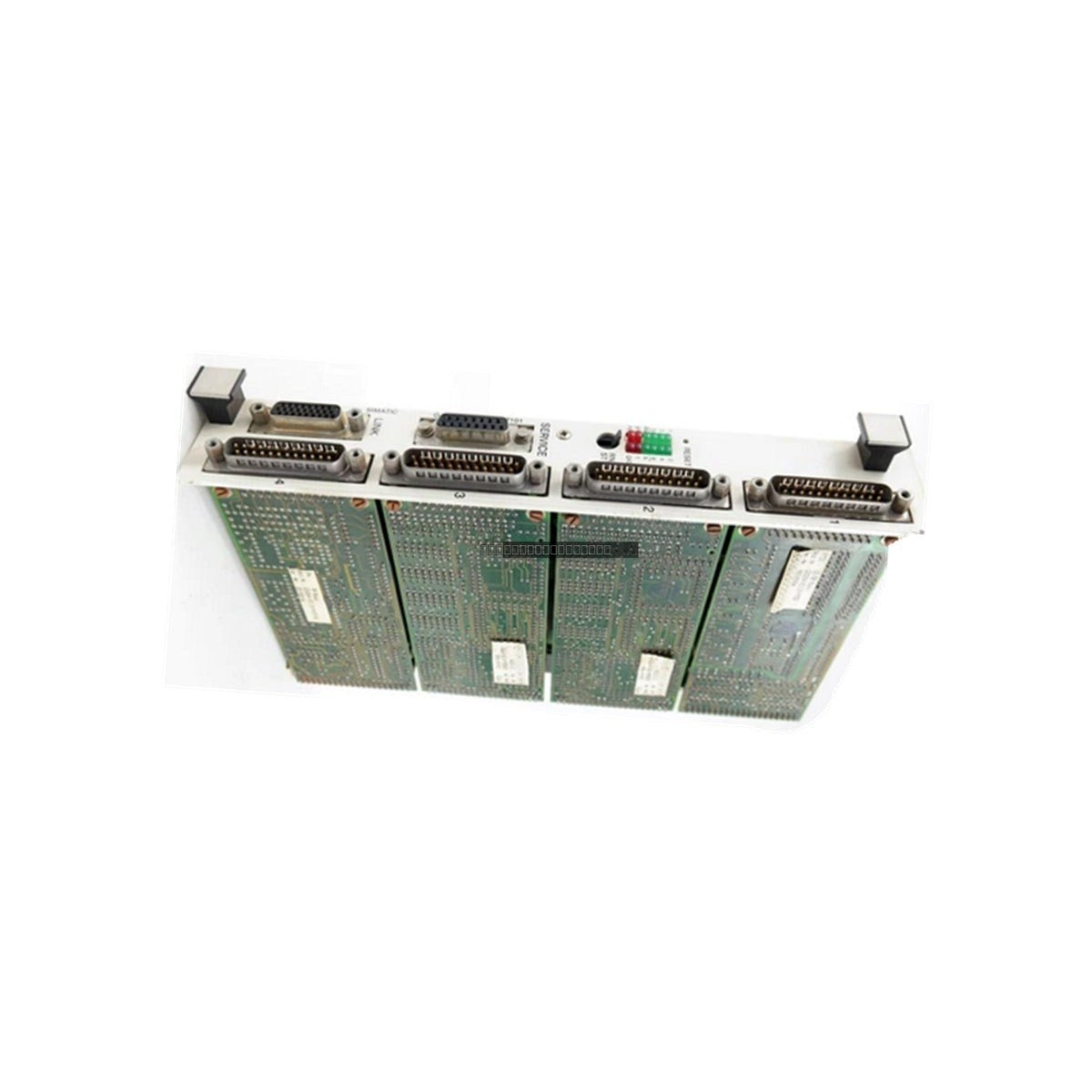

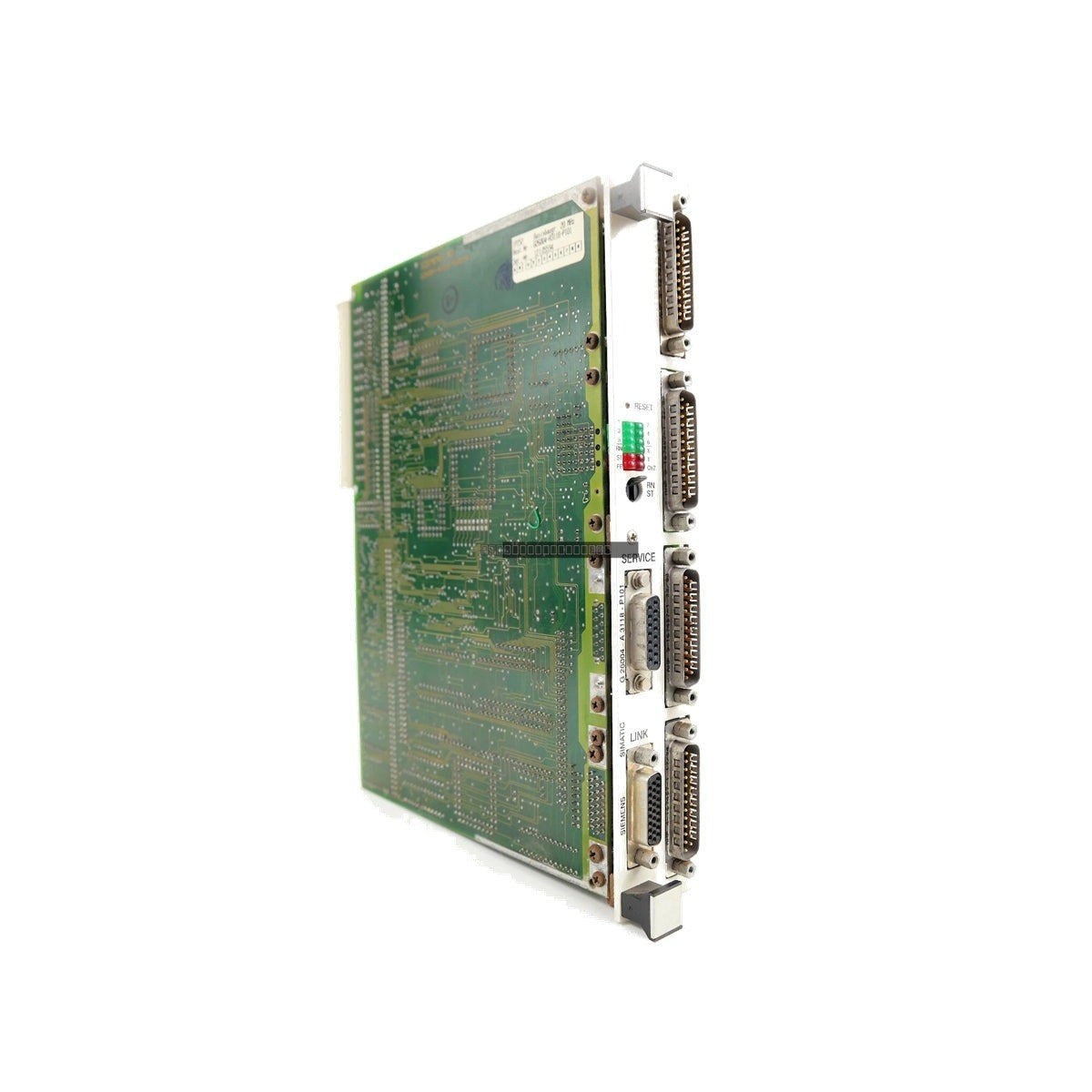

The Siemens G26004-A3118-P200 is a specialized IP252 counter sub-module engineered for the Simatic S5 intelligent processor series. This module provides high-speed pulse acquisition and signal processing, enabling precise control over rapid industrial events. By offloading complex counting tasks from the central processor, it ensures accurate data acquisition for applications requiring high-frequency monitoring, such as flow measurement, rotary encoder feedback, and batch processing.

Features

• Dedicated hardware-level pulse counting and frequency measurement.
• High-speed processing capability up to 500 kHz.
• Optical isolation on input channels to mitigate electromagnetic interference and common-mode noise.
• Supports diverse input configurations including differential and single-ended pulse signals.
• Direct backplane communication for low-latency interrupt triggering.

Applications

This counter module is widely utilized in legacy Simatic S5 automation environments, particularly in sectors such as power generation for turbine flow monitoring, paper manufacturing for high-speed web handling, and chemical processing for precise batch dosing and flow control.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Handle the module by the edges to avoid electrostatic discharge (ESD) damage to sensitive internal components.
• Verify that the module is firmly seated in the designated S5 rack slot and that all backplane connectors are aligned.
• Route signal cables away from high-voltage power lines and variable frequency drive (VFD) cabling to minimize EMI.
• Ensure proper ventilation within the cabinet to maintain operating temperatures below 60 degC.

FAQ

What is the primary function of the IP252 module?

The IP252 is designed to perform high-speed pulse counting and frequency measurement independently of the main PLC scan cycle, allowing for real-time monitoring of fast-moving processes.

Is this module compatible with standard S5 racks?

Yes, this module is designed for integration into Siemens Simatic S5 intelligent processor systems. Please verify your specific rack configuration and power supply capacity before installation.
