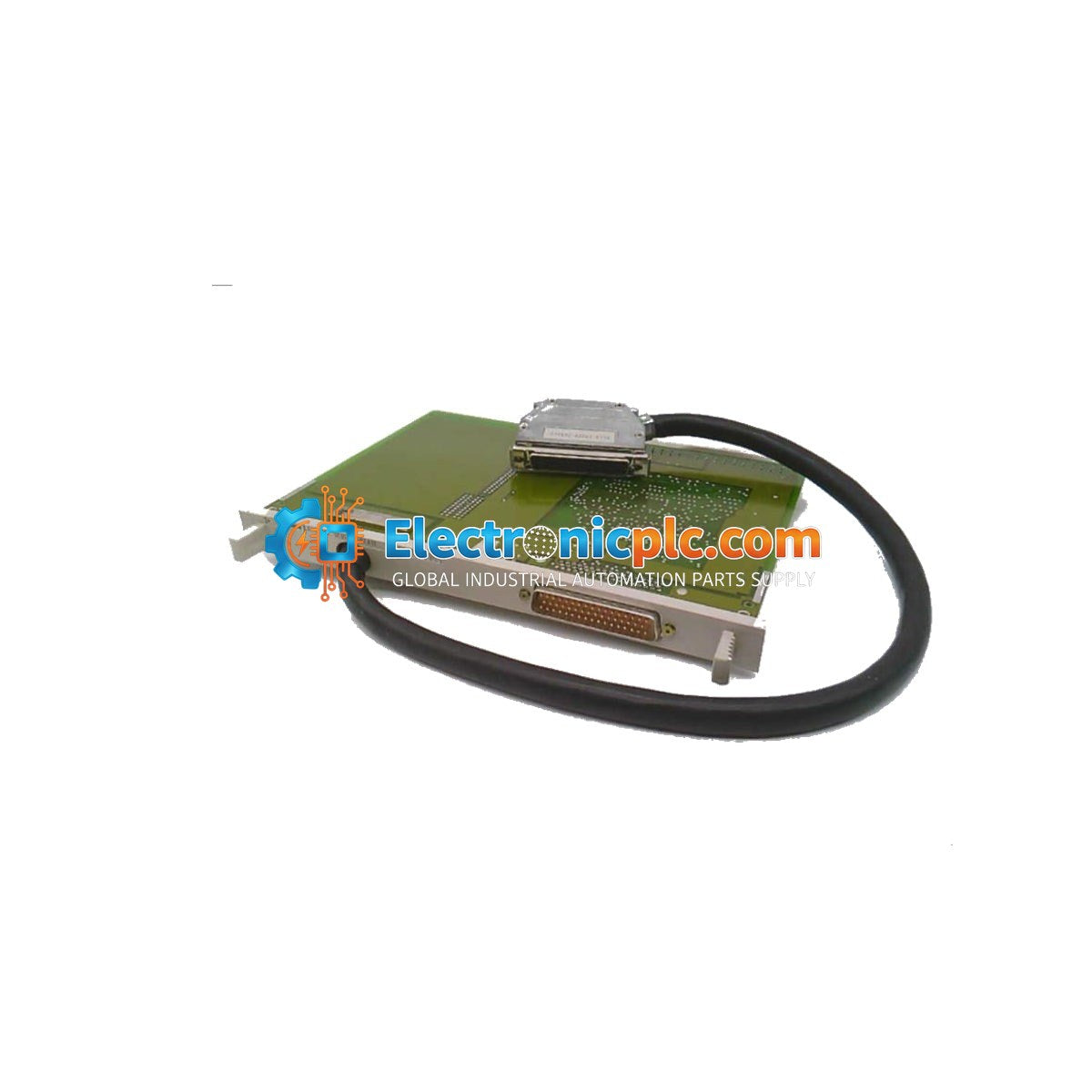

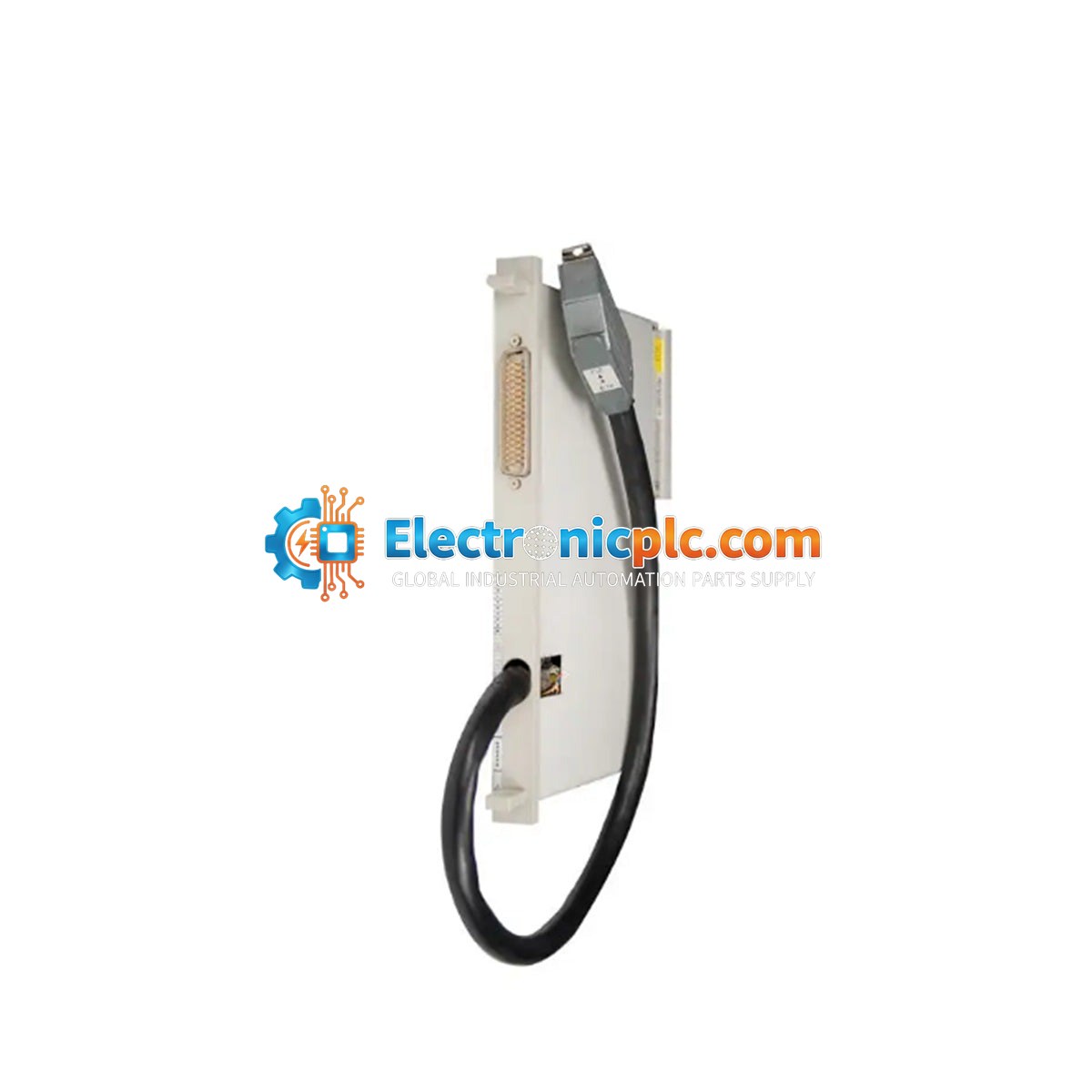

Siemens Simatic S5 IM312 Interface Module 6ES5312-5CA12

Siemens Simatic S5 IM312 Interface Module 6ES5312-5CA12

Description

The Siemens Simatic S5 IM312 (6ES5312-5CA12) is a specialized interface module designed for the Siemens Simatic S5-135 and S5-155 automation platforms. This module functions as a high-speed expansion interface, providing...

20 people are viewing this right now

Availability: Low stock: 4 left

SKU: 6ES5433-6BA11
Vendor: Siemens
Category: Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens Simatic S5 IM312 (6ES5312-5CA12) is a specialized interface module designed for the Siemens Simatic S5-135 and S5-155 automation platforms. This module functions as a high-speed expansion interface, providing a reliable, deterministic communication link between the central controller and expansion racks. It is engineered to maintain systemic throughput by offloading inter-rack data transfer tasks, ensuring that remote I/O configurations remain synchronized with the central processor.

Features

  • High-speed parallel bus extension for S5-135 and S5-155 series.
  • Supports expansion rack connectivity up to 0.5 meters.
  • Internal buffer circuitry and differential line drivers for noise immunity.
  • Transparent addressing allows direct mapping of remote I/O to the CPU image.
  • Rugged aluminum faceplate with secure connector locking mechanism.

Applications

This module is typically deployed in legacy industrial automation environments, including power generation facilities, steel mills, and mining operations. It is essential for maintaining large-scale, high-density I/O architectures where centralized control of distributed sub-racks is required.

Technical Specifications

Model 6ES5312-5CA12 (IM312)
Brand Siemens Simatic S5
Operating Temperature 0 to 60 deg C
Power Supply 5 VDC (via S5 backplane)
Max Expansion Distance 0.5 meters
Compatibility S5-135 and S5-155 platforms

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the module from the backplane.
  • Verify that the expansion cable is securely seated and locked to prevent intermittent signal loss due to vibration.
  • Route expansion cables away from high-voltage power lines and sources of electromagnetic interference (EMI).
  • Handle the module using standard ESD precautions to protect internal electronic components.
  • Ensure the module is fully seated in the rack slot to maintain proper backplane contact.

FAQ

What is the primary function of the IM312 module?

The IM312 acts as an interface bridge that allows the S5-135 or S5-155 CPU to communicate with peripheral expansion racks, effectively extending the system bus while maintaining high-speed data synchronization.

Can this module be used with other S5 series PLCs?

This specific model is engineered for the S5-135 and S5-155 platforms. Compatibility with other S5 series controllers should be verified against the specific system documentation for those models.
