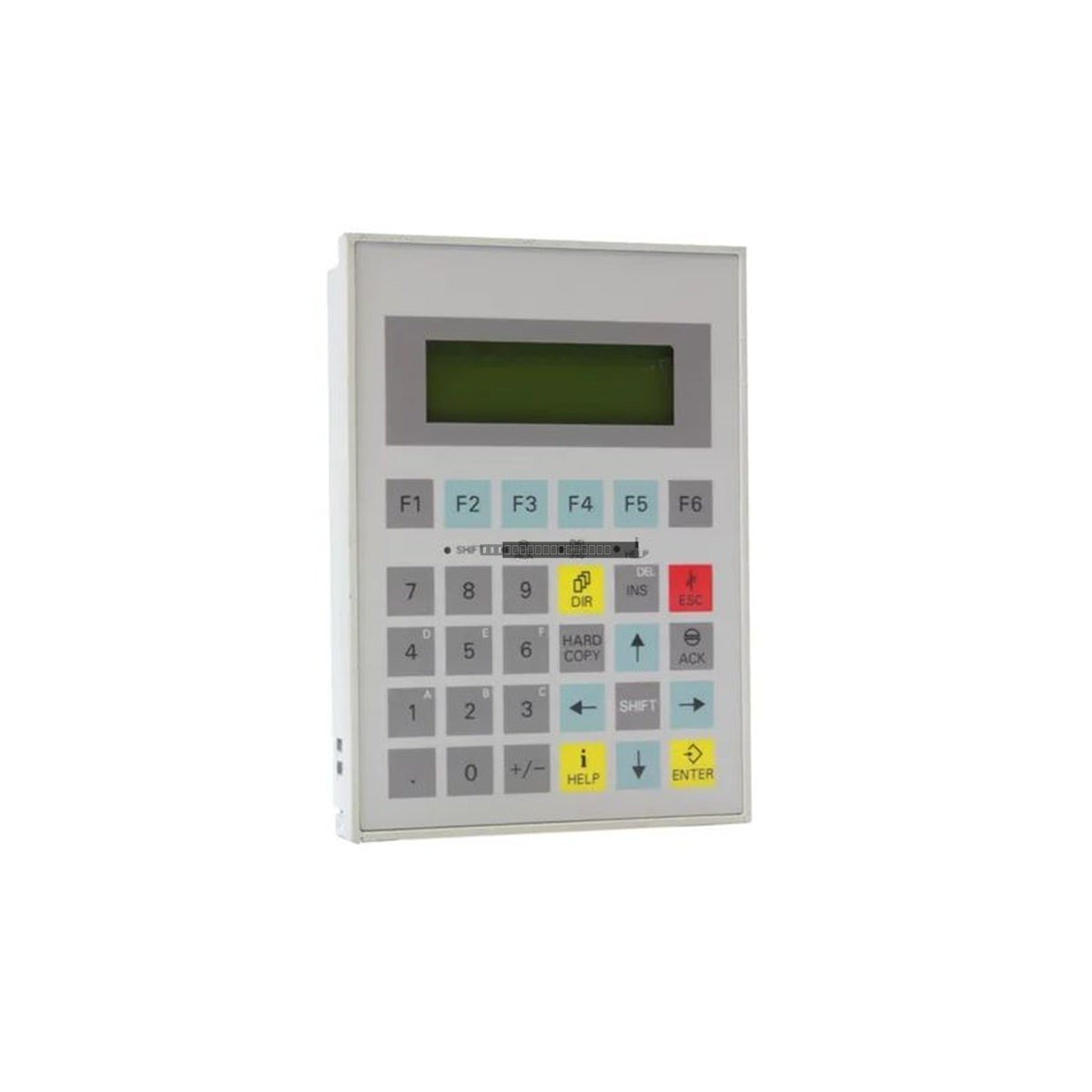

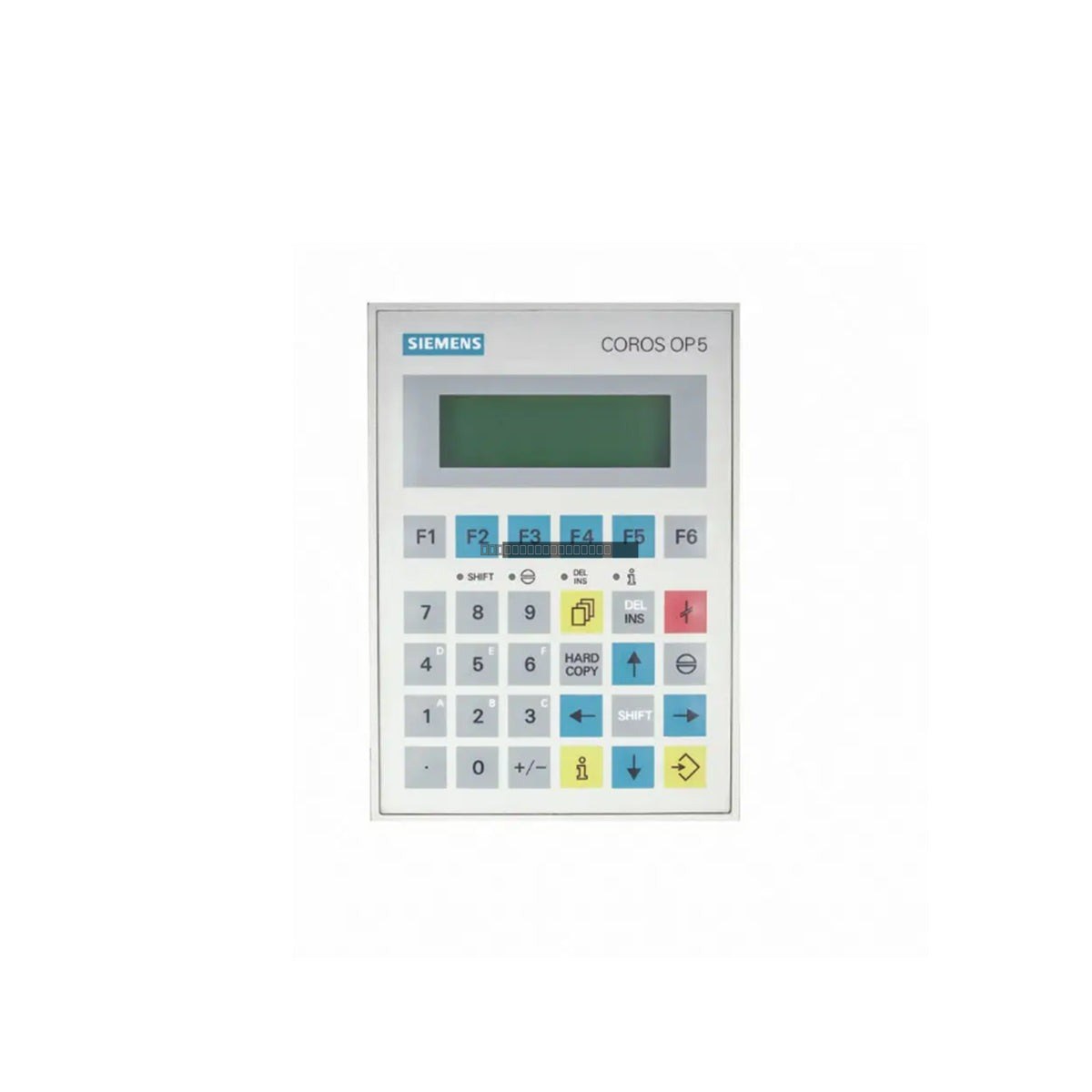

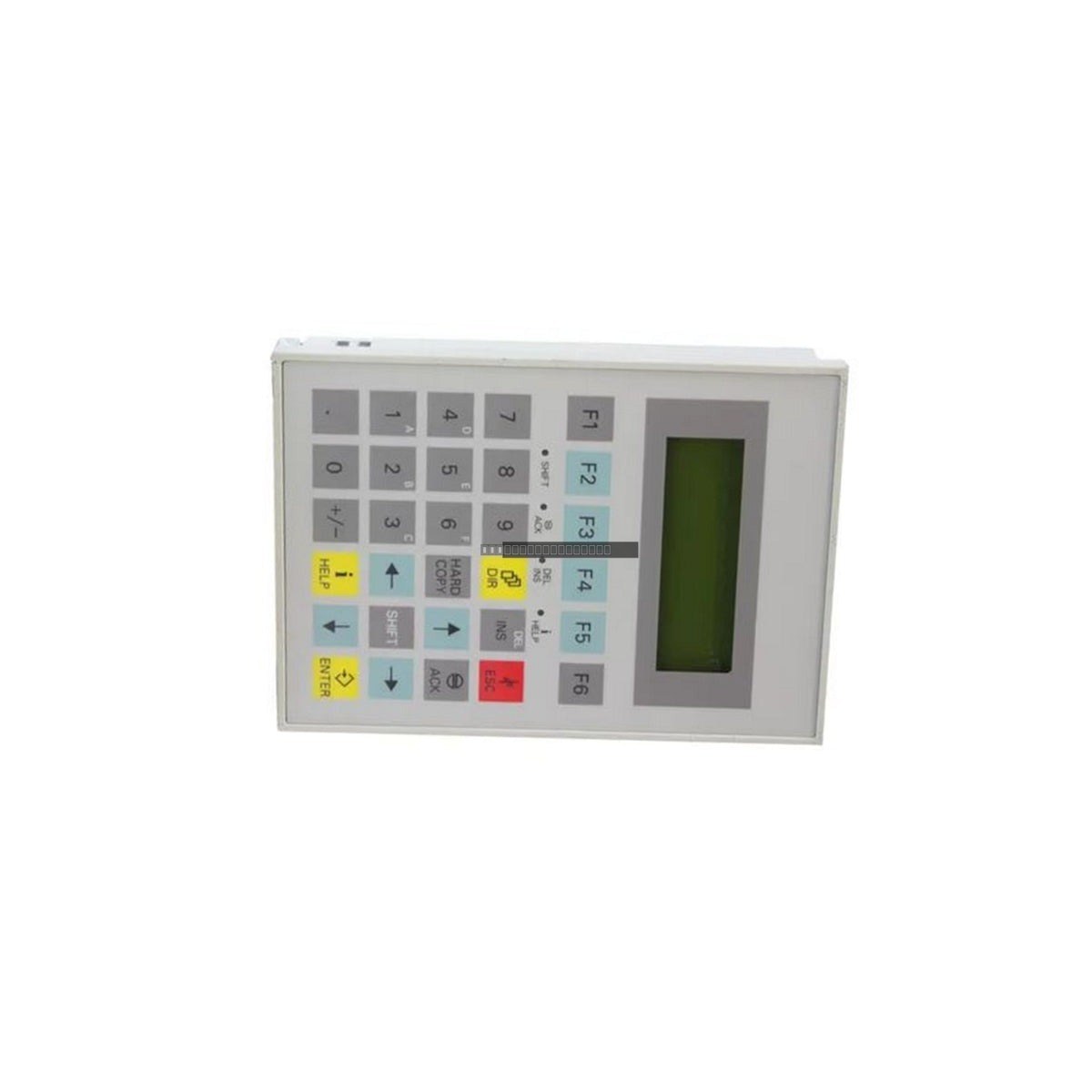

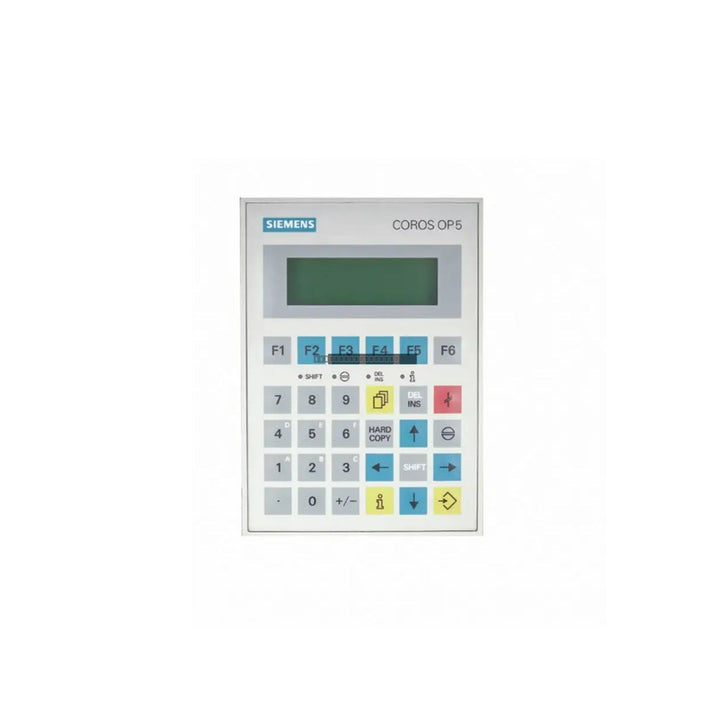

Siemens 6AV3505-1FB00 Simatic S5 Operator Panel

Siemens 6AV3505-1FB00 Simatic S5 Operator Panel

Description

The Siemens 6AV3505-1FB00 is a dedicated operator interface unit designed for integration with legacy Simatic S5 programmable logic controller systems. This panel serves as a critical bridge between the control...

15 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6AV3505-1FB00
Vendor: Siemens
Category: Operator Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV3505-1FB00 is a dedicated operator interface unit designed for integration with legacy Simatic S5 programmable logic controller systems. This panel serves as a critical bridge between the control logic and the plant floor, facilitating real-time process monitoring, alarm management, and parameter configuration in demanding industrial environments.

Features

  • High-visibility 4-line by 20-character backlit LC display for clear status reporting.
  • Integrated membrane keypad for robust, tactile operator input.
  • Supports standard Siemens AS511 communication protocols.
  • Versatile serial connectivity including TTY (20 mA current loop), RS-232, and RS-422 interfaces.
  • Ruggedized front panel design with IP65 ingress protection rating against dust and moisture.

Applications

This operator panel is widely utilized in legacy automation architectures, including automotive assembly lines, water treatment facilities, and heavy manufacturing plants where reliable, direct interaction with S5-series PLC hardware is required for system maintenance and process control.

Technical Specifications

Model 6AV3505-1FB00
Brand Siemens Simatic S5
Display 4-line x 20-character LC display
Communication TTY (20 mA), RS-232, RS-422
Protocol Siemens AS511
Power Supply 24 VDC
Power Consumption 5.0 W (max)
Operating Temperature 0 to 50 deg C
Protection Rating IP65 (front)

Installation Guidelines

  • Ensure the panel is mounted in a clean, dry location with adequate ventilation to maintain operating temperatures within the 0 to 50 deg C range.
  • Verify that the power supply is stable at 24 VDC before connection to prevent damage to internal logic circuits.
  • Use shielded communication cables for TTY or RS-232/422 links to minimize electromagnetic interference (EMI) from high-voltage machinery.
  • Always power down the system before connecting or disconnecting the serial interface cables.
  • Ensure the front panel gasket is properly seated during installation to maintain the IP65 seal against environmental contaminants.

FAQ

Is this panel compatible with modern S7 series PLCs?

No, this unit is specifically designed for the legacy Simatic S5 series and utilizes the AS511 protocol. It is not natively compatible with modern S7-series controllers.

What is the primary communication method for this device?

The unit supports TTY (20 mA current loop) as well as RS-232 and RS-422 serial standards, allowing it to interface directly with the S5 PLC programming port.
