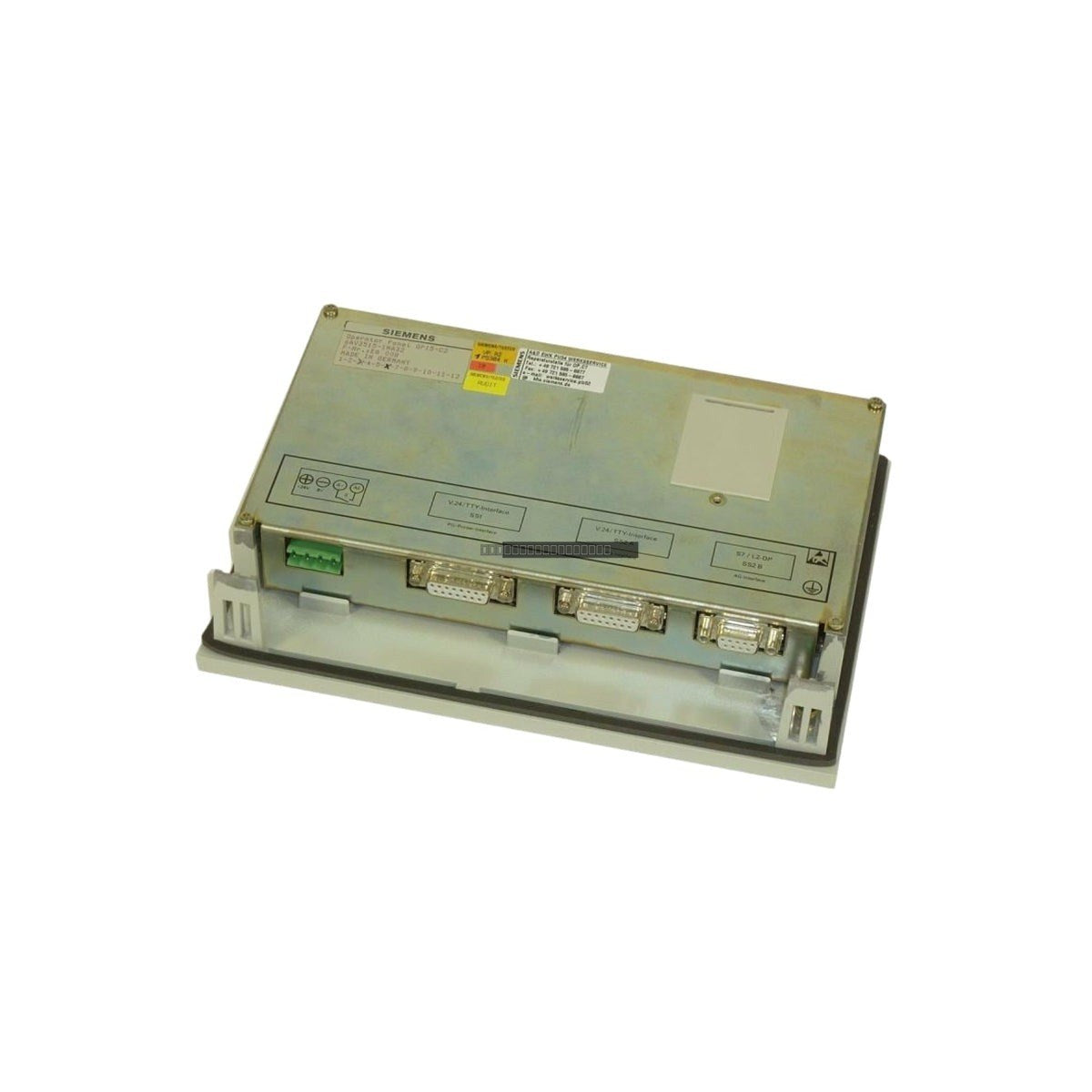

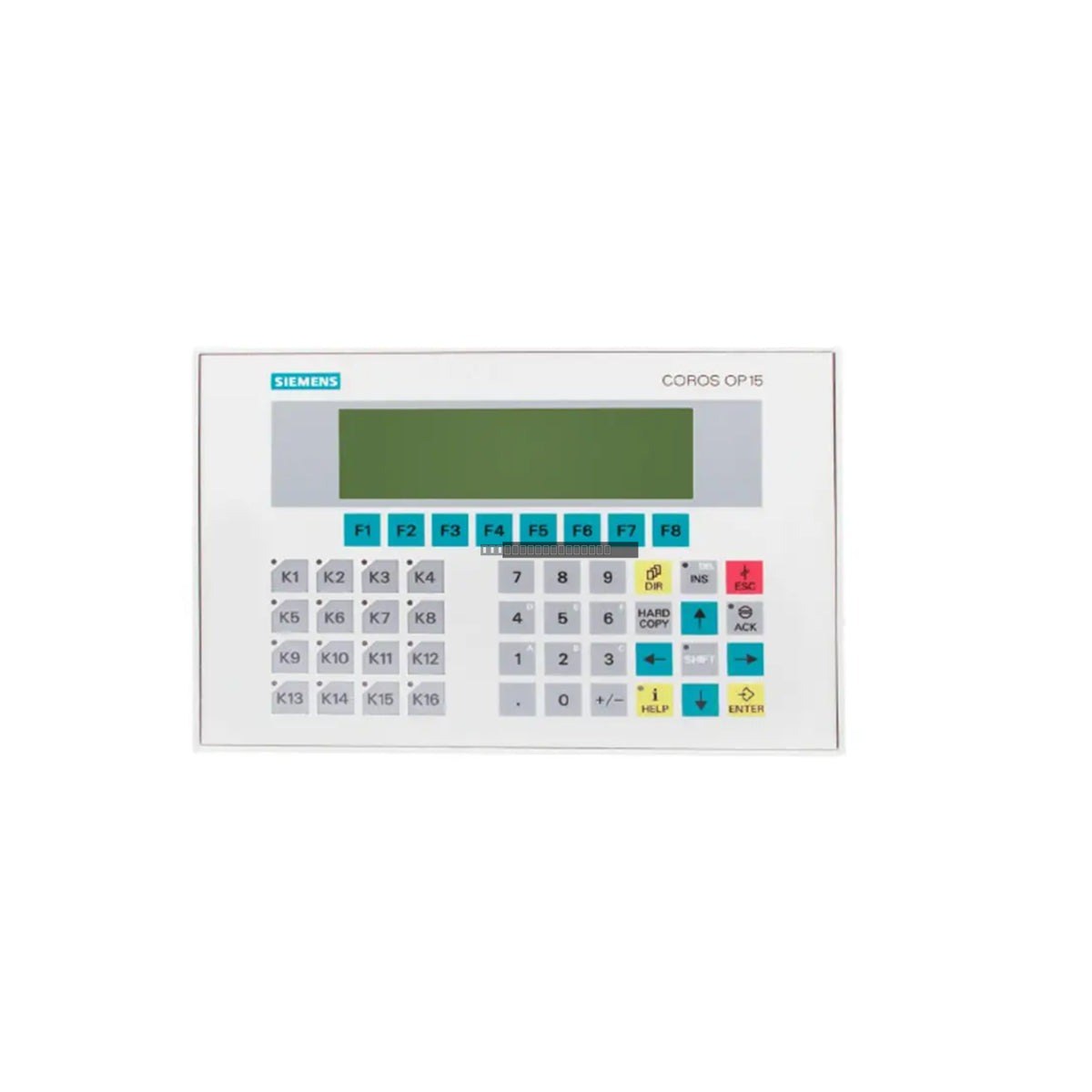

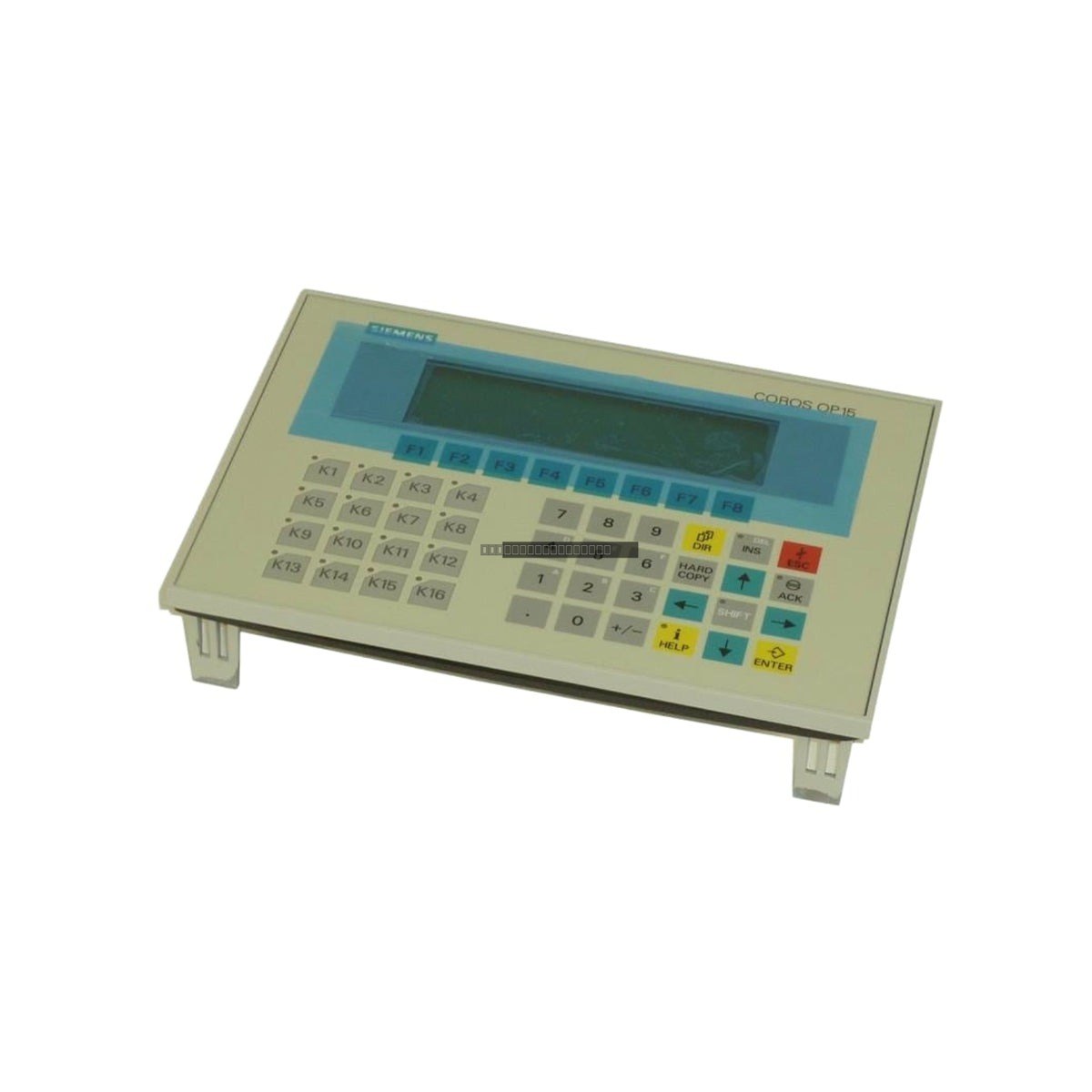

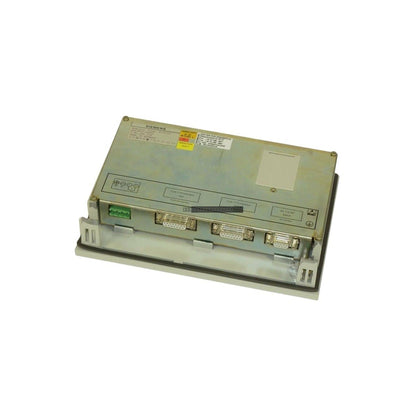

Siemens 6AV3515-1MA32 Simatic S5 OP15/C2 Operator Panel

Siemens 6AV3515-1MA32 Simatic S5 OP15/C2 Operator Panel

Description

The Siemens 6AV3515-1MA32, part of the Simatic S5 OP15/C2 series, is a specialized operator interface terminal designed for legacy automation environments. This text-based HMI provides essential process monitoring and control...

15 people are viewing this right now

Availability: Low stock: 5 left

SKU: 6AV3515-1MA32
Vendor: Siemens
Category: Operator Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV3515-1MA32, part of the Simatic S5 OP15/C2 series, is a specialized operator interface terminal designed for legacy automation environments. This text-based HMI provides essential process monitoring and control capabilities, allowing operators to view system status, manage diagnostic alarms, and adjust operational parameters directly on the factory floor. Its robust construction makes it suitable for demanding industrial applications, including power generation, mining, and chemical processing.

Features

  • Configurable LCD display supporting either 4 lines x 20 characters or 8 lines x 40 characters.
  • Membrane keypad with 8 user-configurable soft keys for streamlined process control.
  • Dual serial communication ports supporting TTY (20 mA current loop) and RS232 (V.24) standards.
  • Integrated support for SINEC L2-DP (PROFIBUS DP) fieldbus communication.
  • IP65-rated front panel, providing protection against dust and liquid ingress in harsh environments.

Technical Specifications

Model 6AV3515-1MA32 (OP15-C2)
Display Type LC Display
Input Voltage 24 VDC (18 to 30 VDC range)
Power Consumption 9 W typical
Communication TTY, RS232 (V.24), SINEC L2-DP
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 70 deg C
Protection Rating IP65 (Front)

Installation Guidelines

  • Ensure the panel is mounted in a clean, dry location with adequate ventilation to maintain operating temperatures within the 0 to 50 deg C range.
  • Verify that the 24 VDC power supply is stable and within the specified 18-30 VDC range before connection.
  • Use shielded cables for serial and fieldbus communications to minimize electromagnetic interference (EMI).
  • Ensure the front panel gasket is properly seated during installation to maintain the IP65 ingress protection rating.
  • Always disconnect power before performing any wiring changes or maintenance on the unit.

FAQ

What is the primary communication protocol for this panel? The OP15/C2 supports TTY (20 mA) and RS232 (V.24) for direct connections, as well as the SINEC L2-DP (PROFIBUS DP) protocol for fieldbus integration.

Can this unit be used in dusty environments? Yes, the front panel is rated IP65, which provides protection against dust and water splashes, making it suitable for typical industrial plant conditions.
