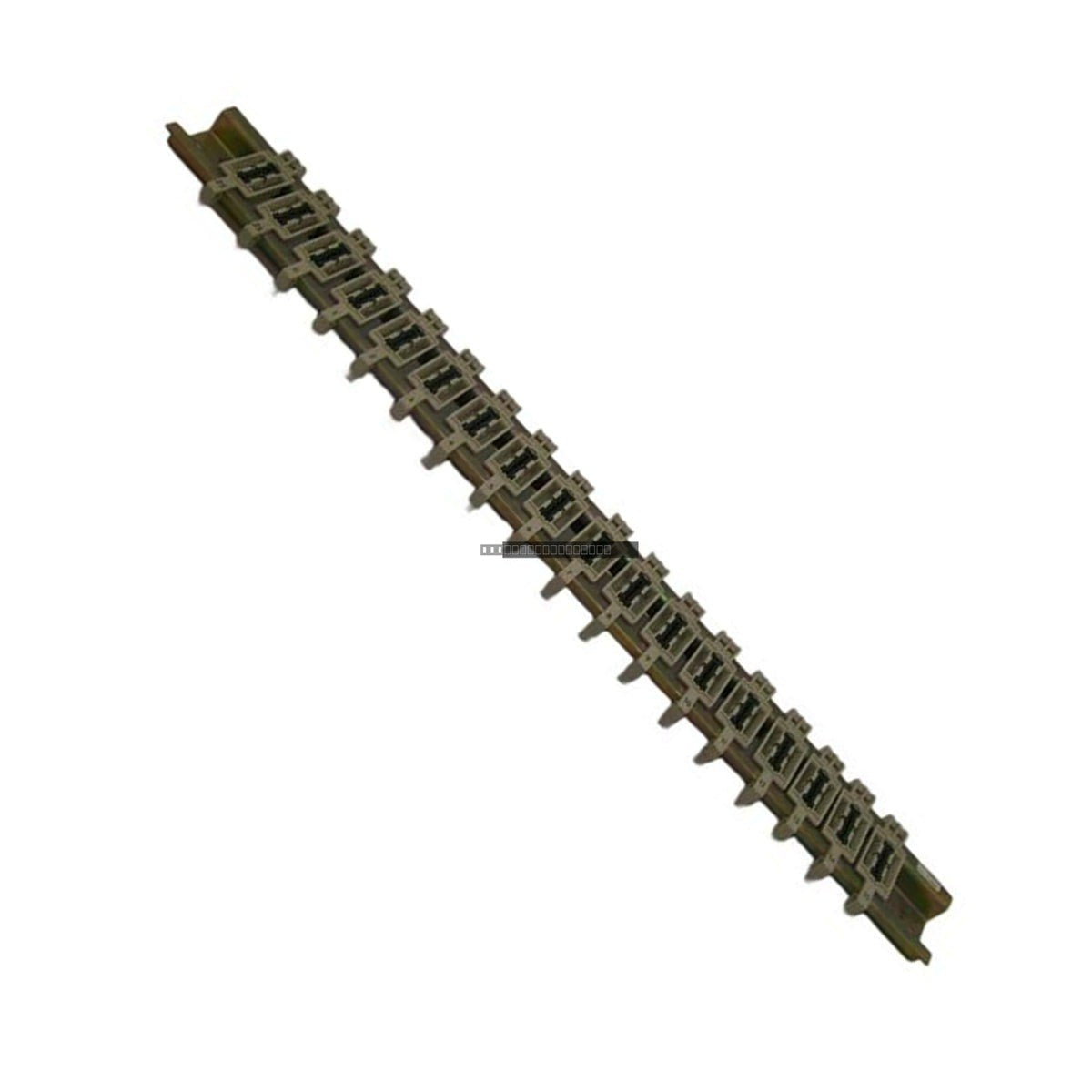

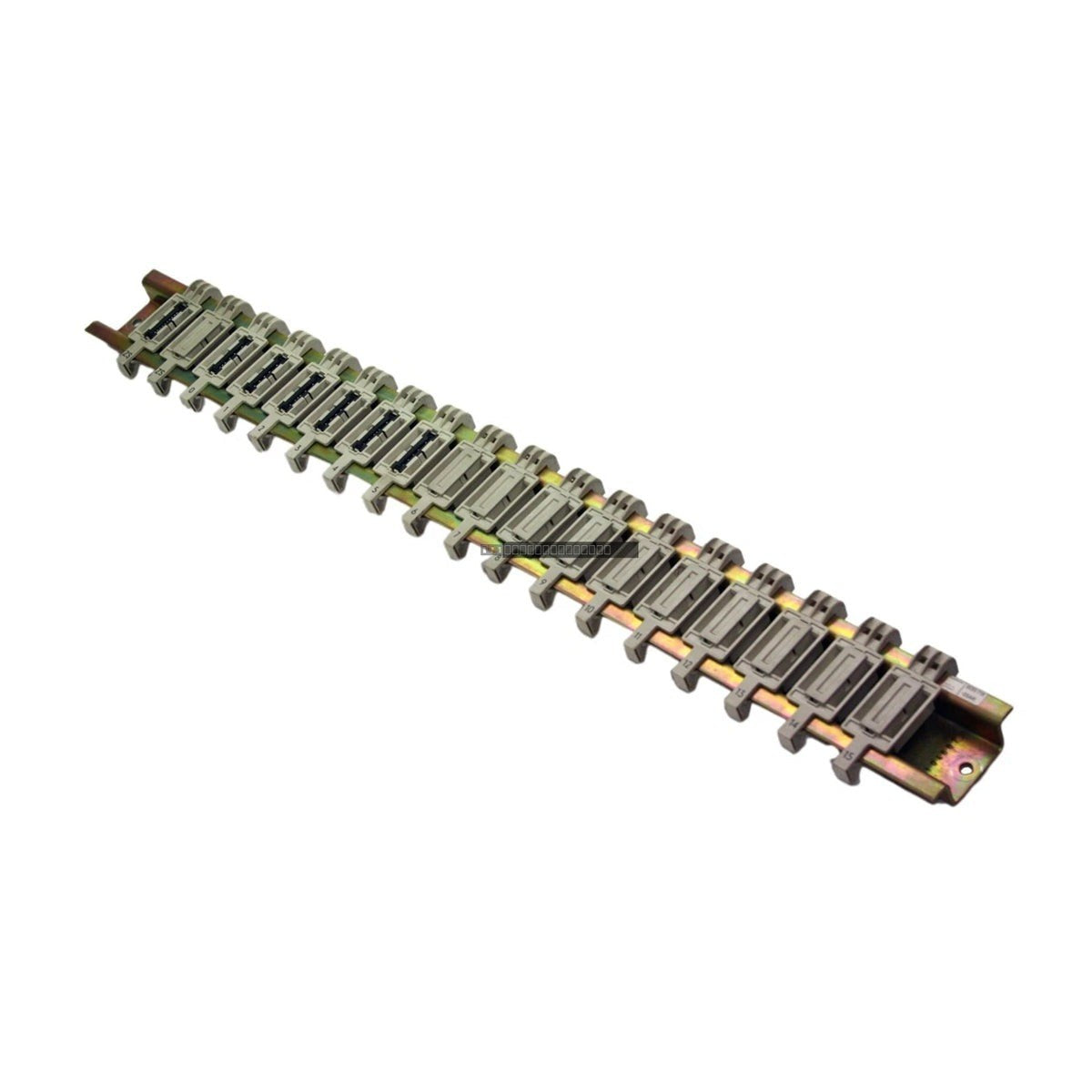

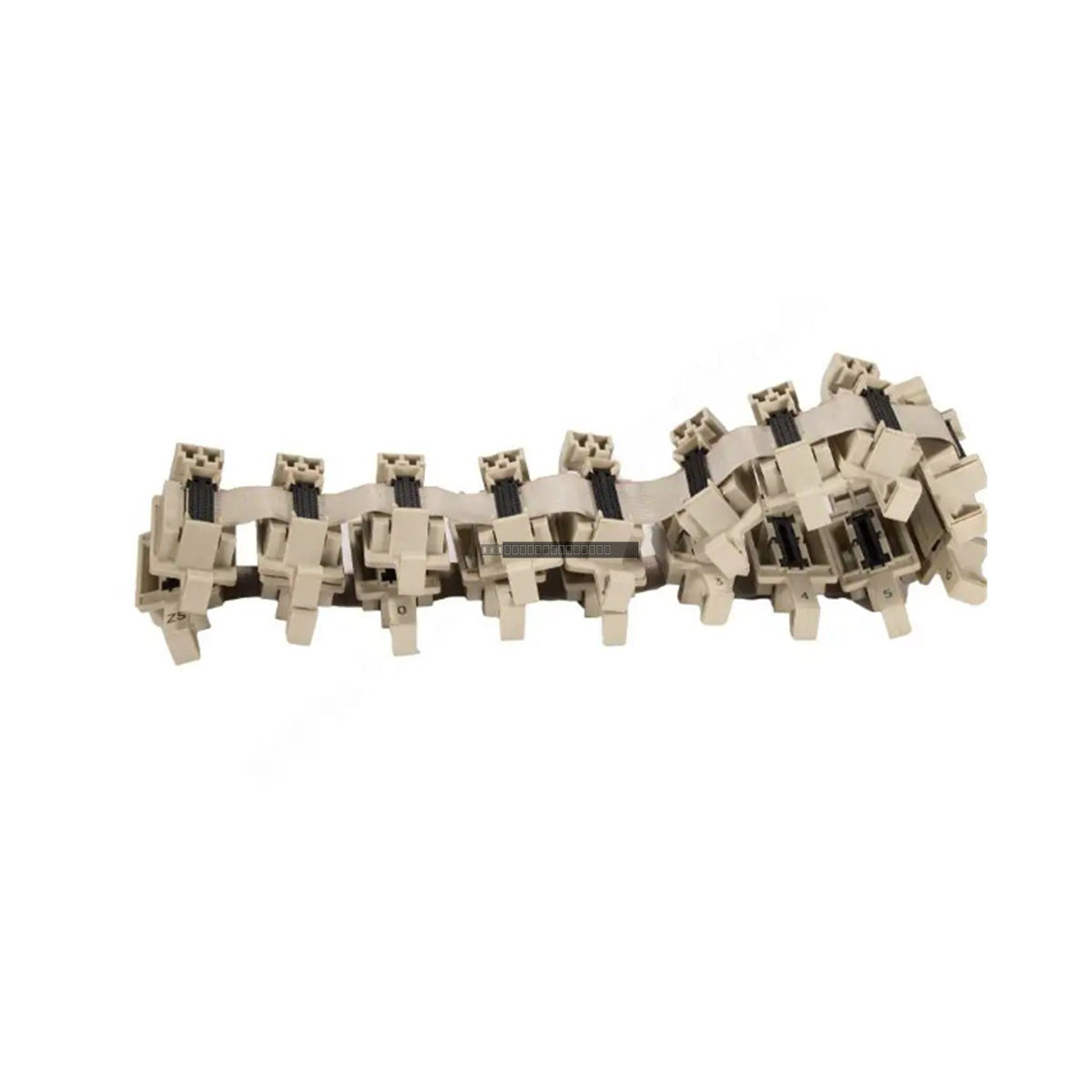

Siemens 6ES5710-0SA41 Simatic S5 Mounting Rack

Siemens 6ES5710-0SA41 Simatic S5 Mounting Rack

Description

The Siemens 6ES5710-0SA41 is a robust mounting rack designed to serve as the foundational hardware for Simatic S5-110 series programmable logic controller systems. This rack provides a secure mechanical chassis...

28 people are viewing this right now

Availability: Low stock: 4 left

SKU: 6ES5710-0SA41
Vendor: Siemens
Category: PLC Mounting Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5710-0SA41 is a robust mounting rack designed to serve as the foundational hardware for Simatic S5-110 series programmable logic controller systems. This rack provides a secure mechanical chassis and integrated backplane bus, ensuring reliable communication and power distribution between the CPU, power supply, and various I/O modules. It is engineered to maintain precise module alignment, which is critical for signal integrity in demanding industrial environments such as automotive manufacturing, steel production, and water treatment facilities.

Features

  • Provides 16 dedicated slots for modular expansion within the S5-110 system.
  • Reinforced metal frame construction for high-vibration resistance and structural stability.
  • Integrated backplane bus eliminates the need for external cabling between modules.
  • Designed with dedicated ground shielding to mitigate electromagnetic interference (EMI).
  • Passive thermal management design to support continuous operation in harsh environments.

Applications

This mounting rack is a standard component for Simatic S5-110 PLC configurations. It is widely utilized in industrial automation applications requiring high-density I/O, including process control, machine tool automation, and large-scale infrastructure monitoring systems where reliable backplane connectivity is essential for system uptime.

Technical Specifications

Model 6ES5710-0SA41
Brand Siemens
Product Family Simatic S5-110
Component Type Mounting Rack
Slot Capacity 16
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 95 percent non-condensing

Installation Guidelines

  • Ensure the rack is mounted on a flat, vibration-dampened surface within an industrial enclosure.
  • Verify that the mounting frame is properly grounded to the cabinet chassis to maintain EMI shielding effectiveness.
  • Power down the system completely before inserting or removing any I/O modules or the CPU from the rack slots.
  • Maintain adequate clearance around the rack to allow for proper airflow and thermal dissipation.
  • Handle modules with care to avoid damaging the backplane connector pins during installation.

FAQ

Is this rack compatible with other S5 series? The 6ES5710-0SA41 is specifically designed for the S5-110 series. Please verify your specific PLC model requirements before installation.

Does this rack require external power? No, this is a passive mounting rack. Power is distributed to the modules via the integrated backplane bus from the system power supply unit.
