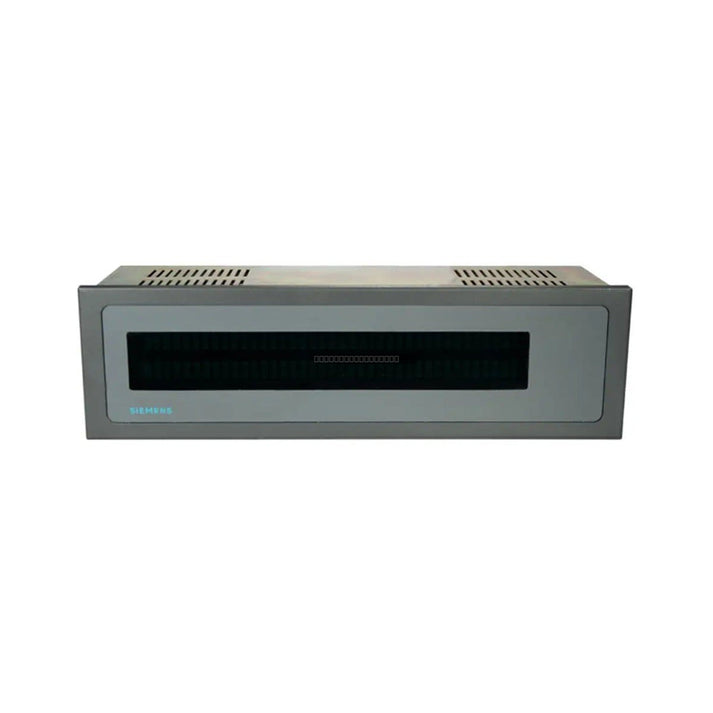

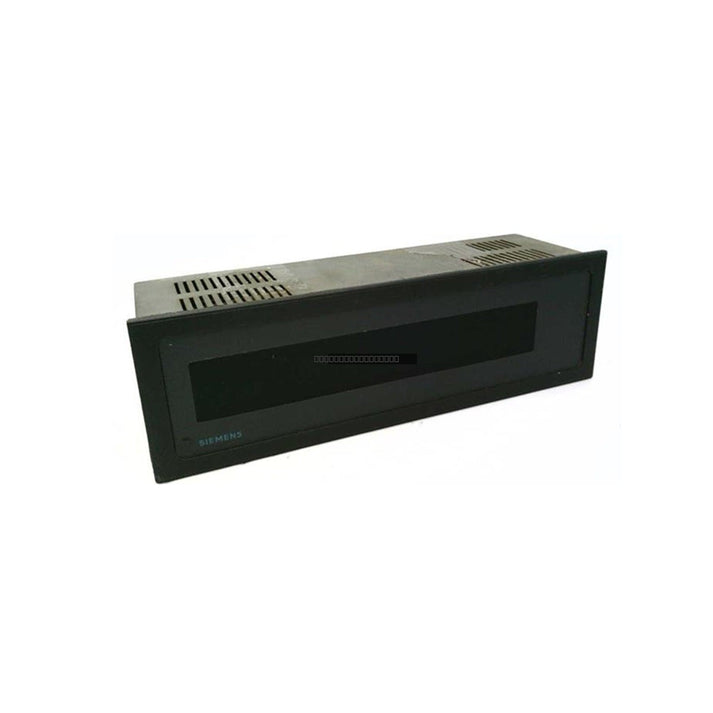

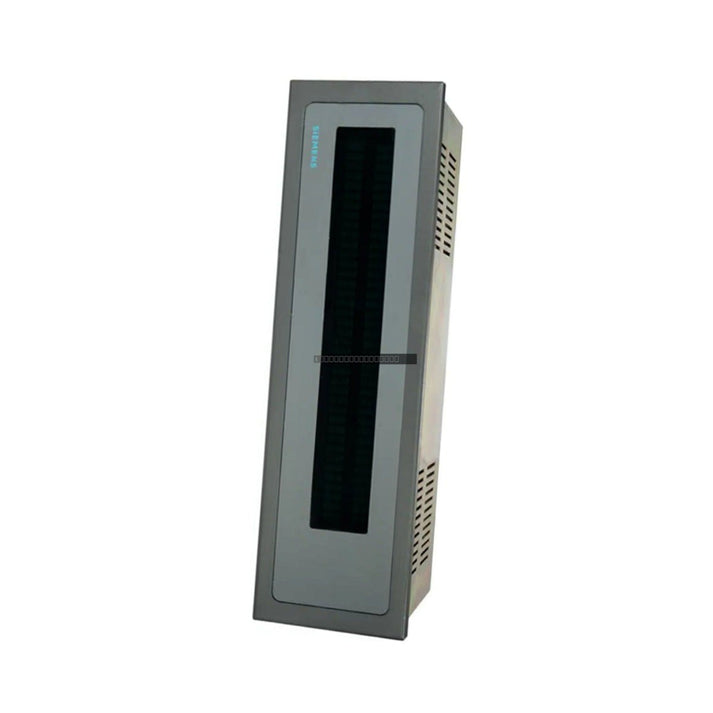

Siemens 6AV1142-0DB10 Simatic S5 Text Display

Siemens 6AV1142-0DB10 Simatic S5 Text Display

Description

The Siemens 6AV1142-0DB10 is a specialized text display terminal designed for integration with Simatic S5 legacy PLC systems. This operator interface unit provides essential real-time data visualization and diagnostic monitoring...

15 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6AV1142-0DB10
Vendor: Siemens
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV1142-0DB10 is a specialized text display terminal designed for integration with Simatic S5 legacy PLC systems. This operator interface unit provides essential real-time data visualization and diagnostic monitoring capabilities, supporting efficient process management in industrial environments such as automated assembly lines, power distribution, and chemical processing facilities. By connecting directly to the S5 controller bus, the module enables rapid feedback on system status, assisting in the reduction of downtime during operational interruptions.

Features

  • Direct S5-Bus interface for high signal integrity and reliable communication.
  • Text-based matrix display for clear, concise process data output.
  • Host-dependent memory architecture, utilizing the PLC to manage display data packets.
  • Robust industrial design suitable for demanding control cabinet environments.
  • IP65-rated front face protection against dust and moisture ingress.

Applications

This terminal is primarily deployed in legacy automation systems where S5-series controllers remain in operation. It is commonly used for:

  • Machine status monitoring and alarm annunciation.
  • Parameter adjustment and setpoint modification.
  • Diagnostic feedback for maintenance and troubleshooting.
  • Operator interaction in localized control stations.

Technical Specifications

Model 6AV1142-0DB10
Brand Siemens
Product Family Simatic S5
Display Type Single-line text matrix
Communication S5-Bus
Memory External (Host-dependent)
Power Consumption 5 W
Operating Temperature 0 to 55 deg C
Front Protection IP65

Installation Guidelines

  • Ensure the control cabinet power is disconnected before installing or removing the display module.
  • Mount the unit in a location that allows for adequate ventilation and prevents exposure to excessive heat or vibration.
  • Verify that the S5-Bus connection is secure and that the cable routing is kept away from high-voltage power lines to minimize electromagnetic interference (EMI).
  • Handle the device with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
  • Confirm that the front gasket is properly seated to maintain the IP65 ingress protection rating.

FAQ

Is this unit compatible with modern S7 controllers?

No, the 6AV1142-0DB10 is specifically engineered for the Simatic S5-Bus architecture and is not natively compatible with S7-series PLC communication protocols.

Does this display store its own text messages?

No, this model operates as a passive terminal. It relies on the host S5 controller to push data packets for display; it does not contain internal text memory.
