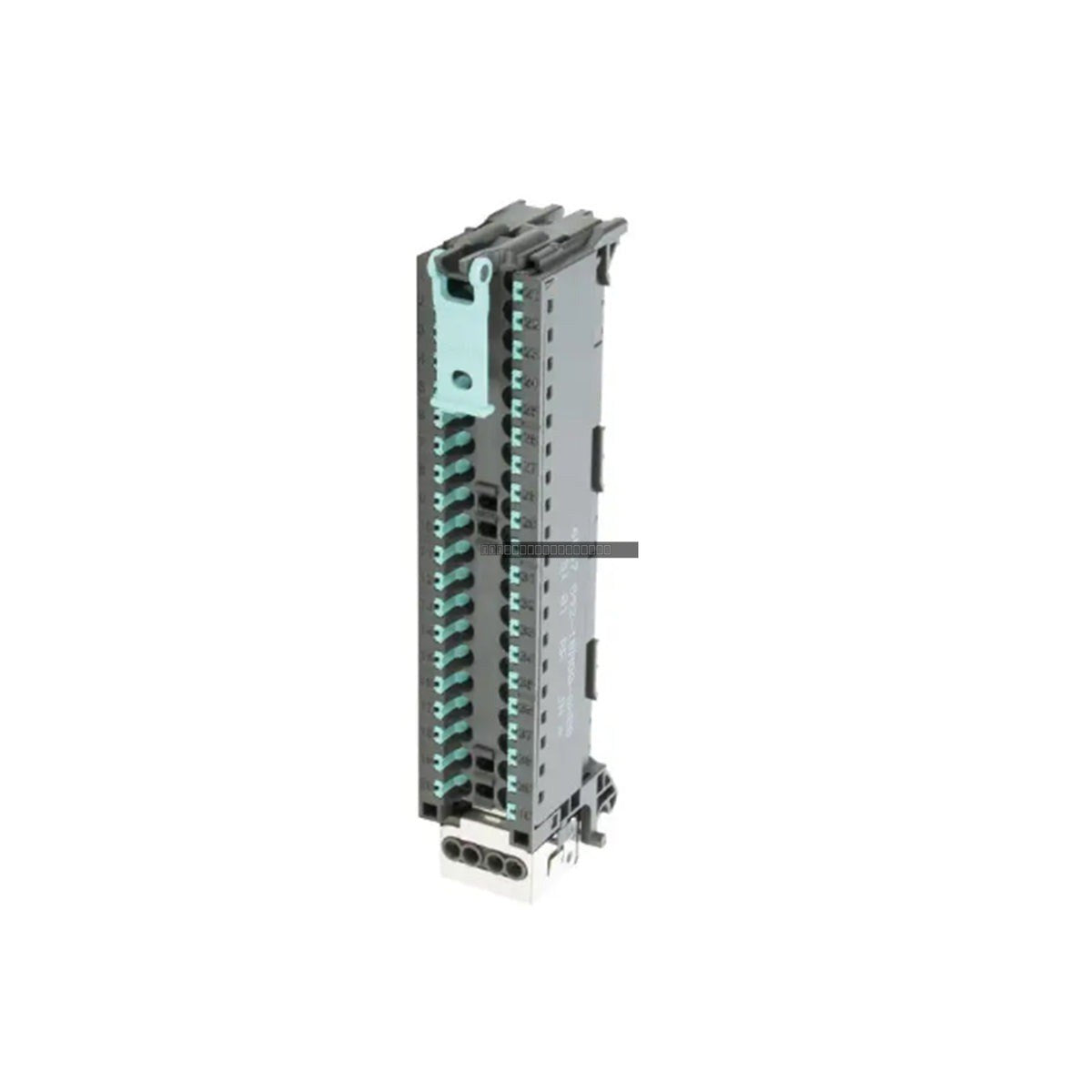

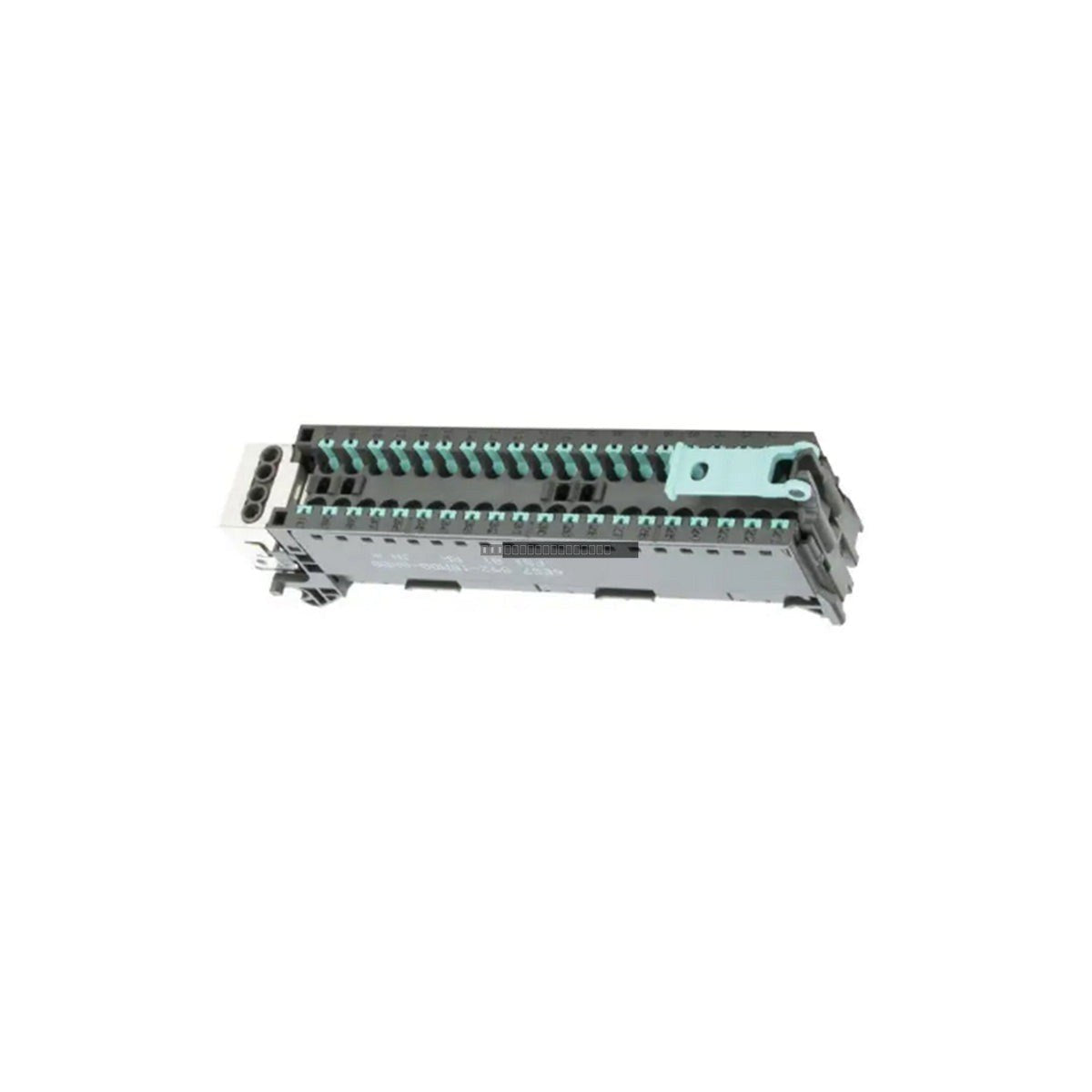

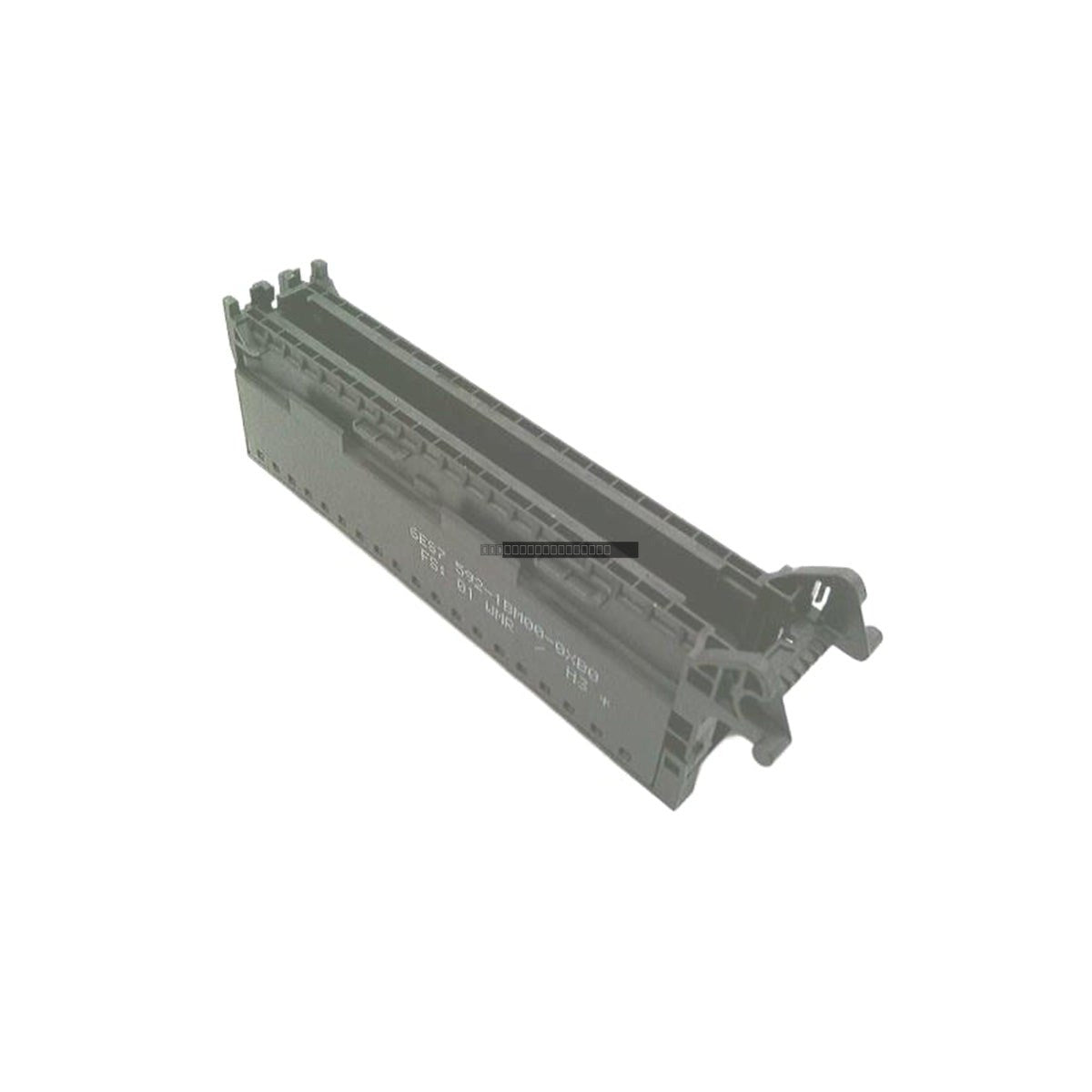

Siemens 6ES7592-1BM00-0XB0 Simatic S7-1500 40-Pole Front Connector

Siemens 6ES7592-1BM00-0XB0 Simatic S7-1500 40-Pole Front Connector

Description

The Siemens 6ES7592-1BM00-0XB0 is a 40-pole front connector designed for the Simatic S7-1500 automation system. This component utilizes advanced push-in technology to facilitate rapid, tool-free wiring of signal modules. Engineered...

28 people are viewing this right now

Availability: Low stock: 3 left

SKU: 6ES5581-0HB11
Vendor: Siemens
Category: Front Connector
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7592-1BM00-0XB0 is a 40-pole front connector designed for the Simatic S7-1500 automation system. This component utilizes advanced push-in technology to facilitate rapid, tool-free wiring of signal modules. Engineered for high-density I/O configurations, it ensures reliable electrical contact in demanding industrial environments, including power generation, manufacturing, and process control facilities. The connector is specifically optimized for 35 mm wide S7-1500 modules, providing a secure, vibration-resistant interface that simplifies both initial system commissioning and ongoing maintenance.

Features

  • 40-pole design for high-density signal module connectivity.
  • Tool-free push-in terminal technology for efficient conductor termination.
  • Supports solid and ferruled stranded conductors (0.25 mm² to 1.5 mm²).
  • Integrated strain relief slots for secure cable management using included ties.
  • Includes four potential bridges for simplified power distribution.
  • Vibration-resistant contact force ensures long-term signal integrity.
  • Fast, latching mechanical connection to the module front face.

Technical Specifications

Model 6ES7592-1BM00-0XB0
Series Simatic S7-1500
Number of Poles 40
Connection Technology Push-in
Conductor Cross Section 0.25 mm² to 1.5 mm²
Stripping Length 8 mm to 11 mm
Module Compatibility 35 mm wide S7-1500 modules
Operating Temperature -30 deg C to 60 deg C
Included Accessories 4 potential bridges, cable ties

Installation Guidelines

  • Ensure the signal module is powered down before attempting to attach or remove the front connector.
  • Strip conductors to the specified length (8 mm to 11 mm) to ensure proper insertion depth.
  • When using ferrules, ensure they comply with DIN 46228 standards for optimal contact.
  • Insert the conductor into the terminal until it reaches the mechanical stop; no screwdriver is required for push-in terminals.
  • Utilize the integrated cable tie slots to secure field wiring and prevent mechanical strain on the connector pins.
  • Verify that the connector is fully latched into the S7-1500 module housing to maintain electrical continuity.

FAQ

Does this connector require special tools for wiring? No, this unit features push-in technology, allowing for tool-free conductor insertion.

Can I use this with any S7-1500 module? This connector is designed for 35 mm wide S7-1500 signal modules. Please verify your specific module's documentation to ensure compatibility.

Are potential bridges included? Yes, the package includes four potential bridges to assist with internal power distribution.
