Description

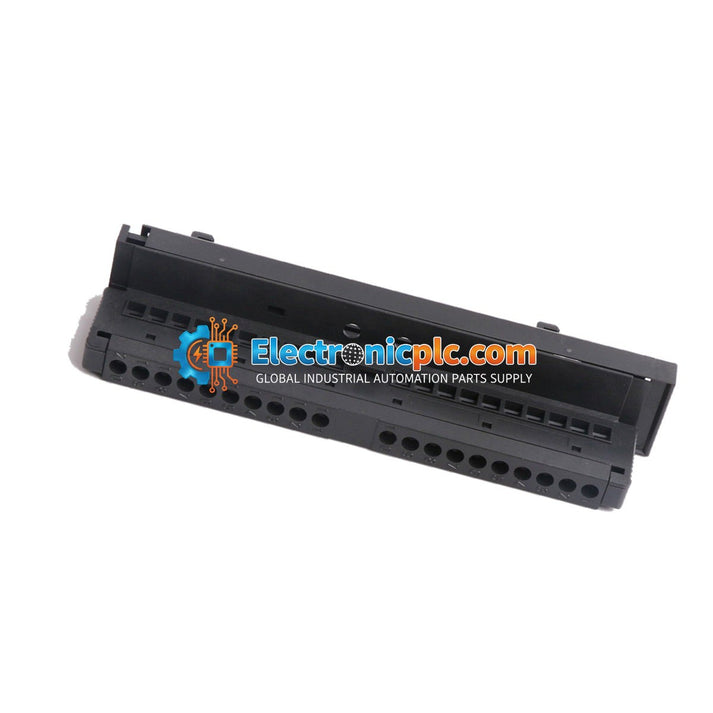

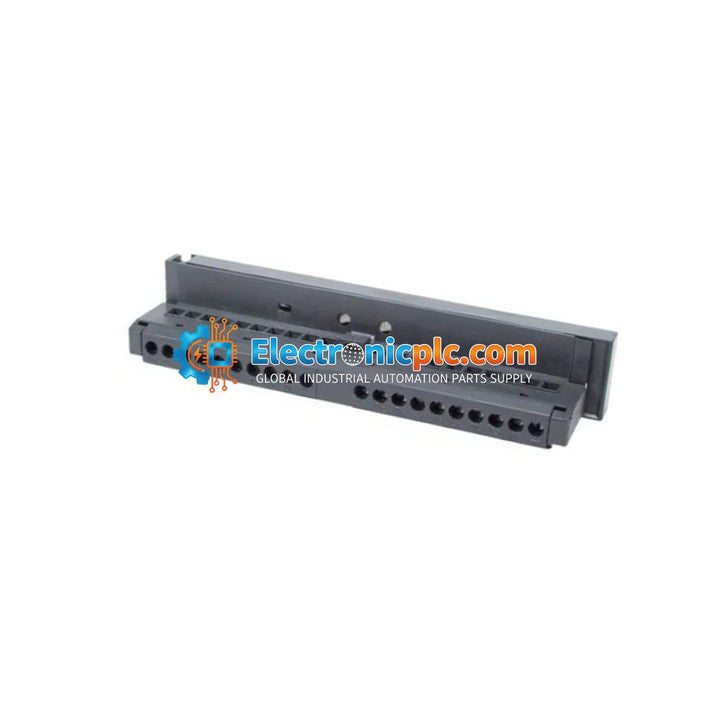

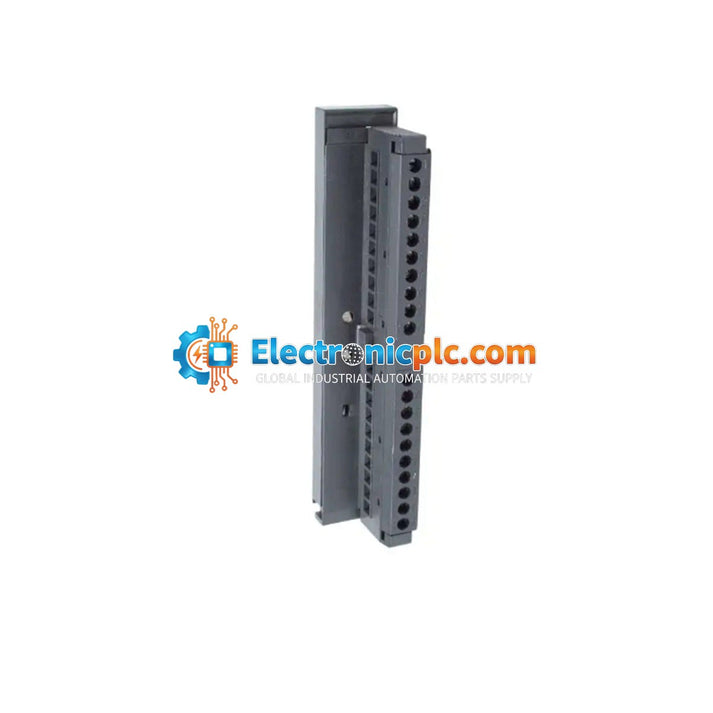

The Siemens 6ES7392-1AJ00-0AA0 is a 20-pole front connector designed for the SIMATIC S7-300 PLC platform. It serves as the primary physical interface between field wiring and S7-300 signal modules, including digital input, digital output, analog input, and analog output modules. This connector features screw-type terminals, facilitating secure and reliable electrical connections for industrial automation environments.

Features

• 20-pole configuration for high-density I/O termination
• Screw-terminal design for robust, vibration-resistant connections
• Supports conductor cross-sections from 0.25 mm² to 1.5 mm²
• Integrated mechanical coding to prevent incorrect module insertion
• Front-access wiring allows for rapid module replacement without disconnecting individual field wires
• Integrated strain relief for organized cable management

Applications

• Manufacturing automation and assembly lines
• Process control in water and wastewater treatment
• HVAC and building management systems
• Chemical dosing and food/beverage processing equipment
• General machine control and material handling

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before inserting or removing the front connector from any module.
• Strip wires to exactly 6 mm to ensure proper seating within the terminal block.
• Use a conical screwdriver with a 3 to 3.5 mm blade width for terminal screw adjustment.
• Tighten screws to the specified 0.4 to 0.7 Nm torque range; do not overtighten to avoid damaging plastic threads.
• Utilize the integrated plastic strap for strain relief to prevent mechanical stress on the terminal connections.
• Verify the mechanical coding elements are correctly aligned before plugging the connector into the module.

FAQ

Does this connector have a coding mechanism to prevent inserting it into the wrong module?

Yes, it includes mechanical coding elements that physically prevent the connector from being plugged into an incompatible module type, ensuring safety during maintenance.

Can I replace a faulty S7-300 module without rewiring?

Yes, the front connector is designed to be unclipped from the faulty module and reconnected to the replacement unit, significantly reducing downtime and potential wiring errors.

What wire types are supported?

The terminals accept solid and flexible conductors from 0.25 mm² to 1.5 mm², with or without end sleeves. It supports one conductor per terminal or two conductors in a shared ferrule up to 1.5 mm² total.
