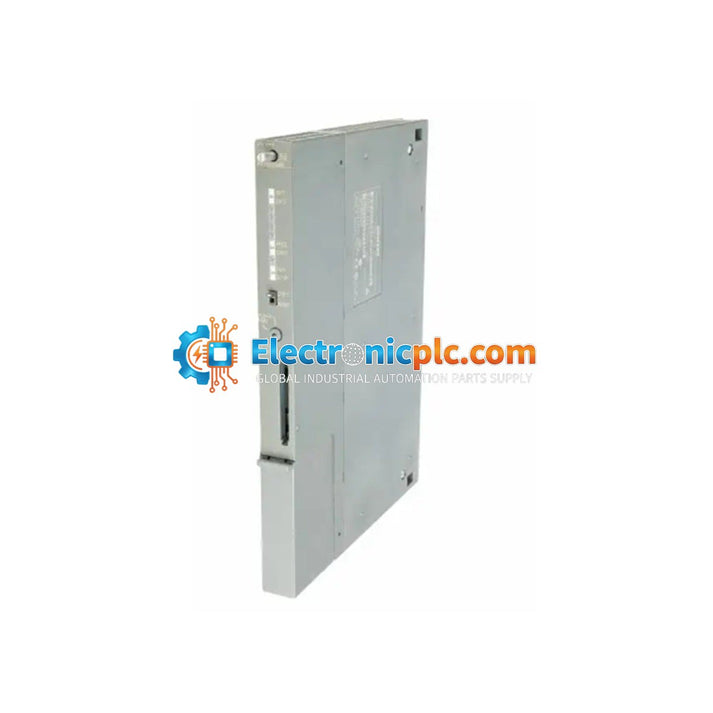

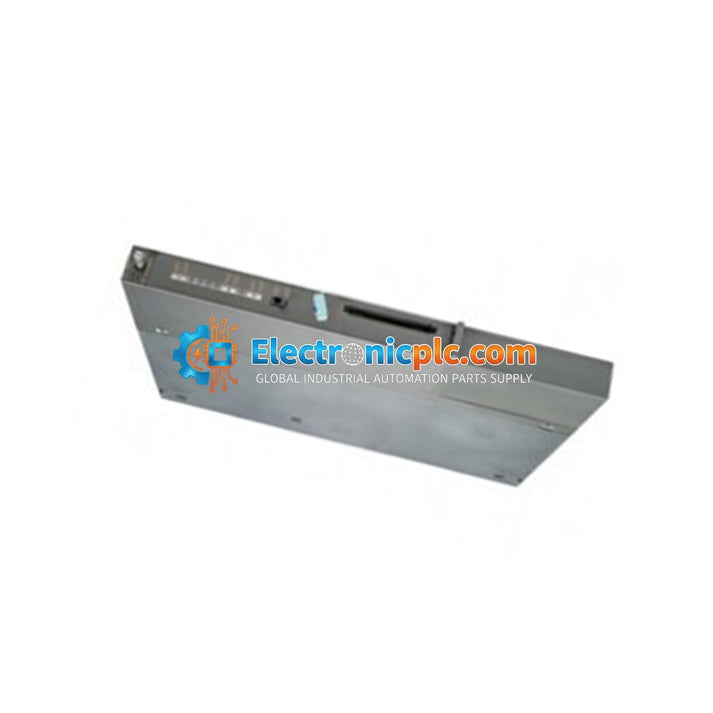

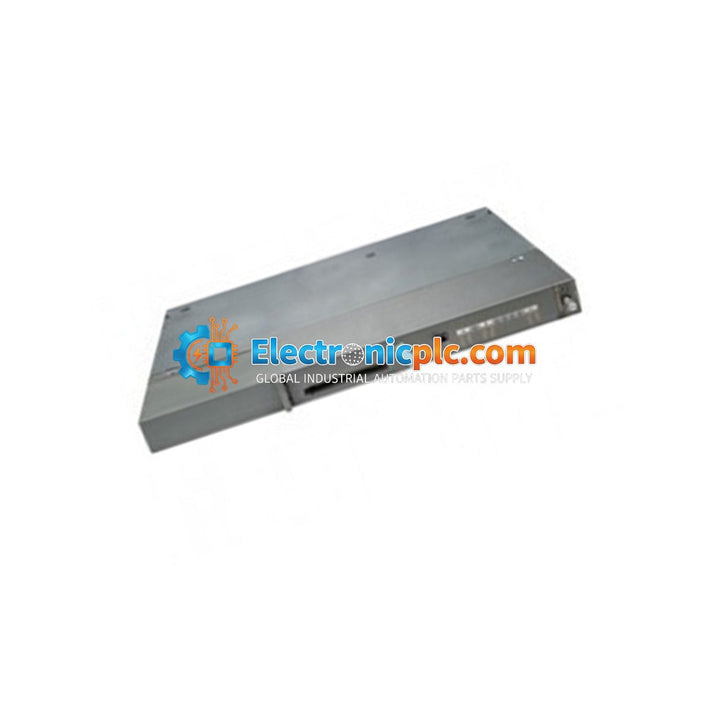

Siemens 6ES7414-1XG02-0AB0 SIMATIC S7-400 CPU 414-1 Processor Module

Siemens 6ES7414-1XG02-0AB0 SIMATIC S7-400 CPU 414-1 Processor Module

Description

The Siemens 6ES7414-1XG02-0AB0 is a central processing unit (CPU) designed for the SIMATIC S7-400 programmable logic controller system. This module provides robust processing power for industrial automation tasks, featuring a...

20 people are viewing this right now

Availability: Low stock: 5 left

SKU: 6ES7414-1XG02-0AB0
Vendor: Siemens
Category: PLC CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7414-1XG02-0AB0 is a central processing unit (CPU) designed for the SIMATIC S7-400 programmable logic controller system. This module provides robust processing power for industrial automation tasks, featuring a dedicated Multi-Point Interface (MPI) for communication and programming. As a core component of the S7-400 family, it is engineered for high-performance control applications requiring reliable data processing and system integration.

Features

  • Integrated MPI interface for seamless communication with programming devices and other S7 stations.
  • 128 KB of internal working memory for program execution and data storage.
  • Designed for the modular S7-400 rack-based architecture.
  • Supports standard SIMATIC S7 automation functions and instruction sets.

Applications

This CPU module is suitable for mid-range automation projects within the manufacturing, process control, and infrastructure sectors. It is commonly utilized in systems requiring centralized logic control, data handling, and integration with HMI or SCADA systems via the MPI network.

Technical Specifications

Product Model 6ES7414-1XG02-0AB0
Manufacturer Siemens
Series SIMATIC S7-400
Device Type CPU 414-1
Working Memory 128 KB
Communication Interface MPI (Multi-Point Interface)
Status Discontinued by Manufacturer (Effective 01/10/12)

Installation Guidelines

  • Ensure the S7-400 rack is powered down before inserting or removing the CPU module to prevent electrical damage.
  • Verify that the module is correctly seated in the designated CPU slot of the S7-400 rack and secured with the integrated locking mechanism.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
  • Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the manufacturer's specified range.
  • Use shielded cables for MPI communication to minimize interference from high-EMI industrial environments.

FAQ

Is this module still supported by Siemens?

The 6ES7414-1XG02-0AB0 was officially discontinued by the manufacturer on January 10, 2012. While it may still be functional in existing legacy systems, it is generally recommended to consider migration paths to current-generation S7-400 or S7-1500 controllers for new projects or long-term system upgrades.

What is the primary communication method for this CPU?

This model utilizes the MPI (Multi-Point Interface) for communication, which allows for connection to programming devices, operator panels, and other CPUs within the same MPI subnet.
