Description

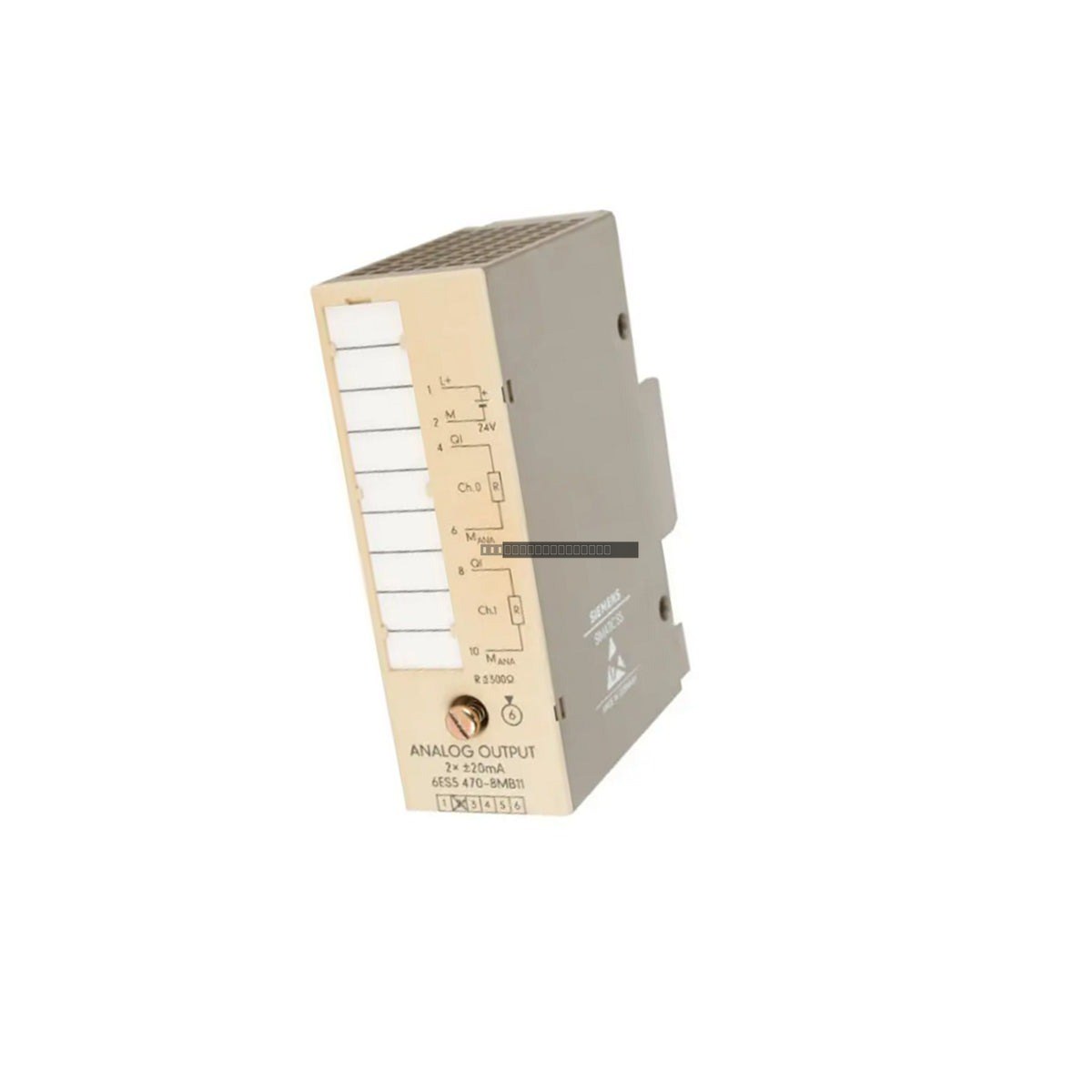

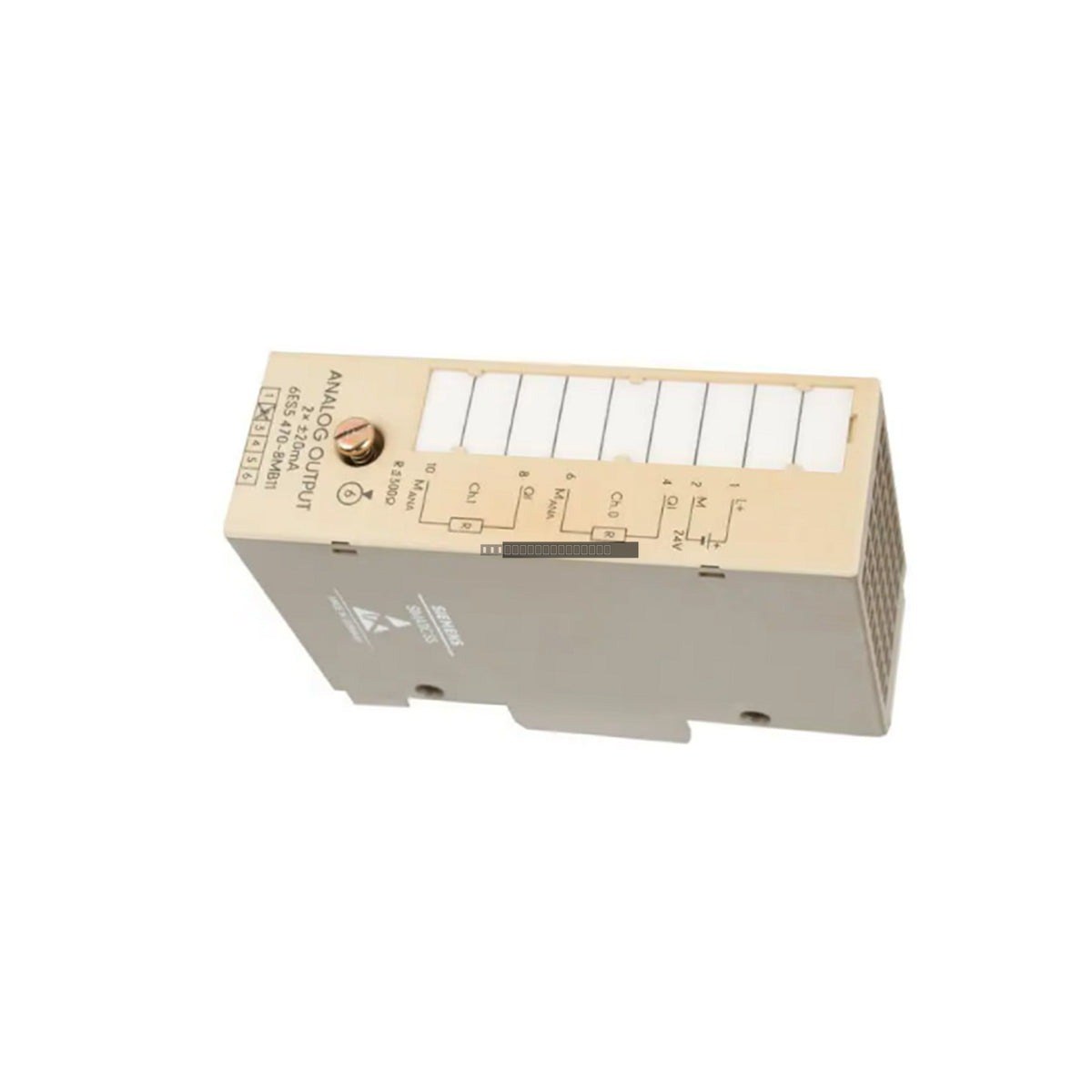

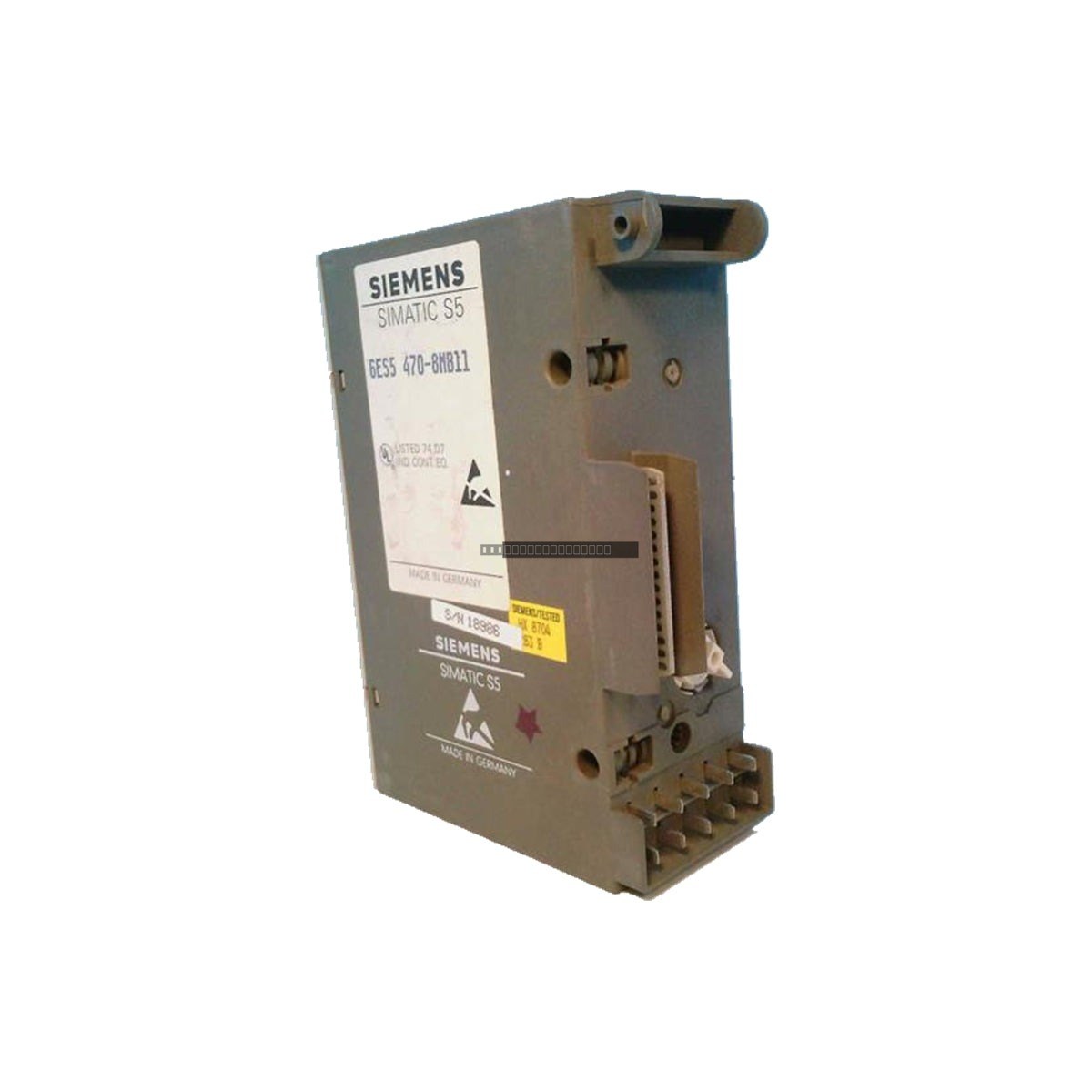

The Siemens 6ES5470-8MB11 is a specialized analog output module designed for integration within the SIMATIC S5 programmable logic controller (PLC) architecture. This module serves as a bridge between the PLC control logic and field-level instrumentation, providing precise current signals required for the regulation of industrial machinery, such as variable speed drives, modulating valves, and pneumatic actuators. Engineered for reliability in demanding environments, the module ensures signal integrity and protects the central control rack through integrated galvanic isolation, which mitigates the risk of ground loops and electrical transients.

Features

• Versatile Output Ranges: Supports multiple current output configurations, including +/- 20 mA, 0 to 20 mA, and 4 to 20 mA, allowing for flexible application across various control loops.
• Galvanic Isolation: Features optoelectronic decoupling between the backplane bus and field-side circuitry to prevent common-mode noise interference and protect sensitive internal components.
• Legacy Compatibility: Designed specifically for the SIMATIC S5 system, ensuring seamless mechanical and electrical integration with standard S5 backplane connectors.
• Robust Design: Built to withstand industrial operating conditions, supporting stable performance in temperatures ranging from 0 to 60 deg C.

Applications

This module is widely utilized in continuous process industries, including thermal power generation, petroleum refining, and large-scale mining operations. It is suitable for any application requiring precise, isolated current control for actuators, governors, and proportional control hardware.

Technical Specifications

Installation Guidelines

• Power Off: Always disconnect power from the S5 rack before inserting or removing the module to prevent electrical damage.
• Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
• Mounting: Ensure the module is properly seated in the S5 rack slot and that the backplane connector is fully engaged.
• Wiring: Use shielded cabling for all field-side connections to minimize electromagnetic interference (EMI). Ensure that the shield is properly grounded at the appropriate terminal to maintain signal integrity.
• Cooling: Maintain adequate clearance around the rack to ensure proper airflow and prevent overheating during operation.

FAQ

What output ranges does the 6ES5470-8MB11 support?

The module supports +/- 20 mA, 0 to 20 mA, and 4 to 20 mA current output ranges, making it suitable for both standard and bipolar control requirements.

Is this module galvanically isolated?

Yes, the module features galvanic isolation between the internal S5 backplane bus and the field-side output loops to protect against ground loops and voltage transients.

What is the operating temperature range for this module?

The module is designed to operate within an ambient temperature range of 0 to 60 deg C.
