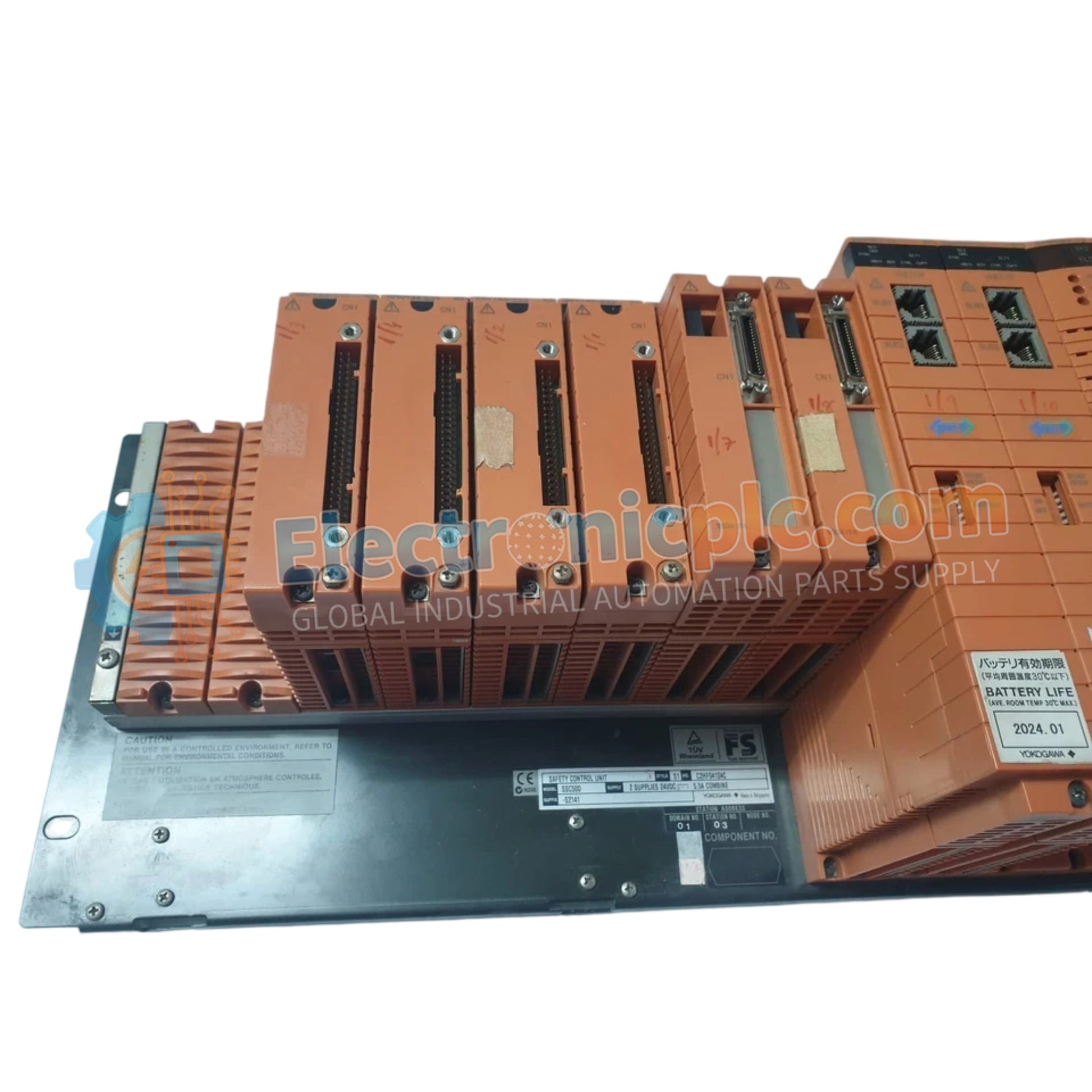

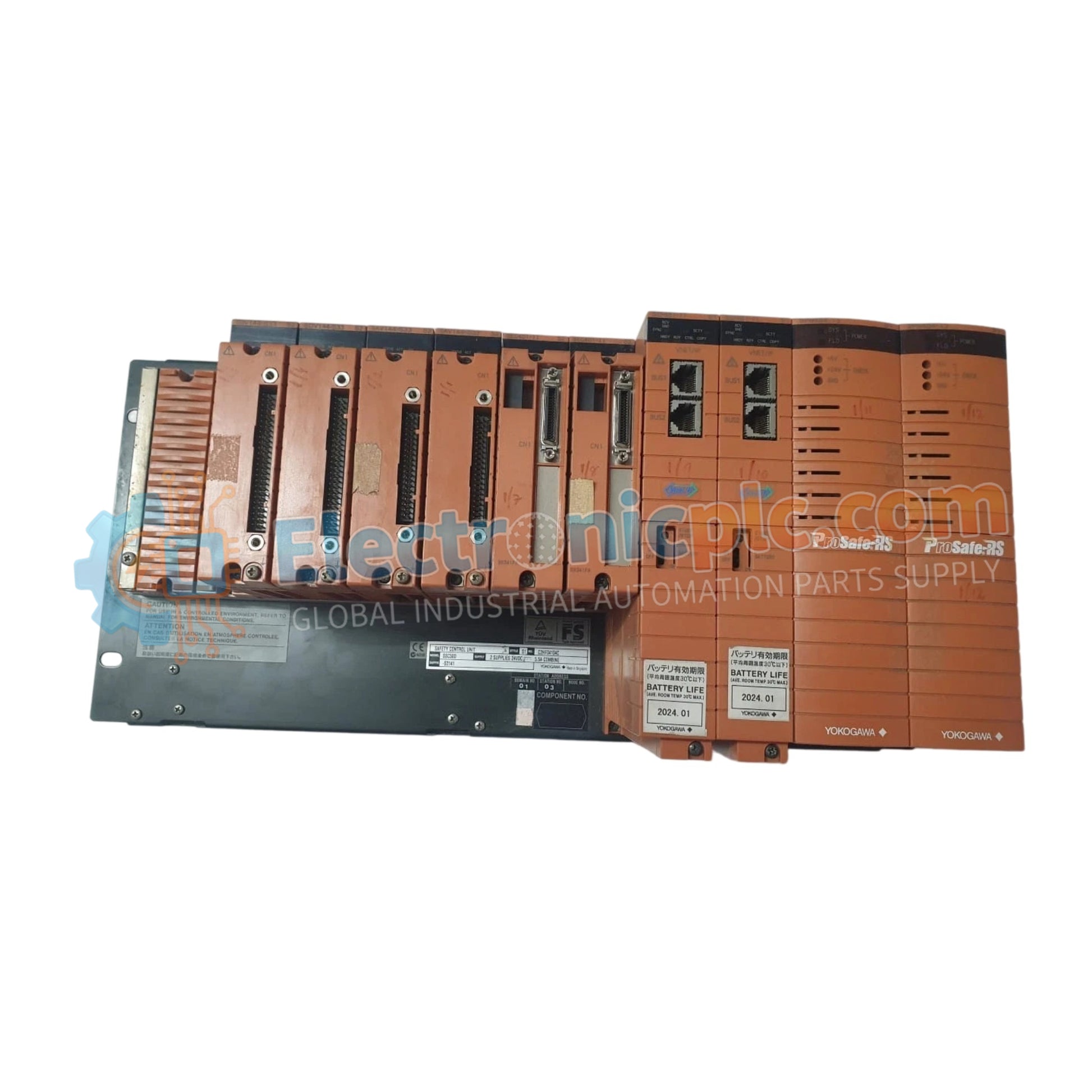

The Yokogawa SSC50D-S2543, also cataloged as the SSC50D-S2543 Duplexed Safety Control Unit, operates as a dedicated hardware component for fail-safe state execution and process monitoring within ProSafe-RS Safety Instrumented System (SIS) platforms.

Hardware Specifications

SIS High-Reliability Architecture

The SSC50D-S2543 utilizes a triple modular redundancy (TMR) 2oo3 architecture to achieve SIL3 certification in safety-critical loops. This configuration enables seamless failover and continuous operation, ensuring that the safety system remains active even during a single-module failure. The module provides galvanic isolation of 500 Vrms between the input circuitry and the ground plane, effectively mitigating noise interference in complex field environments. In the event of an internal diagnostic fault, the unit defaults to a fail-safe state execution mode to ensure the safety instrumented function remains compliant with functional safety standards.

Frequently Asked Questions

Q: Does the SSC50D-S2543 support hot-swapping during active process operations?

A: Yes. The duplexed design allows for the hot-swapping of individual modules within the safety controller rack, provided that the system configuration is set to maintenance mode to prevent spurious trips during the extraction or insertion process.

Q: How does the unit handle power input variations for the 24 VDC, 12 VDC, and 5 VDC rails?

A: The module accepts input voltages with a tolerance of +/- 10%. Internal power management circuits regulate these inputs to ensure stable operation of the TMR logic, provided the incoming supply adheres to the specified voltage range and ripple requirements.

Field Installation Guidelines

• Ensure the controller is mounted in a location compliant with the -10 to 55 deg C operating temperature range to maintain the integrity of the TMR logic components.
• Maintain clear airflow paths around the unit; ensure the 100 mm depth allows for adequate heat dissipation as per installation clearance requirements.
• Perform all field wiring using high-quality shielded cables; terminate the shield at the cabinet's safety ground bus to maximize the effectiveness of the 500 Vrms isolation.
• Verify proper seating of the module on the backplane to ensure reliable communication across the safety bus; confirm all status LEDs indicate normal operation after power-up.
