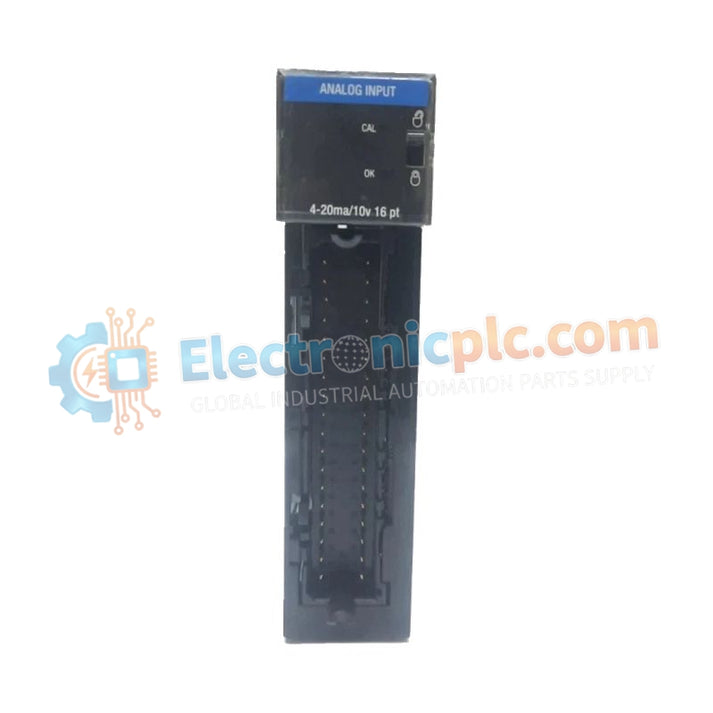

TC-IAH161 Honeywell Analog Input Module

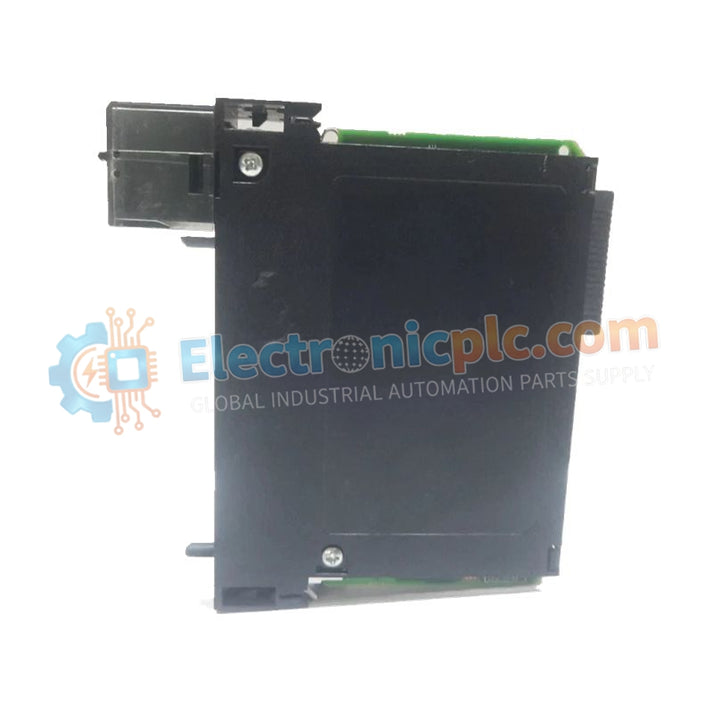

TC-IAH161 Honeywell Analog Input Module

Product Description

The TC-IAH161 is a 16-channel High-Level Analog Input (HLAI) module designed for the Honeywell Experion PKS C200 platform. It converts standard voltage and current signals from field transmitters and sensors into digital data for the control...

19 people are viewing this right now

Availability: Low stock: 99 left

SKU: TC-IAH16I
Vendor: Honeywell
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The TC-IAH161 is a 16-channel High-Level Analog Input (HLAI) module designed for the Honeywell Experion PKS C200 platform. It converts standard voltage and current signals from field transmitters and sensors into digital data for the control processor.

Featuring high-resolution 16-bit A/D conversion and robust galvanic isolation, the TC-IAH161 ensures accurate, noise-resistant signal acquisition in demanding industrial environments. Its compact design supports dense installation while maintaining thermal efficiency.

Technical Specifications

Parameter Specification
Module Part Number TC-IAH161
Input Channels 16 Single-Ended Points
A/D Resolution 16 bits across all ranges
Voltage Input Ranges ±10.25 VDC, 0–10.25 VDC, 0–5.125 VDC
Current Input Range 0–20.5 mA (Internal 250 Ω precision resistor)
Input Impedance (Voltage) > 1.0 MΩ
Input Impedance (Current) 249 Ω (Nominal)
Data Refresh Rate 250 ms module publish rate
Signal Bandwidth 20 Hz (-3 dB)
Isolation Protection 2550 VDC (User-to-System, 1 second)
EMC Compliance RFI immunity error < 2% at 10 V/m (27–1000 MHz)
Thermal Management 4.1 W maximum power dissipation
Required Connectivity TC-TBCH 36-position Terminal Block

Application

  • Transmitter Monitoring – Pressure, flow, and level sensors.

  • Precision Process Loops – High-resolution data acquisition for closed-loop control.

  • DCS Integration – Direct interface to C200 controllers in industrial automation.

  • High-Density Cabinet Deployment – Efficient thermal and spatial integration in Series C racks.

FAQ

Does TC-IAH161 require external resistors for current loops?
No. Each channel includes an internal 250 Ω precision resistor, supporting 0–20 mA or 4–20 mA inputs, simplifying field wiring and eliminating additional hardware.
