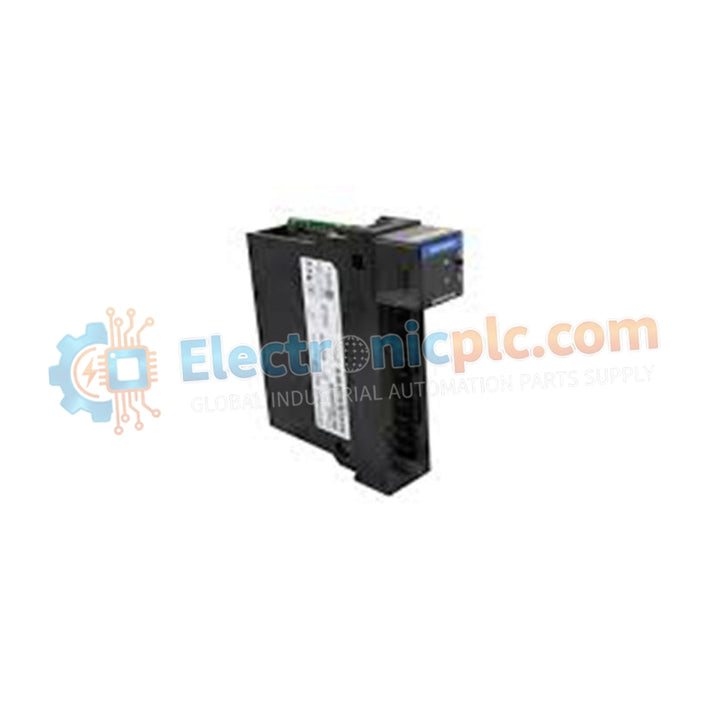

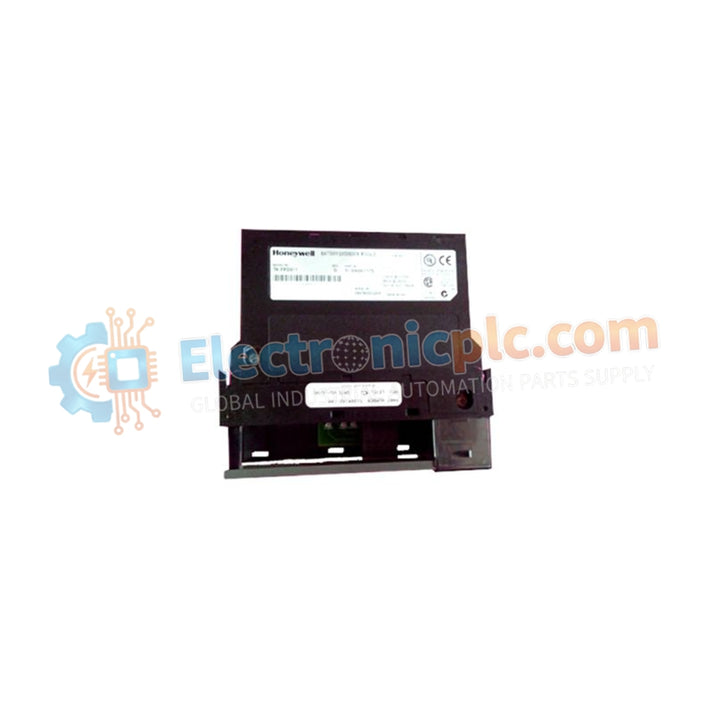

The TC-IXR061 is a 6-channel analog input module engineered for high-precision temperature and resistance sensing within the Honeywell Experion LS / Series-A platform.
Each channel is galvanically isolated to prevent ground loops and signal interference, making the...
Availability: Low stock: 99 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The TC-IXR061 is a 6-channel analog input module engineered for high-precision temperature and resistance sensing within the Honeywell Experion LS / Series-A platform.
Each channel is galvanically isolated to prevent ground loops and signal interference, making the module ideal for critical thermal monitoring in industrial environments. It supports RTDs (Platinum, Nickel, Copper) and direct resistance measurements, with advanced 16-bit A/D conversion for high-fidelity digital signal representation.
The module features open-wire detection, fast simultaneous sampling, and robust signal conditioning to maintain accuracy even in electrically noisy or harsh conditions.
| Parameter | Specification |
|---|---|
| Product Model | TC-IXR061 |
| Input Density | 6 Galvanically Isolated Channels |
| A/D Resolution | 16-bit |
| Measurement Accuracy | ±0.1% FS @ 25°C |
| Module Update Rate | 50 ms (all channels, simultaneous sampling) |
| Common Mode Rejection | 120 dB @ 60 Hz; 100 dB @ 50 Hz |
| Isolation Rating | User-to-System and Channel-to-Channel: 2546 VDC |
| Diagnostics | Open-wire detection < 5 seconds |
| Power Consumption | 4.3 W maximum |
| Required Terminal Block | TC-TBNH (20-position) |
Reactor Temperature Monitoring – Precise high-temperature measurement in chemical and petrochemical processes.
Steam Turbine Control – Multi-point thermal sensing for critical control loops.
Cryogenic Storage – Monitoring extreme low-temperature processes.
Industrial Process Monitoring – Environments requiring high signal stability and minimal noise interference.
Does the TC-IXR061 support 3-wire and 4-wire RTDs?
Yes. The module supports both 3-wire and 4-wire RTD configurations, compensating for lead-wire resistance to maintain measurement accuracy over long sensor distances.
