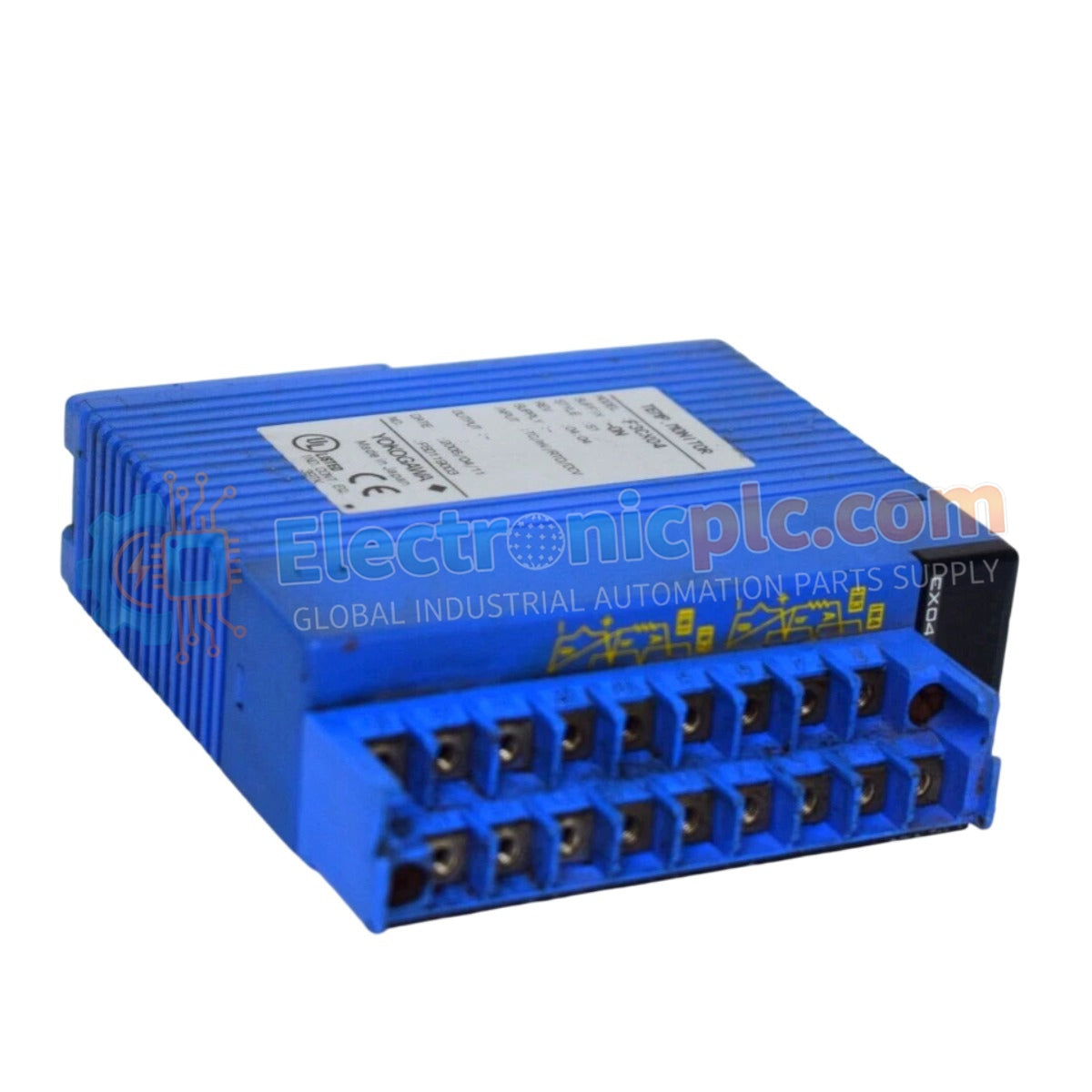

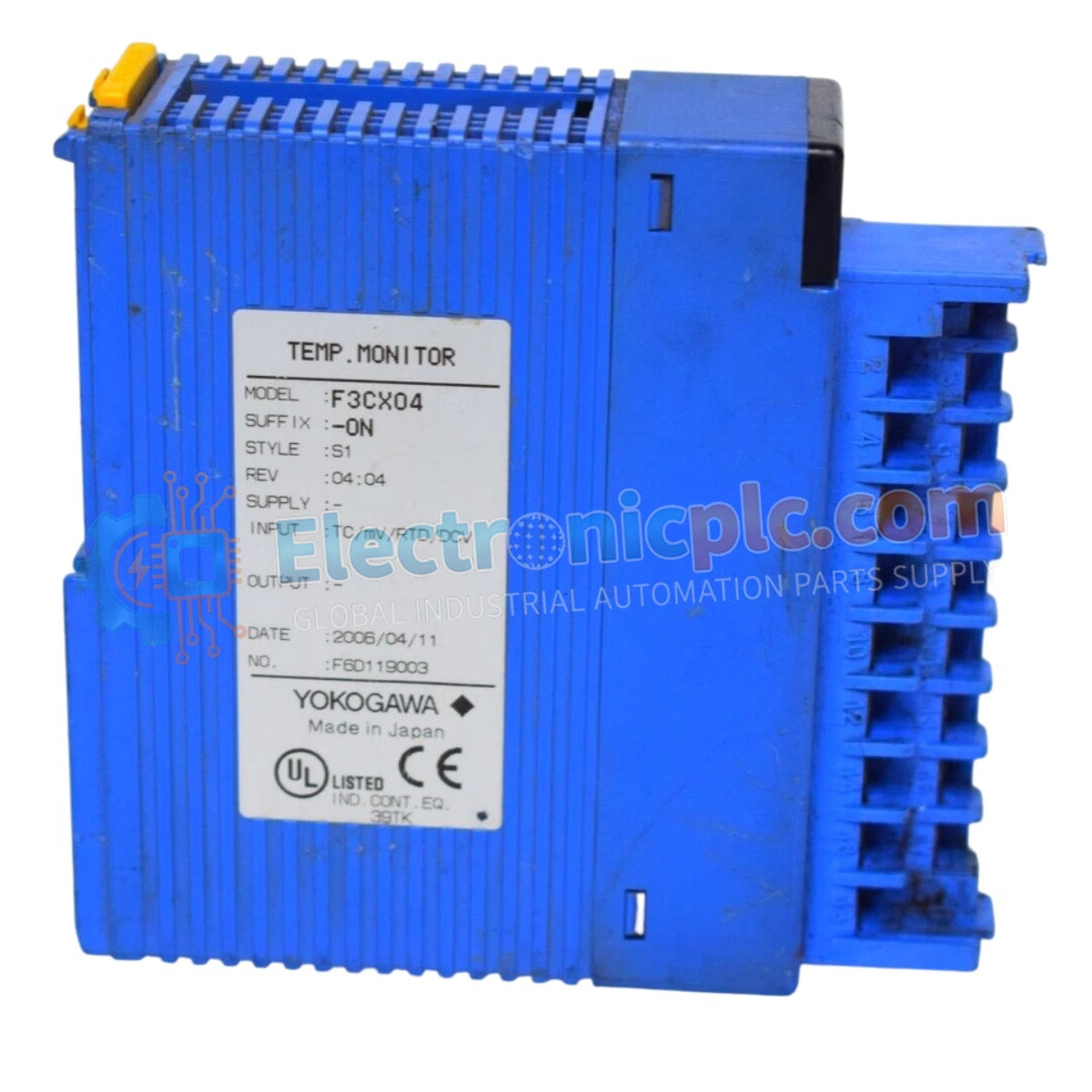

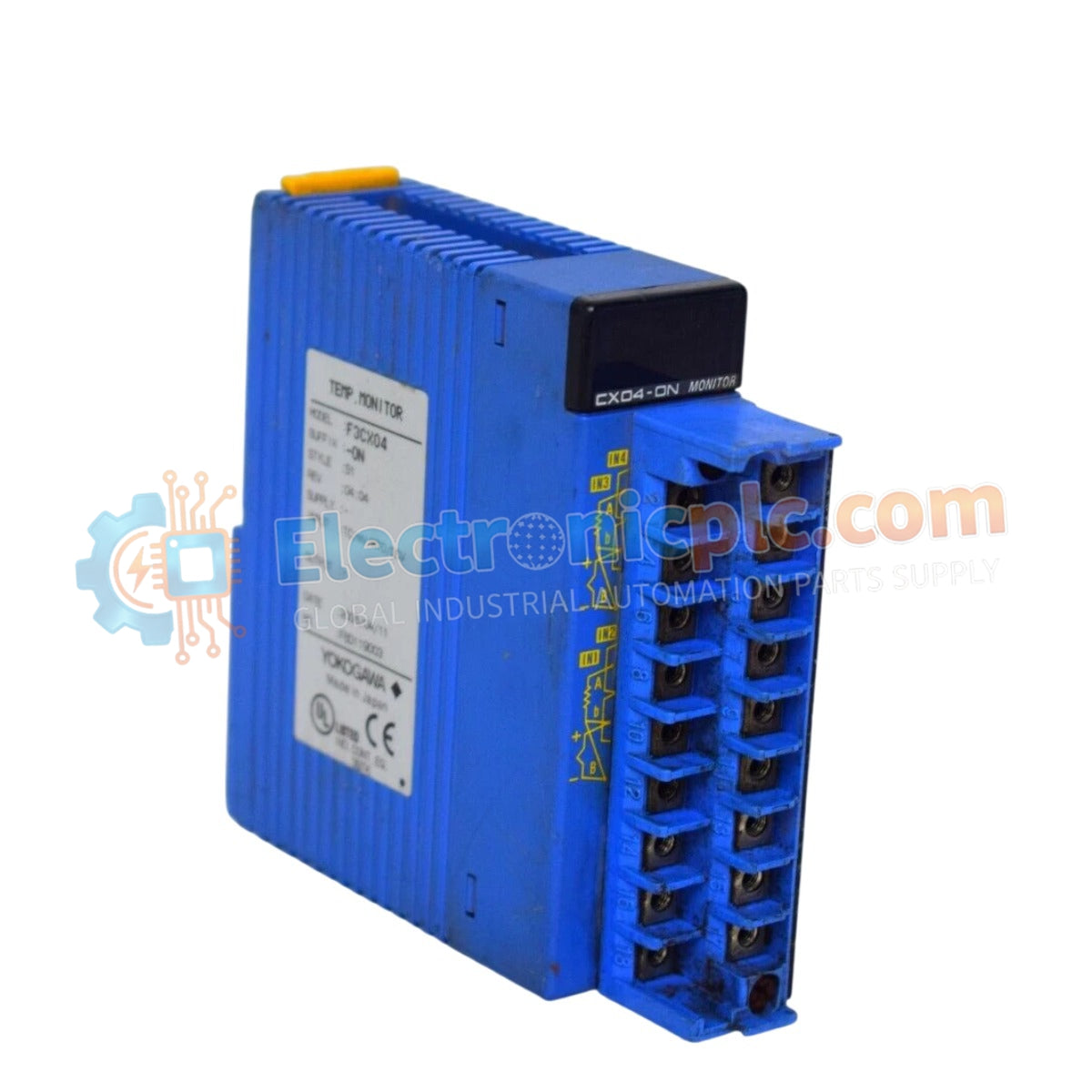

The Yokogawa F3CX04-0N, also cataloged as the F3CX04 Temperature Monitoring Module, operates as a dedicated hardware component for multi-channel thermal data acquisition within Yokogawa FA-M3 industrial control platforms.

Hardware Specifications

Industrial Control and Processing Attributes

The module architecture supports optimized backplane bus communication velocity to ensure deterministic sampling of thermal data. By utilizing universal input configurations, the F3CX04-0N maintains high I/O density scaling capabilities, allowing individual channel selection for thermocouple, RTD, or DC voltage signals. Internal logic manages firmware flash compatibility for seamless integration, while isolated input channels ensure that local electrical fluctuations do not influence the integrity of the digitized temperature values across the module.

Frequently Asked Questions

Q: Does the F3CX04-0N require manual calibration upon installation?

A: No. The module is factory-calibrated with internal parameters stored in non-volatile memory. System integration is achieved through automatic parameter loading at the time of module detection.

Q: Is the 200 ms sampling period constant if all four channels are configured for different sensor types?

A: Yes. The module processor maintains a fixed scan cycle of 200 ms for all four channels regardless of the specific combination of thermocouple, RTD, or DC voltage input types selected.

Field Installation Guidelines

• Mounting: Insert the module into a single slot on the FA-M3 base unit. Ensure the rear connector is fully engaged and the front latch is secured to maintain electrical continuity with the backplane.
• Grounding: Terminate the module ground lug to the cabinet's protective earth (PE) bus. A low-impedance ground path is required to maintain the effectiveness of the channel-to-channel isolation barriers.
• Wiring Practices: Use high-quality shielded twisted-pair cabling for all sensor inputs. Keep signal leads away from high-current AC cabling to prevent inductive coupling and signal noise.
• Thermal Management: Ensure cabinet airflow is not restricted. Although the module performs internal cold junction compensation (CJC), extreme local heat sources should be avoided to maintain the specified accuracy of 0.1 deg C.
