Terminal Block TC-TBNH Honeywell 20-Pin Connector

Terminal Block TC-TBNH Honeywell 20-Pin Connector

Product Description

The TC-TBNH is a precision-engineered 20-pin terminal block assembly designed for Honeywell Experion PKS and PlantScape control systems. It serves as the primary interface between field wiring and I/O modules, providing a secure, vibration-resistant termination point for both...

20 people are viewing this right now

Availability: Low stock: 99 left

SKU: TC-TBNH
Vendor: Honeywell
Category: Terminal Block
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

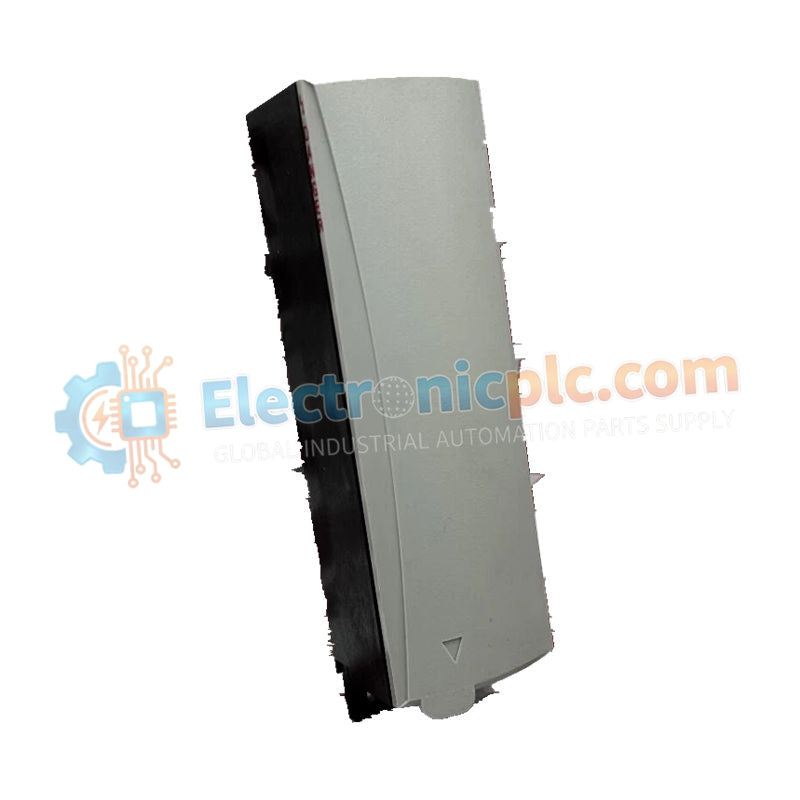

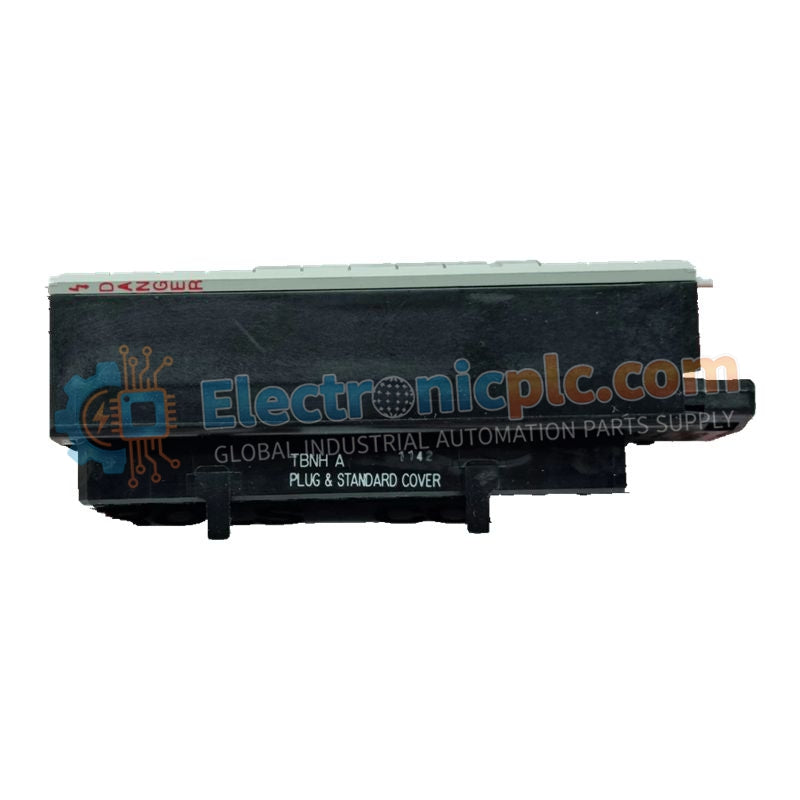

The TC-TBNH is a precision-engineered 20-pin terminal block assembly designed for Honeywell Experion PKS and PlantScape control systems. It serves as the primary interface between field wiring and I/O modules, providing a secure, vibration-resistant termination point for both digital and analog signals.

Built for industrial reliability, the TC-TBNH maintains signal integrity under high-vibration and electrically noisy conditions. Its compact, high-density design simplifies cabinet wiring, while the robust clamping mechanism prevents loose connections and wire fatigue. Ideal for both new installations and replacement of existing terminal blocks, it ensures a dependable electrical path for critical process data.

Technical Specifications

Parameter Description
Model Designation TC-TBNH
Connection Density 20-pin
Single Wire Capacity 14–22 AWG (0.64–1.63 mm)
Double Wire Capacity 16–22 AWG (0.64–1.30 mm)
Unit Weight 0.14 kg
Material High-temperature, flame-retardant industrial polymer
Contact Plating Corrosion-resistant conductive alloy
Mounting Style Direct plug-in interface for Honeywell I/O modules
Operating Environment Industrial-grade; vibration- and EMI-resistant

Core Applications

  • I/O Module Termination
    Provides reliable termination for Honeywell Series TC I/O modules.

  • Signal Distribution & Wire Management
    Organizes field wiring from sensors and actuators in DCS cabinets.

  • Maintenance & Replacement
    OEM replacement for worn or damaged terminal blocks in existing control nodes.

Frequently Asked Questions

Q: Can two wires be terminated in a single pin?
A: Yes. The TC-TBNH supports two-wire terminations provided the wires are 16–22 AWG, ensuring a secure connection for daisy-chained signals.

Q: Are special tools required for installation?
A: No. Standard compression-style screws allow installation using basic industrial screwdrivers without specialized crimping tools.
