Description

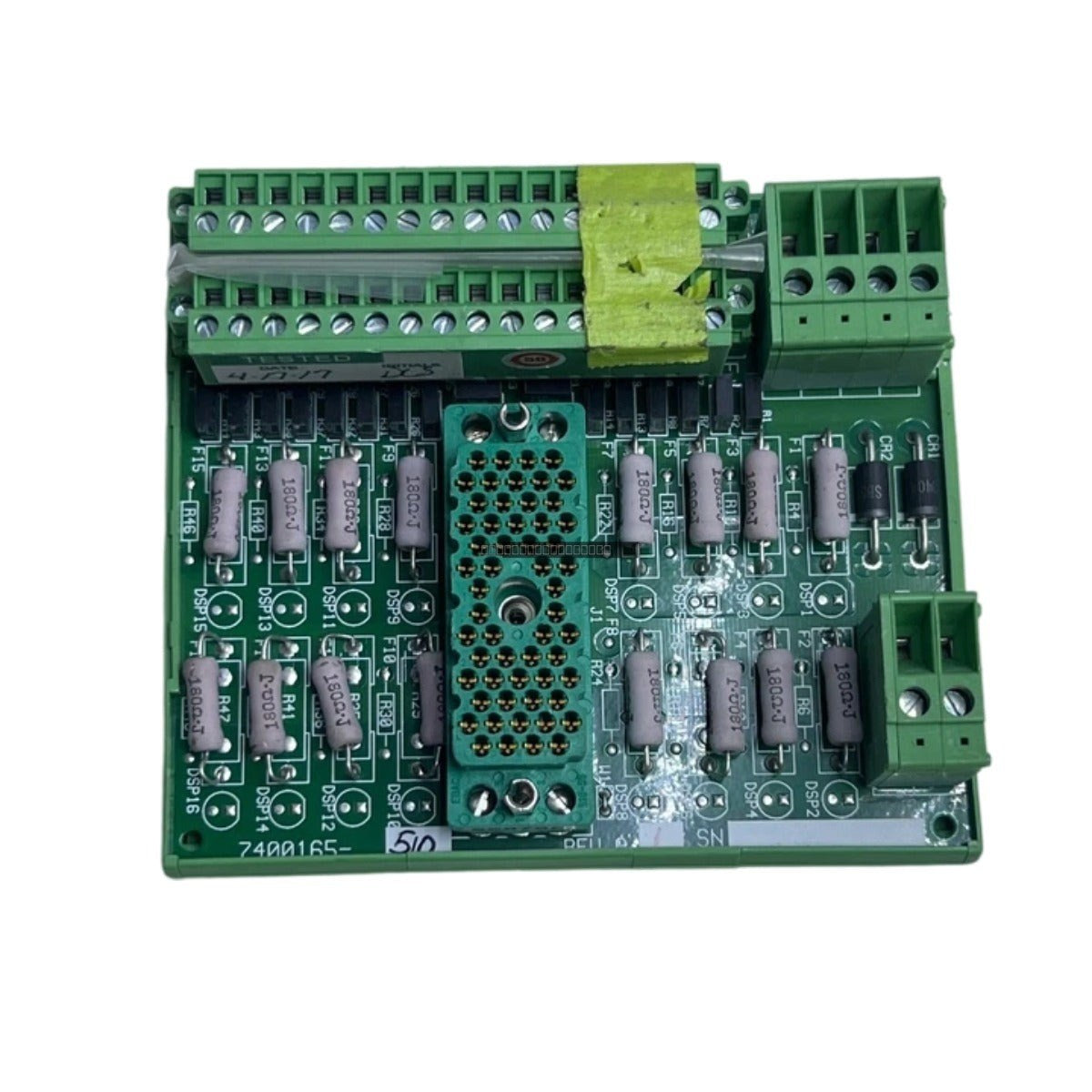

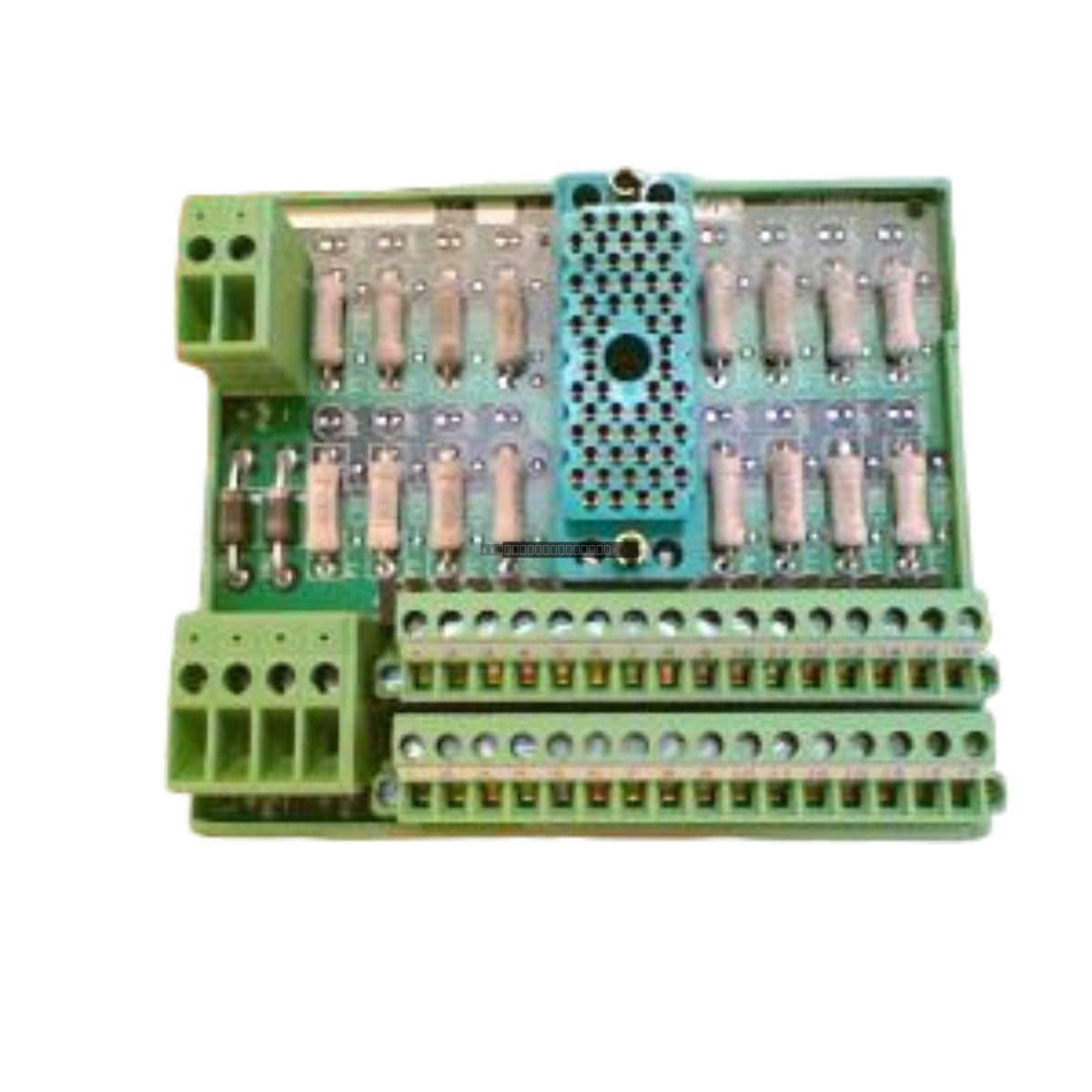

The Triconex 7400165-510 is a specialized field termination board designed to provide reliable, high-integrity signal interfacing for critical safety and control systems. This assembly serves as the essential bridge between field-level instrumentation—such as sensors and actuators—and the main I/O processing modules. By providing a structured, organized, and protected connection point, this board supports the stringent requirements of high-availability industrial environments, including power generation, oil and gas, and chemical processing facilities.

Features

• Engineered for high-density signal management in safety-critical automation loops.
• Provides robust electrical isolation to protect sensitive I/O circuitry from field-side transients.
• Features secure terminal blocks designed to maintain connectivity under industrial vibration and thermal stress.
• Optimized for rapid installation and maintenance, facilitating efficient system troubleshooting and hardware replacement.
• Supports redundant signal routing configurations to ensure continuous operation in fault-tolerant architectures.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the termination board to prevent electrical arcs or damage to connected I/O cards.
• Verify that all field wiring is properly labeled and secured to the terminal blocks to prevent intermittent connections.
• Maintain proper grounding practices by ensuring the board is mounted to a clean, conductive backplane or chassis to provide an effective path for transient suppression.
• Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure adequate ventilation within the cabinet to keep the operating environment within the rated 0 to 60 deg C range.

FAQ

Is the 7400165-510 board compatible with all Triconex systems?

This termination board is designed for specific Triconex I/O configurations. Please verify your system's hardware compatibility list or existing documentation to ensure this model aligns with your specific I/O module requirements.

Does this board require an external power supply?

As a passive termination assembly, it does not have its own power consumption; however, it facilitates the distribution of 24 VDC loop power to field devices as required by your specific system design.
