Triconex 300012-220 External Termination Panel for 2750-2

Triconex 300012-220 External Termination Panel for 2750-2

Description

The Triconex 300012-220 is a high-density External Termination Panel (ETP) designed for seamless integration with the 2750-2 series modules. This component acts as the primary interface between field instrumentation wiring...

19 people are viewing this right now

Availability: Low stock: 8 left

SKU: 2750-2 300012-220
Vendor: Triconex
Category: Termination Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

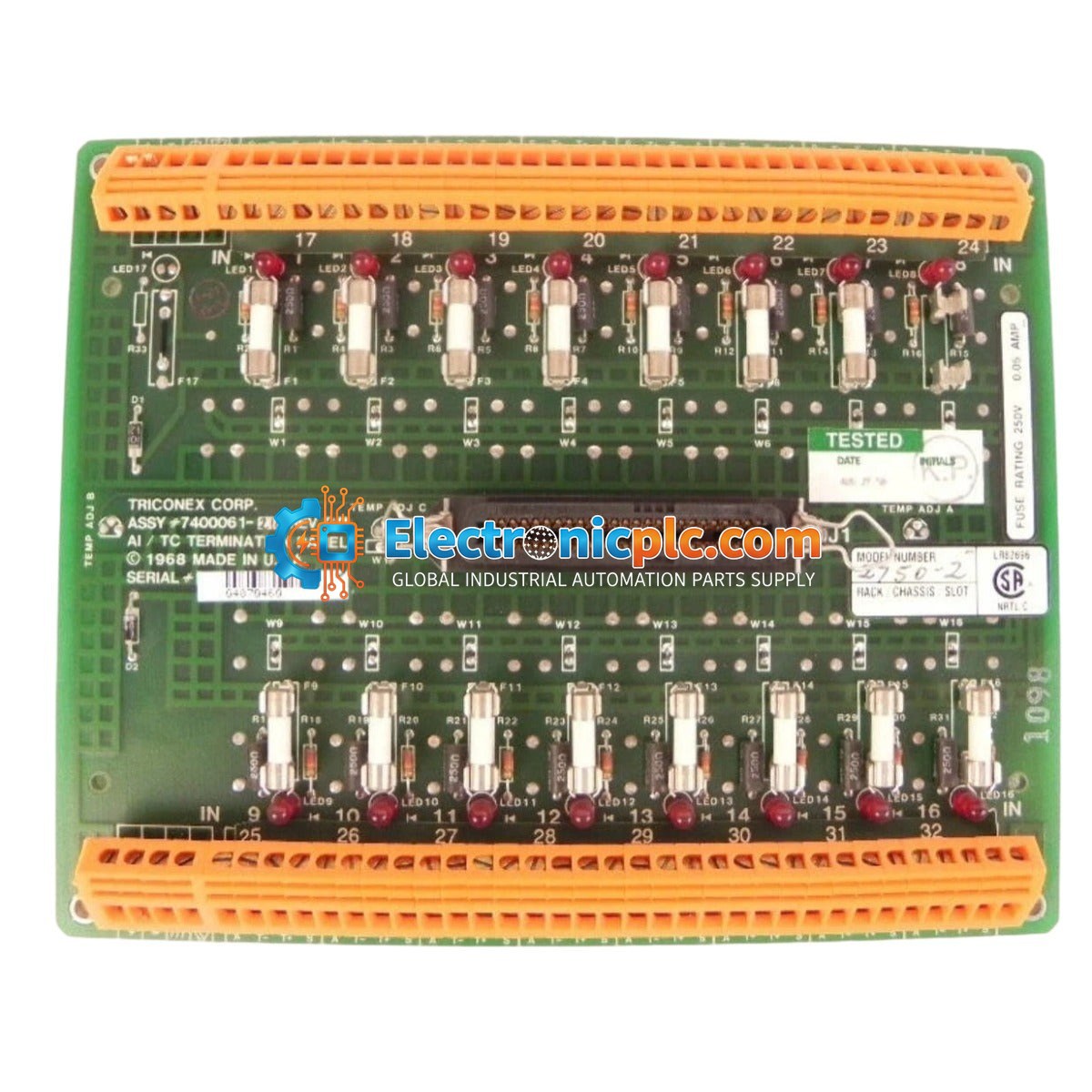

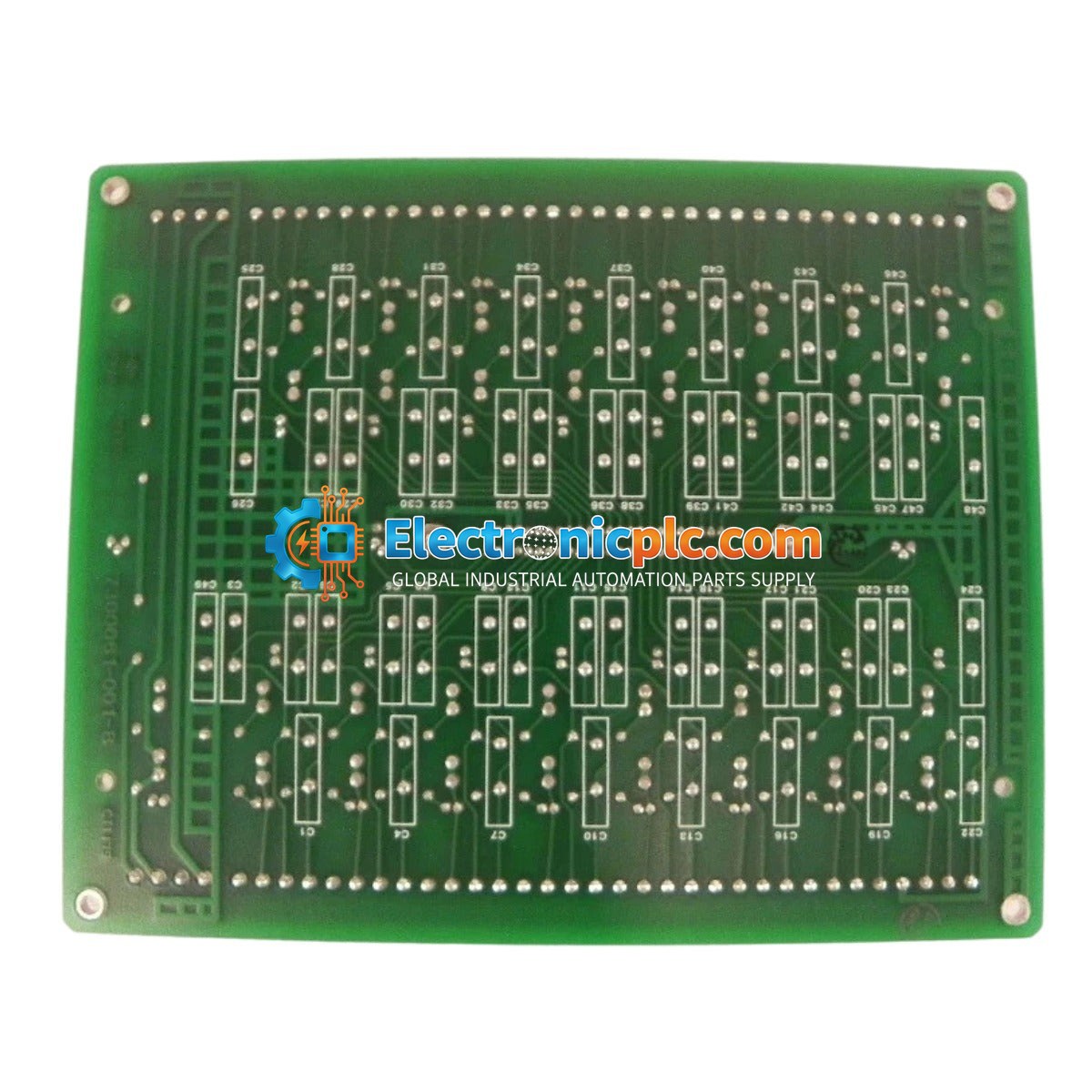

The Triconex 300012-220 is a high-density External Termination Panel (ETP) designed for seamless integration with the 2750-2 series modules. This component acts as the primary interface between field instrumentation wiring and the Safety Instrumented System (SIS) rack. Engineered for high-reliability environments, including gas processing facilities and power generation plants, the 300012-220 ensures signal integrity and simplifies complex wiring architectures within the control cabinet.

Features

  • Designed for use with Triconex 2750-2 modules.
  • Supports Triple Modular Redundant (TMR) safety path architecture.
  • Integrated protection against electrical transients and signal noise.
  • Robust screw-type terminal blocks for secure field wiring connections.
  • Optimized layout to facilitate rapid maintenance and loop troubleshooting.

Applications

This termination panel is widely utilized in critical safety applications, including emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems. It is suitable for deployment in offshore platforms, petrochemical refineries, and thermal power plants where high-integrity signal transmission is required.

Technical Specifications

Model 300012-220
Compatibility Triconex 2750-2 Modules
Connection Type Screw-type terminal blocks
Operating Temperature 0 to 60 deg C
Weight 0.8 kg

Installation Guidelines

  • Ensure the system power is fully disconnected before installing or removing the termination panel.
  • Mount the panel securely within the cabinet to ensure proper grounding and vibration resistance.
  • Route field wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
  • Verify all screw terminal connections are tightened to the recommended torque to prevent intermittent signal loss.
  • Maintain adequate spacing around the panel to ensure proper airflow and cooling within the cabinet.

FAQ

What is the primary function of the 300012-220?

The 300012-220 serves as an External Termination Panel (ETP) that bridges field-side wiring to the Triconex 2750-2 controller, ensuring organized and reliable signal termination for safety-critical loops.

Is this panel compatible with other Triconex modules?

The 300012-220 is specifically engineered for the 2750-2 series. Please consult your system documentation or hardware manual before attempting to use this panel with different module types.
