Description

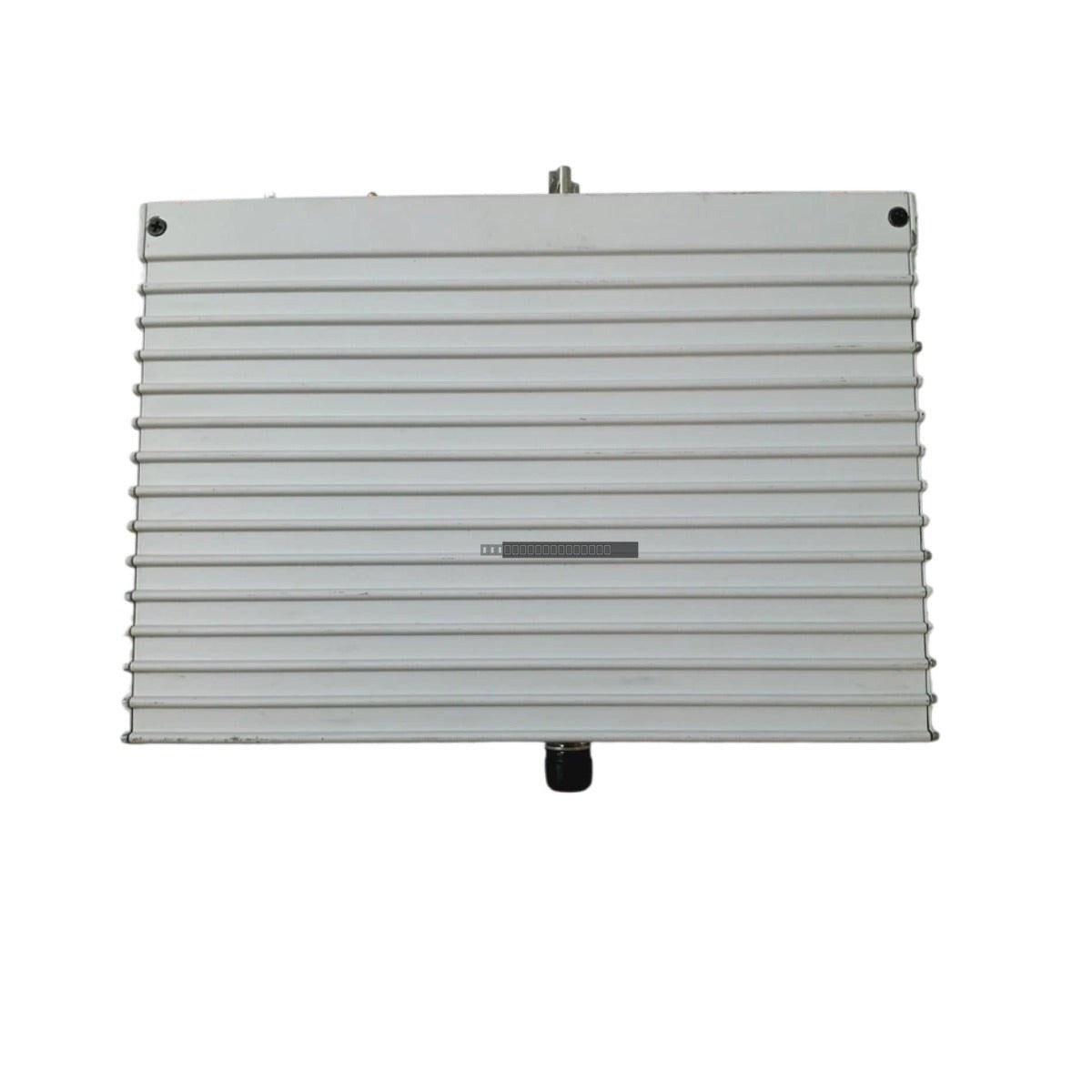

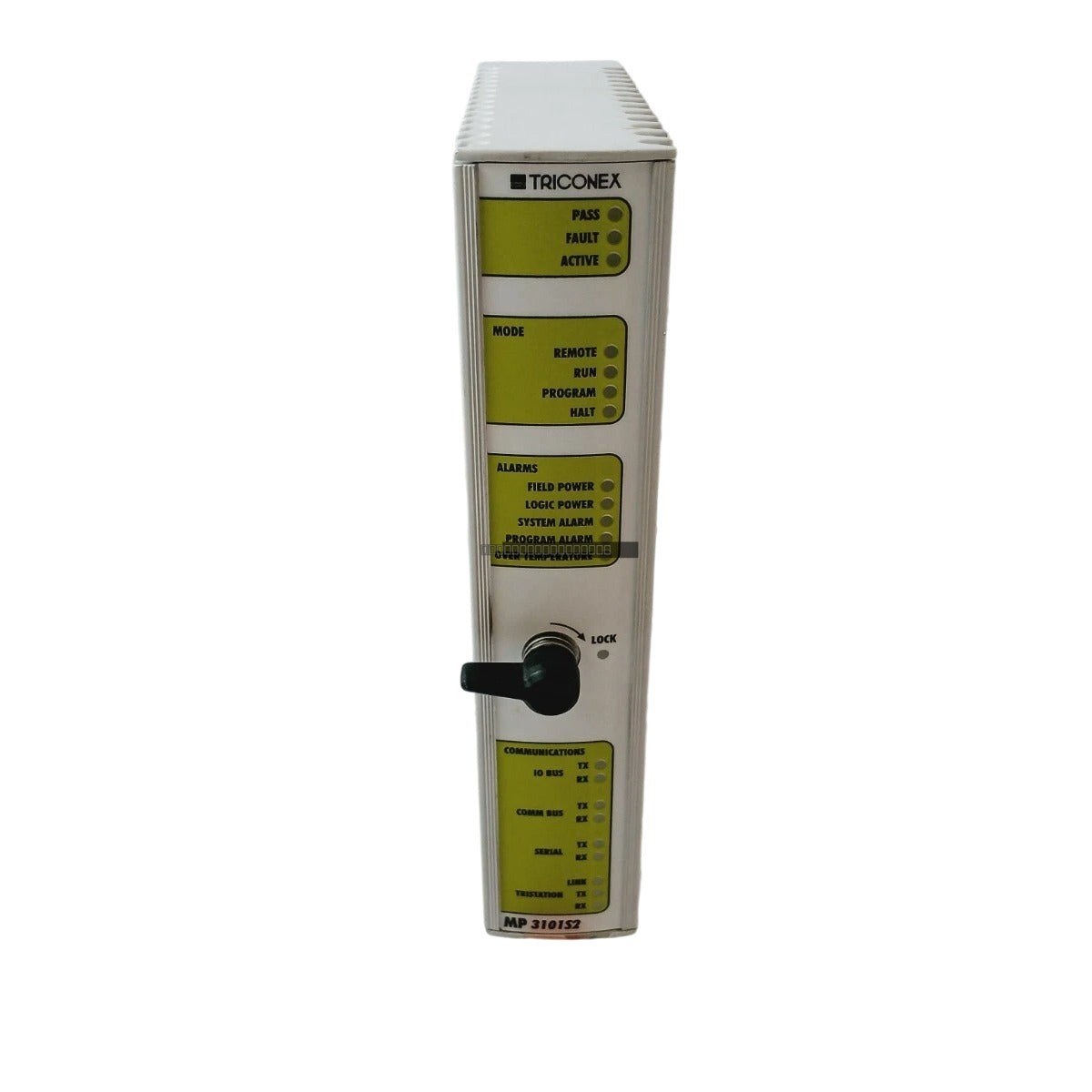

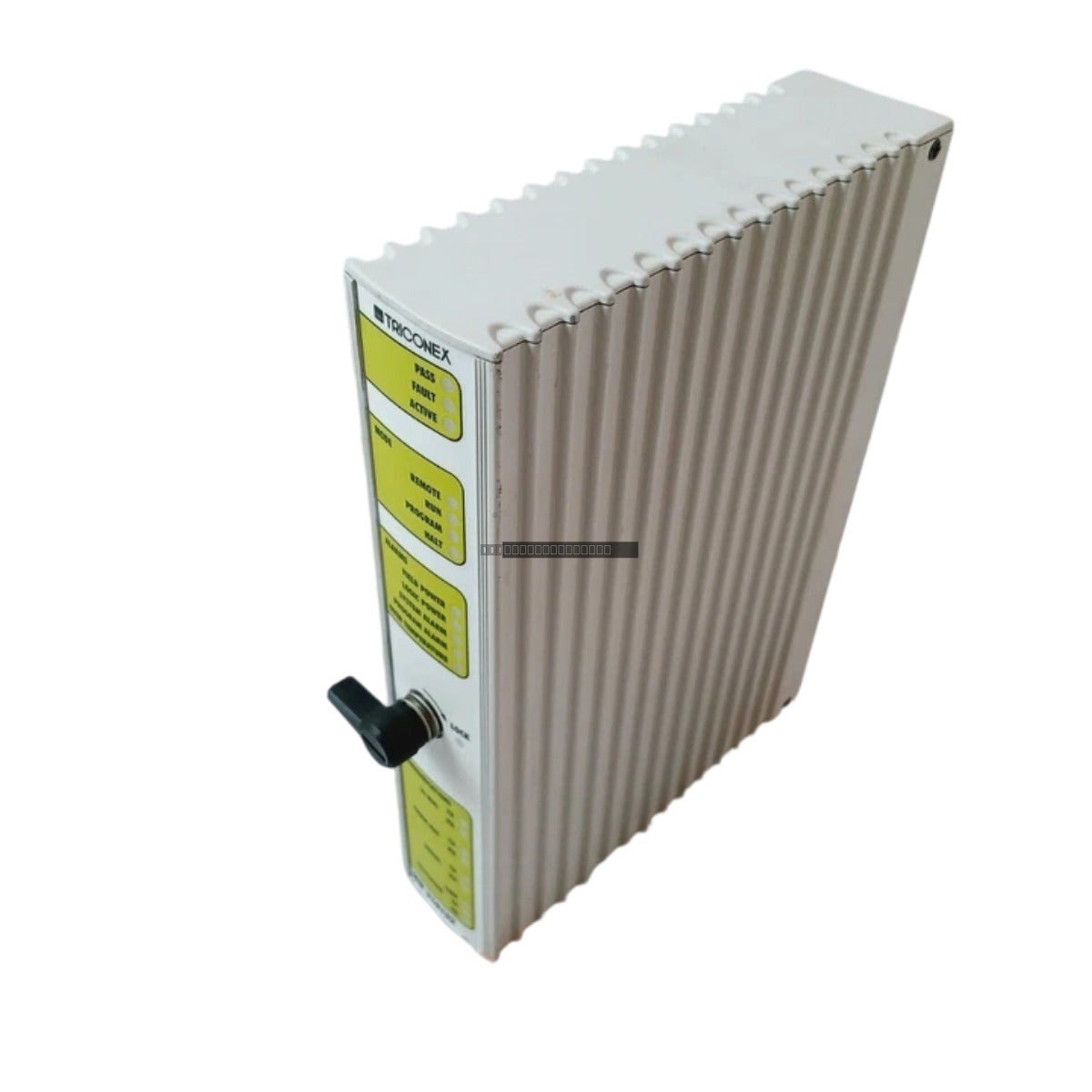

The Triconex 3101S2 is a high-performance redundant processor module engineered for use within Triconex fault-tolerant safety systems. As the central intelligence unit, this module is designed to execute safety-critical logic with high speed and reliability in demanding industrial environments, such as oil and gas refineries, petrochemical processing plants, and power generation facilities. By supporting triple-modular redundant (TMR) synchronization, the 3101S2 ensures continuous operation and eliminates single points of failure, which is essential for maintaining safety-instrumented functions and minimizing unplanned downtime.

Features

• Supports synchronized triple-modular redundancy (TMR) for high-integrity safety control.
• Facilitates hot-swappable replacement, allowing for maintenance without interrupting the safety loop.
• Integrated diagnostic routines for continuous monitoring of memory, bus communication, and processor health.
• Optimized for real-time safety logic execution and high-speed processing cycles.
• Designed for robust performance under extreme industrial operational stressors.

Applications

This processor module is specifically intended for safety-critical applications where high availability and fault tolerance are required. Typical deployments include Emergency Shutdown (ESD) systems, Burner Management Systems (BMS), and Fire and Gas (F&G) monitoring in hazardous industrial settings.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before attempting to install or remove the module from the chassis.
• Handle the module using proper ESD (electrostatic discharge) protection practices to prevent damage to internal circuitry.
• Verify that the module is fully seated in the designated slot to ensure proper backplane communication.
• Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
• Ensure all firmware and configuration settings are verified before placing the module into a live safety-instrumented loop.

FAQ

Is the 3101S2 hot-swappable?
Yes, the module is designed for hot-swappable replacement, allowing technicians to replace a unit while the system continues to operate, provided the system configuration supports it.

What is the primary function of this module?
The 3101S2 acts as the central processor for Triconex TMR safety systems, executing safety logic and managing communication between redundant modules to ensure system integrity.
