Description

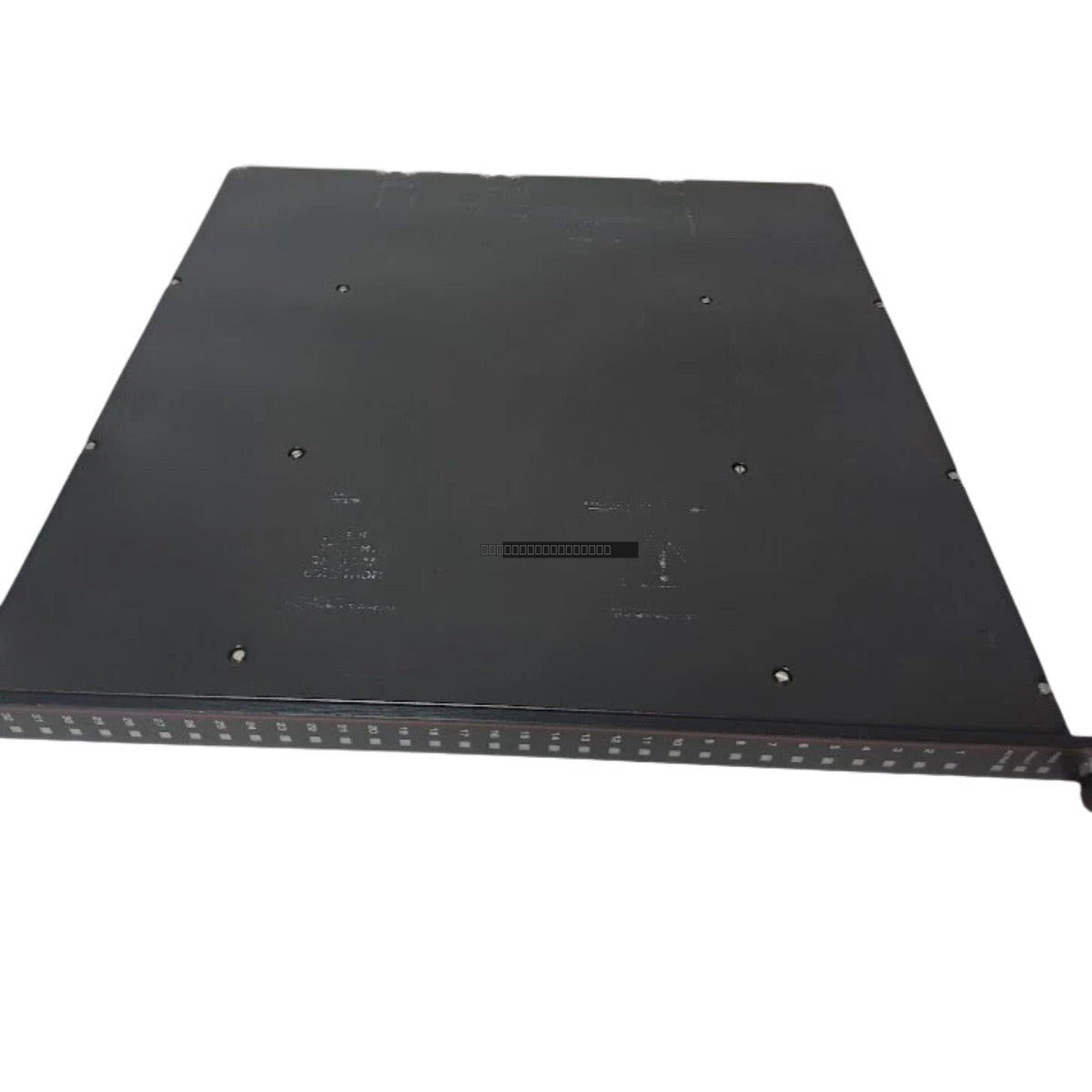

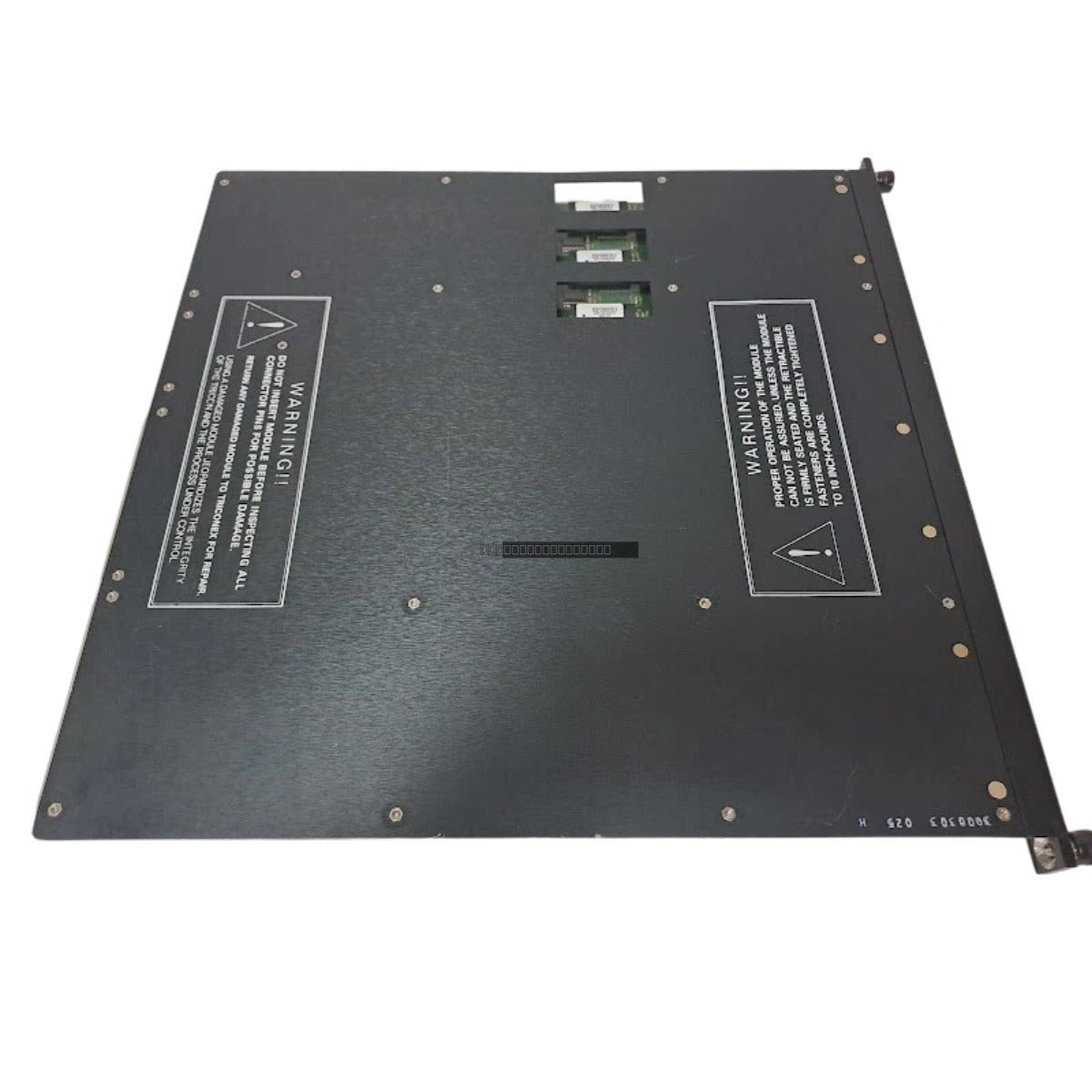

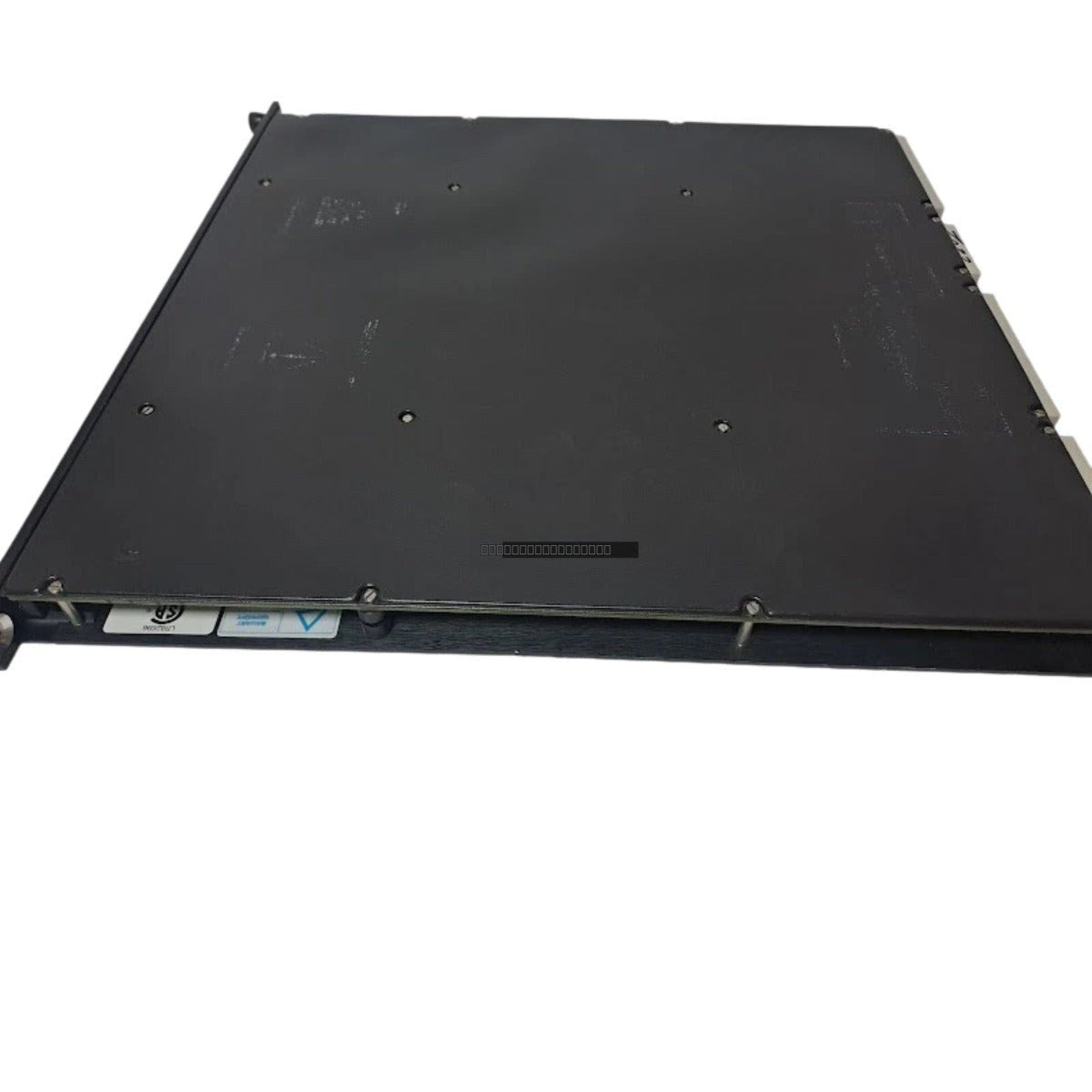

The Triconex 3503E is a high-integrity Triple Modular Redundant (TMR) digital input module engineered for critical safety applications within the Tricon platform. This module is designed to deliver reliable signal acquisition in hazardous and high-availability industrial environments, such as petrochemical processing plants, offshore oil and gas facilities, and power generation control centers. By employing a TMR architecture, the 3503E ensures that safety-critical loops remain operational even in the event of internal hardware faults, effectively mitigating the risk of spurious trips and unplanned downtime.

Features

• TMR Architecture: Utilizes three independent input channels with majority-voting logic to ensure high fault tolerance and data integrity.
• Continuous Diagnostics: Performs real-time self-monitoring to detect and isolate faults, ensuring the system remains in a safe state.
• Hot-Swappable Design: Supports module replacement while the system is under power, facilitating maintenance without interrupting the industrial process.
• High-Density I/O: Features 32 input points to support complex instrumentation requirements in a compact footprint.
• Noise Immunity: Advanced circuitry design protects against transient electrical interference common in heavy industrial settings.

Applications

The 3503E is typically deployed in Emergency Shutdown (ESD) systems, Fire and Gas (F&G) monitoring, and critical process control loops where continuous availability and high-integrity safety logic are mandatory.

Technical Specifications

Installation Guidelines

• Ensure the Tricon chassis is properly grounded before installing the module to prevent electrostatic discharge (ESD) damage.
• The 3503E supports hot-swapping; however, verify that the system configuration is prepared for module removal if required by the specific safety application.
• Ensure all field wiring is properly routed and secured to the appropriate terminal blocks to prevent mechanical stress on the module connectors.
• Maintain adequate airflow around the chassis to ensure operating temperatures remain within the specified 0 to 60 degC range.
• Verify that the field input voltage matches the 24 VDC rating to prevent damage to the input circuitry.

FAQ

Is the 3503E compatible with legacy Tricon systems?

The 3503E is designed for use within the Tricon safety system series. Please consult your specific system firmware and hardware revision documentation to ensure compatibility with your existing rack setup.

Does this module require external power for the input loops?

The 3503E is designed for 24 VDC field input signals. Please refer to the specific installation manual for your Tricon loop-powering requirements and field device integration.
