Description

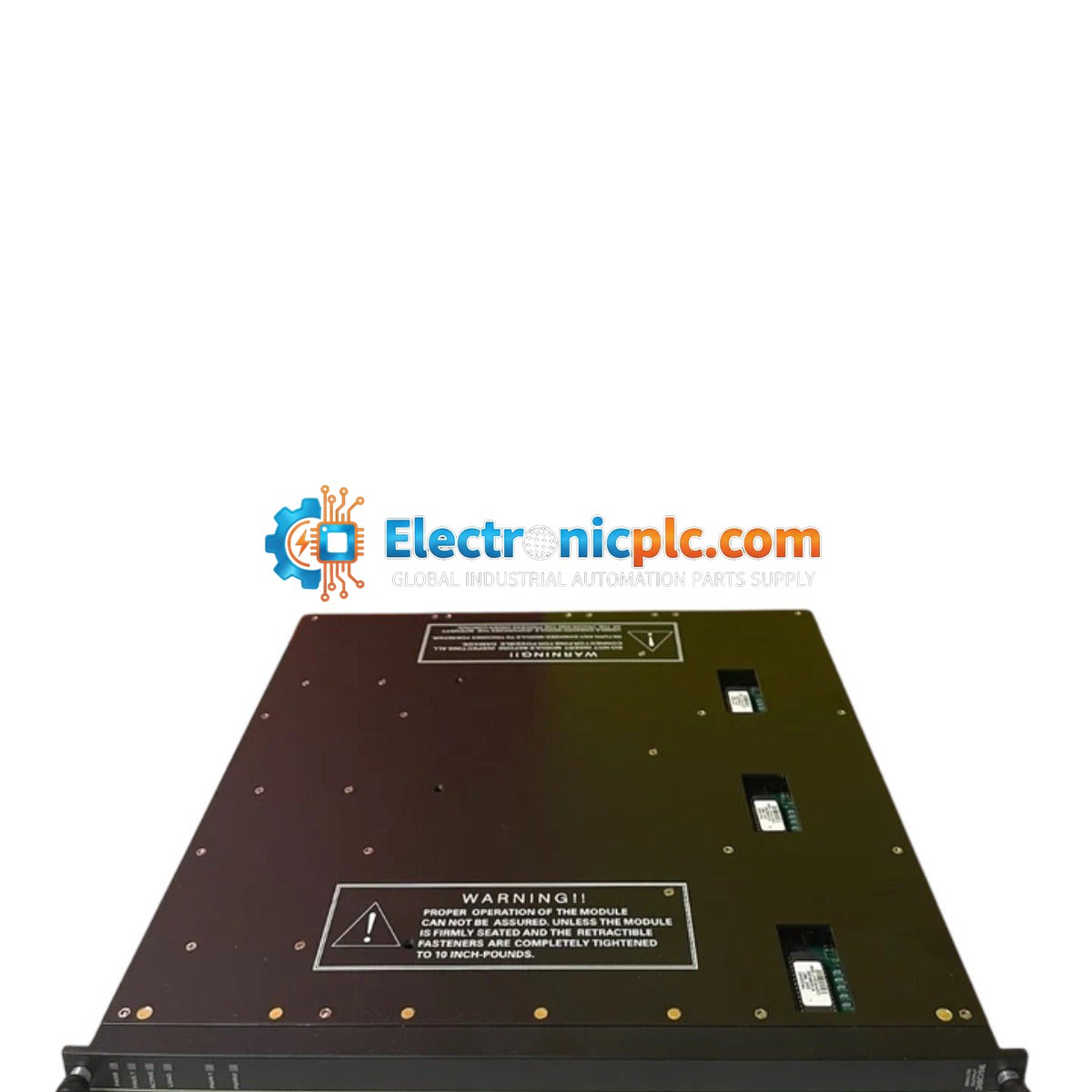

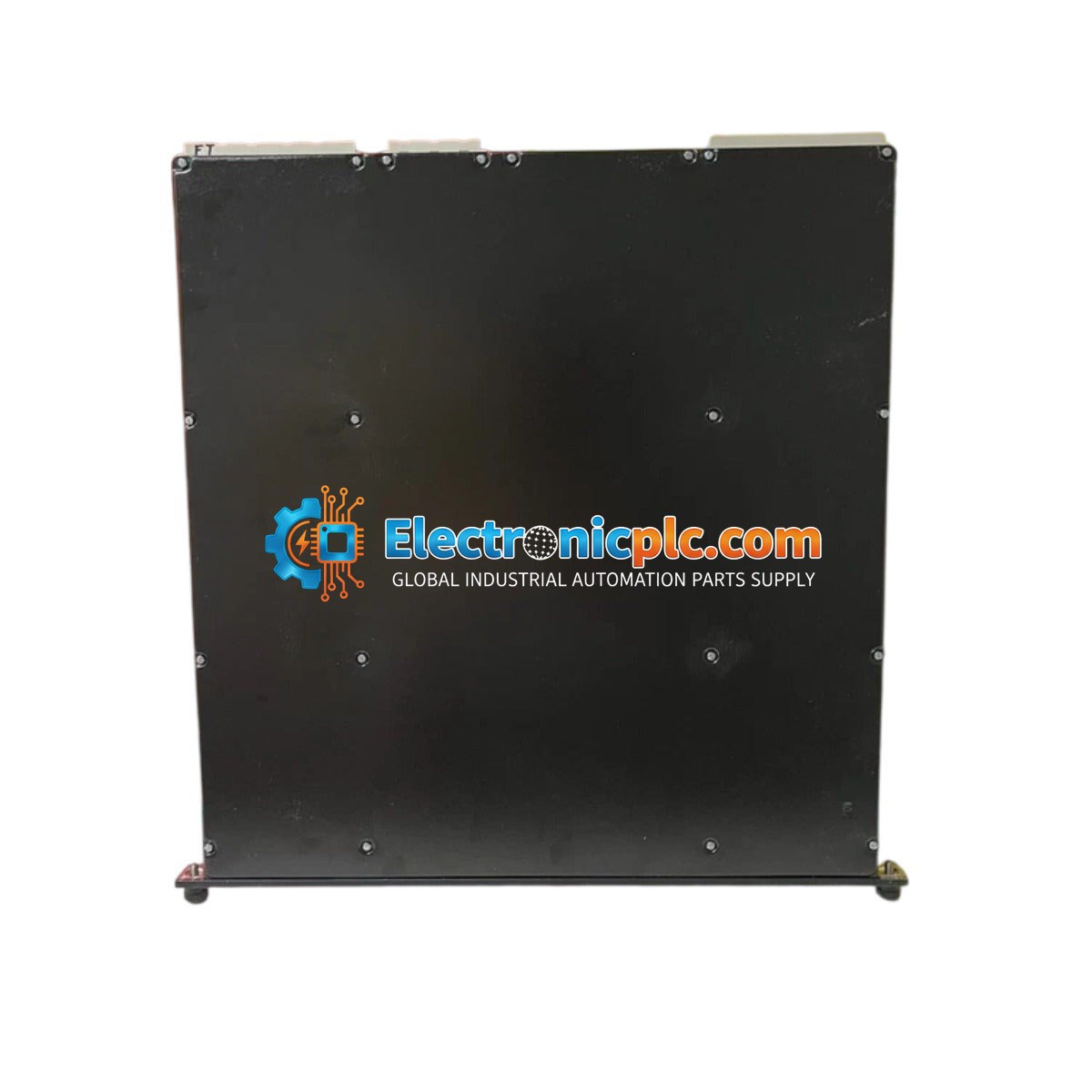

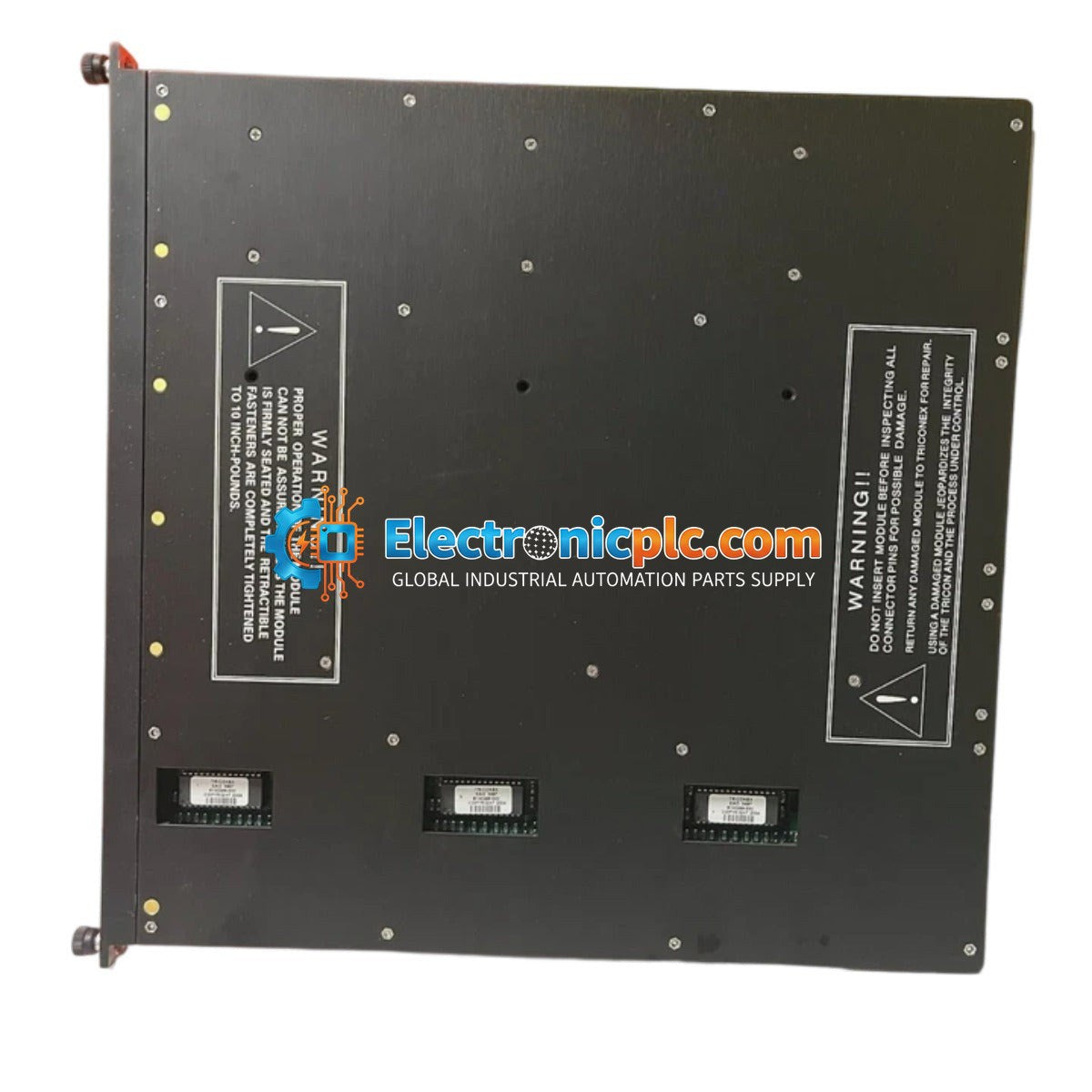

The Triconex 3805EN is a high-reliability Analog Output Module engineered for Triple Modular Redundant (TMR) safety systems. This 8-point module provides precise 4-20 mA DC signals to critical final control elements, serving as a core component in safety-instrumented systems (SIS) within high-risk industrial sectors including oil and gas, chemical processing, and power generation. The 3805EN is designed to maintain continuous operation and fault tolerance, ensuring that safety-critical loops remain active even in the event of internal channel failures.

Features

• Triple Modular Redundant (TMR) architecture for high availability and fault tolerance.
• 8 independent output channels providing 4-20 mA DC signals.
• Internal voting logic to ensure signal integrity and accuracy.
• Comprehensive diagnostic monitoring for loop health and fault detection.
• Designed for integration with critical final control elements such as valves and actuators.

Applications

The 3805EN is utilized in safety-critical applications where process continuity is mandatory. Typical installations include emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops where single-point failures must be avoided to prevent hazardous conditions or unscheduled plant downtime.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the chassis.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
• Verify that the module is fully seated in the designated rack slot to ensure proper backplane communication.
• Ensure all field wiring is routed according to site-specific safety standards, keeping signal cables separated from high-voltage or high-EMI sources.
• Check for proper grounding of the chassis and shielding of analog signal cables to maintain signal integrity and minimize noise interference.

FAQ

What is the primary function of the 3805EN module?

The 3805EN is an analog output module that provides 4-20 mA signals to control final elements like valves or actuators within a Triconex TMR safety system.

Is this module hot-swappable?

Triconex TMR modules are generally designed to support hot-swapping within the system chassis; however, always consult your specific system maintenance manual and safety procedures before performing maintenance on a live safety system.

What does the TMR architecture provide?

Triple Modular Redundant (TMR) architecture uses three parallel channels and a voting circuit to ensure that the output remains accurate and available even if one of the three channels experiences a fault.
