Description

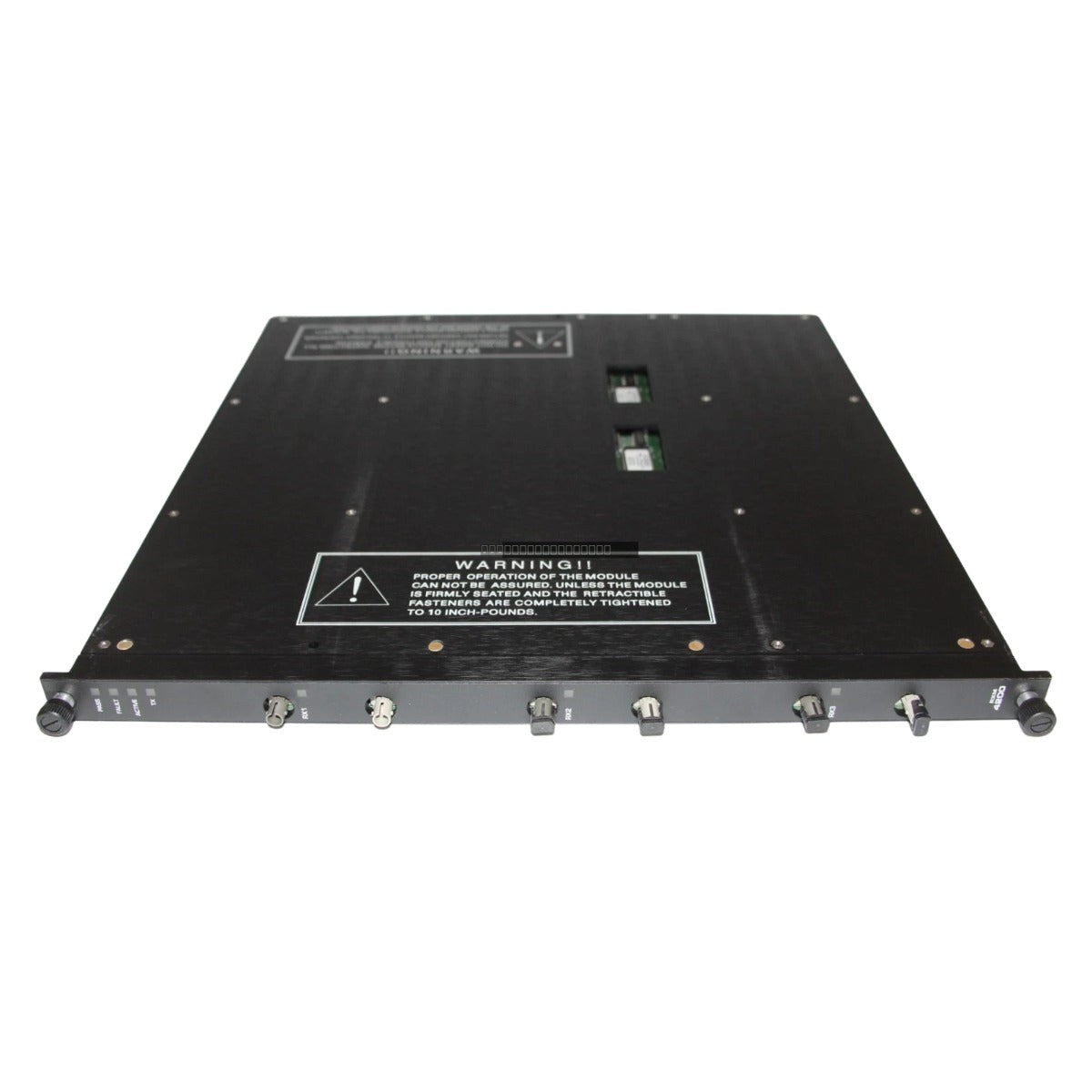

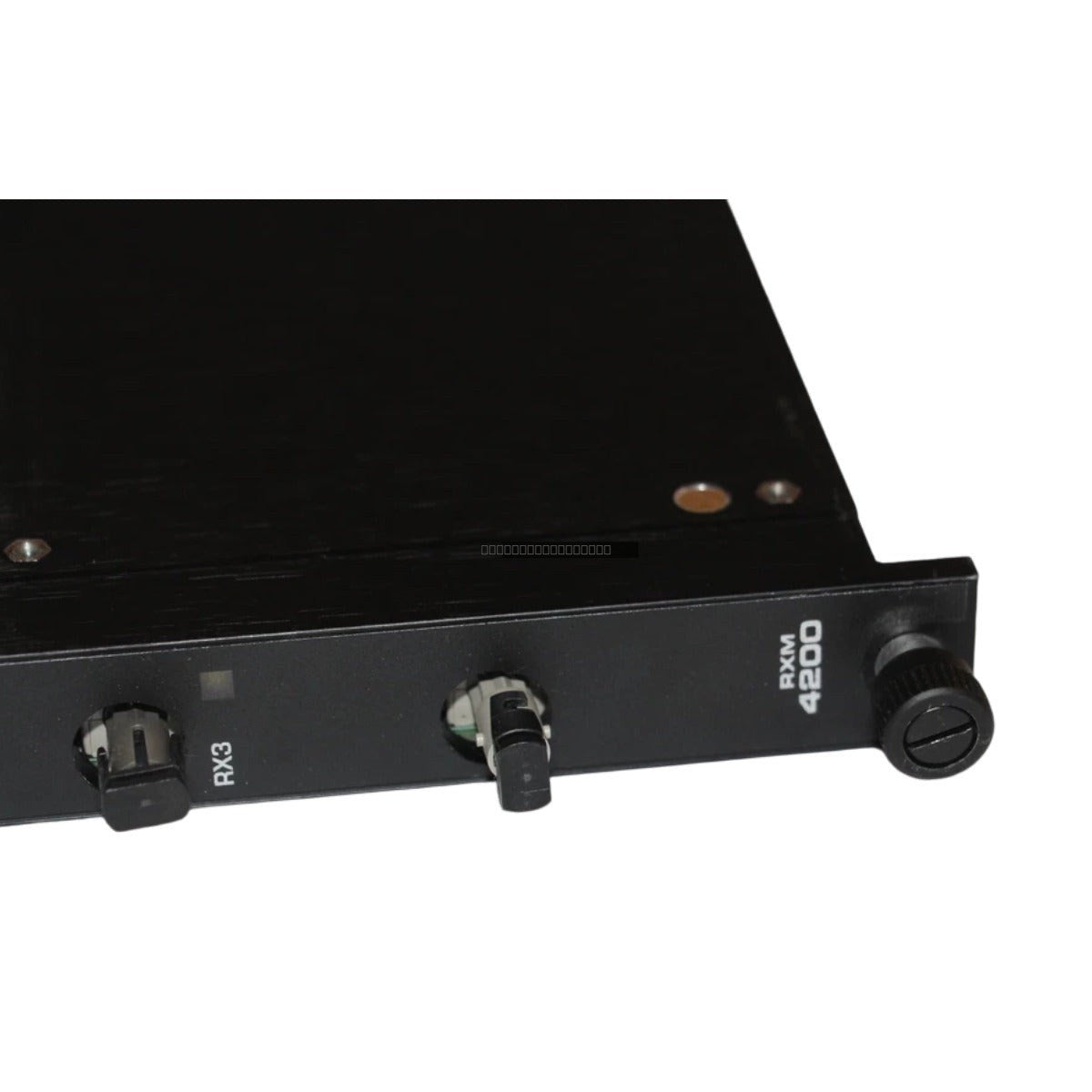

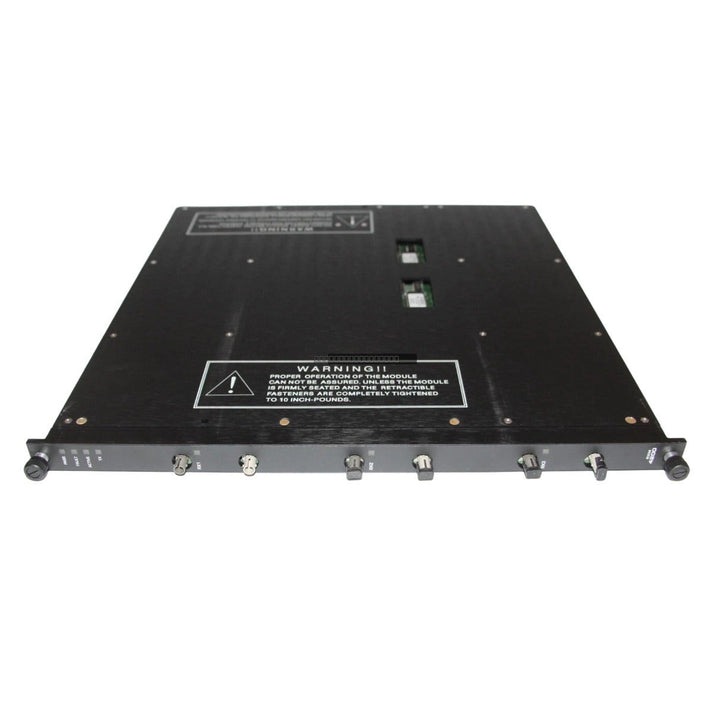

The Triconex 4200 RXM is a high-performance Remote Extender Module engineered to bridge safety controllers across extended distances. This module is essential for applications requiring distributed I/O architectures where remote chassis must communicate with the main controller while maintaining strict safety integrity. By utilizing fiber optic transmission, the 4200 RXM ensures reliable, high-speed data exchange in demanding industrial settings, including refineries and offshore facilities, effectively reducing latency and supporting the deterministic requirements of safety-critical systems.

Features

• Facilitates high-speed, long-distance communication for distributed I/O systems.
• Utilizes multi-mode fiber optic technology for superior immunity to electromagnetic interference (EMI).
• Provides robust electrical isolation between remote and local system components.
• Ensures consistent data integrity and synchronization for high-availability safety instrumented systems.
• Designed for seamless integration into existing Triconex safety control architectures.

Applications

The 4200 RXM is primarily deployed in large-scale industrial environments where controllers and I/O racks are geographically separated. Common use cases include:

• Offshore drilling and production platforms.
• Large-scale petrochemical and oil refineries.
• Pipeline distribution and monitoring networks.
• Distributed Safety Instrumented Systems (SIS) requiring fault-tolerant communication.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the module from the chassis.
• Handle with care to avoid damage to the fiber optic interface ports.
• Verify that the fiber optic cables are clean and properly seated to ensure optimal signal transmission.
• Maintain proper grounding of the chassis to protect against electrical surges and noise.
• Ensure adequate ventilation around the module to maintain operating temperatures within the specified 0 to 60 degC range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent internal component damage.

FAQ

What is the primary function of the 4200 RXM?
The 4200 RXM acts as a bridge to extend the Triconex I/O bus, allowing for communication between controllers and remote I/O chassis over fiber optic media.

Does this module require special cabling?
Yes, the module is designed for multi-mode fiber optic communication. Ensure that the fiber type and connectors are compatible with the specific requirements of your installation.

Can the 4200 RXM be used in high-EMI environments?
Yes, the use of fiber optic communication provides inherent immunity to electromagnetic interference, making it ideal for high-noise industrial environments.
