Description

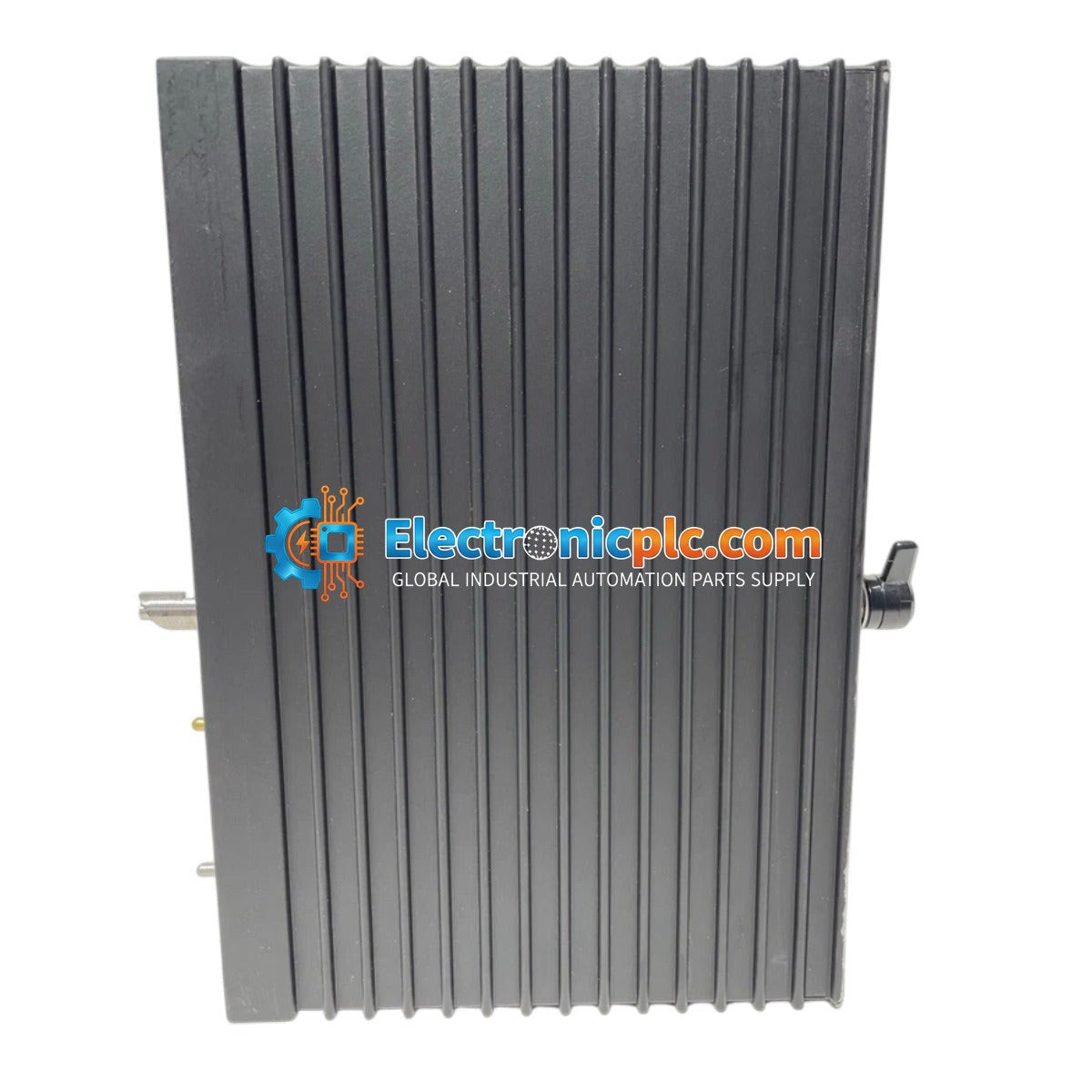

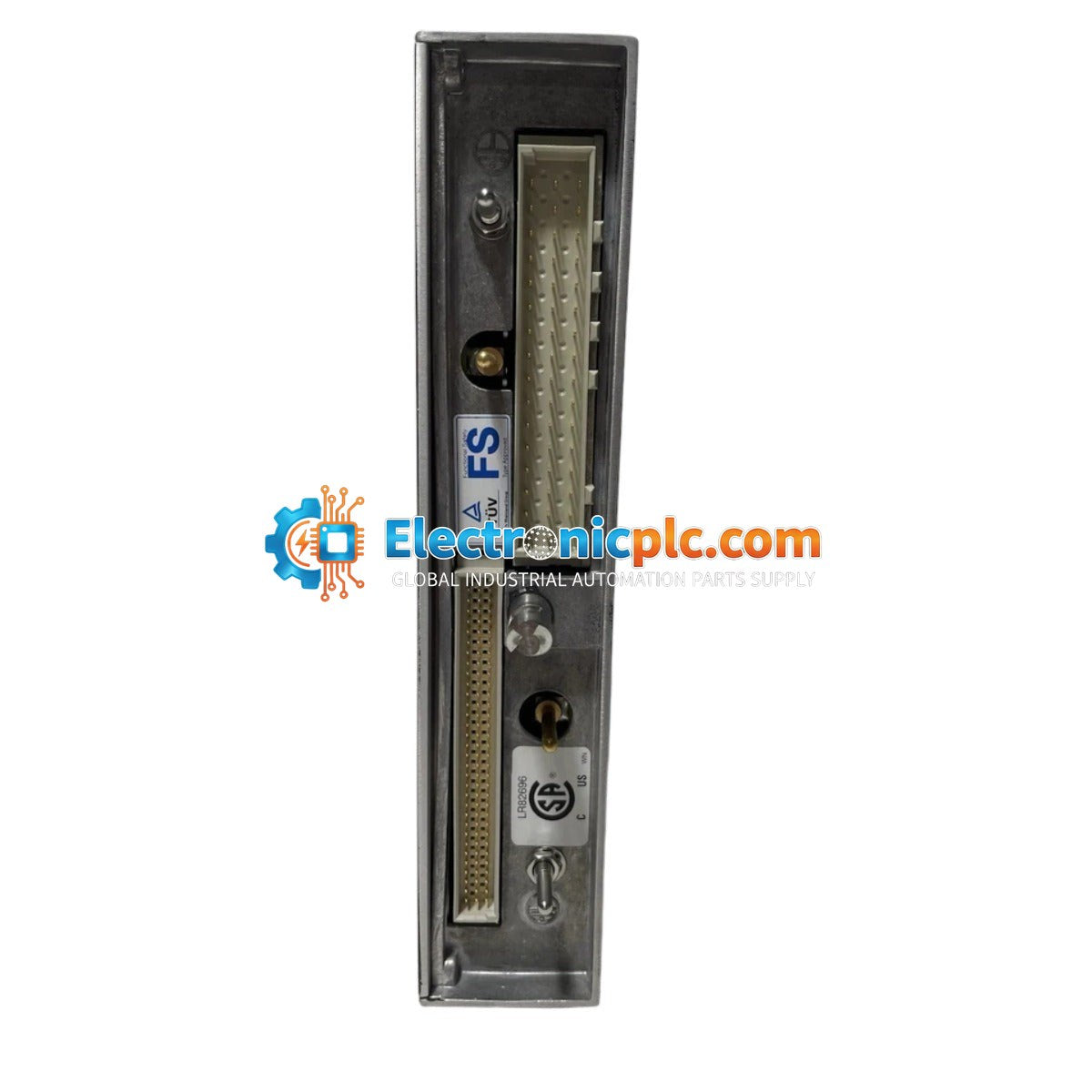

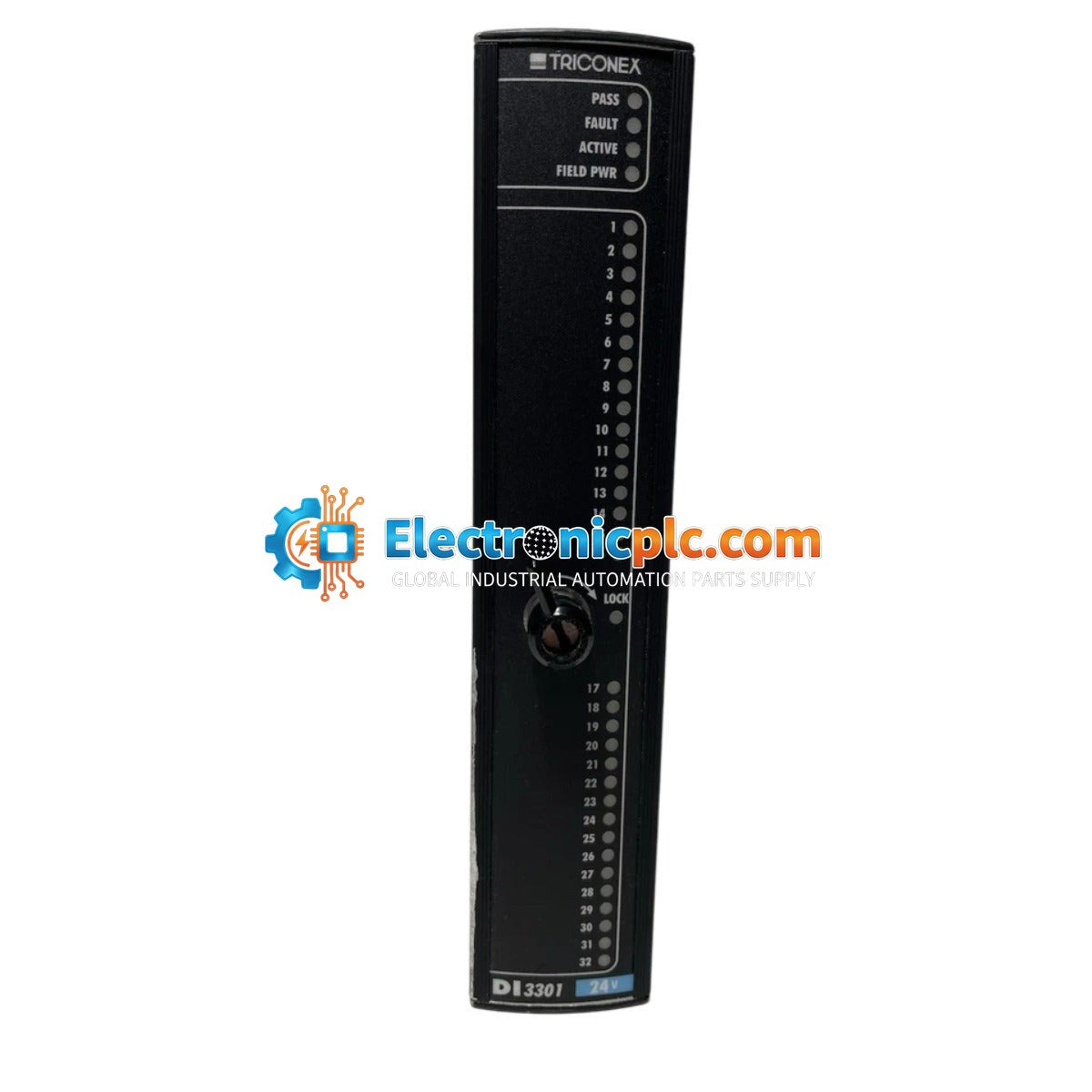

The Triconex DI 3301 is a high-density Digital Input Module designed for integration within the Triconex Triple Modular Redundancy (TMR) safety system. This module is specifically engineered to monitor the status of critical field devices in demanding industrial environments, such as petrochemical refineries, nuclear power plants, and large-scale mining operations. By employing a three-channel voting architecture, the DI 3301 ensures that a single hardware failure does not compromise the integrity of the safety loop, providing fault tolerance and continuous operation.

Features

• Triple Modular Redundant (TMR) architecture for high-availability safety applications.
• Three independent input channels processing field signals in parallel.
• Built-in self-diagnostics to detect stuck-on or stuck-off conditions without external test equipment.
• Optical isolation between field-side signals and the main controller backplane to mitigate electrical surges and transients.
• Integrated Line Monitoring capabilities for detecting open or short circuits in field wiring.
• Real-time validation of safety-critical inputs before processing by the main control logic.

Applications

The DI 3301 is intended for use in safety-instrumented systems (SIS) where high reliability and fault tolerance are required. Typical applications include emergency shutdown systems (ESD), fire and gas detection, and critical process monitoring in hazardous industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the designated slot to ensure reliable backplane communication.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial areas.
• Ensure field wiring is correctly terminated according to the system documentation to support line monitoring features.
• Maintain adequate ventilation within the cabinet to keep the ambient temperature within the 0 to 60 deg C operating range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the DI 3301?

The DI 3301 is a digital input module used to monitor field device states within a Triconex TMR safety system, providing high-reliability signal processing for safety-critical applications.

Does the module support line monitoring?

Yes, the DI 3301 includes diagnostic capabilities to detect open or short circuits in the field wiring, ensuring the integrity of the input signal.

Is this module hot-swappable?

The Triconex TMR system is designed to support module replacement while the system is operational; however, always consult the specific system manual for site-specific safety procedures before performing maintenance.
