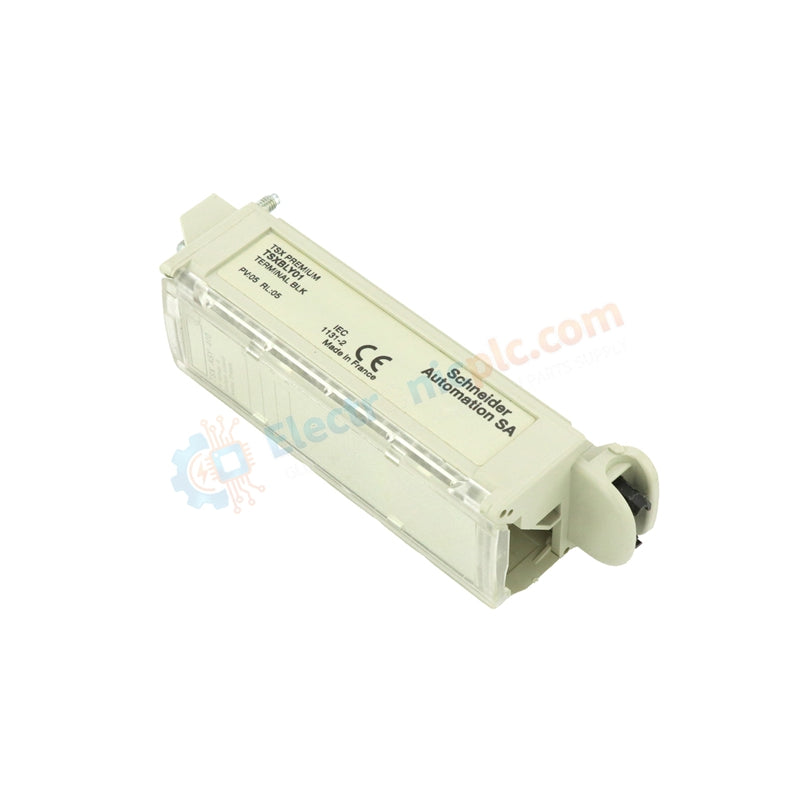

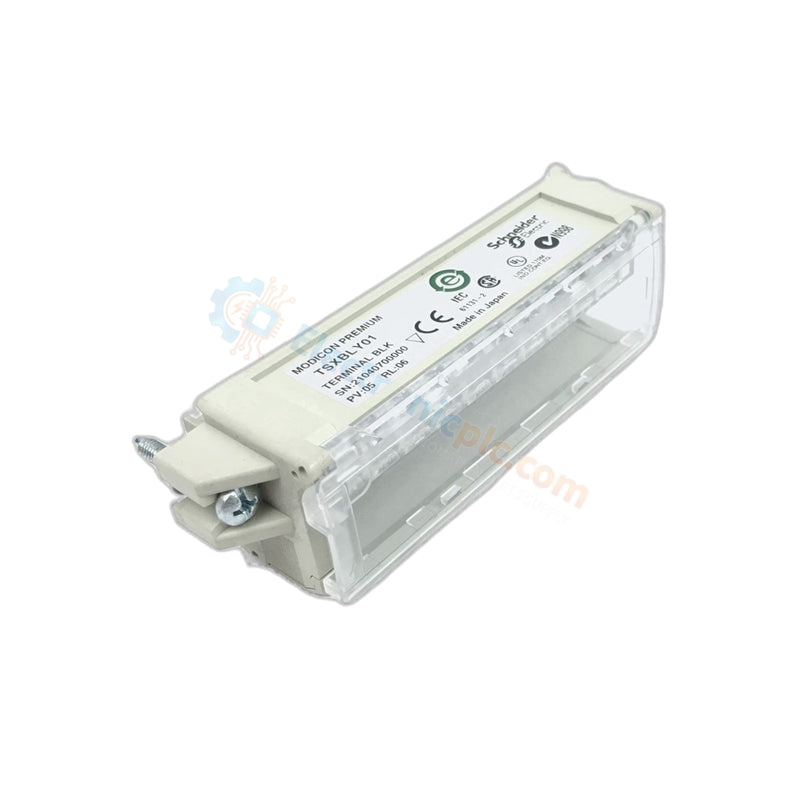

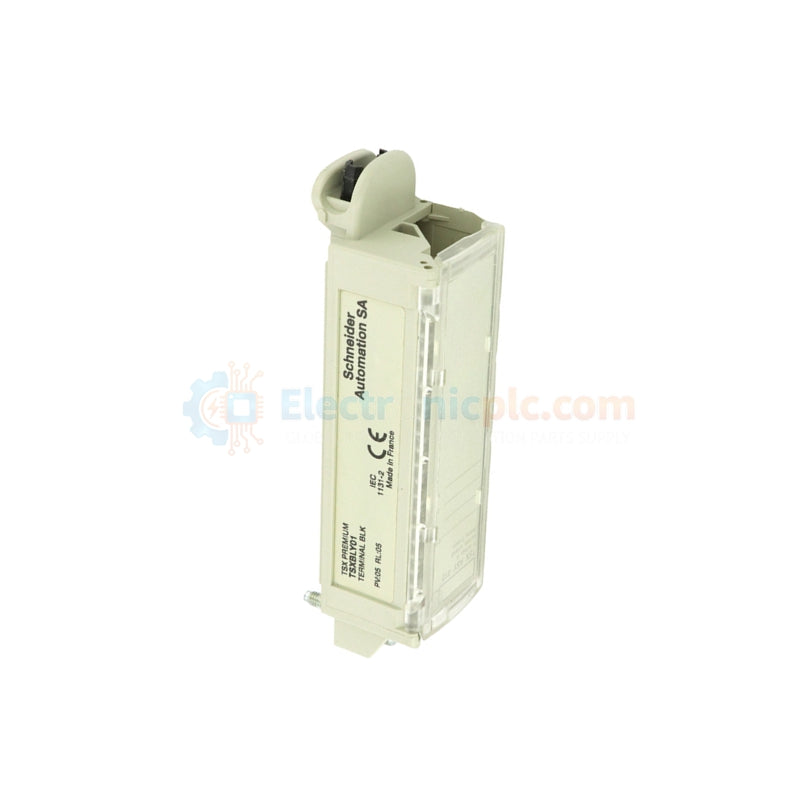

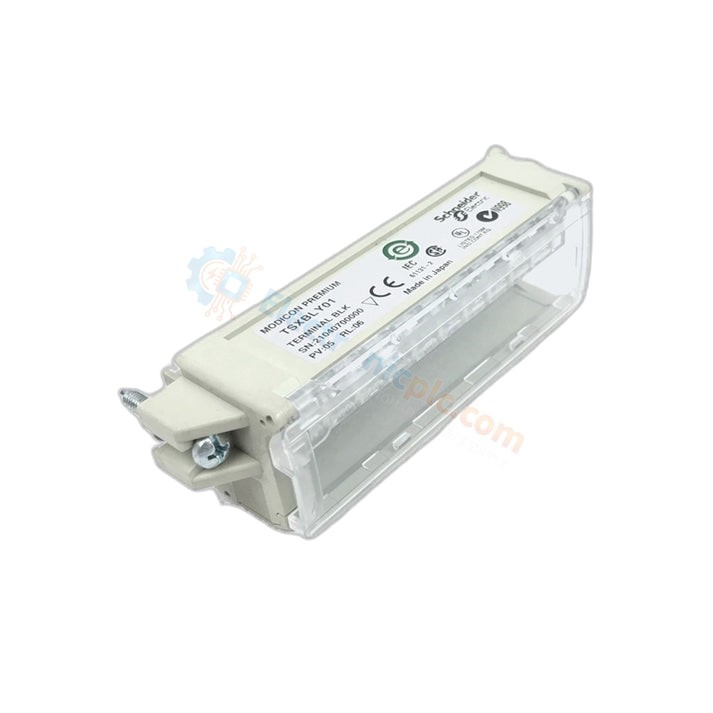

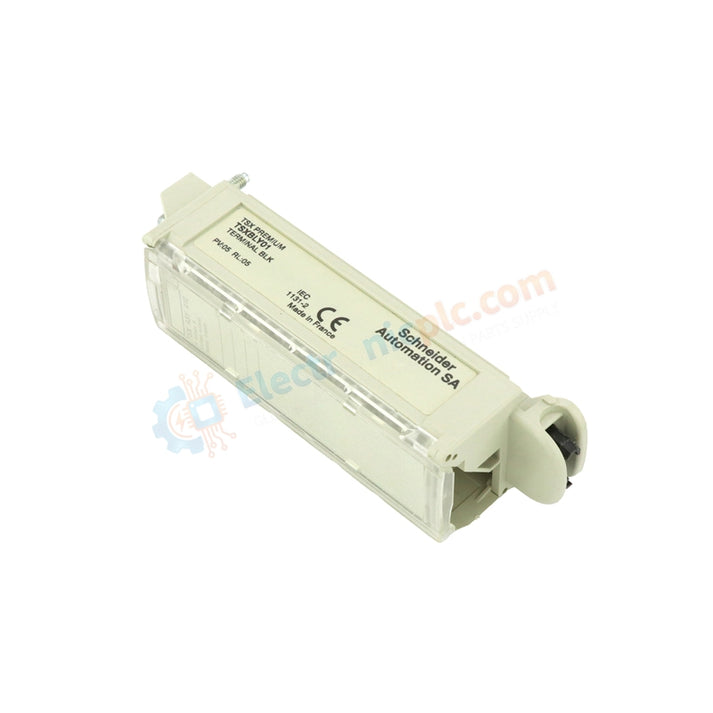

The Schneider Electric TSXBLY01 serves as the primary wiring interface for the Modicon Premium automation platform. This 20-way removable screw terminal block enables the direct connection of field sensors and...
Availability: Low stock: 94 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Schneider Electric TSXBLY01 serves as the primary wiring interface for the Modicon Premium automation platform. This 20-way removable screw terminal block enables the direct connection of field sensors and actuators to analog and discrete I/O modules. It eliminates the need for complex intermediate wiring by providing a secure, vibration-resistant screw-clamp mechanism. We supply this component as 100% Brand New and Original in Factory Packing, ensuring optimal signal conductivity for critical process automation and machine control environments.
| Parameter | Specification |
| Manufacturer | Schneider Electric (Modicon) |
| Model Number | TSXBLY01 |
| Product Type | Screw Connection Terminal Block |
| Number of Ways | 20 Ways |
| Connection Type | Screw-clamp terminals |
| Compatibility | Modicon Premium I/O (e.g., TSXAEY414, TSXASY410) |
| Dimensions (H x W x D) | 130 mm x 44 mm x 40 mm |
| Weight | 0.11 kg |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade Polyamide |
| Standard Compliance | RoHS compliant, CE marked |
Vibration-Proof Screw Technology: The TSXBLY01 utilizes heavy-duty screw-clamp connectors that maintain constant pressure on the wire. This mechanical grip prevents signal loss or intermittent failures caused by the high-frequency vibrations common in industrial manufacturing environments.
Removable for Rapid Maintenance: The "removable" design allows technicians to pre-wire the terminal block before attaching it to the I/O module. During module replacement, you can unplug the entire terminal strip without disconnecting individual field wires, reducing downtime from hours to minutes.
High-Density Wiring Layout: Despite its compact 40mm width, the block manages 20 distinct signal paths. This high-density architecture maximizes cabinet space and simplifies cable management for complex analog input arrays (such as the TSXAEY414) and discrete output systems.
Deterministic Signal Integrity: By providing a direct, low-resistance path between the field device and the PLC, the TSXBLY01 ensures the accuracy of sensitive 4–20 mA or 0–10 V analog signals. It minimizes potential electrical noise interference often found in poorly terminated connections.
Which I/O modules specifically require the TSXBLY01?
This terminal block is designed for a wide range of Modicon Premium modules, including the TSXAEY414 (Analog Input) and TSXASY410 (Analog Output). It also serves several discrete 24V DC modules that utilize the 20-way connection format. Always check your module's front-plate connector style to ensure a match.
What wire gauge can the screw terminals accommodate?
The TSXBLY01 screw clamps typically accept solid or stranded wires ranging from 0.5 mm² to 1.5 mm². For best results in high-vibration areas, we recommend using wire-end ferrules to ensure a clean, professional-grade contact surface.
Is this terminal block sold as a single unit or a kit?
We supply the TSXBLY01 as a single, brand-new unit in its original factory packaging. Each unit is ready for immediate mounting onto its compatible Modicon Premium I/O module.
