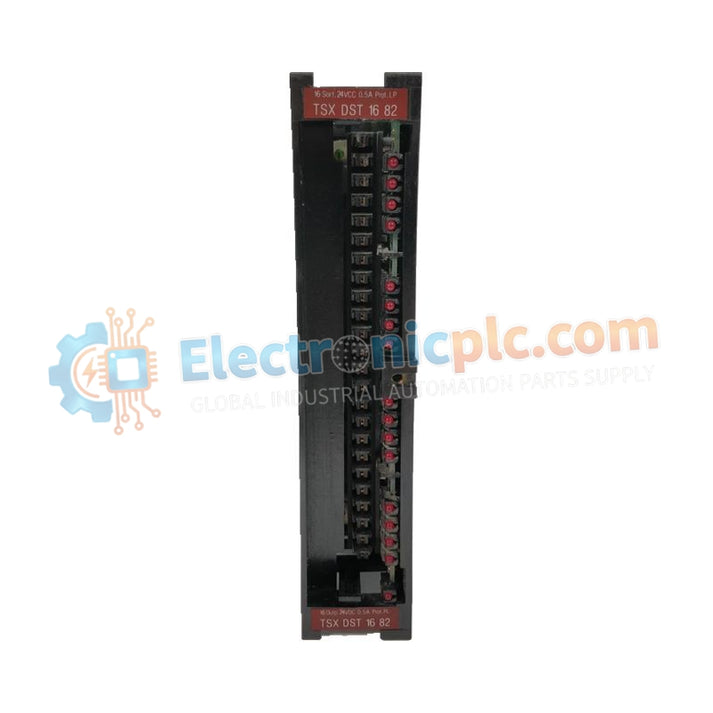

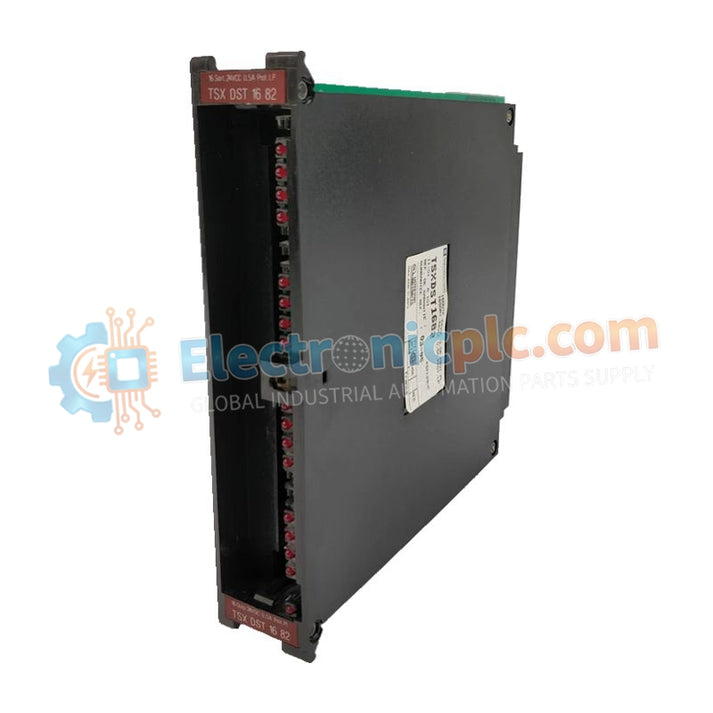

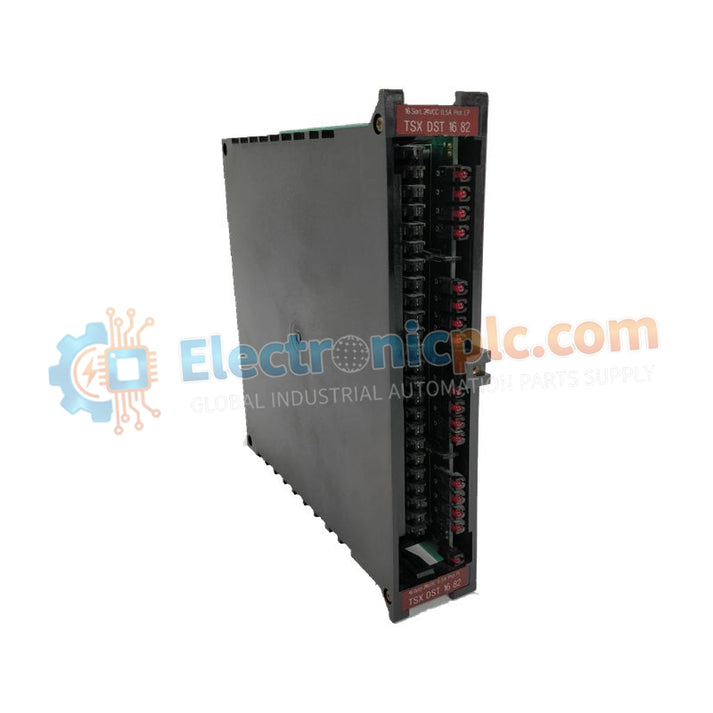

TSXDST1682 Schneider Electric PLC Discrete Output Module

TSXDST1682 Schneider Electric PLC Discrete Output Module

Product Description

The TSXDST1682 is a high-density discrete output module for the Schneider Electric Modicon Premium automation platform. It provides 16 solid-state output channels designed to drive 24 V DC field actuators, solenoids, and motor starters. Known...

25 people are viewing this right now

Availability: Low stock: 94 left

SKU: TSXDST1682
Vendor: Schneider
Category: PLC Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The TSXDST1682 is a high-density discrete output module for the Schneider Electric Modicon Premium automation platform. It provides 16 solid-state output channels designed to drive 24 V DC field actuators, solenoids, and motor starters. Known for its industrial-grade durability, the module integrates seamlessly with PL7 and EcoStruxure Control Expert programming environments.

Featuring advanced electronic protection, the TSXDST1682 safeguards internal circuitry against short circuits and overloads, reducing downtime due to field wiring faults. Its solid-state switching architecture delivers fast response times and a longer operational lifespan compared to relay-based outputs, while its compact form factor optimizes rack space in high-density control cabinets.

Detailed Technical Specifications

Parameter Specification
Output Type Discrete / Solid-State
Nominal Output Voltage 24 V DC
Output Voltage Limits 19–30 V DC
Current per Channel 0.5 A (Nominal)
Total Module Current 8 A (Maximum per module)
Leakage Current < 0.5 mA (Off state)
Response Time < 1.2 ms (On/Off)
Protection Features Short-circuit protection, Thermal overload protection
Diagnostics Front-panel LED indicators per channel + global fault LED
Isolation 1500 Vrms between outputs and logic
Weight 0.43 kg

Implementation and Diagnostic Features

  • Granular diagnostics: Individual channel LEDs plus global fault indicator for rapid troubleshooting.

  • Advanced protection: Integrated short-circuit and thermal overload safeguards minimize downtime.

  • Compact design: Supports high-density rack installations without compromising performance.

Technical FAQ

What happens to the outputs if the PLC stops?
The module’s behavior is configurable: it can either hold the last state or fallback to zero (default), depending on application safety requirements.

Can this module drive inductive loads without external diodes?
Yes. The TSXDST1682 includes integrated freewheeling diodes for small solenoids and contactors. For large inductive loads, external suppression diodes are recommended to extend module service life.
