TSXMRPC001M Schneider Electric Premium Memory Extension

TSXMRPC001M Schneider Electric Premium Memory Extension

Technical Overview

The TSXMRPC001M is a high-performance SRAM memory expansion card for the Modicon TSX Premium PLC (TSX57 series). Designed in a PCMCIA Type 1 form factor, it expands CPU memory by 1 MB, enabling larger programs,...

24 people are viewing this right now

Availability: Low stock: 94 left

SKU: TSXMRPC001M
Vendor: Schneider
Category: Memory Extension Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Technical Overview

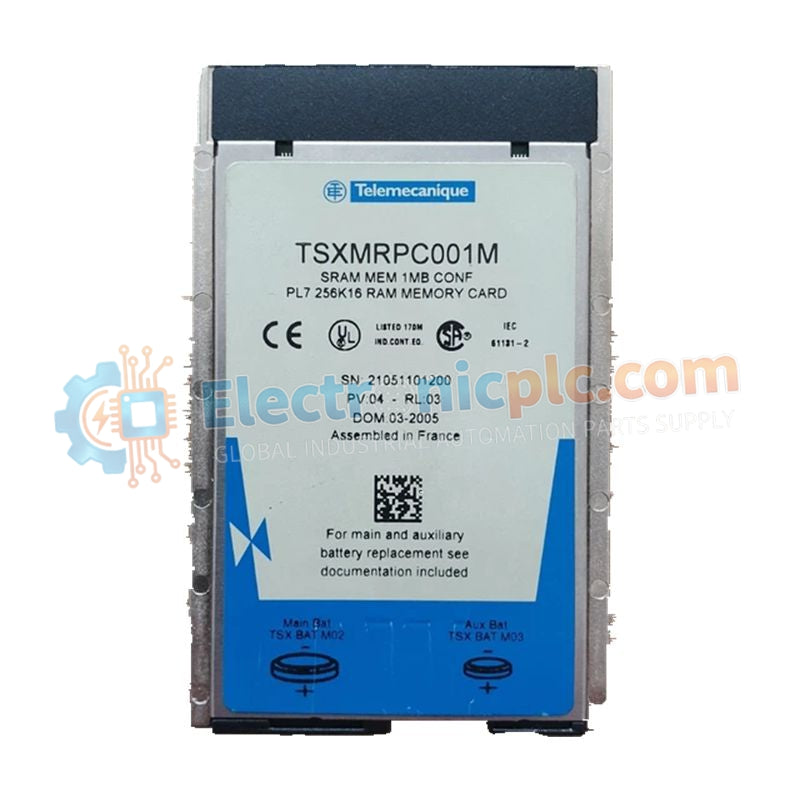

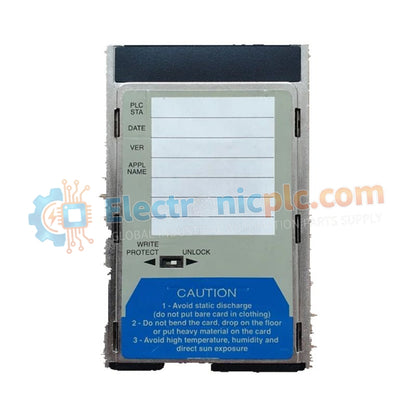

The TSXMRPC001M is a high-performance SRAM memory expansion card for the Modicon TSX Premium PLC (TSX57 series). Designed in a PCMCIA Type 1 form factor, it expands CPU memory by 1 MB, enabling larger programs, more data storage, and extended symbol/comment capacity. This card is essential for high-density automation projects where the base CPU memory is insufficient.

Detailed Specifications

Feature Specification
Model TSXMRPC001M
Memory Type SRAM (Static RAM)
Capacity 1 MB
Form Factor PCMCIA Type 1
Data Retention Integrated lithium battery
Application Usage Program storage, variables, symbols, comments
Dimensions 85 mm x 54 mm x 3 mm
Weight 0.05 kg

Operational Capabilities

  • Seamless Memory Upgrade: No rack modification needed; recognized automatically upon insertion.

  • Software Integration: Partitionable via Unity Pro or PL7 for Program/Data memory allocation.

  • Applications: Complex logic, large-scale motion control, extensive data logging, and communication-intensive tasks.

  • Battery-Backed SRAM: Retains program and data during power loss.

Frequently Asked Questions

Does it require a battery?

  • Yes, the internal lithium battery preserves data in the SRAM during power outages.

Can it be hot-swapped?

  • No. The CPU must be powered off before inserting or removing the card to prevent corruption or damage.

Is it compatible with Modicon Quantum CPUs?

  • No. The TSXMRPC001M is designed exclusively for TSX Premium (TSX57 series) architecture.
