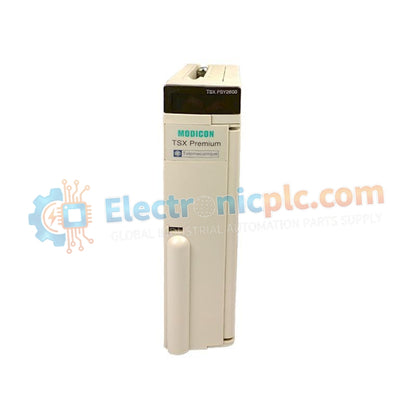

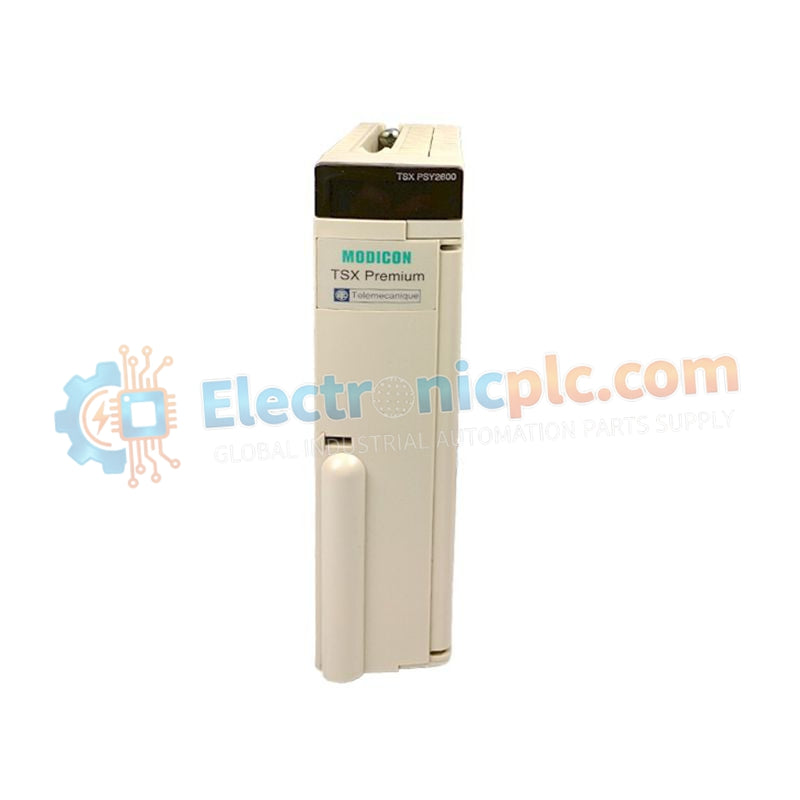

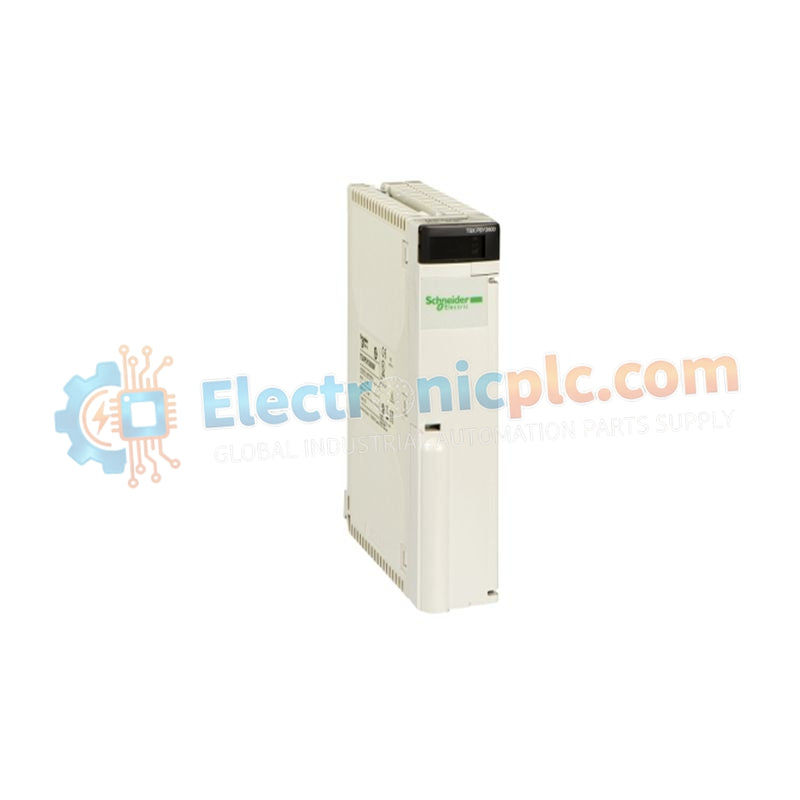

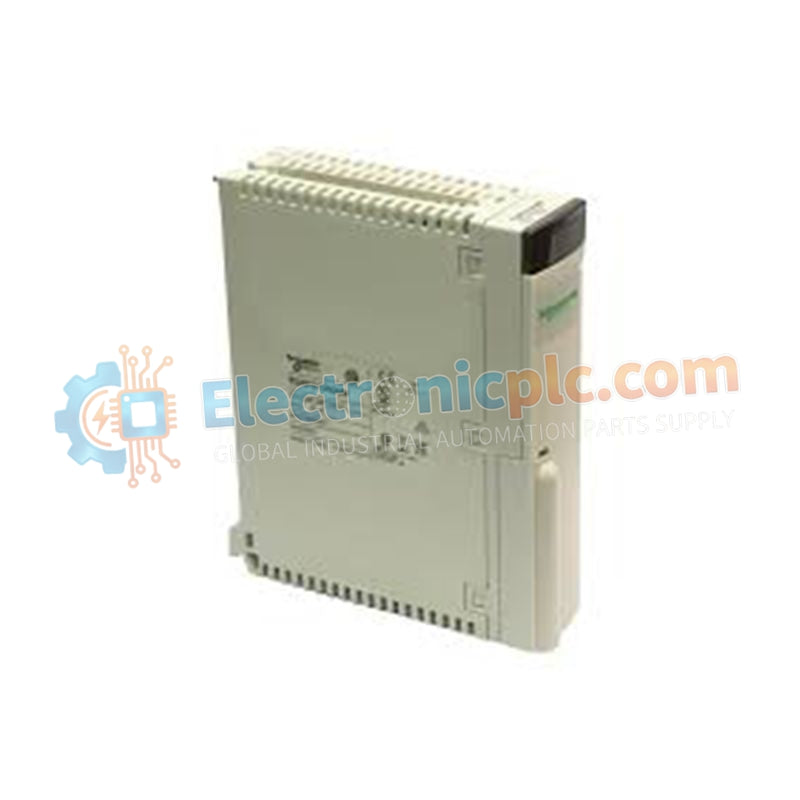

TSXPSY2600M Schneider Electric PLC Power Supply Module

TSXPSY2600M Schneider Electric PLC Power Supply Module

Technical Overview

The TSXPSY2600M is a high-efficiency AC-to-DC power supply for the Modicon Premium PLC platform. It converts 100–240 V AC input into regulated DC voltages for the CPU, backplane, I/O modules, and field sensors. Designed for...

18 people are viewing this right now

Availability: Low stock: 94 left

SKU: TSXPSY2600M
Vendor: Schneider
Category: AC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Technical Overview

The TSXPSY2600M is a high-efficiency AC-to-DC power supply for the Modicon Premium PLC platform. It converts 100–240 V AC input into regulated DC voltages for the CPU, backplane, I/O modules, and field sensors. Designed for industrial applications, this module delivers 26 W total output with robust protection against electrical noise, inrush currents, and power fluctuations.

Detailed Specifications

Feature Specification
Model TSXPSY2600M
Input Voltage 100–240 V AC (Absolute: 85–264 V)
Frequency 50/60 Hz (47–63 Hz)
Total Output Power 26 W
DC Outputs 5 V DC: 5.0 A (25 W) – CPU/backplane
24 V DC Relay: 0.6 A (15 W) – Internal relays
24 V DC Sensor: 0.5 A – External sensors
Inrush Current 37 A at 100 V / 75 A at 240 V
Input Current 500 mA (100 V) / 300 mA (240 V)
Protection Primary: 4 A time-delay fuse
Secondary: Electronic short-circuit, overvoltage, overload protection
Hold-up Time 10–20 ms (maintains output during brief power dips)
Indicators LEDs: OK (Green), Battery (Red), 24V (Green)

Operational Features

  • Robust AC-to-DC Conversion: Provides stable voltages under fluctuating input conditions.

  • Secondary Circuit Protection: Limits current to prevent CPU, backplane, and I/O damage in case of faults.

  • Integrated Battery Support: Maintains program memory and real-time clock during extended power loss.

  • Thermal and Inrush Resilience: High $I^2t$ rating ensures durability under repeated startup cycles.

Frequently Asked Questions

Can this power supply be used with DC input sources?

  • No. It is strictly an AC-to-DC converter. Use TSXPSY5500 or TSXPSY3610 for DC input systems.

What does the “M” suffix indicate?

  • Denotes standard format module compatible with Modicon Premium racks (mechanical and electrical).

Is the primary fuse user-replaceable?

  • The internal 5 × 20 mm 4 A fuse can be replaced, but a blown fuse often signals an internal fault. The module should be tested before reinstallation.
