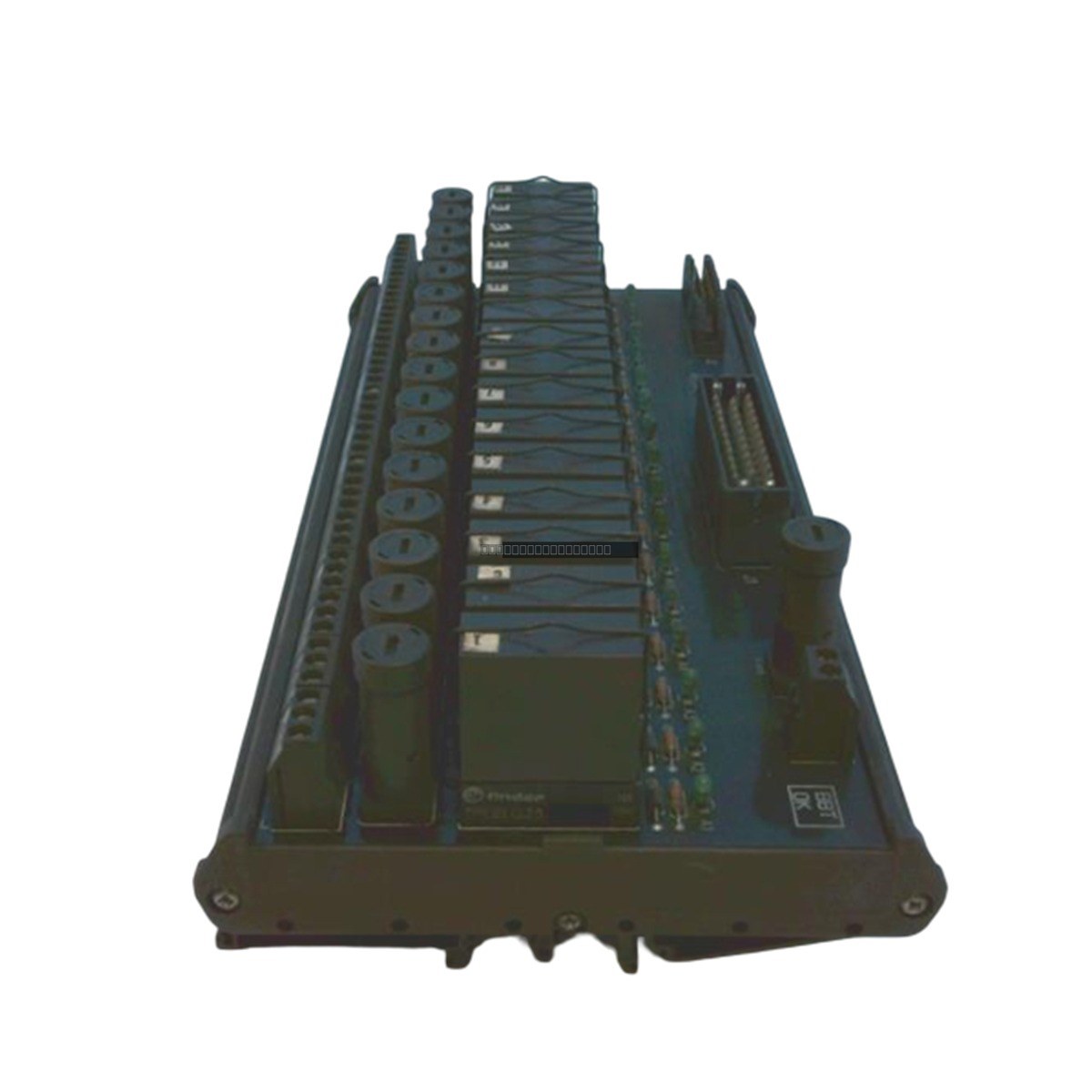

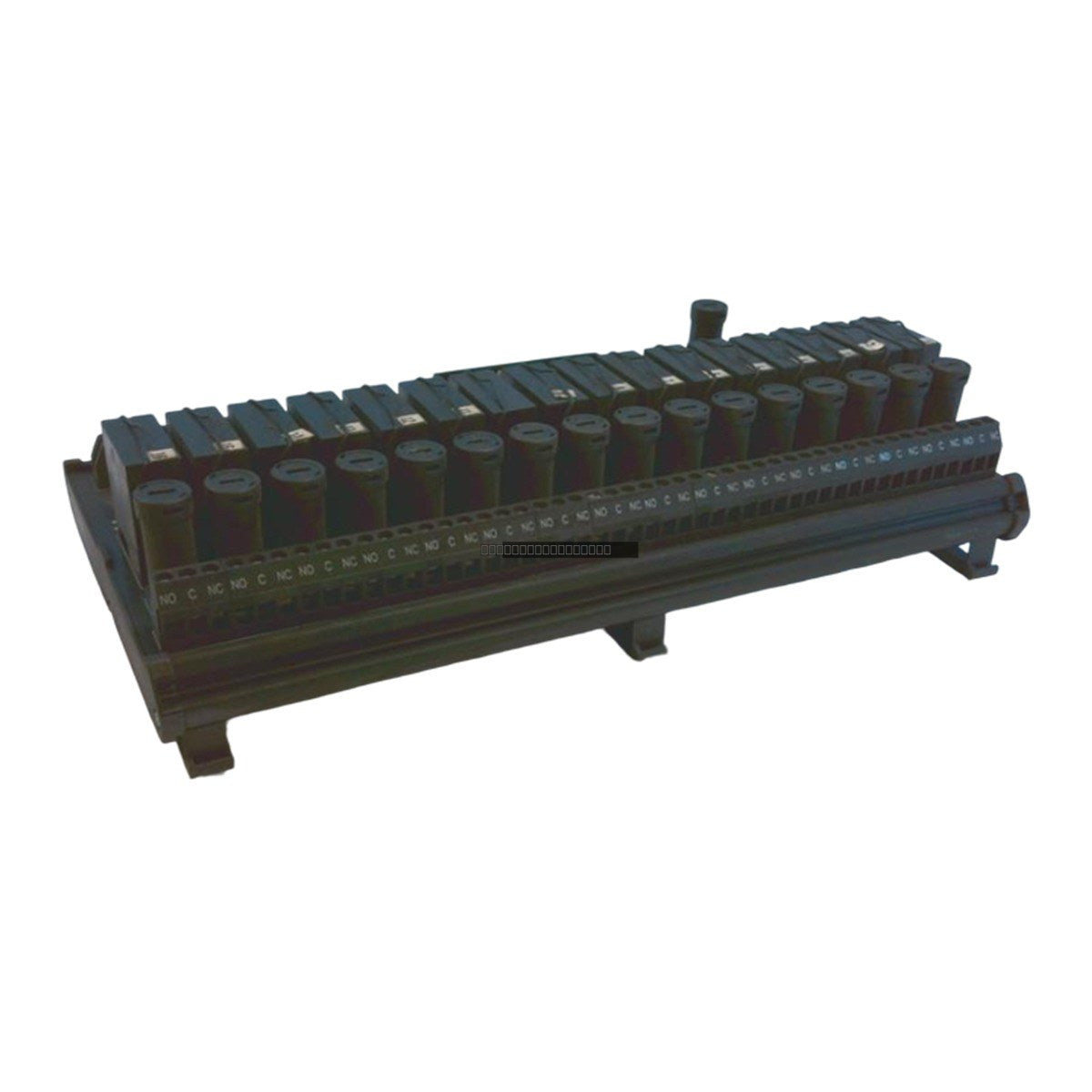

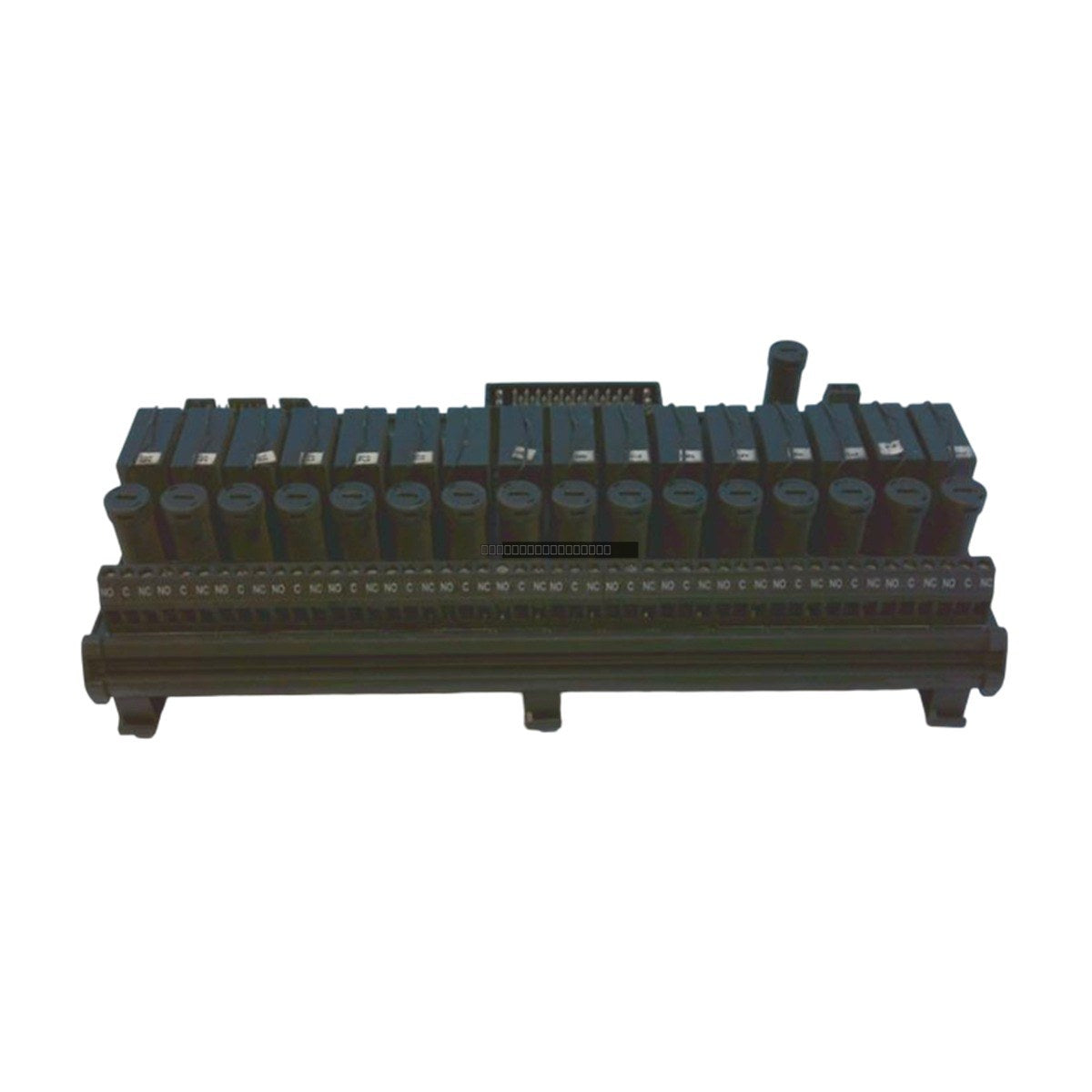

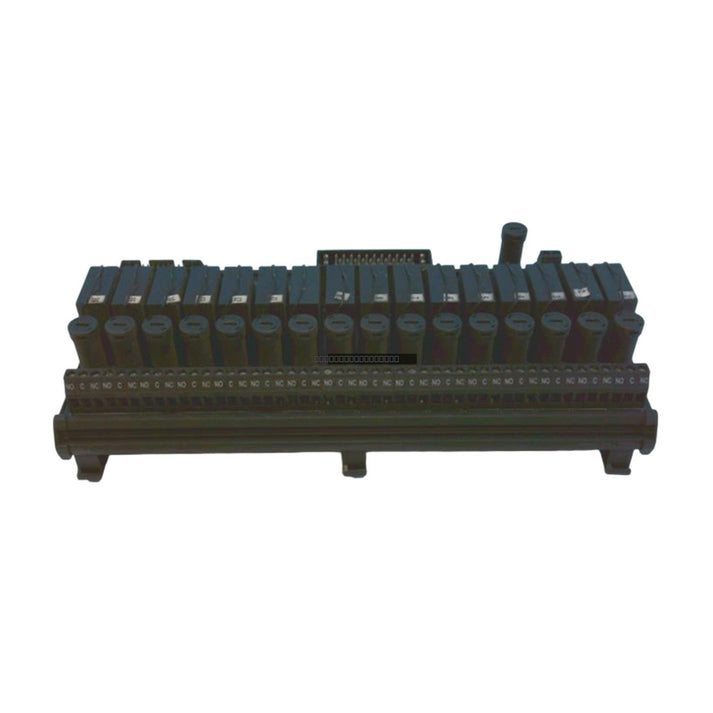

GE Fanuc IC200CHS111 Versamax Interposing I/O Main Base

GE Fanuc IC200CHS111 Versamax Interposing I/O Main Base

Description

The GE Fanuc IC200CHS111 is a Versamax series interposing I/O main base designed to provide robust electrical isolation between field devices and control system electronics. This module features 16 isolated...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC200CHS111
Vendor: GE FANUC
Category: I/O Main Base
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC200CHS111 is a Versamax series interposing I/O main base designed to provide robust electrical isolation between field devices and control system electronics. This module features 16 isolated channels, ensuring that high-voltage field signals do not compromise the integrity of the PLC backplane. By facilitating point-to-point galvanic isolation, the IC200CHS111 protects sensitive control hardware from voltage surges, cross-channel interference, and ground loops in demanding industrial environments.

Features

  • 16-Channel Isolation: Provides independent galvanic separation for each of the 16 I/O points.
  • High-Density Termination: Equipped with 50 box-style terminal blocks to support secure, vibration-resistant field wiring.
  • Visual Diagnostics: Includes 16 integrated LEDs for real-time status monitoring of individual channels.
  • Dedicated Power Input: Features specific terminals (A17 and A18) for 24 VDC logic power supply.
  • Rugged Design: Engineered for reliable operation in high-stress environments, including chemical processing and power generation.

Technical Specifications

Model IC200CHS111
Channels 16 Isolated Points
Max Carry Current 8.0 A per point
Resistive Load Capacity 8 A at 250 VAC / 30 VDC
Inductive Load Capacity 6 A at 250 VAC / 4 A at 30 VDC
Max Switching Voltage 380 VAC / 125 VDC
Max Switching Power 2000 VA (AC) / 240 W (DC)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C

Installation Guidelines

  • Power Down: Always disconnect power from the I/O base and associated field devices before installing or removing modules.
  • Mounting: Ensure the base is securely mounted to the DIN rail or backplane to maintain proper grounding and mechanical stability.
  • Wiring: Use shielded cables for field connections to minimize EMI. Ensure all terminal screws are tightened to the specified torque to prevent loose connections.
  • Environment: Maintain adequate ventilation around the module to ensure operating temperatures remain within the 0 to 60 deg C range.
  • ESD Handling: Use appropriate electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal components.

FAQ

What is the primary function of the IC200CHS111?
It acts as an interposing base to provide galvanic isolation between field-side signals and the control system, protecting the PLC from electrical faults.

Can this module handle AC and DC loads?
Yes, it is rated for both AC and DC switching, with specific limits for resistive and inductive loads as detailed in the technical specifications.

How do I monitor the status of the channels?
The module features 16 individual LEDs on the front panel that provide visual feedback for each channel's switching state.
