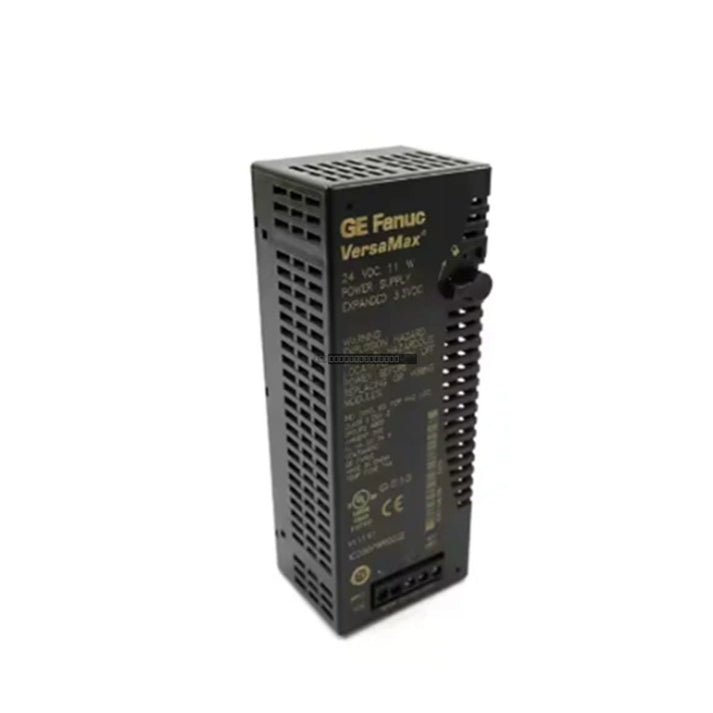

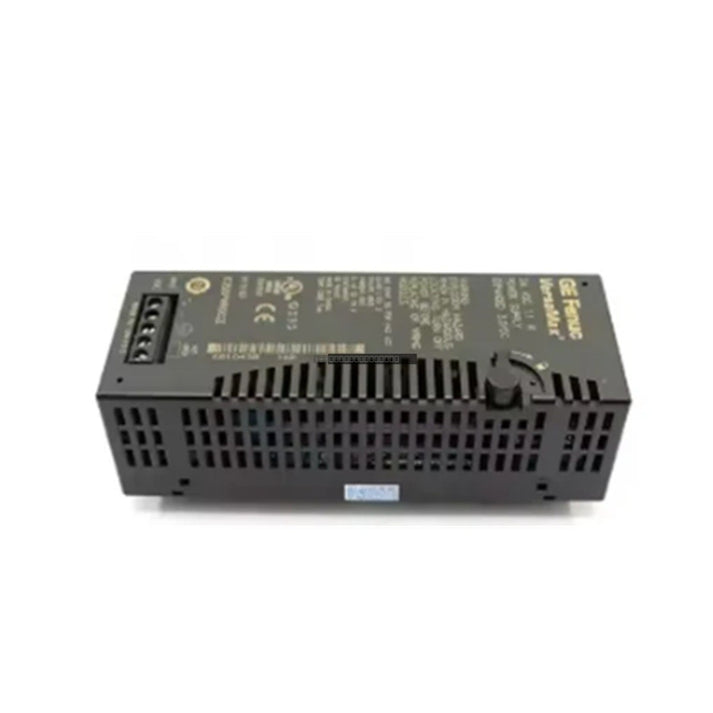

General Electric IC200PWR002 VersaMax Power Supply Module

General Electric IC200PWR002 VersaMax Power Supply Module

The General Electric IC200PWR002 is a 24 VDC expanded power supply module designed for the VersaMax PLC system. This unit provides essential backplane power to CPUs, Network Interface Units (NIUs),...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC200PWR002
Vendor: General Electric
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC200PWR002 is a 24 VDC expanded power supply module designed for the VersaMax PLC system. This unit provides essential backplane power to CPUs, Network Interface Units (NIUs), and various I/O modules. It is engineered to function either as a primary power source when mounted directly to a CPU/NIU or as a supplemental power booster when installed on a dedicated booster carrier.

Features

  • Input voltage range of 18-30 VDC (24 VDC nominal).
  • Dual output voltage: 5 VDC and 3.3 VDC.
  • Total output current capacity of 1.5 A.
  • Integrated protection against short circuits, overloads, and reverse polarity.
  • Supports modular expansion for complex VersaMax configurations.
  • Holdup time of 10 ms during power fluctuations.

Applications

  • Industrial automation and production line synchronization.
  • Material handling systems, including large-scale conveyors.
  • Automotive manufacturing for high-speed discrete I/O and robotics.
  • Distributed process control for water treatment and light chemical applications.

Technical Specifications

Model IC200PWR002
Input Voltage 18-30 VDC
Input Power 11 Watts
Output Voltage 5 VDC and 3.3 VDC
Max Output Current 1.5 A (Total)
Max 3.3V Output 1.0 A
Inrush Current 20 A (at 24 VDC), 25 A (at 30 VDC)
Weight 0.12 kg

Installation Guidelines

  • Power Down: Always disconnect all power sources before installing, removing, or wiring the module to prevent electrical hazards.
  • Mounting: Mount directly to the CPU or NIU for primary power functionality, or use a Power Supply Booster Carrier for supplemental power.
  • Grounding: The DC- terminal must be connected to both the frame ground and earth ground. Note that the unit is internally grounded to the frame, which precludes floating power supply configurations.
  • Wiring: Utilize the five screw-type terminals on the front panel. Ensure correct polarity for the +DC and -DC connections.
  • Environment: Ensure adequate ventilation to maintain operating temperature within specified limits.

FAQs

What is the primary function of the IC200PWR002?

This module serves as a 24 VDC expanded power supply for the VersaMax series, providing the necessary 3.3 VDC and 5 VDC backplane power for CPUs, NIUs, and I/O modules.

Can this module be used as a booster?

Yes, the IC200PWR002 can be installed on a booster carrier to act as a supplemental power supply for the system backplane.

What protection features are included?

The module is equipped with internal circuitry to protect against short circuits, overloads, and reverse polarity conditions.

Is this module compatible with newer versions?

This unit is often superseded by the IC200PWR002J; please verify your system requirements when selecting replacement parts.
