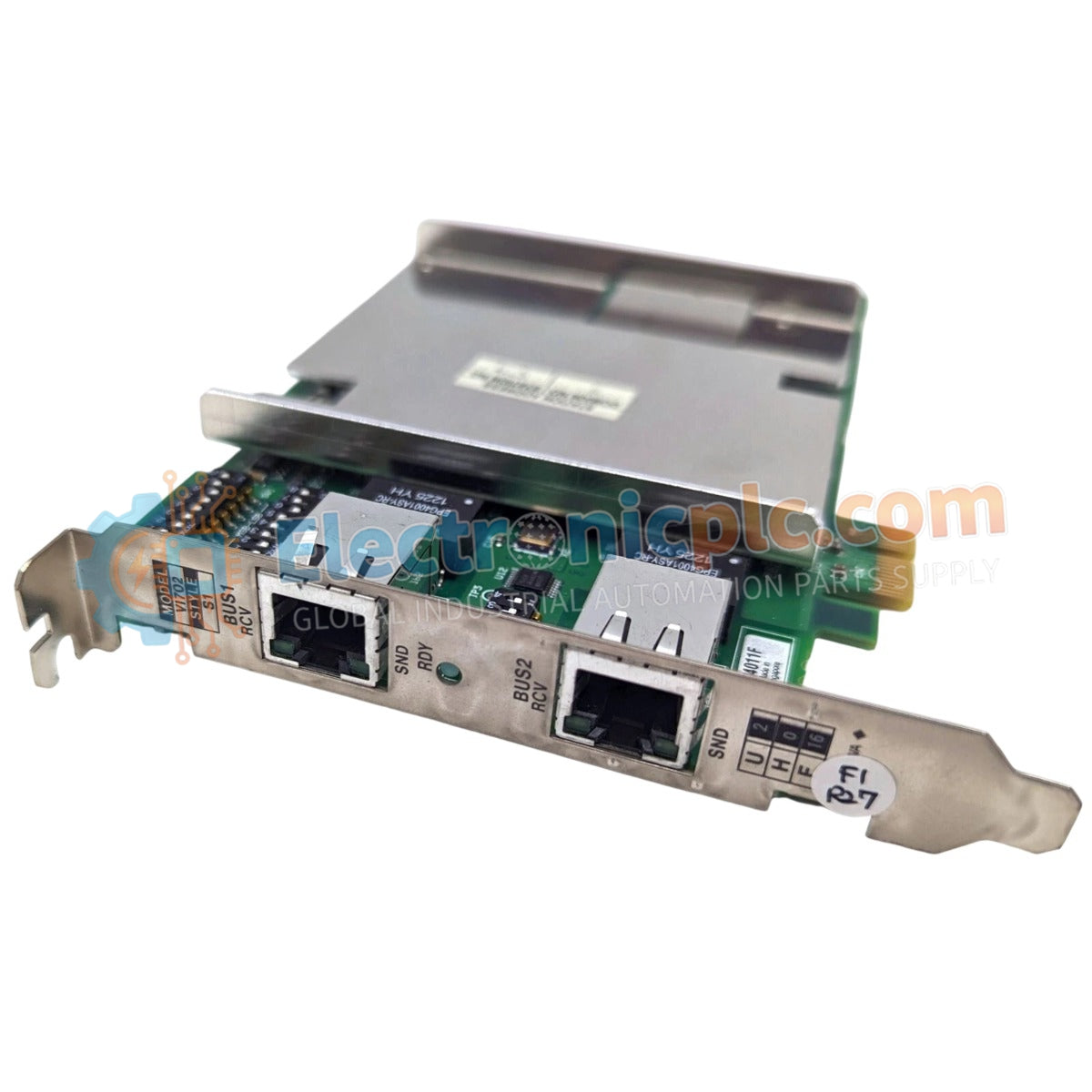

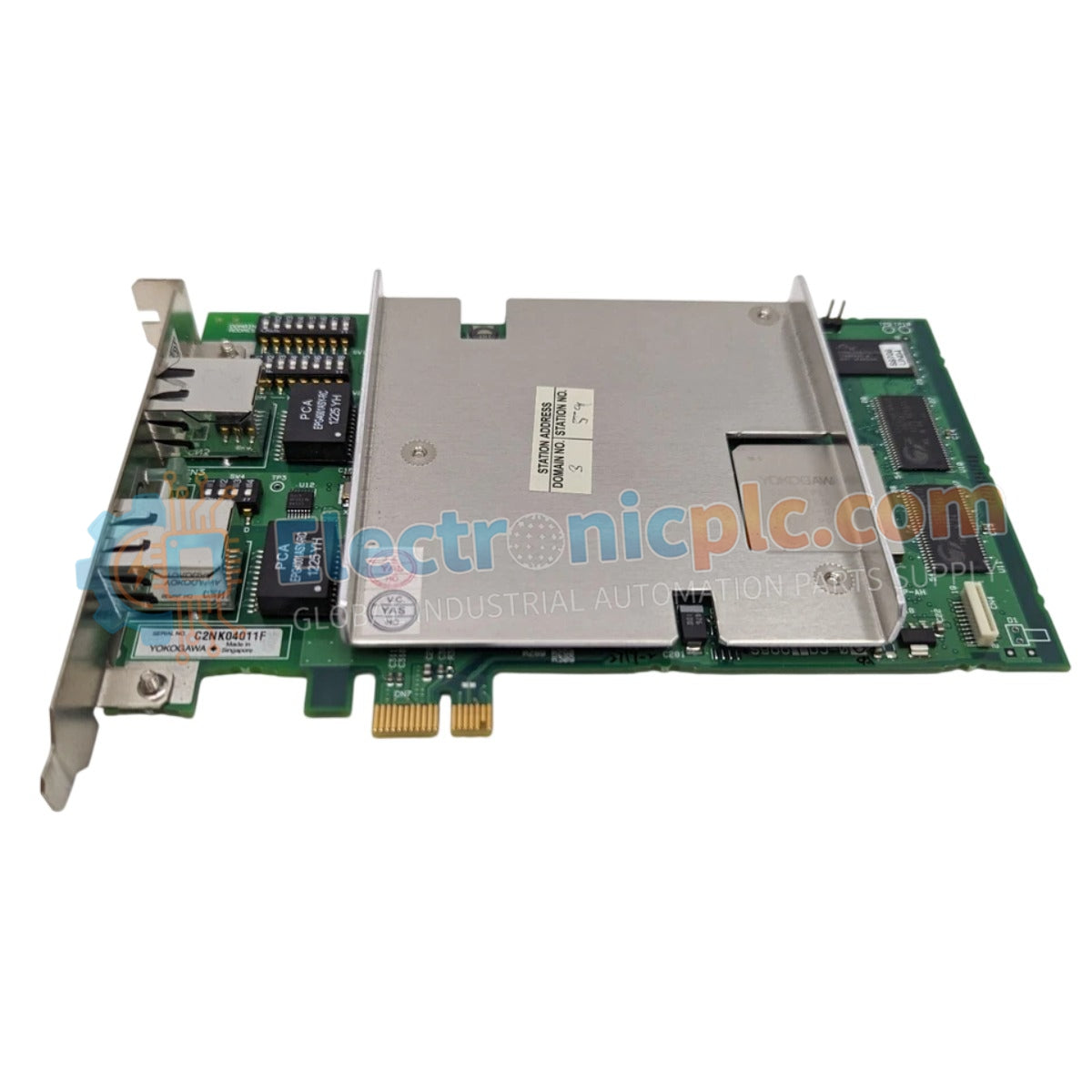

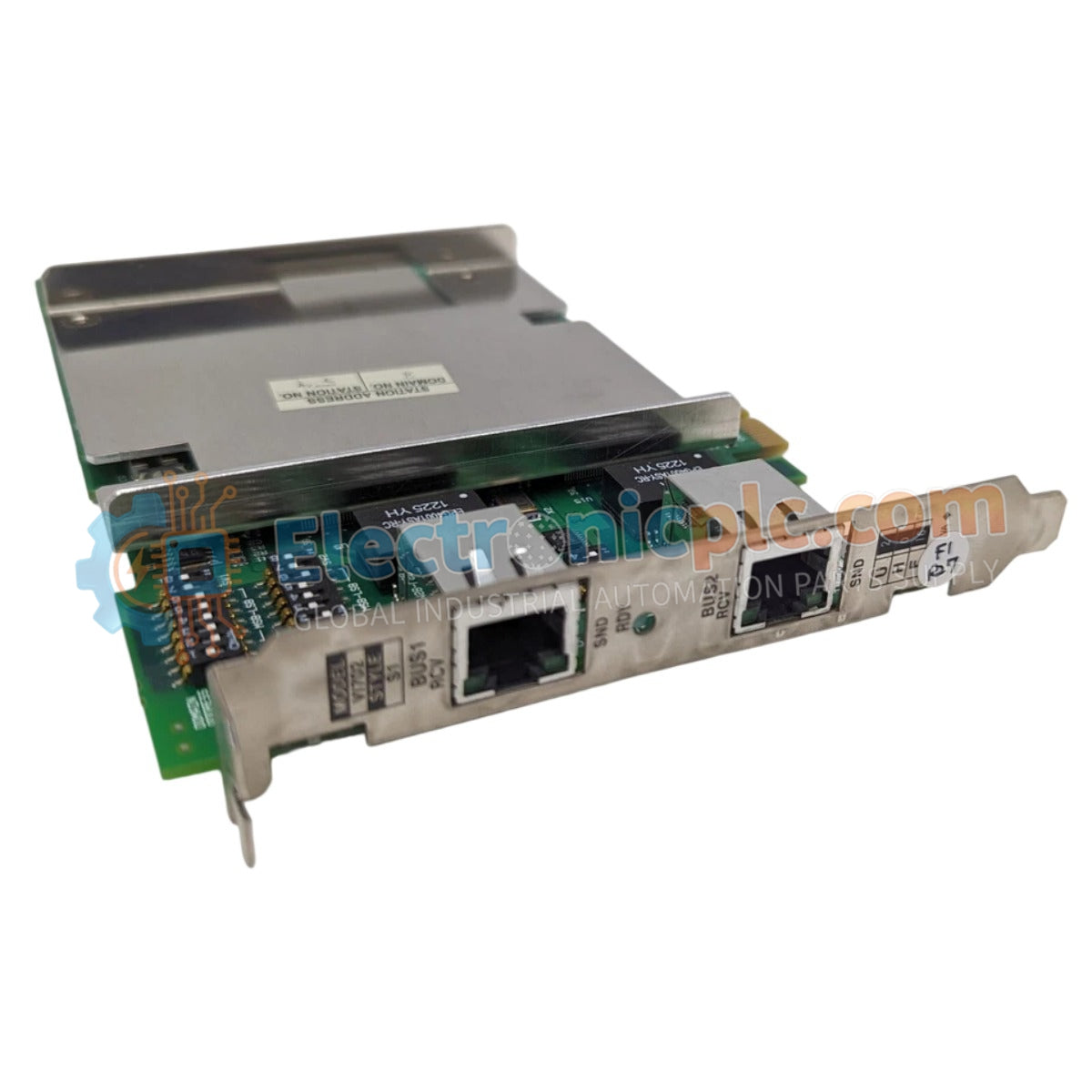

VI702 S1 Yokogawa Vnet/IP Interface Card | New & Original Stock

VI702 S1 Yokogawa Vnet/IP Interface Card | New & Original Stock

Configured for high-speed network communication in distributed control systems, the Yokogawa VI702 S1 (VI702 S1) Vnet/IP Interface Card provides direct physical signal execution for data exchange across the Vnet/IP control...

29 people are viewing this right now

Availability: Low stock: 99 left

SKU: VI702 S1
Vendor: Yokogawa
Category: Vnet/IP Interface Card
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for high-speed network communication in distributed control systems, the Yokogawa VI702 S1 (VI702 S1) Vnet/IP Interface Card provides direct physical signal execution for data exchange across the Vnet/IP control network.

Hardware Specifications

Parameter Specification
Model VI702 S1
Brand Yokogawa
Origin Japan
Weight 0.16 kg
Dimensions 7.2 cm x 6.3 cm x 9.2 cm
Operating Temp Not Specified
Power Consumption Backplane powered

FOUNDATION Fieldbus and Channel Isolation

The VI702 S1 module acts as a dedicated network interface, facilitating deterministic communication between control stations and the Vnet/IP process network. The unit incorporates galvanic isolation measures on its network interface ports to protect the system backplane from surges and electromagnetic interference (EMI) originating on the network cabling. This design ensures that time-critical process data remains synchronized across the network, maintaining the low-latency communication threshold required for large-scale industrial process control.

Frequently Asked Questions

Q: Does the VI702 S1 require specific IP configuration settings prior to installation?

A: Yes, the card must be configured with the appropriate network parameters (IP address, subnet mask, and gateway) within the DCS engineering software to be recognized by the Vnet/IP domain.

Q: Is this card compatible with standard Ethernet switches?

A: It is designed for compatibility with designated Vnet/IP switches; usage with non-certified hardware can result in broadcast storm issues or unpredictable latency, which may trigger network diagnostic alarms.

Field Installation Guidelines

  • Ensure the card is inserted into the designated slot on the Vnet/IP station, verifying the alignment of the backplane connectors to prevent pin bending.
  • Use shielded, Category 6 or higher Ethernet cabling for network connections; terminate the shield at the cabinet's grounding point to optimize noise immunity.
  • Maintain a minimum separation of 10 cm from high-power AC lines to minimize signal coupling on the network data paths.
  • Verify that the station's network status LEDs (link/activity) confirm a stable handshake after system initialization and network configuration loading.
