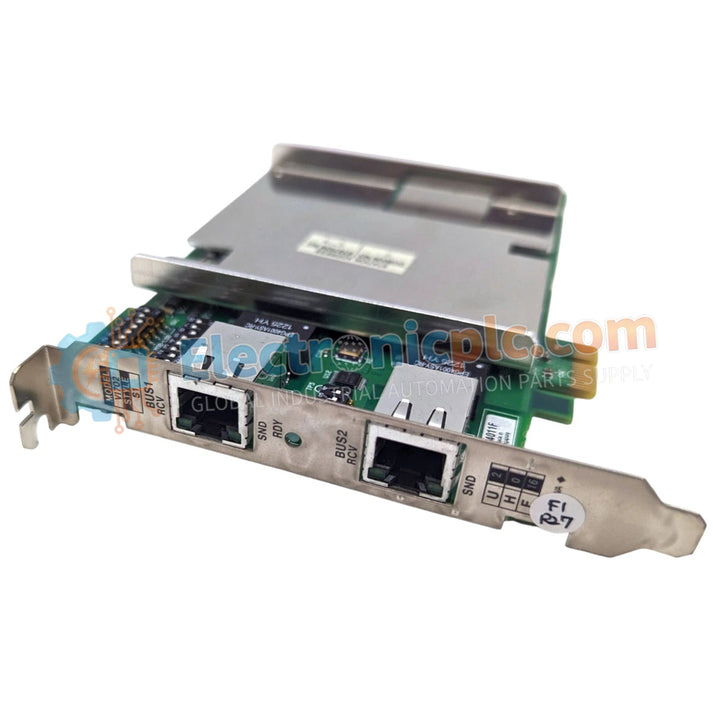

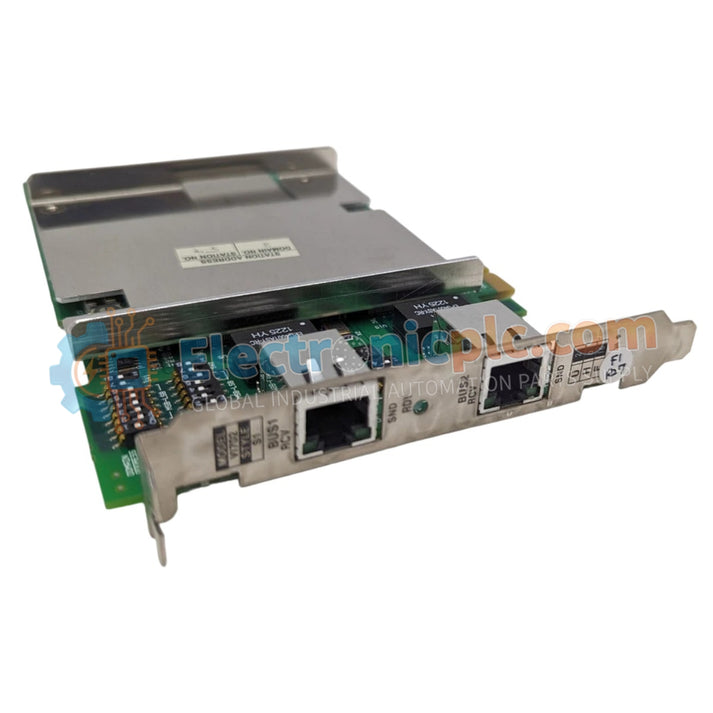

VL702 Vnet/IP Interface Card Yokogawa

VL702 Vnet/IP Interface Card Yokogawa

Configured for deterministic network communication in CENTUM VP control systems, the Yokogawa VL702 (VL702 Vnet/IP Interface Card) provides direct physical execution of Vnet/IP protocol-based data exchange across industrial control networks.

...
22 people are viewing this right now

Availability: Low stock: 99 left

SKU: VL702
Vendor: Yokogawa
Category: Vnet/IP Interface Card
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for deterministic network communication in CENTUM VP control systems, the Yokogawa VL702 (VL702 Vnet/IP Interface Card) provides direct physical execution of Vnet/IP protocol-based data exchange across industrial control networks.

Hardware Specifications

Parameter Specification
Model VL702
Brand Yokogawa
Origin Japan
Weight 0.16 kg
Dimensions 7.2 cm x 6.3 cm x 9.2 cm
Operating Temp 0 deg C to 50 deg C
Power Consumption System-rated bus load
Network Interface Vnet/IP deterministic network
Communication Ethernet-based control bus

Vnet/IP Network Connectivity and Determinism

The VL702 serves as the primary gateway for integrating stations into the Vnet/IP control network. By leveraging Ethernet-based communication, the module ensures high-speed, deterministic data transport critical for real-time process control. The interface card architecture supports hardware-level packet prioritization, which minimizes transmission latency and jitters for time-sensitive control traffic. It implements internal diagnostic routines to verify link-layer integrity, ensuring that process communication remains robust against network-induced noise or traffic congestion.

Frequently Asked Questions (FAQ)

Q: What is the primary communication protocol supported by the VL702 card?

A: The VL702 is specifically designed to interface with the Yokogawa Vnet/IP protocol, enabling high-speed, deterministic communication within the CENTUM VP distributed control environment.

Q: Does the VL702 card require external network configuration for system integration?

A: The module relies on the system-defined Vnet/IP address assignments. Integration must be performed via the CENTUM system builder software to ensure correct synchronization with the control bus architecture.

Field Installation Guidelines

  1. Power off the target controller or station before inserting the VL702 module into the designated interface slot to avoid backplane pin damage.
  2. Ensure the module is seated fully and the locking fasteners are engaged to prevent intermittent signal loss due to vibration.
  3. Connect the Ethernet cable using shielded RJ45/industrial connectors, ensuring the shield is bonded to the facility ground to maintain electromagnetic immunity.
  4. Verify link status via the module's onboard LED indicators upon system startup.
  5. Avoid routing Vnet/IP cables in parallel with high-voltage power conduits to prevent signal interference on the control bus.
