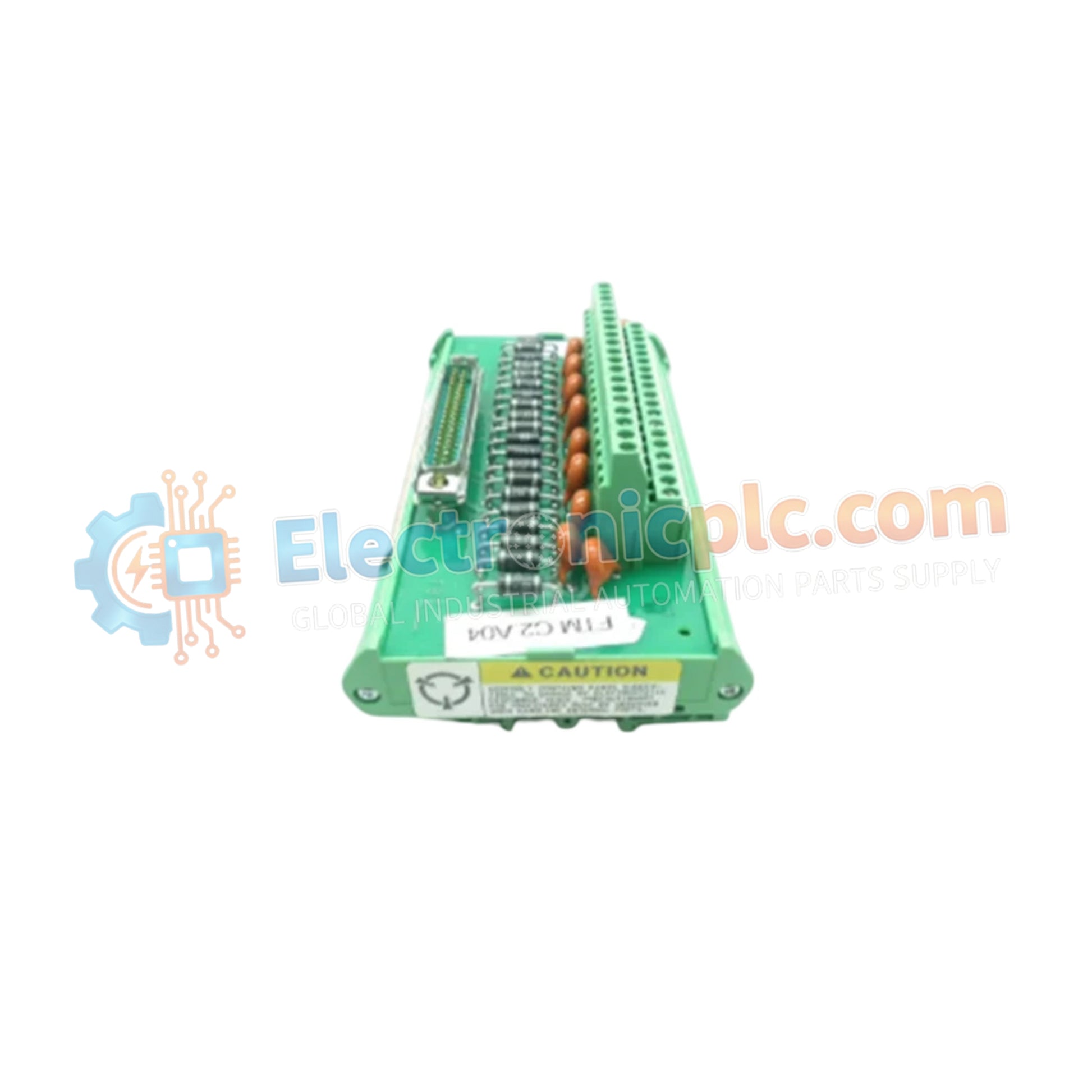

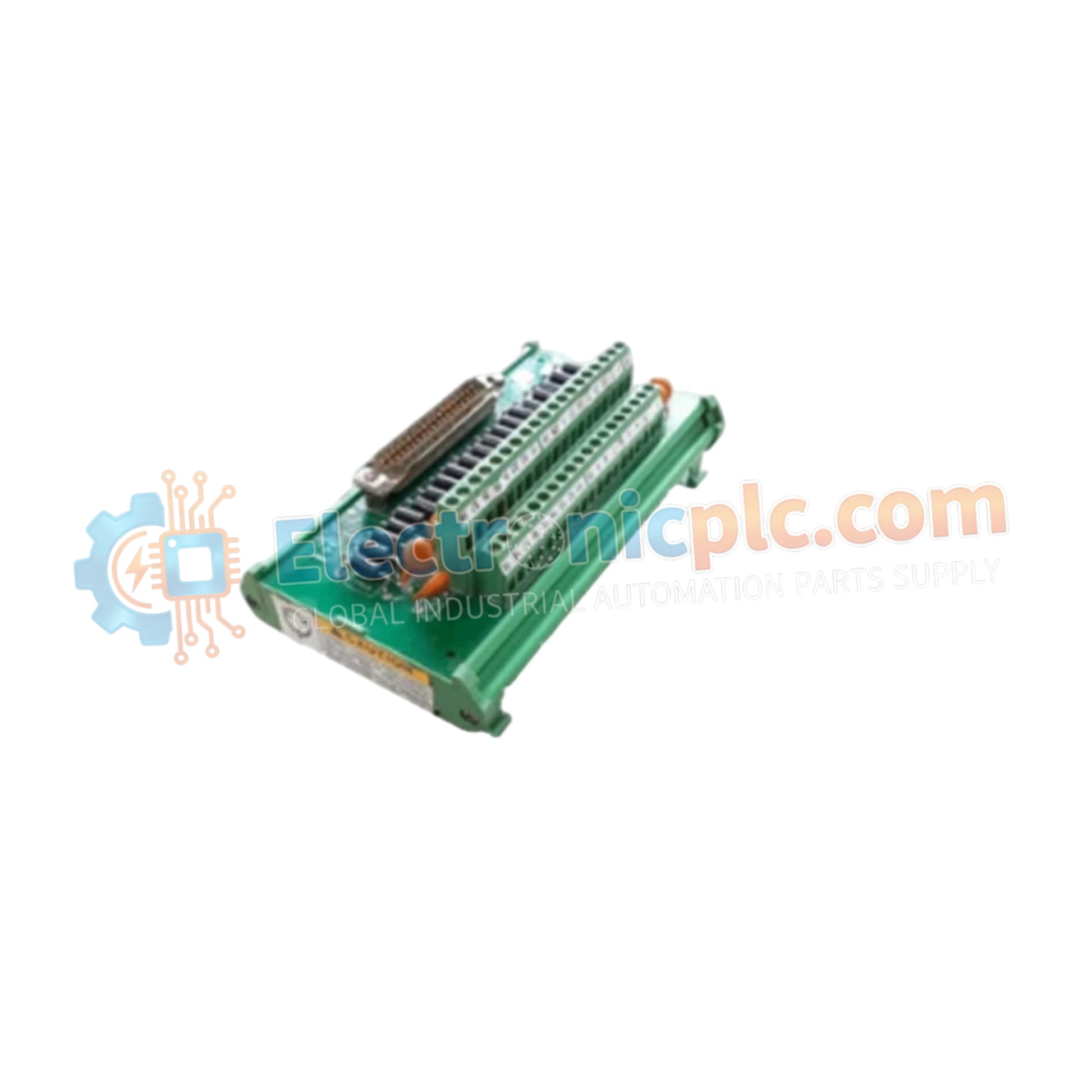

The Woodward 5437-054 serves as the primary 5400 NetCon Field Terminal Module utilized to execute field signal termination and emergency shutdown interlocks across turbine control system platforms.
The Woodward 5437-054 serves as the primary 5400 NetCon Field Terminal Module utilized to execute field signal termination and emergency shutdown interlocks across turbine control system platforms.
Hardware Specifications
Parameter
Specification
Model
5437-054
Brand
Woodward
Origin
USA
Weight
0.25 kg (0.55 lbs)
Dimensions
15.9 cm x 8.9 cm x 7.0 cm (6.25 in x 3.50 in x 2.75 in)
Operating Temp
Extended industrial operating range
Power Consumption
24 VDC supply input
Input Voltage
24 VDC
Pulse Frequency
3 kHz
Local Indication
24-character LED display
Safety Features
Integrated Emergency Stop Button
Actuator Loop Feedback Response and Thermal Dissipation
The Woodward 5437-054 conditions high-frequency 3 kHz field inputs and 24 VDC discrete control lines to maintain deterministic actuator loop feedback response within turbine speed governing loops. Designed with dedicated emergency safety interlocks, the module directly integrates an Emergency Stop button to execute immediate power interruptions or trip state signals to prime mover fuel cut-off valves. Integrated thermal heat sink dissipation structures protect internal LED drivers and logic circuits from thermal stress, preserving real-time status output on its 24-character LED interface under high-duty industrial environments.
Frequently Asked Questions
Q: What primary safety interlock hardware is integrated on the Woodward 5437-054 module?
A: The module features an integrated, hardwired Emergency Stop button to initiate immediate safety shutdown sequences in turbine control circuits.
Q: What signal input voltage and frequency parameters are supported by this NetCon unit?
A: The hardware operates on a 24 VDC input supply voltage and processes field frequency signals up to 3 kHz.
Q: What local visual diagnostics are provided on the module faceplate?
A: Real-time telemetry, diagnostic codes, and channel status updates are displayed via an integrated 24-character LED readout.
Field Installation Guidelines
Mount the compact module chassis securely to the control rack frame or panel rail using all factory-designated mounting apertures.
Wire the primary 24 VDC power feed through a dedicated external fast-acting circuit fuse, confirming correct wire polarity before applying power.
Connect the hardwired Emergency Stop relay outputs to the master trip loop using shielded, oil-resistant industrial cabling.
Ensure signal wiring carrying the 3 kHz frequency feedback is routed through separate wire channels away from high-voltage AC lines to prevent signal interference.
