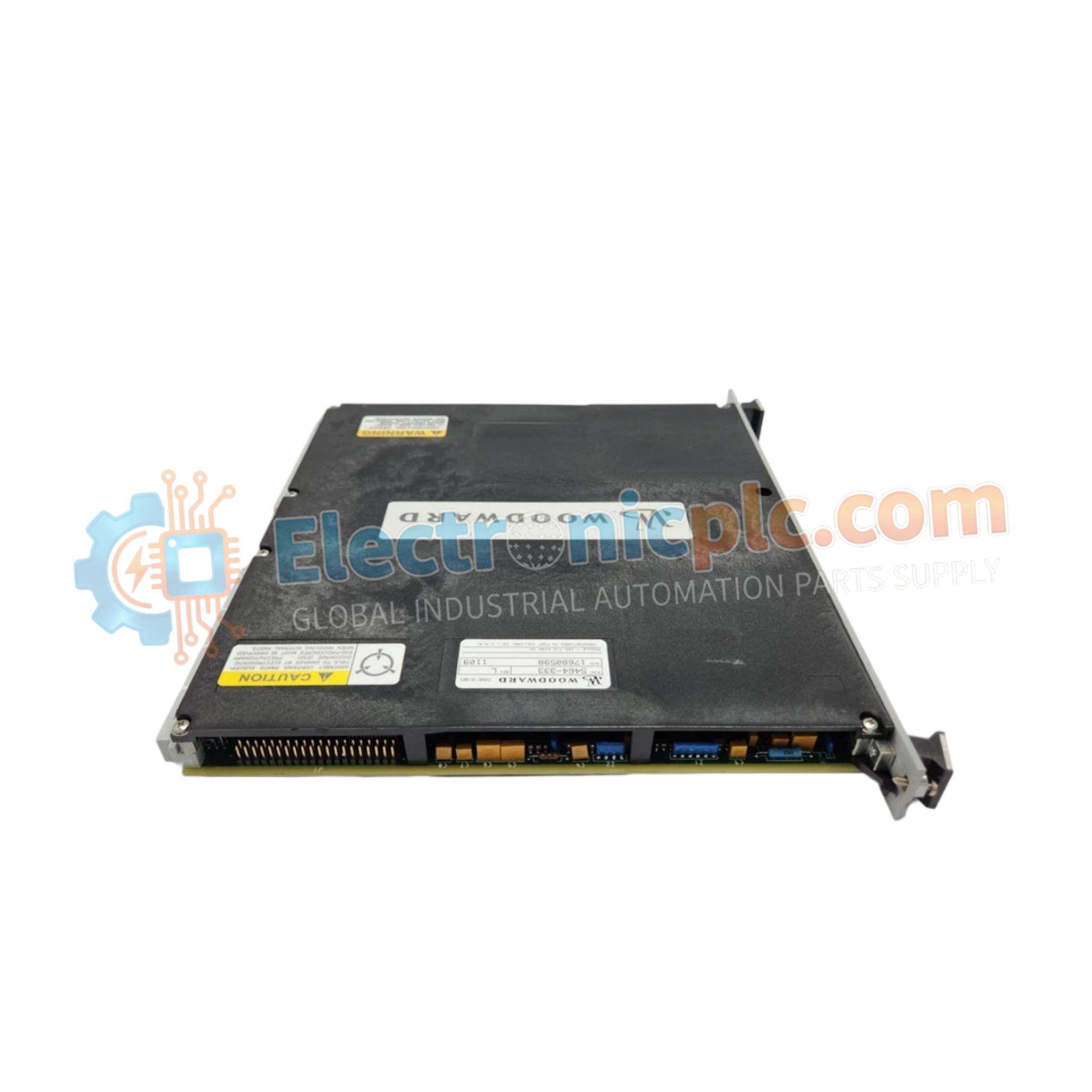

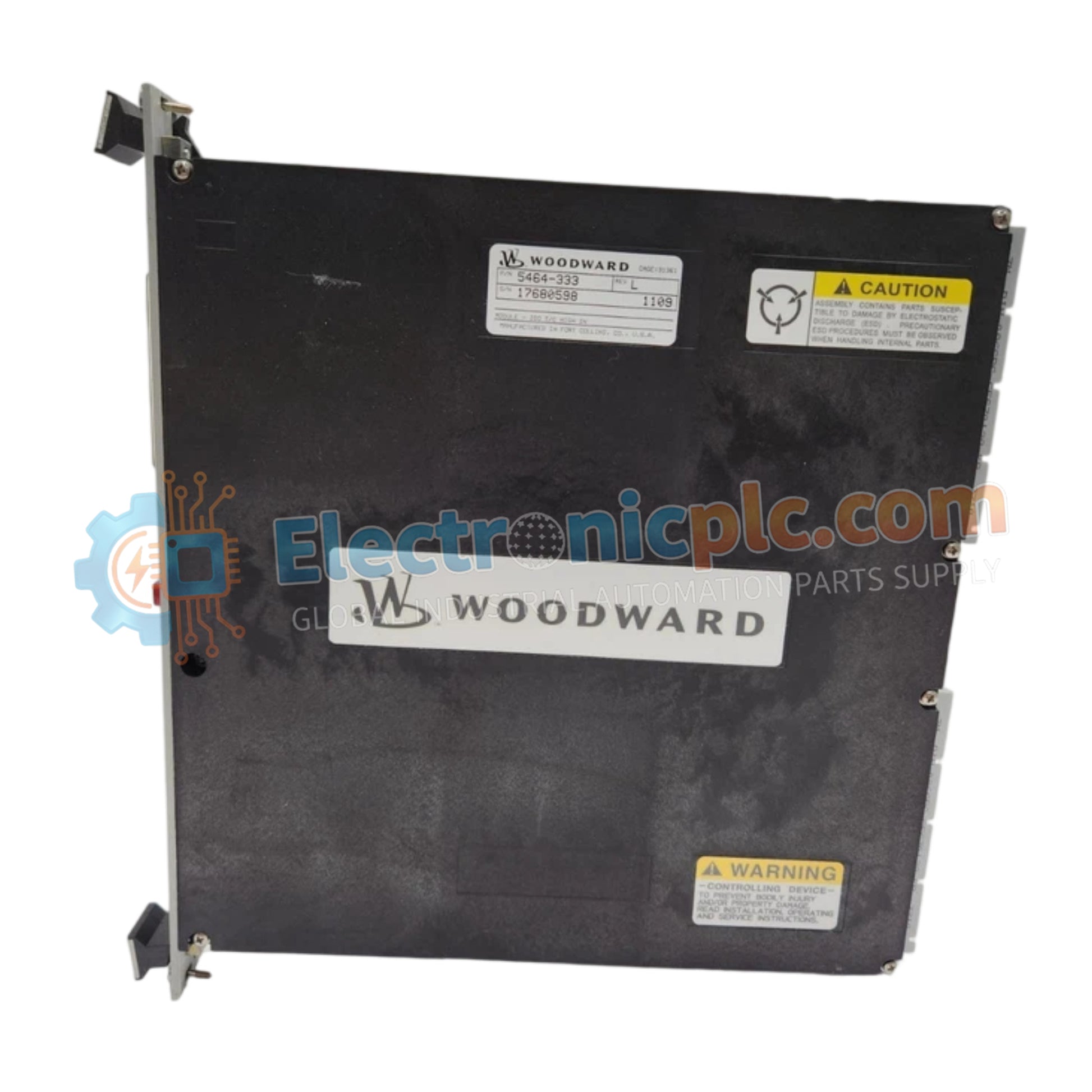

The Woodward 5464-333, also cataloged as the 5464-333 Thermocouple Input Module, operates as a dedicated hardware component for temperature sensor signal acquisition and conditioning within MicroNet control platforms.

Hardware Specifications

Actuator Loop Feedback Response and Thermal Signal Conditioning

The 5463-333 / 5464-333 module conditions high-density millivolt thermocouple inputs to support real-time thermal monitoring across turbine and governor control circuits. The onboard signal processing circuitry manages thermal heat sink dissipation profiles to stabilize cold junction reference points during rapid ambient temperature shifts. By maintaining tight analog-to-digital processing cycles, the hardware provides deterministic input values to maintain accurate actuator loop feedback response in turbine speed and load regulation systems.

Frequently Asked Questions

Q: What physical system architecture is compatible with the 5464-333 module?

A: The module is designed for direct installation into standard Woodward MicroNet chassis backplane slots.

Q: How does the module maintain measurement accuracy under field temperature fluctuations?

A: Internal compensation circuits stabilize cold junction drift across the chassis operating temperature profile to ensure linear millivolt conversion.

Q: Are special grounding considerations required for thermocouple wiring on the 5464-333 card?

A: Yes, all thermocouple lead extension wires must utilize shielded cable grounded at a single point on the chassis earth bar to prevent common-mode noise interference.

Field Installation Guidelines

• Verify that backplane power is disconnected before sliding the 5464-333 module into the designated chassis card slot.
• Run thermocouple field extension cables through dedicated, isolated wireways away from high-current AC motor leads or switching power supplies.
• Secure field wiring shields to the primary enclosure grounding bar using low-impedance grounding clamps.
• Tighten front panel card retention screws to secure the physical connection to the backplane and maintain grounding continuity.
