Woodward 5466-1002 Power Supply Module

Woodward 5466-1002 Power Supply Module

Technical Overview

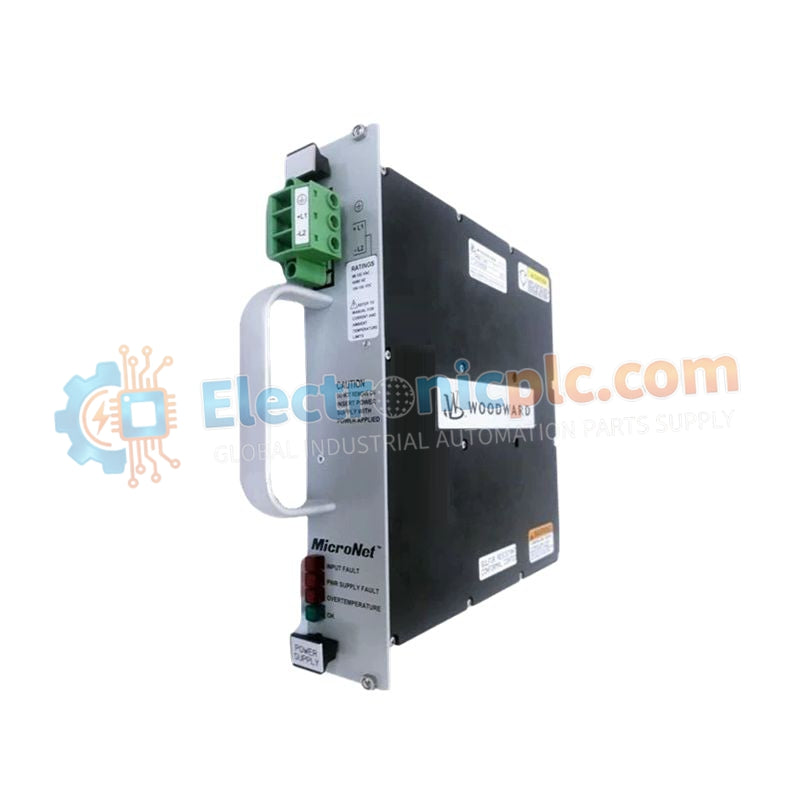

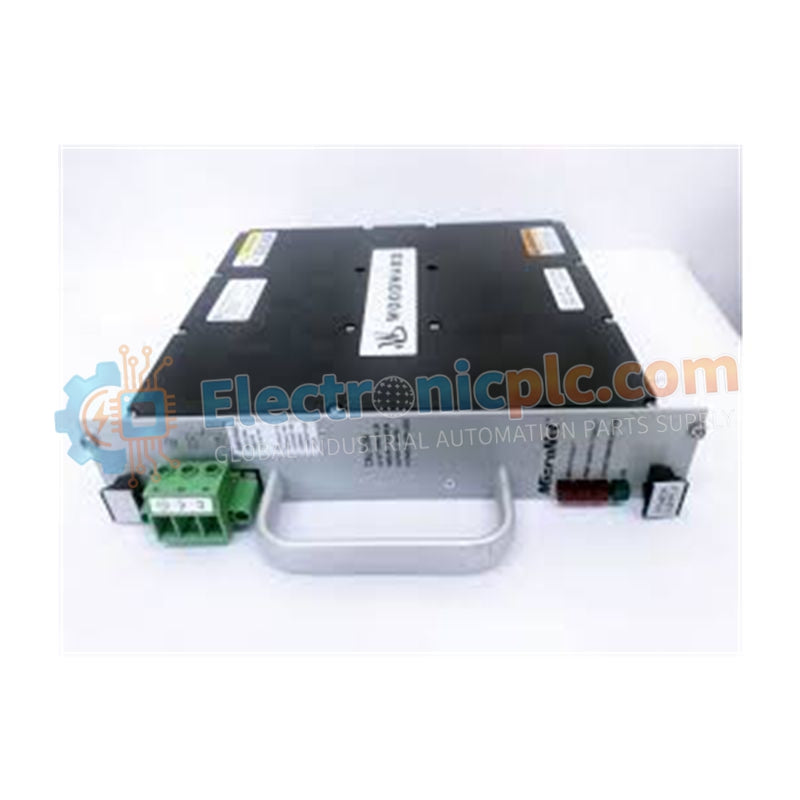

The 5466-1002 is a high-capacity, 2-slot power supply module for the Woodward MicroNet Plus modular control system. It delivers regulated DC power to the chassis backplane, CPU, and I/O modules, supporting mission-critical applications. Designed for high-voltage utility...

24 people are viewing this right now

Availability: Low stock: 99 left

SKU: 5466-1002
Vendor: Woodward
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Technical Overview

The 5466-1002 is a high-capacity, 2-slot power supply module for the Woodward MicroNet Plus modular control system. It delivers regulated DC power to the chassis backplane, CPU, and I/O modules, supporting mission-critical applications. Designed for high-voltage utility sources (220 VAC / 250 VDC), it is often deployed in redundant, hot-standby configurations to ensure uninterrupted operation of turbines, generators, and reciprocating engines.

Detailed Specifications

Item Specification
Model 5466-1002
Control Platform MicroNet Plus Modular Digital Control
Input Voltage Range 180–264 VAC (47–63 Hz) or 180–300 VDC
Slot Occupancy 2-slot width (MicroNet Plus chassis)
Output Regulated DC for backplane, CPU, and I/O modules
Efficiency Optimized for low thermal dissipation in dense racks
Redundancy Support Fully compatible with dual-supply hot-standby operation
Status Monitoring Front-panel LEDs for Power OK and Fault
Circuit Protection Overvoltage, overcurrent, short-circuit protection
Operating Temperature -20°C to +70°C (-4°F to +158°F)
Weight 1.9 kg

Operational Capabilities

  • High-Voltage Operation: Designed to interface directly with 220 VAC or 250 VDC sources.

  • Hot-Swappable Redundancy: Can be replaced without system shutdown when installed alongside a redundant unit.

  • Integrated Protection: Safeguards backplane and modules from electrical faults.

  • System Flexibility: Can operate alongside lower-voltage power supplies for diversified redundancy.

Technical FAQ

Can a 5466-1002 be mixed with other MicroNet Plus supplies?

  • Yes. It can operate alongside lower-voltage modules (e.g., 5466-1000 or 5466-1001) in the same chassis for power diversity.

What distinguishes the 5466-1002 from the 5466-1001?

  • The 5466-1002 supports higher input voltages (220 VAC / 250 VDC), whereas the 1001 supports 110 VAC / 125 VDC.

Does installation require software configuration?

  • No. The module is hardware-based and automatically supplies regulated power once properly seated in the chassis.
