The Woodward 8237-1597, also cataloged as the 8237-1597 Overspeed Protection System, operates as a dedicated hardware component for high-speed shaft rotation monitoring and emergency safety shutdown execution within prime mover turbine...
Availability: Low stock: 6 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Woodward 8237-1597, also cataloged as the 8237-1597 Overspeed Protection System, operates as a dedicated hardware component for high-speed shaft rotation monitoring and emergency safety shutdown execution within prime mover turbine safety networks. The device processes 3 independent MPU speed sensor inputs (100-32,000 Hz) using a Triple Modular Redundant (TMR) 2-out-of-3 voting architecture to drive voted shutdown relays, analog speed outputs, and serial Modbus communications housed inside an IP56 rated enclosure.

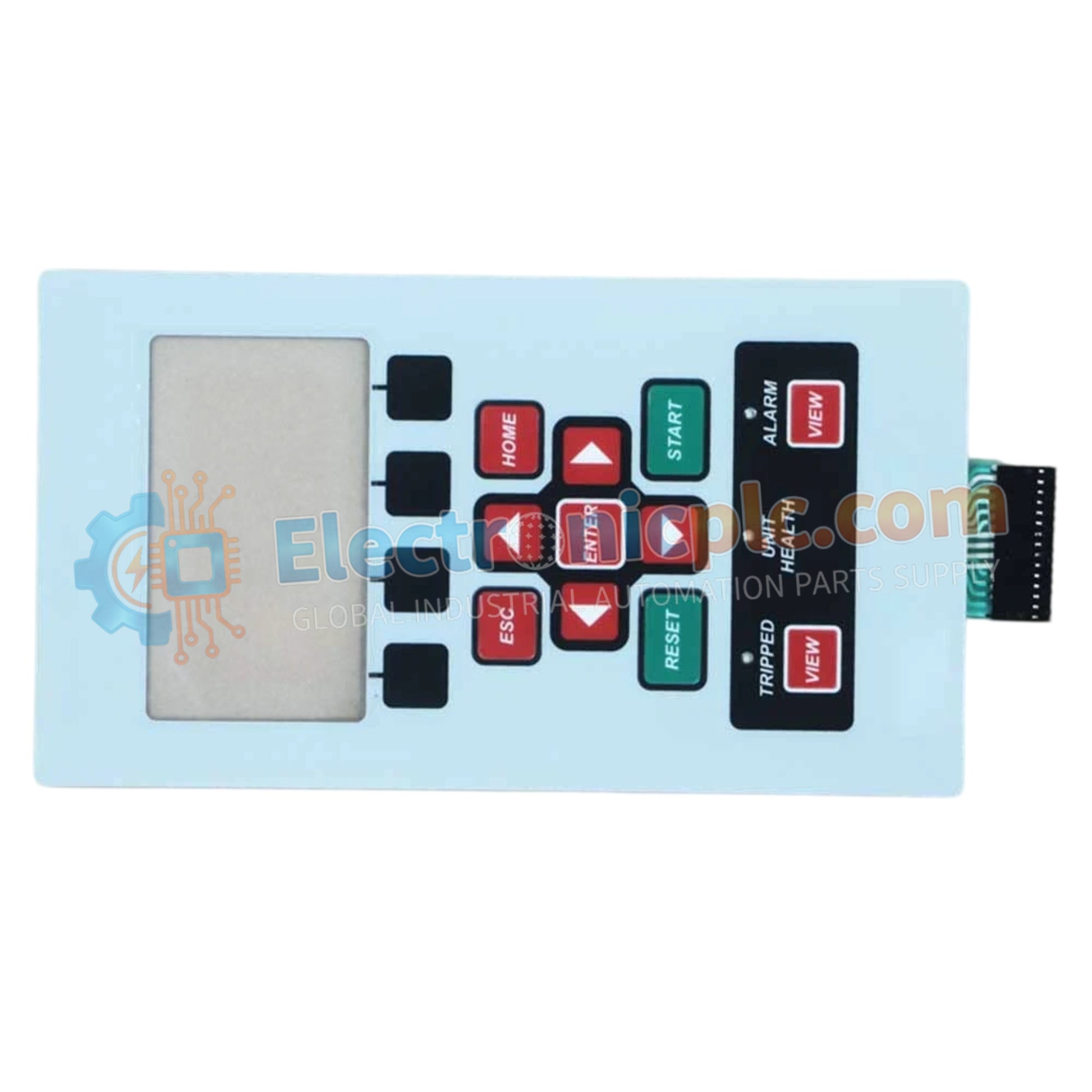

| Parameter | Specification |
|---|---|
| Model | 8237-1597 |
| Brand | Woodward |
| Origin | USA |
| Weight | 1kg |
| Dimensions | 13 x 19.1 x 6 inches (H x W x D) |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | 30 W per module (90 W total) |
| Input Power (High) | 100-150 VDC @ 30 W per module |
| Input Power (Low) | 18-32 VDC @ 30 W per module |
| Speed Inputs | 3 x MPU (100-32,000 Hz, 1-35 Vrms) |
| Analog Outputs | 3 x 4-20 mA (speed readout) |
| Trip Relays | 2 x 2-out-of-3 voted shutdown relays |
| Alarm Relays | 3 x individual alarm relays (2 A @ 24 VDC) |
| Serial Interface | 3 x RS-232/422/485 Modbus ports |
| Human Interface | 3 x 4.2 inch LCDs with 15-key keypads |
| Enclosure Rating | IP56 (dust and water resistant) |
The ProTech-GII TMR architecture evaluates magnetic pickup frequency profiles across three isolated channel boards to ensure fast actuator loop feedback response during dynamic overspeed transients. Integrated 2-out-of-3 hardware voting logic processes trip conditions independently on each module, executing voted shutdown relay state transitions within 12 ms of a validated overspeed threshold breach. This high-speed trip response immediately de-energizes main trip solenoids and stop valves, preventing mechanical overspeed destruction while suppressing nuisance trips caused by single-channel sensor faults.
Q: How does the Triple Modular Redundant (TMR) 2-out-of-3 voting architecture prevent false trips?
A: Each of the three internal processing modules operates with independent power inputs, CPU logic, and speed sensor processing; a trip command requires two out of the three modules to detect an overspeed condition simultaneously before the output trip relays de-energize.
Q: Can an individual module module be configured or tested online without tripping the operating turbine?
A: Yes, individual modules can be placed into test mode using their dedicated front panel 4.2 inch LCD and 15-key keypad, allowing online speed signal simulation and relay testing while the remaining two modules maintain 1-out-of-2 active system protection.
Q: What are the dual input power supply specifications supported by the chassis?
A: The chassis accommodates high-voltage DC input rails (100-150 VDC) and low-voltage DC input rails (18-32 VDC) at 30 W per module, enabling redundant power wiring from separate station battery banks.
