Description

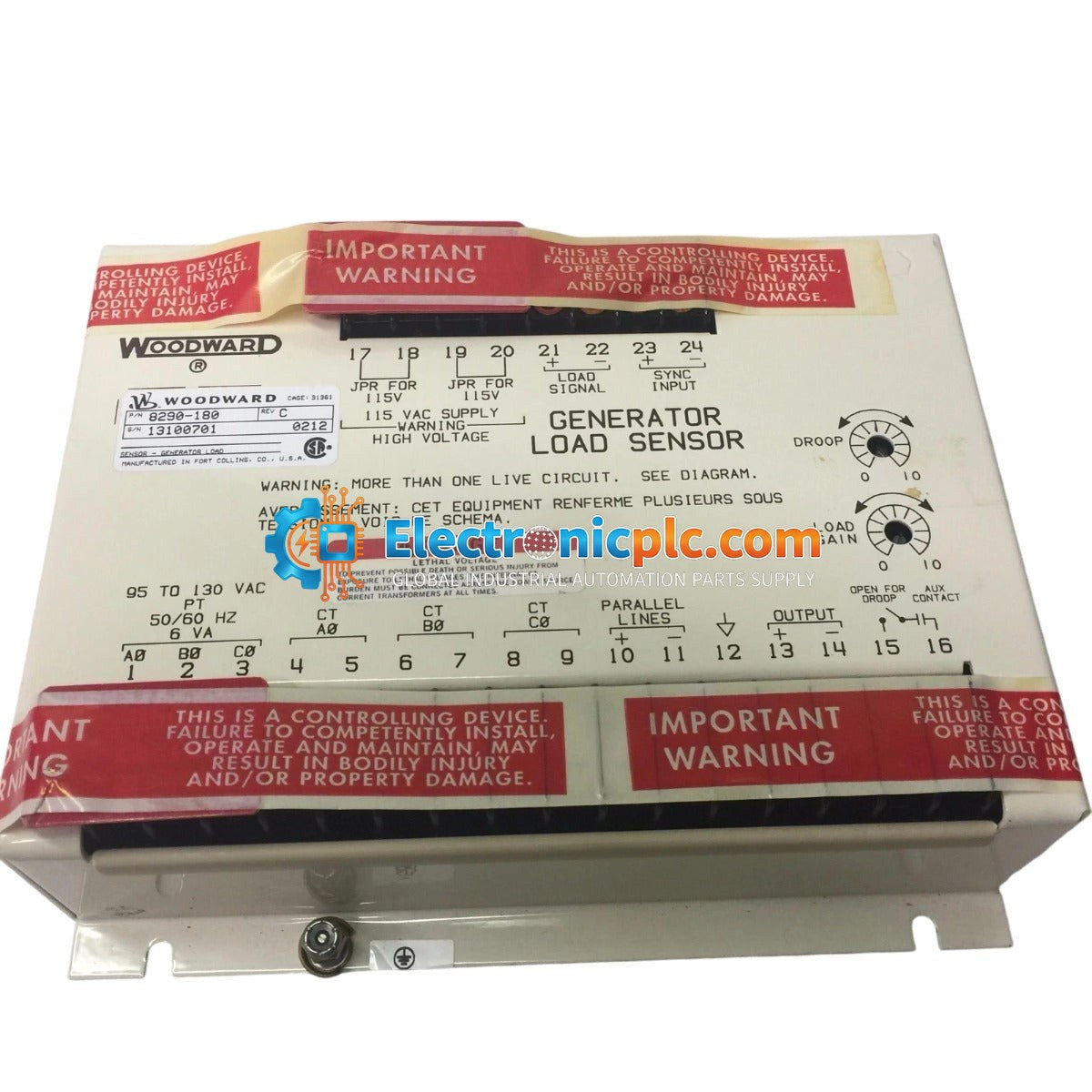

The Woodward 8290-180 is a high-precision load sensing unit engineered for advanced power management and generator control systems. This module provides critical real-time measurement of generator load, enabling precise proportional load sharing and speed control synchronization. It is widely implemented in complex power generation facilities, offshore oil platforms, and large-scale mining operations. By accurately detecting electrical load changes and feeding data to the governor, the 8290-180 ensures system stability and prevents frequency fluctuations, maintaining grid integrity and reducing mechanical stress on prime movers.

Features

• Precise Load Sensing: Converts generator voltage and current transformer (CT) inputs into a proportional DC signal for speed control and load sharing modules.
• Calibration Flexibility: Features internal potentiometers for fine-tuning load gain and base load settings to match specific engine-generator characteristics.
• Robust Design: Solid-state architecture housed in a ruggedized enclosure, offering high immunity to electromagnetic interference (EMI) and mechanical vibrations.
• Wide Thermal Range: Engineered for reliable operation in harsh industrial environments from -40 to +70 deg C.

Applications

The 8290-180 is primarily used in:

• Generator paralleling and load sharing systems.
• Power management control cubicles.
• Marine and offshore power generation.
• Industrial prime mover speed control applications.

Technical Specifications

Installation Guidelines

• Mounting: Designed for surface mounting within industrial control cubicles. Ensure the mounting surface is flat and free from excessive mechanical shock.
• Wiring: Use shielded cabling for signal inputs to minimize electromagnetic interference. Ensure all connections are secure and follow the specific wiring diagram provided in the original Woodward technical manual.
• Safety: Always isolate power to the generator control system before installing or removing the module to prevent electrical shock or damage to the unit.
• Environment: While the unit is ruggedized, avoid mounting in locations with extreme humidity or direct exposure to corrosive elements.

FAQ

What is the primary function of the Woodward 8290-180?

The 8290-180 acts as a load sensor that monitors generator electrical output and provides a proportional DC signal to speed control governors, facilitating effective load sharing between paralleled generators.

Can the 8290-180 be calibrated?

Yes, the unit includes internal potentiometers that allow field engineers to adjust load gain and base load settings to optimize the response of the generator system.
