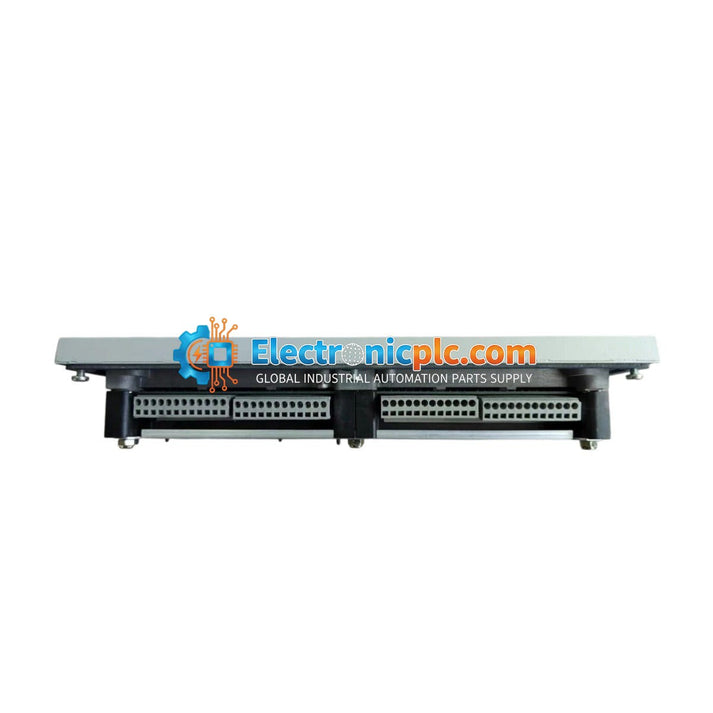

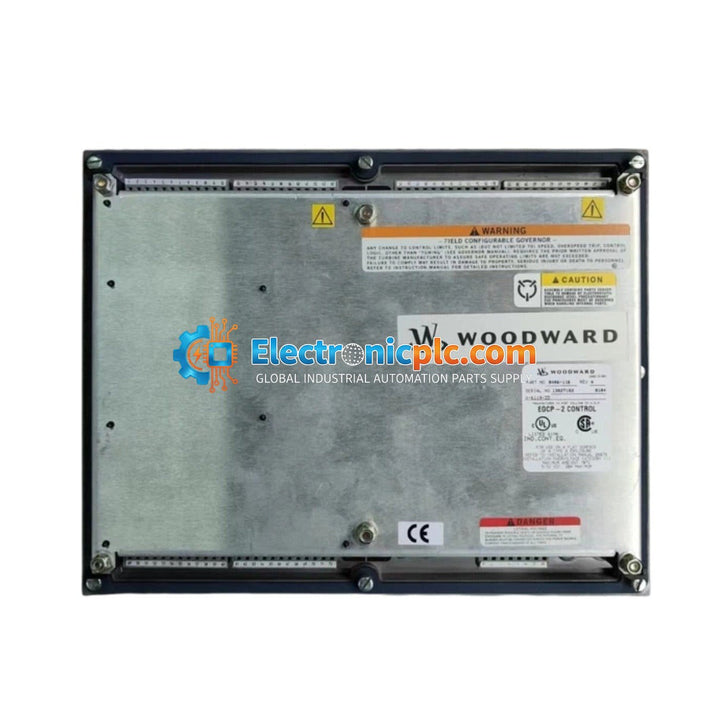

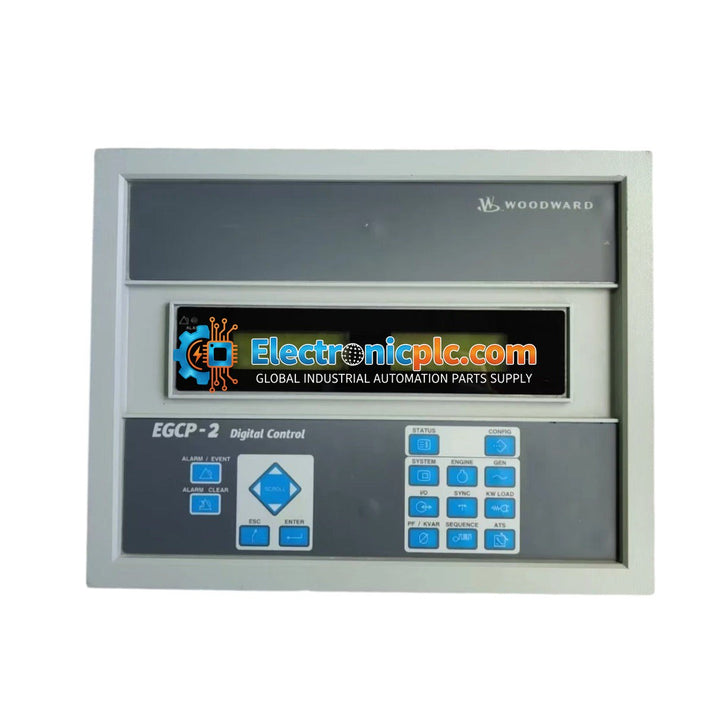

Woodward 8406-116 Digital Control Operator Interface Module

Woodward 8406-116 Digital Control Operator Interface Module

Description

The Woodward 8406-116 is a high-performance Digital Control Operator Interface Module (OIM) engineered to provide real-time visualization and parameter adjustment for industrial governor systems. Serving as the primary human-machine gateway,...

22 people are viewing this right now

Availability: Low stock: 1 left

SKU: 8406-116
Vendor: Woodward
Category: Operator Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Woodward 8406-116 is a high-performance Digital Control Operator Interface Module (OIM) engineered to provide real-time visualization and parameter adjustment for industrial governor systems. Serving as the primary human-machine gateway, this module allows engineers to monitor engine dynamics and turbine states with precision. It is widely utilized in thermal power stations, oil refineries, and large-scale marine propulsion control systems for local system tuning and fault diagnostics.

Features

  • Ruggedized industrial display and tactile keypad for high-vibration and EMI-prone environments.
  • Dedicated serial communication link for high-speed data refresh rates.
  • Multi-level access security to protect critical setpoints from unauthorized modification.
  • Optimized low power consumption circuitry.
  • High-contrast display visibility suitable for various ambient lighting conditions.

Applications

The 8406-116 is designed for critical control environments, including:

  • Power generation and thermal power stations.
  • Oil and gas refinery control systems.
  • Marine propulsion and engine management.
  • Industrial turbine control and monitoring.

Technical Specifications

Model 8406-116
Brand Woodward
Module Type Operator Interface Module (OIM)
Input Voltage 24 VDC (Typical)
Operating Temperature -20 to 65 deg C

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the module.
  • Mount the unit in an enclosure that provides adequate protection against dust and moisture.
  • Route communication cables away from high-voltage power lines to minimize EMI interference.
  • Verify that the 24 VDC power supply is stable and properly grounded according to site electrical standards.
  • Use appropriate ESD precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the Woodward 8406-116?

The 8406-116 serves as an operator interface module for Woodward governor systems, allowing for real-time monitoring, parameter adjustment, and fault diagnostics of turbine or engine control systems.

Can this module be used in marine environments?

Yes, the 8406-116 is designed for rugged industrial use and is commonly deployed in marine propulsion control systems where vibration and environmental durability are required.
