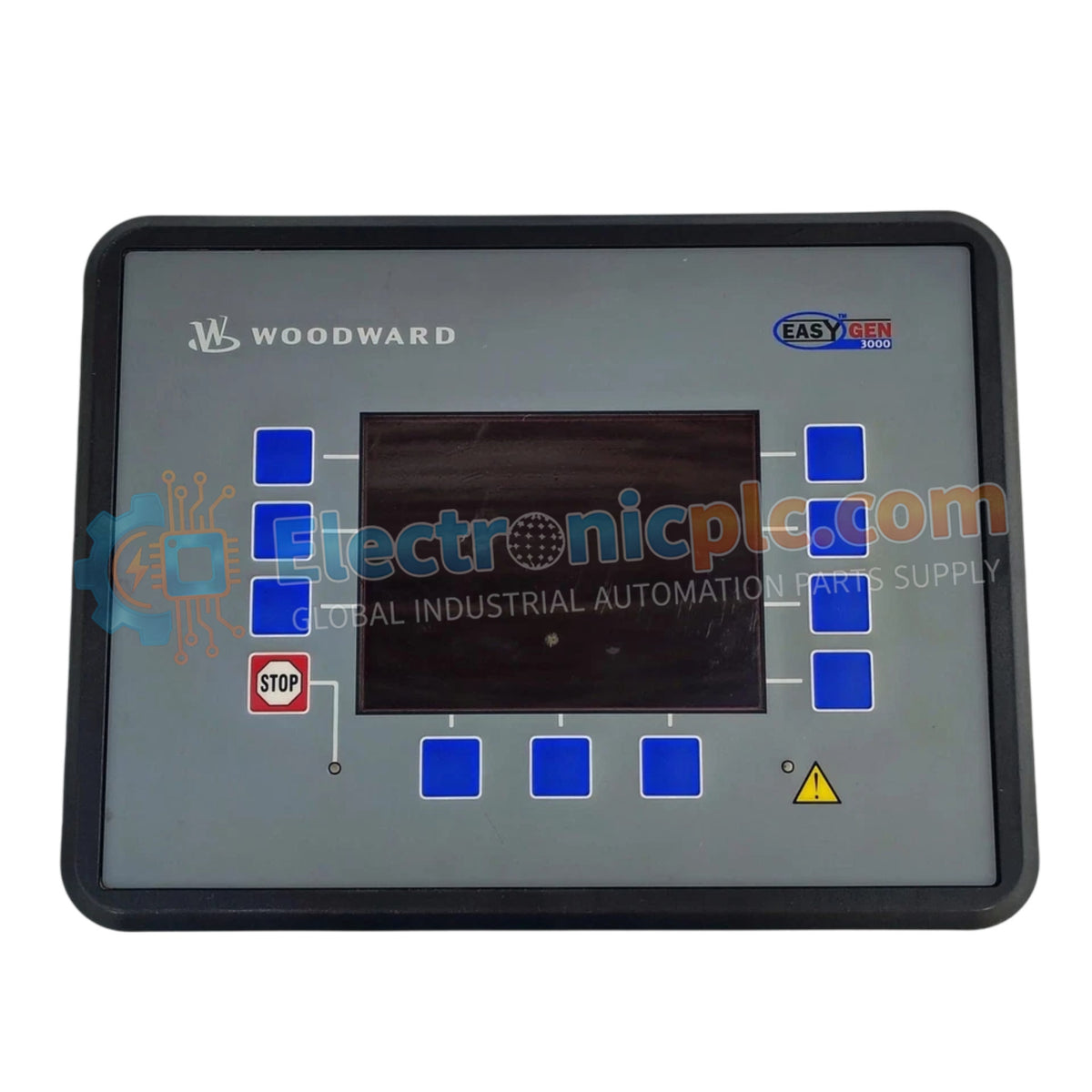

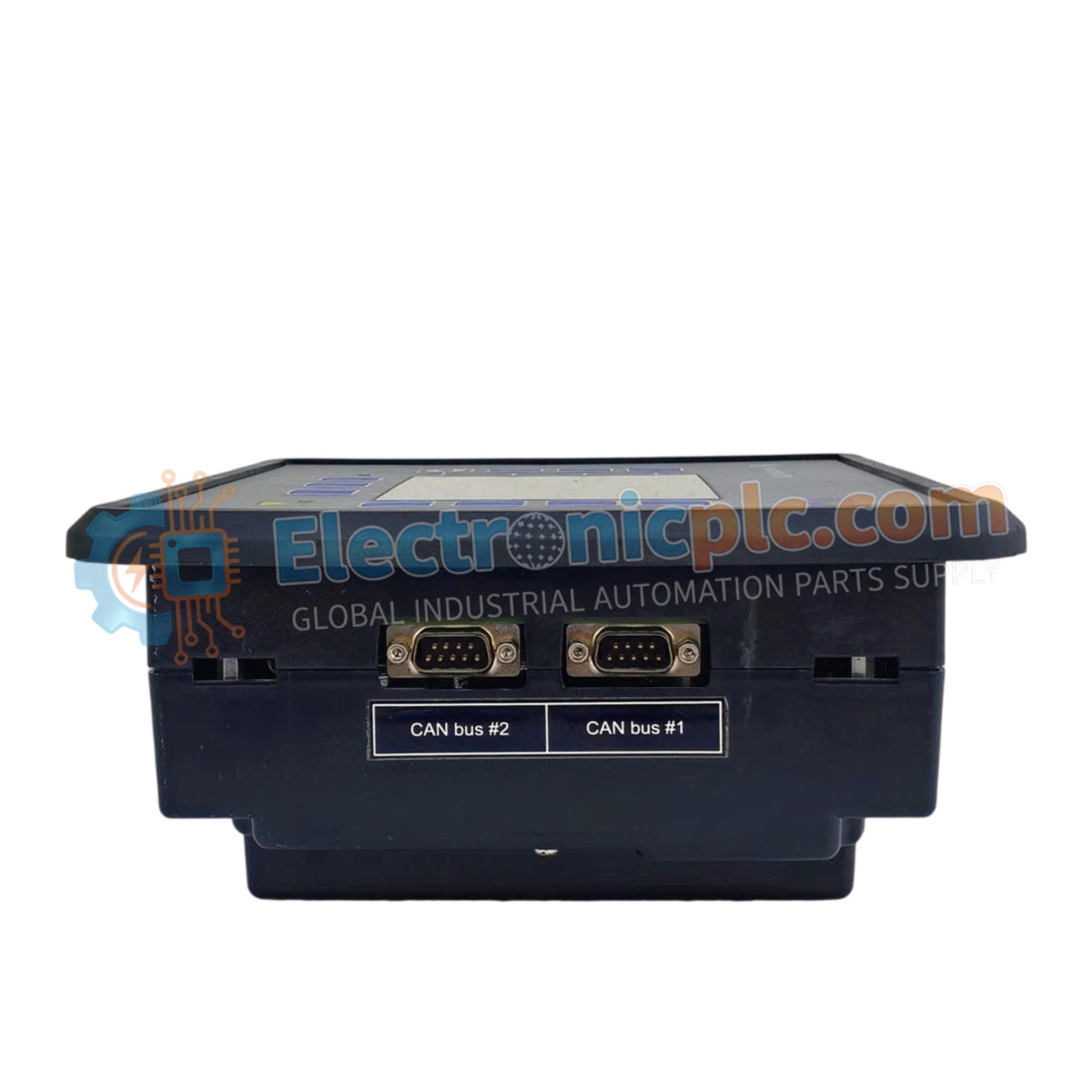

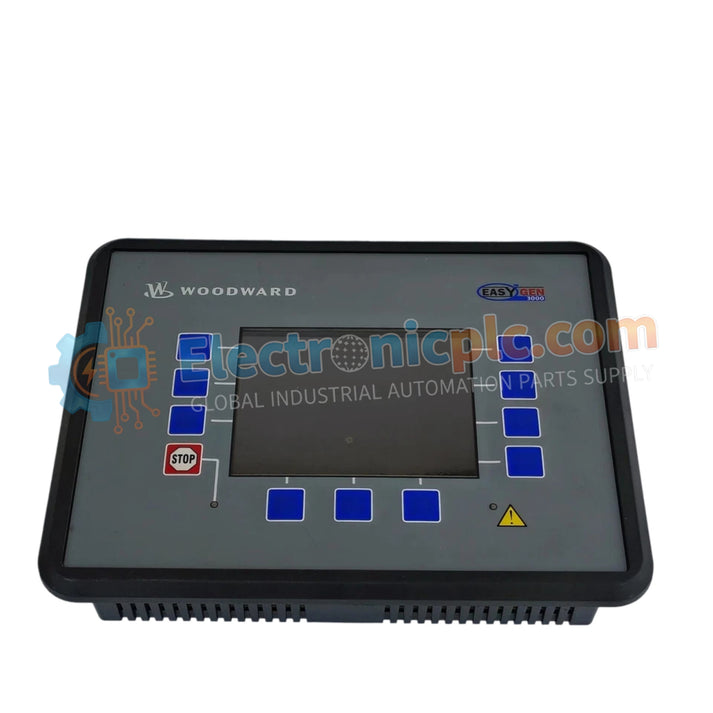

The Woodward 8440-2050A, also cataloged as the 8440-2050A Genset Controller, operates as a dedicated hardware component for generator sequencing, engine parameter monitoring, and breaker control within easYgen generator control platforms.

Hardware Specifications

Thermal Heat Sink Dissipation & Actuator Loop Feedback

Internal DC-to-DC power conversion and signal processing circuits generate operational thermal load conducted across the metallic baseplate. Efficient thermal heat sink dissipation prevents thermal drift during continuous monitoring operations inside control cabinets. Processing analog and discrete inputs in real time, the controller outputs precise speed and voltage bias signals to speed governors and automatic voltage regulators (AVRs), maintaining rapid actuator loop feedback response for smooth synchronization and stable generator operation under varying load conditions.

Frequently Asked Questions

• Q: How should magnetic pickup speed sensor wiring be installed to prevent signal interference?
• A: Magnetic pickup connections must use twisted-shielded pair cable with the shield drain wire terminated exclusively at a single chassis ground point to prevent induced electromagnetic noise.
• Q: What cable routing practices are required for communication and sensing lines?
• A: Low-voltage DC sensing inputs and CANbus communication lines must be routed in separate grounded channels isolated from high-current AC power leads and inductive switching circuits.
• Q: What mounting conditions optimize thermal dissipation and mechanical stability?
• A: Secure the controller vertically on a flat, unpainted metal mounting surface or panel cutout, ensuring adequate surrounding space for passive convection airflow.

Field Installation Guidelines

• Secure the module to the panel mounting surface using all specified mounting hardware to withstand cabinet vibration.
• Connect the central chassis grounding terminal directly to the main switchgear earth grounding bar using a low-impedance ground braid.
• Route AC voltage sensing inputs and CT secondary wiring through dedicated, grounded conduits away from auxiliary DC power lines.
• Verify potential transformer primary ratios, CT secondary polarity, and DC power supply connections before energizing the controller.
